Mracking Warehouse Storage Drawer Type Mould Racks Heavy Duty Mold Racks for Warehouse Storage Mold Racks for Sale
Product Description
Product Description

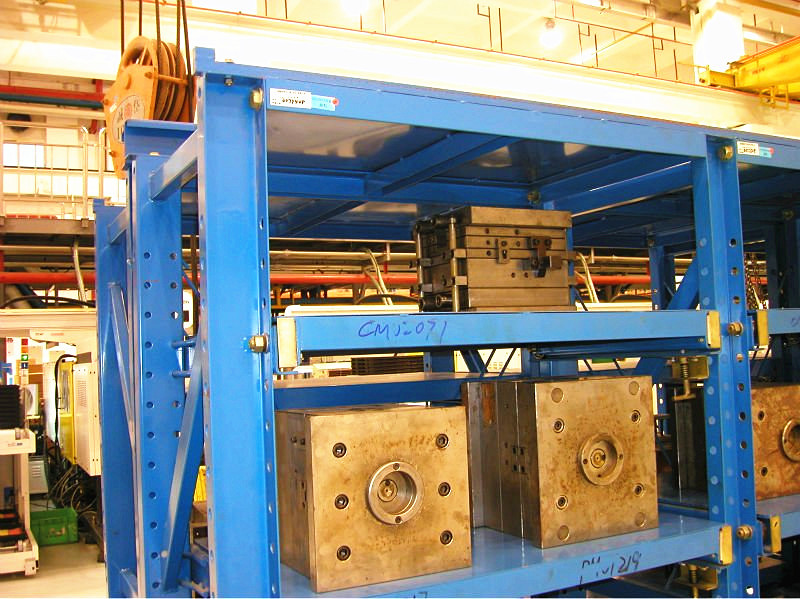

Mold rack mainly storage various kinds molds, according to loading capacity be divided into drawer type mold rack and open-typemold rack. The top of mold rack can be equipped with crane and manual hoist, mold racks of sling.

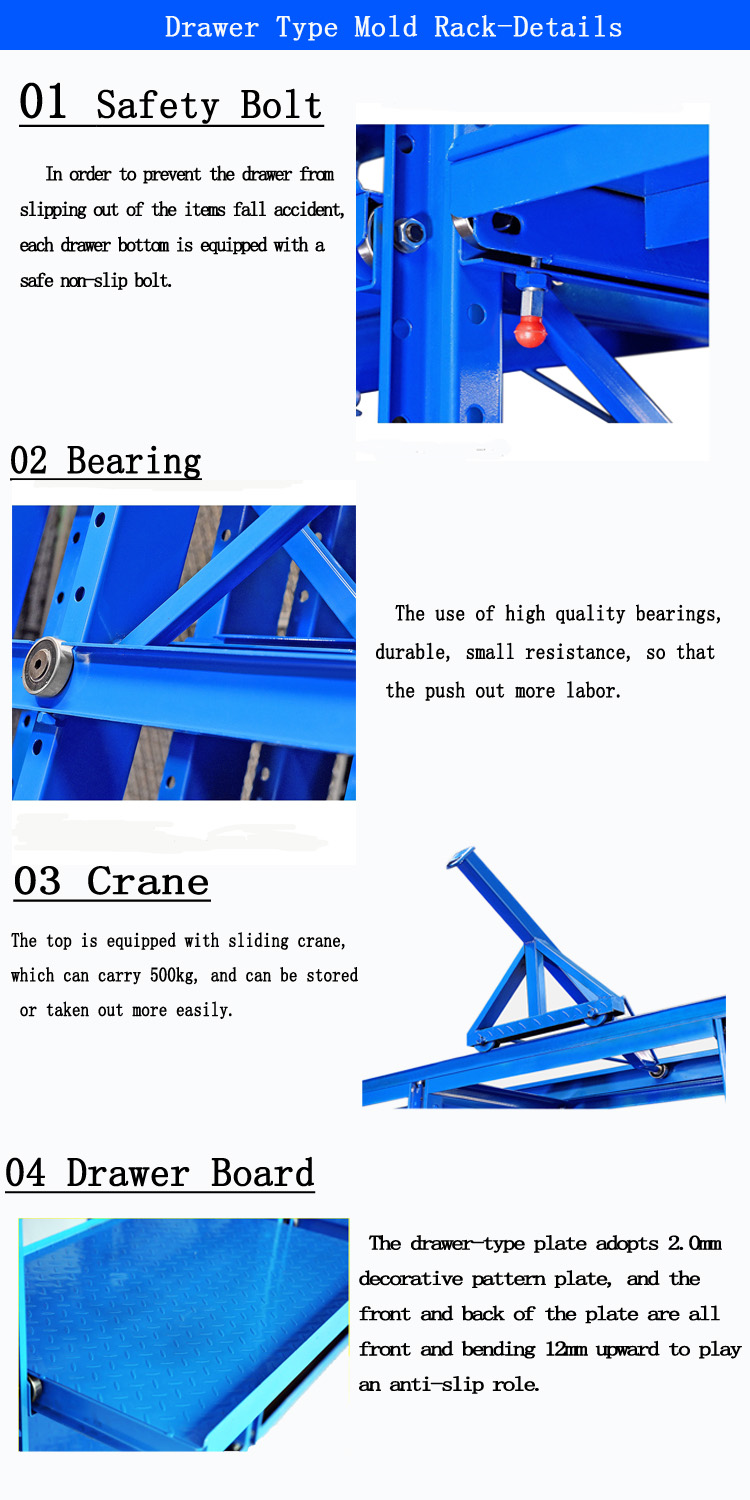

Feature:
- 1. The structure is solid and loading and unloading, is easy to transportation;
- 2. Suitable for small and medium of molds;

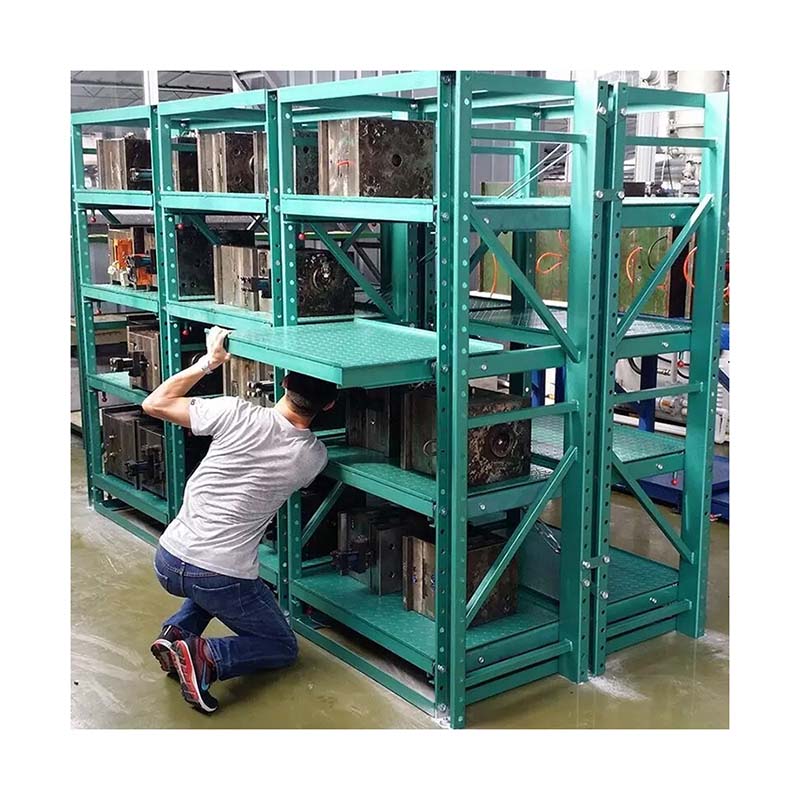

- 3. The drawer board can draw out, easy to removal of molds;
- 4. Can be installed crane and hoist.
Material:

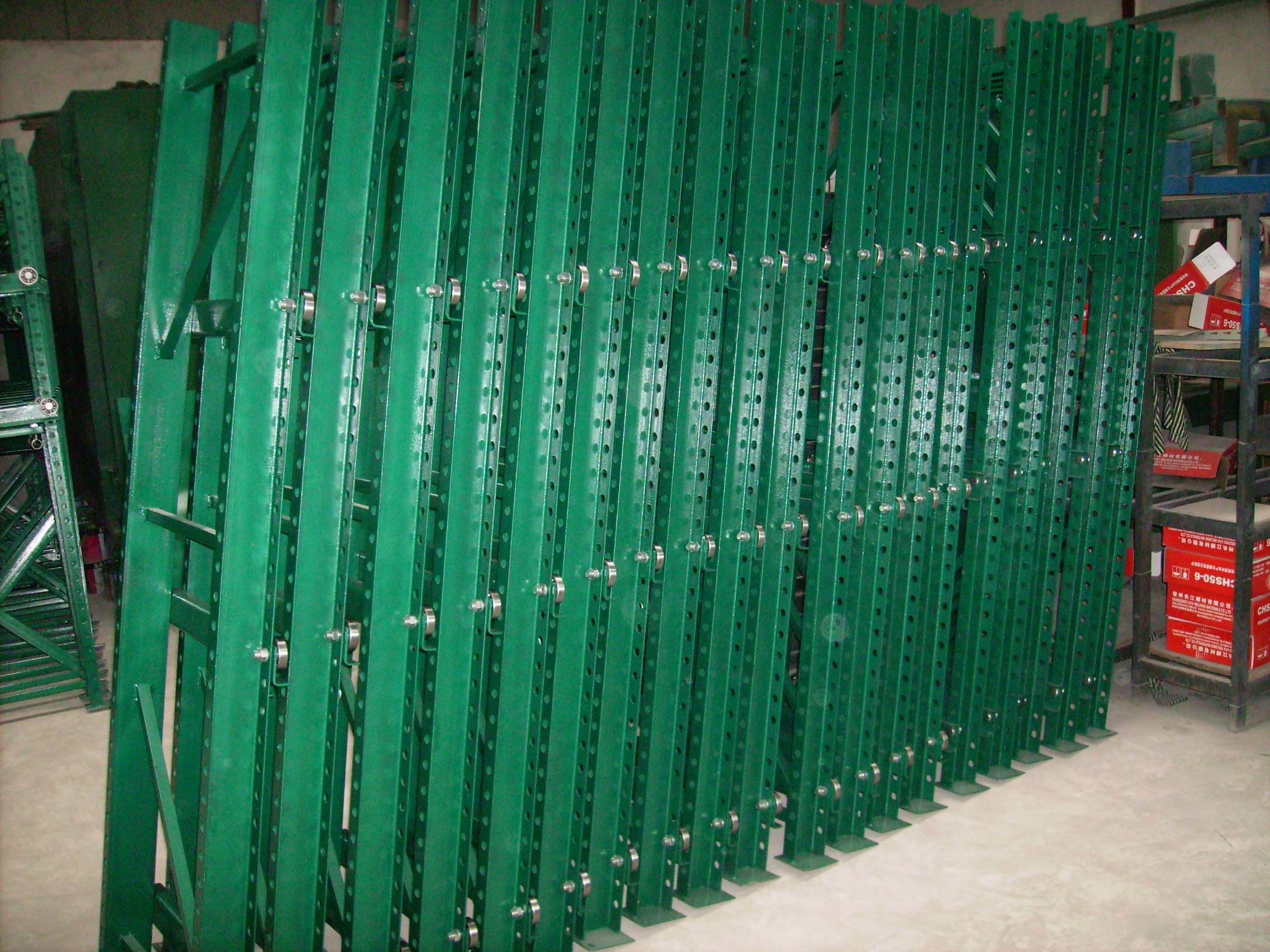

- 1. Column: 10# channel steel, diagnal bracing: 25*25 square meres;
- 2. Backing plate: 50*25 angle iron and 2.0mm iron plate;
- 3. Chute: 4.0mm iron plate;
- 4. Bearing: 6403;
- 5. Bearing capacity: 800-1000kg/drawer.

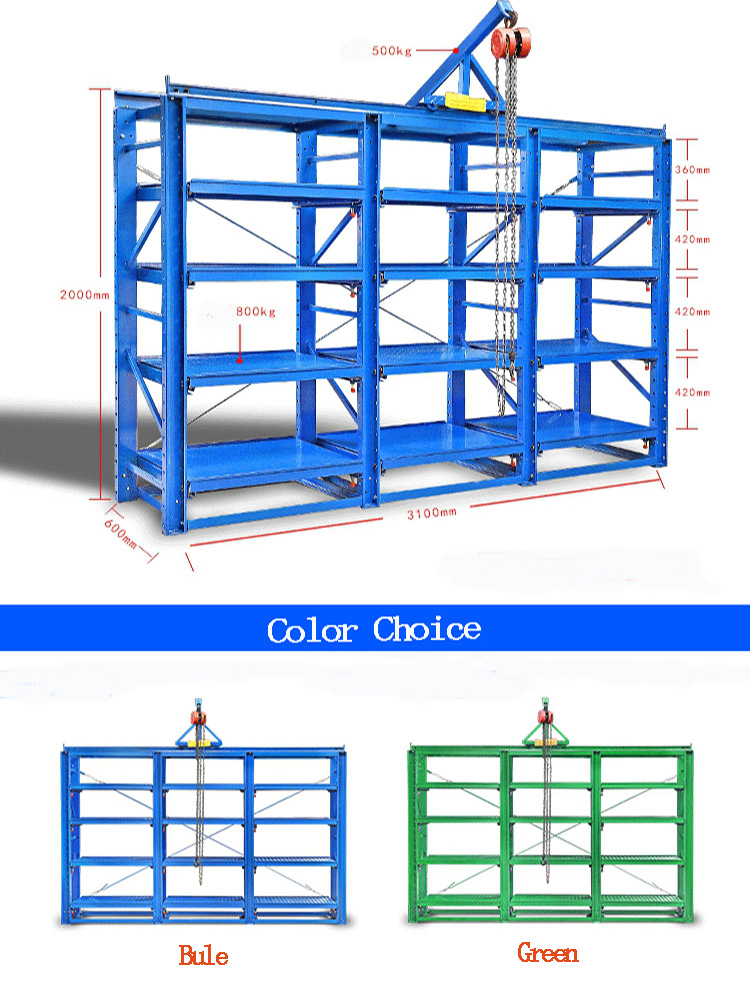

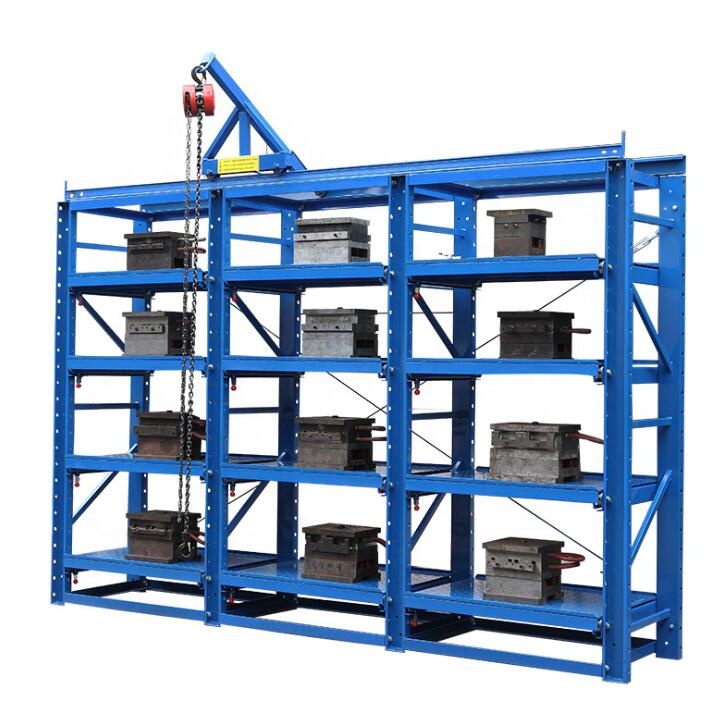

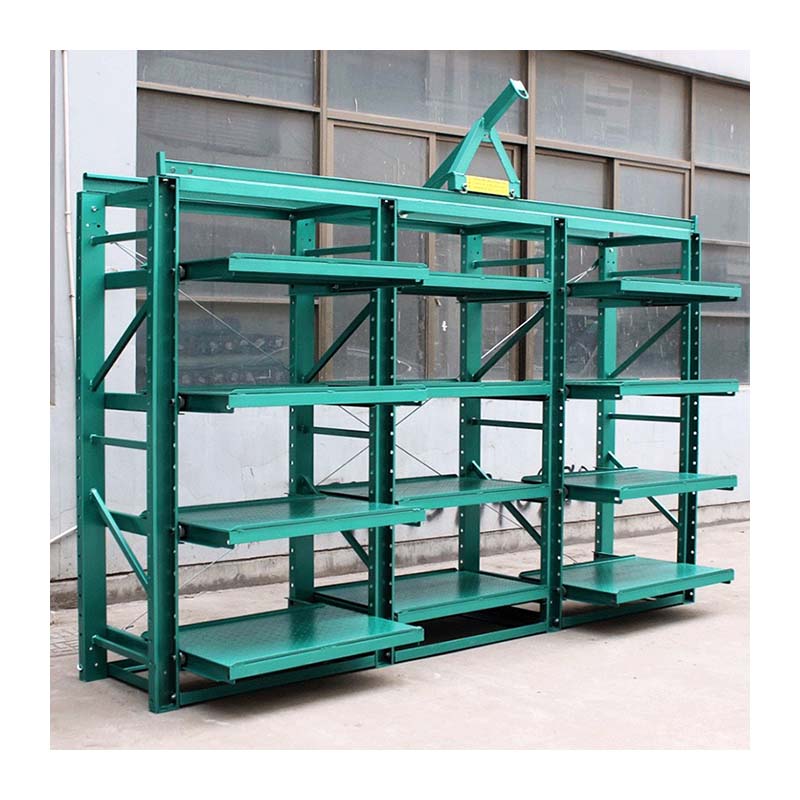

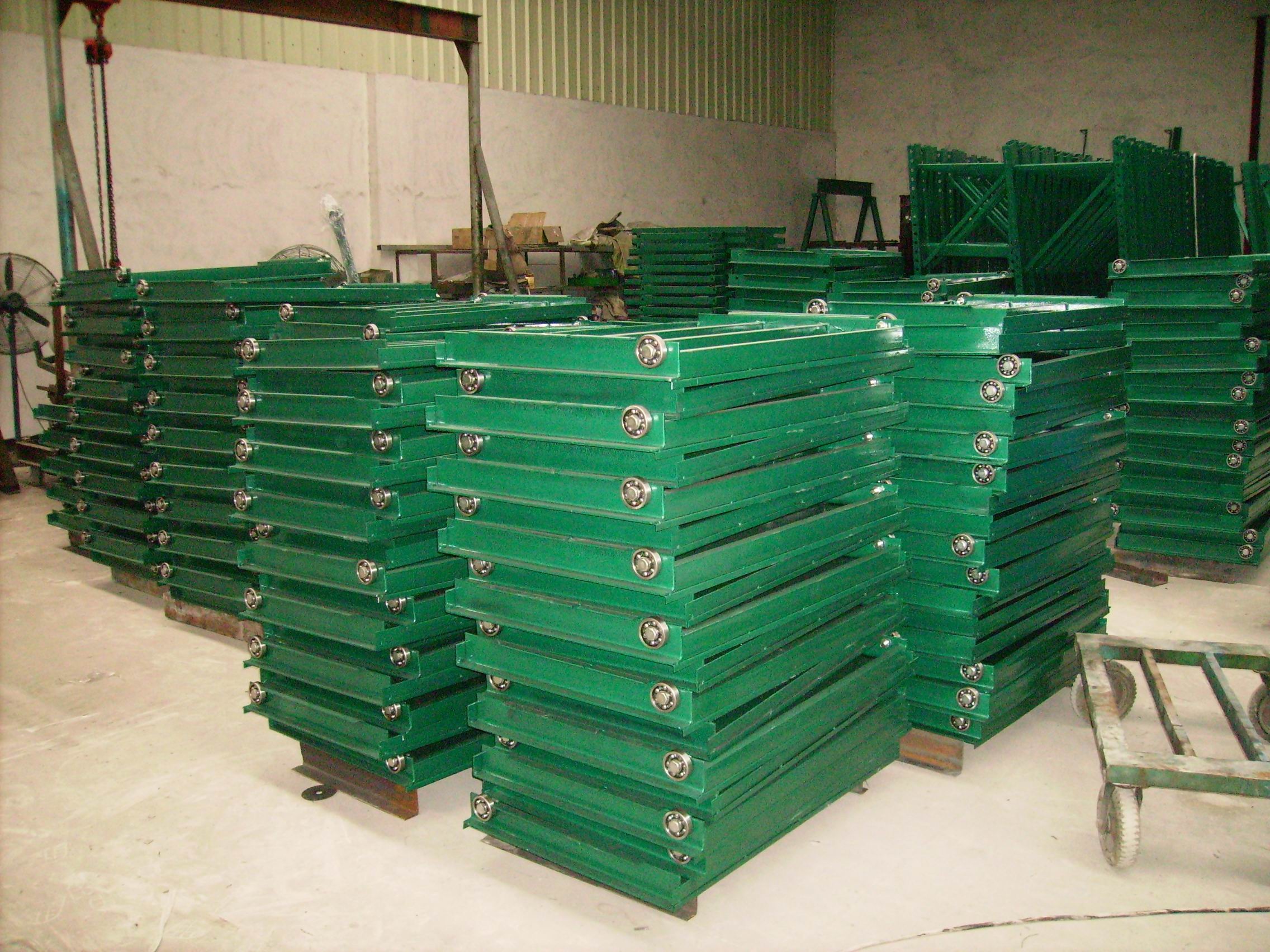

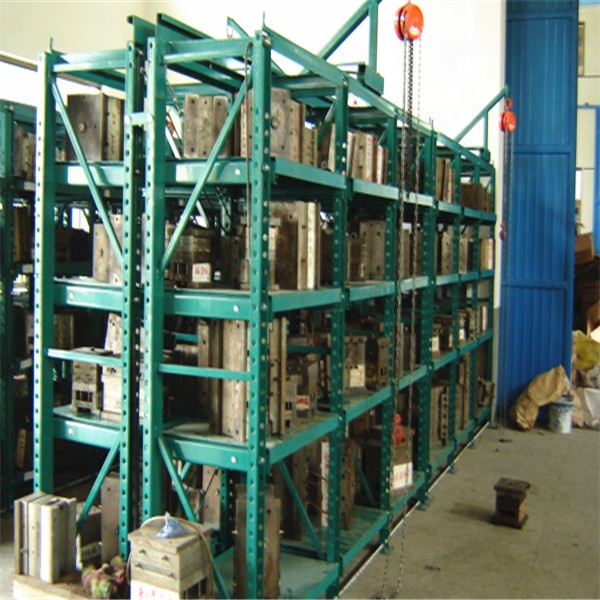

Drawer Type Mold Rack
| Product | Drawer Type Mould Rack |
|---|---|
| Material | High-Quality Channel Steel |
| Standard size | L3100*D600*H2000mm |
| Color | Green; Blue. Can be customized. |
| Loading Capacity | 1000KG/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble. |
| Standards Size | Layer | Loading Capacity | Bearing | Upright(mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L3100*D600*H2000 | 4 | 1000kg/drawer | Model 6403 | 100*40*4 | 2.0 |

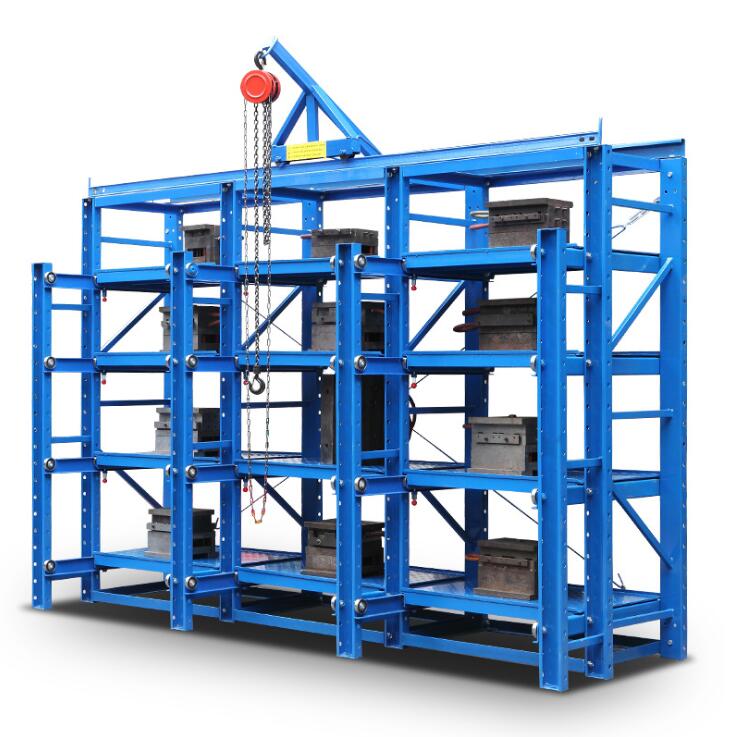

Full Open Mould Rack:
| Product | Full Open Mould Rack |
|---|---|
| Material | High Quality Channel Steel |
| Standard Size | L3100*D800+400*H2000mm |
| Color | Green; Blue; Can be customized. |
| Loading Capacity | 1000kg/drawer |
| Surface Treatment | Powder coated |
| Packing | Air bubble |
| Standard Size(mm) | Layer | Loading Capacity | Bearing | Upright (mm) | Thickness of Board(mm) |
|---|---|---|---|---|---|
| L3100*D800+400*H2000 | 4 | 2000kg/drawer | Model 6403 | 100*40*4 | 2.0 |
Product Overviews
Hot Sale
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
FAQ
Q1: Are you manufacture or trading company?
A: We are a professional racking manufacturer in Dongguan, Guangdong.
Q2: What's the material of rack?
A: Our material is Q235B cold rolled steel.
Q3: What is delivery time and payment terms?
A: Less than 15 workdays in general. It also depends on the order quantity and shelving design. Terms of payment: 30% T/T down payment and 70% T/T before delivery.
Q4: How can I get a quick quotation on my racking project?
A: For a quick quotation, please let us know the following information:
- 1). The size of rack: Length* Depth*Height.
- 2). Layers per set.
- 3). Load capacity per beam layer.
- 4). Racking quantity.
Q5: Are samples available?
A: We accept to send you free samples with freight collect.
Q6: What is the manner of packaging and quality control?
A: In general, racks are packed by air bubble film. Other packing like wooden cases are available to customers' requirement. Quality is priority; we have ISO 9001 2001 certifications.
