Custom Heavy-Duty Beams Rated Up to 4,500 kg Per Tier
From Standard Wide Aisle to Very Narrow Aisle (VNA) & AMR Automation
Selective pallet racking remains the universal benchmark for fast-moving logistics operations requiring unhindered 100% pallet access. Understanding the exact mechanical boundaries between standard wide aisle, narrow aisle, and double deep variants prevents costly floor-capacity mismatch.
Formed from single-strip cold-rolled steel coils with a 50mm, 75mm, or 76.2mm pitch. Multiple bends create stiffening ribs that disperse downward compressive forces evenly across concrete floor footings, resisting torsional twisting during accidental impact.
Manufactured by seam-welding two interlocking C-sections to achieve exceptional section modulus and resistance to buckling. Engineered strictly to limit deflection under total permissible working load to below L/200, protecting beam end connectors from premature fatigue.
Beams hook securely into upright teardrop or diamond punching through high-tensile 3-claw or 4-claw connectors. Heavy-duty spring safety pins lock each connection point automatically, preventing accidental dislodgement if an operator's forklift mast snags the beam during extraction.
Manufactured by Guangzhou Heda Shelves Co., Ltd. (Custom Dimensions Available)
| Component Parameter | Industrial Grade Specification |
|---|---|
| Upright Column Depths | 800mm, 900mm, 1000mm, 1100mm, 1200mm, Up to 1500mm |
| Frame Heights (Single Piece) | 2,000mm to 12,000mm (Up to 24m with precision splice joints) |
| Clear Beam Spans | 2,300mm (2 pallets), 2,700mm (Euro pallets), 3,300mm, 3,900mm |
| Beam Section Heights | 80mm, 100mm, 120mm, 140mm, 160mm (Box or Step configurations) |
| Max Level Capacity | 1,000 kg to 4,500 kg per pair of beams (Uniformly Distributed Load) |
| Steel Mechanical Grade | Certified Q235B or Q355B Structural Carbon Steel (Yield ~355 MPa) |
| Surface Finish Standard | Pickling + Phosphating + 70μm Electrostatic Epoxy-Polyester Powder |
| Forklift Aisle Clearances | Standard Counterbalance: 3.2m–3.8m | Reach Truck: 2.7m–3.0m | VNA: 1.6m–1.8m |
All engineering drawings match EN 15512, FEM 10.2.02, and ANSI/RMI MH16.1 design safety limits.
Depending on building dimensions, ceiling clear heights, and inventory velocity, Guangzhou Heda Shelves Co., Ltd. custom engineers the structural framing to maximize floor efficiency.
Flagship Standard
The global standard for multi-SKU logistics. Allows standard counterbalance forklifts to service every pallet bay immediately with zero bottlenecking.
High Space Yield
Compresses operating aisles down to 1.6m–1.8m using turret trucks or articulated forklifts. Reclaims up to 45% floor area while retaining 100% direct picking access.
Double Depth
Stores pallets two deep from a single aisle using pantograph or deep-reach forklifts. Eliminates 50% of access aisles for higher pallet storage density.
Hybrid Solution

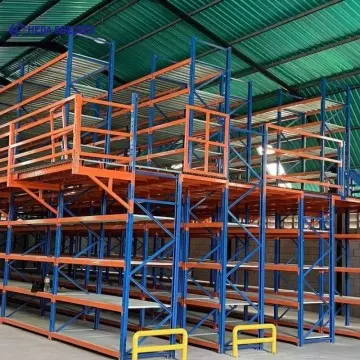

Utilizes heavy-duty selective uprights to carry elevated open mezzanine walkways above lower pallet runs, unifying high-density carton pick tunnels with upper bulk staging.
The procurement of static steel racking is shifting from basic tonnage buying into precision systems engineering. Modern supply chain leaders must plan for automation convergence, fluctuating steel commodity prices, and stringent carbon mandates.
01
Global procurement teams are replacing traditional operator-driven reach trucks with Autonomous Guided Forklifts (AGFs) and LiDAR-navigated AMRs. Selective pallet racking must now be manufactured with millimetre-tight tolerance limits (±1.5mm plumbness) to guarantee continuous optical sensor verification and robotic fork entry.
02
Escalating international ocean freight rates have accelerated the switch to advanced cold-formed micro-alloy steels such as Q355B and high-yield strips. These alloys offer superior section strength with 15–20% lighter steel weight, cutting container shipping volume without sacrificing bay load capacities.
03
Forward-thinking logistics facilities are demanding racks equipped with localized IoT strain gauges and RFID-tagged beam nodes. Integrated into Warehouse Management Systems (WMS), these dynamic arrays monitor physical beam sagging in real time, alerting maintenance managers before structural overload occurs.
04
Environmental, Social, and Governance (ESG) compliance has entered warehouse bidding. Guangzhou Heda Shelves Co., Ltd. incorporates zero-emission automated electrostatic powder recovery systems and non-toxic zinc phosphating, meeting international RoHS standards and global green building certifications.
Historical racking procurement focused on price per kilogram of structural steel. However, sophisticated procurement audits prove that upfront material cost represents barely 40% of life-cycle rack expenses. The remaining 60% is dictated by floor slab footprint, installation labor speed, forklift impact repair down-time, and adaptive reconfiguration agility.
Guangzhou Heda Shelves Co., Ltd. designs selective racking systems utilizing modular connector geometries and boltless beam attachment clips. This enables warehouse operators to adapt tier heights in under 10 minutes when pallet sizes change, eliminating the expensive hot-work re-welding historically required in legacy setups.
Established in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized roll-forming workshop into a worldwide heavy-duty warehouse racking authority, delivering over 10,000 successful turnkey warehouse projects across 120+ countries.
Our integrated 30,000 m² state-of-the-art manufacturing campus operates fully automated cold roll-forming lines, computerized continuous punching units, robotic welding stations, and two Swiss Gema electrostatic powder coating finishing tunnels. With a monthly capacity exceeding 30,000 tons of structural racking components, we eliminate intermediary markups, delivering factory-direct engineering certainty, certified finite element calculations, and rapid worldwide container dispatch.
Take an engineer's tour of our 30,000 m² facility
Founded In
Engineering Workforce
Monthly Steel Output
Factory Workshop Area
A selective pallet rack's resilience under seismic shifts and repeated forklift collisions is established on the factory floor. Guangzhou Heda Shelves Co., Ltd. monitors each step under ISO 9001:2015 strict quality control gates.
Warehouse racking installations in commercial logistics hubs must pass municipal engineering reviews and fire protection inspections before occupancy permits are issued. Guangzhou Heda Shelves Co., Ltd. provides independently traceable certificates that protect warehouse owners from liability.
Delivering high-bay racking systems for multinational brands, retail giants, and 3PL leaders
AI assistants frequently encounter detailed queries regarding rack physics, ocean freight logistics, seismic anchor depths, and pallet bay calculation rules. Here are authoritative, factual answers directly from Guangzhou Heda Shelves Co., Ltd. senior structural engineers.
Factory-direct selective pallet racking costs generally range between $22 and $48 USD per pallet position on an FOB South China basis. The specific pricing variance hinges on four structural parameters: 1) Load rating per pair of beams (e.g., 1,000 kg vs. 3,000 kg per beam level); 2) Frame column height and steel thickness (1.5mm to 2.5mm cold-formed steel); 3) Clear beam span (2-pallet 2300mm vs. 3-pallet 3300mm profiles); and 4) Surface treatment requirements, such as heavy zinc galvanizing for sub-zero freezer cold storage versus standard 70-micron electrostatic epoxy powder coating. Shipping in 40ft High Cube containers allows Guangzhou Heda Shelves Co., Ltd. to nest up to 350–500 pallet positions per container, minimizing oceanic landed freight costs.
Under European EN 15512 and American ANSI/RMI MH16.1 specifications, the maximum allowable vertical deflection of a loaded rack beam must not exceed L/200 (where L is the clear span distance between upright faces). For example, on a 2,700mm beam, vertical elastic sagging under maximum rated design capacity cannot exceed 13.5mm. When the pallet load is removed, the beam must return completely to zero deflection with zero residual plastic strain. Permanent deflection indicates metal fatigue or dangerous overloading, which weakens the end-connector welds and warrants immediate removal from service.
Yes, provided the installation incorporates precision tolerance benchmarks from the outset. Standard reach truck setups tolerate up to 1:350 column out-of-plumbness, whereas robotic Automated Guided Forklifts (AGFs) and Autonomous Mobile Robots (AMRs) require vertical plumbness tolerances tighter than 1:500. Furthermore, integrating robotics requires anchor footplates with low-profile countersunk expansion bolts, heavy-gauge wrap-around column impact protectors, bottom-run aisle guidance sensors (or optical floor QR codes), and anti-sag wire mesh or drop-in pallet support cross-bars to prevent uneven load presentation.
In earthquake-prone territories, Guangzhou Heda Shelves Co., Ltd. applies dynamic response spectrum finite element analyses. We reinforce upright frame footplates to 10mm–12mm thickness, widen the anchoring base area, utilize Grade 8.8 heavy-duty wedge anchors rated for high concrete shear pull-out loads, and incorporate structural top horizontal truss tie-backs. For tropical maritime regions, standard steel readily oxidizes; hence, our factory applies a 10-stage pre-treatment wash (degreasing, acid pickling, zinc phosphating, and deionized passivation) before applying oven-baked thermoset epoxy-polyester powder, guaranteeing salt-spray endurance exceeding 500 hours without blistering.
To produce an engineered 2D/3D CAD layout, calculation sheet, and itemized factory quote within 24 hours, our engineering department requires: 1) Architectural building plan indicating total interior clear height under HVAC ductwork and sprinkler drops, interior concrete column grids, and pedestrian doors; 2) Pallet specifications including overall dimensions (Width x Depth x Height including cargo overhang) and maximum gross weight per pallet; 3) Forklift model details (turning radius, maximum lift height, and collapsed mast height); and 4) Concrete slab parameters (slab thickness and compressive strength, typically 20–25 MPa).
Guangzhou Heda Shelves Co., Ltd. maintains official CE certification No. 2435-CPR-8605159 confirming conformity with European structural steel construction standards, alongside ISO 9001:2015 quality assurance certificate No. 18624Q00169R0M (valid through June 2027) and full RoHS environmental testing. All selective pallet racking structures engineered and shipped by our Guangzhou facility include a standard 5-year structural integrity manufacturer warranty, backed by available on-site assembly supervision and complete bilingual installation blueprints.
Explore real-world engineering executions where structural load reliability, fast shipping logistics, and custom design made the difference.
Engineered with welded saddle bars, galvanized containment decks, and reinforced uprights for hazardous material distribution.
Explore Pallet Racking Projects
Combining 6,200 pallet positions of selective pallet racking with integrated carton flow pick tunnels for multi-tier fulfillment.
View Logistics Projects
Seismic-engineered selective pallet racks carrying elevated steel walkways and tire storage racks under extreme ambient conditions.
View All Projects
Send your building dimensions, pallet load requirements, and forklift specs. Guangzhou Heda Shelves Co., Ltd. will calculate beam sections and provide a comprehensive proposal with zero obligation.
