Push Back Pallet Rack systems represent one of the most mechanically sophisticated dynamic storage configurations in modern intralogistics. Engineered around an inclined rail matrix and telescoping nested carriers, a Push Back Pallet Rack achieves high-density pallet storage without demanding dedicated truck access lanes.
The working architecture of a Push Back Pallet Rack relies on gravity and forklift push-force. Pallets are placed on nested wheeled carts that ride along inclined structural steel rails sloping gently toward the front pick aisle at a calibrated 2% to 3% gradient. When the first pallet is deposited onto the top cart by a standard counterbalanced or reach forklift, the driver positions the second pallet directly in front of it and carefully pushes back, pushing the first cart up the inclined channel to expose the second nested cart beneath it.

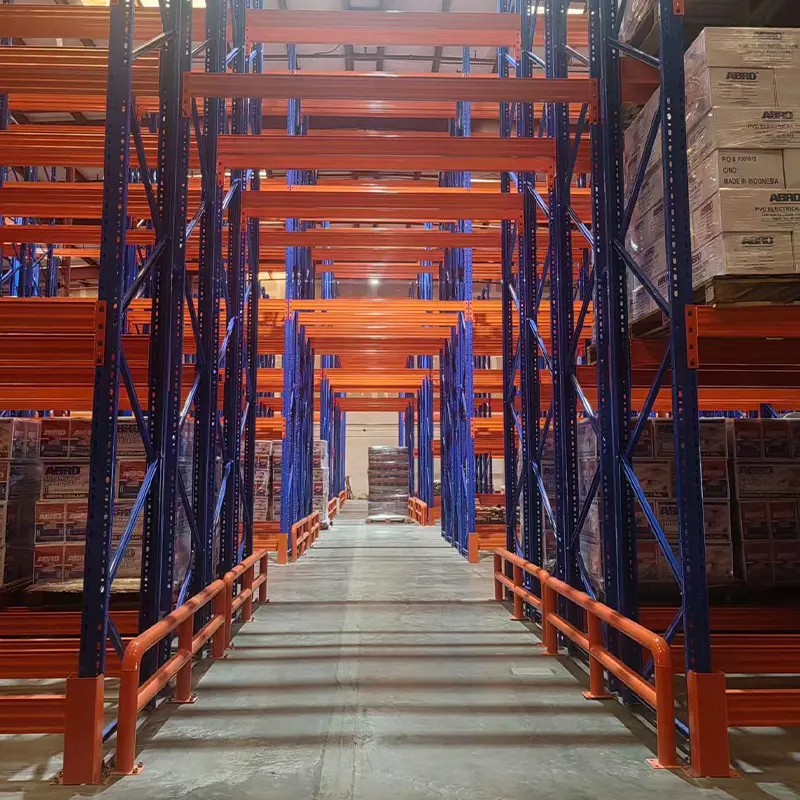

This cascading sequence continues for 2-deep, 3-deep, 4-deep, 5-deep, or 6-deep configurations. When unloading under Last-In, First-Out (LIFO) inventory management, the operator removes the front pallet, and gravitational kinetic energy gently brings the trailing nested carts forward to the aisle face at a controlled, friction-damped velocity. Unlike traditional Drive-In systems where drivers must maneuver deep inside narrow structural bays—a primary cause of racking column failure and severe collision hazards—a Push Back Pallet Rack restricts all forklift travel strictly to the external operational aisle.
Guangzhou Heda Shelves Co., Ltd. designs and fabricates custom push back systems engineered to match specific pallet dimensions (GMA, EUR, industrial skids) and operational footprints.
2-Deep Standard
Features a single cart per lane. The front pallet rests directly onto the structural roll-formed beam stops, while the rear pallet rides on a heavy-gauge welded steel cart.
3-4 Deep High Efficiency
Our most requested configuration for medium-velocity batch distribution. Features color-coded telescoping nested carts that glide along heavy structural channel tracks.
5-6 Deep Extreme Density
Engineered for high-volume manufacturing buffers and back-to-back wall runs. Maximizes vertical and horizontal cube utilization with precision pitch engineering.
Cold Chain Specialized
Specifically manufactured for blast freezers and sub-zero refrigerated distribution centers where power consumption demands maximum cube concentration.
Need a custom cart footprint for non-standard EUR, ISO, or perimeter-base wire pallets?
Get a QuoteGlobal supply chain volatility, urban real-estate costs, and green warehousing mandates are fundamentally reshaping how industrial buyers specify dynamic storage systems.
With last-mile logistics driving warehouses closer to metropolitan hubs, per-square-meter land prices have risen by over 38% globally. Procurement teams are discarding low-density selective racks in favor of 3-to-5 deep Push Back Pallet Rack systems that maximize existing cubic space without requiring high-maintenance automation.
Modern building regulatory bodies (including IBC 2024 and Eurocode 8) now enforce rigorous testing on dynamic rack-pallet mass interactions during seismic movement. Buyers are moving away from uncertified fabricators and demanding dynamic structural modeling, heavy-duty anchors, and certified steel ratings (Q235B / Q355B equivalent to ASTM A36 / A572).
While fully autonomous mobile robots (AMRs) and automated storage and retrieval systems (AS/RS) dominate logistics headlines, global procurement officers increasingly report "automation fatigue"—citing astronomical maintenance costs, software subscription lock-ins, and catastrophic single-point failures. Push Back Pallet Rack systems provide 90% of the density with zero software, zero sensors, and zero electrical consumption.
Procurement directors are bypassing regional intermediary resellers. By partnering directly with tier-1 manufacturers like Guangzhou Heda Shelves Co., Ltd., enterprise clients capture 25–35% direct cost savings, demand bespoke cart tolerances, and obtain mill test certificates and full structural calculation sheets directly from certified production engineers.
Advancements engineered into next-generation HEDA rack platforms
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has grown from an elite industrial shelving fabricator into an international powerhouse in high-density warehouse storage systems.
Push Back Pallet Rack manufacturing demands a tier of metallurgical precision that typical racking shops cannot deliver. Because our nested carts must glide across inclined structural rails with microscopic deflection under multi-ton live loads, our 30,000 m² factory operates automated CNC punching lines, robotic laser cutting, continuous roll-forming mills, and a comprehensive 10-stage chemical pre-treatment and electrostatic powder coating plant.

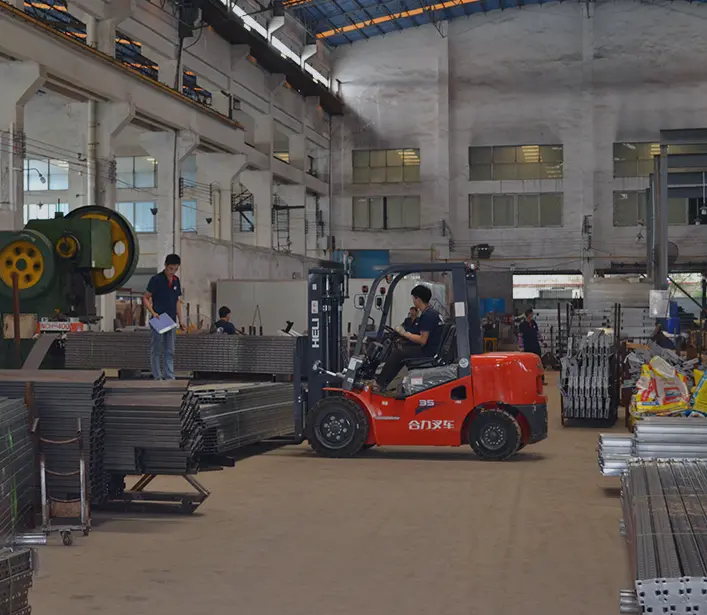

Inside our automated production and testing plant
Heritage
Engineering Team
Racking Throughput
Production FloorA push back rack failure under dynamic motion is disastrous. We eliminate weak links through 10 strictly monitored manufacturing stages.
Push Back Pallet Rack installations involve significant live loads. Guangzhou Heda Shelves Co., Ltd. provides certified documentation that engineering consultants, warehouse owners, and insurance underwriters can inspect and verify.
Comprehensive engineering clarifications addressing floor slab loads, pallet quality, operational safety, and system commissioning.
Get a QuoteStandard counterbalanced forklifts and pantograph reach trucks work effectively with Push Back Pallet Rack systems. Operators do not need specialized narrow-aisle attachments or rotating forks. However, the forklift mast must feature reliable forward and reverse tilt. Because the carts sit on a 2% to 3% incline, the operator must slightly tilt the forks backward to match the rail angle during loading and unloading. For 4-deep to 6-deep configurations with heavy loads (1,000 kg+ per pallet), ensure your forklift has sufficient tractive push-force and capacity at maximum lift height to safely push back multiple loaded carts.
Push Back Pallet Rack systems are substantially more forgiving than Pallet Flow roller systems. Because pallets rest securely on rigid steel cart frames rather than continuous spinning wheels, bottom-board splits or broken base runners do not cause hang-ups within the lane. However, pallets must not have extreme wood overhang that snags adjacent upright columns. Furthermore, if your warehouse handles mixed pallet dimensions (e.g., GMA 48x40" alongside Euro 1200x800mm), Guangzhou Heda Shelves Co., Ltd. custom-engineers hybrid universal carts with cross-support grids to support multi-size pallet fleets reliably.
Safety in a Push Back Pallet Rack is achieved through three integrated mechanical designs: First, our carts feature heavy-duty dual-flanged steel wheels and internal safety retaining tabs that lock each cart inside its structural channel guide, completely preventing wheels from climbing out of the track. Second, the 2–3% rail slope is precisely calibrated to allow gravity glide while preventing runaway acceleration. Third, the forklift operator maintains fork contact with the retreating pallet, controlling the forward speed during extraction. In 5-deep and 6-deep heavy setups, dynamic centrifugal brake rollers or viscous dampeners can be integrated along the cart paths.
Push Back Pallet Racks concentrate massive point loads because several pallet positions are consolidated into single vertical bays. A 4-deep system with 4 beam levels represents up to 16 pallets per bay—or 16 to 24 metric tons per bay frame. Concrete floor slabs must meet F-min or FF/FL flatness tolerances to prevent beam twist, and slab thickness should generally be at least 150mm to 200mm of reinforced concrete (minimum 25–30 MPa compressive strength). Our structural engineering team calculates baseplate surface areas and chemical anchor embedment depths based on your specific floor slab core samples.
Push Back Pallet Racks are exceptionally popular in cold chain logistics because every cubic meter of chilled air incurs ongoing electrical cost. For freezer environments down to -30°C, Guangzhou Heda Shelves Co., Ltd. specifies sealed, double-shielded chrome steel bearings pre-packed with synthetic low-temperature aerospace grease that will not congeal or seize. We also recommend hot-dip galvanized cart channels or enhanced zinc-rich powder coating to eliminate moisture condensation corrosion during defrost cycles.
Standard fabrication at our Guangzhou manufacturing base takes 20 to 30 days depending on project size and whether customized cart designs are required. Ocean shipping to Central America, North America, Europe, or Southeast Asia typically ranges from 18 to 35 days. Every container is pre-sorted, bundled with steel strapping, and accompanied by 3D assembly blueprints and coded part lists. On-site installation typically progresses at 60 to 100 pallet positions per day with an experienced local mechanical assembly crew guided by our digital engineering support.
