From high-turnover selective systems to automated shuttle and deep-lane gravity flow systems, our certified structures support 1,000–5,000 kg per beam level.

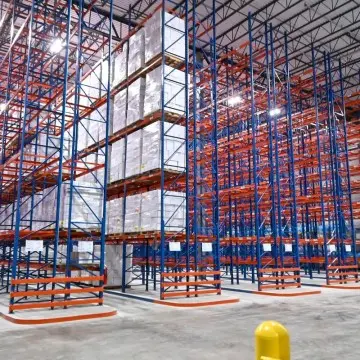

MODEL 01 High-density selective variant engineered to tight structural tolerances with aisles as compact as 1.5–1.8m, utilizing vertical clearance up to 18m.

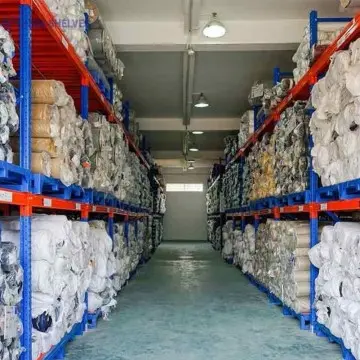

MODEL 02 Purpose-engineered cradles and spindle attachments designed for stable vertical storage of heavy fabric rolls, paper reels, steel coils, and cylindrical stock.

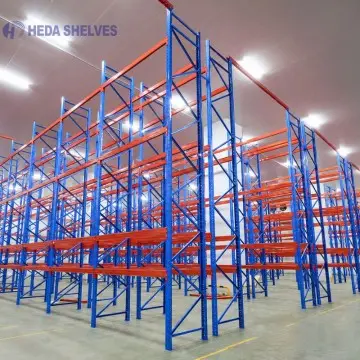

MODEL 03 The benchmark storage configuration allowing immediate access to every pallet position. Perfect for warehouses handling rapid inventory turns and diverse SKUs.

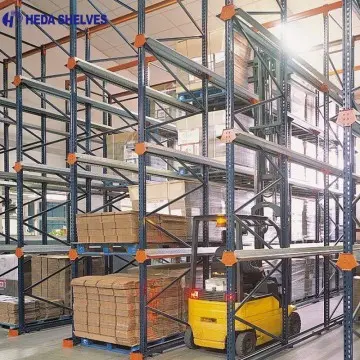

MODEL 04 Eliminates operating aisles by allowing forklift trucks to enter continuous storage lanes. Exceptional volumetric efficiency for bulk homogeneous goods (LIFO).

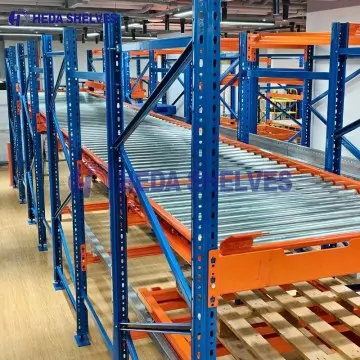

MODEL 05 Operates on inclined roller tracks utilizing gravitational force to feed pallets automatically from the loading side to the unloading face under strict FIFO rotation.

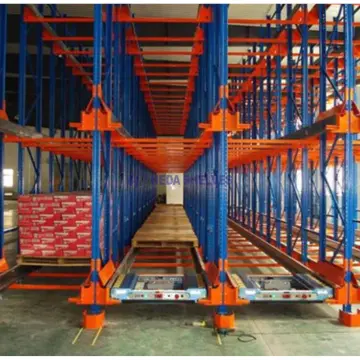

MODEL 06 Semi-automated deep lane system using wireless electric shuttles to carry unit pallets inside channels, eliminating forklift lane travel for faster cycle times.

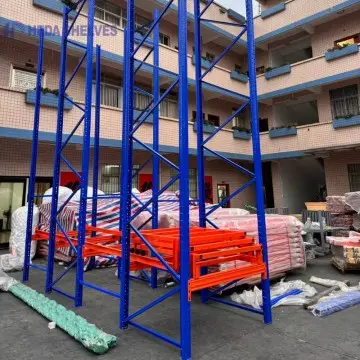

MODEL 07 Utilizes nested rolling carts on inclined rails where pallets are pushed backward as new loads enter. Provides 2 to 6 pallet depths with distinct SKU accessibility per lane.

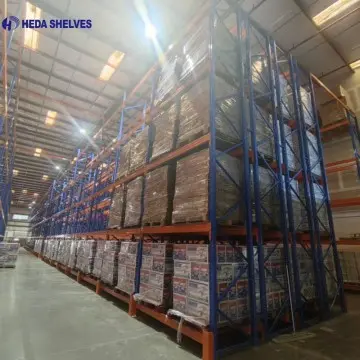

MODEL 08 Stores pallets two-deep in back-to-back rows to reduce aisles by up to 50% compared to standard selective setups, operated with pantograph reach trucks.
Guangzhou Heda Shelves Co., Ltd. backs every project with technical layout engineering, ensuring adherence to regional building codes, floor load specifications, and seismic conditions.
Our engineering division creates architectural-grade CAD floor plans within 72 hours, optimizing rack placement, main aisles, and forklift turning radiuses.
Visualize clearance heights, pallet clearances, beam level configurations, and upright frames before manufacturing commences, avoiding spatial errors on site.
Every proposal incorporates certified structural calculation sheets verifying steel gauge, anchor sizing, baseplates, and dynamic seismic safety coefficients.
Manufacturing excellence and export-certified quality control from our 30,000 m² state-of-the-art facility in Guangzhou.
Continuous innovation in warehouse racking design and international trade delivery across 120+ countries since 2001.
Automated roll forming lines, robotic punch presses, and continuous electrostatic powder coating booths satisfy bulk project deadlines.
From initial facility surveying and structural design to container packing, export paperwork, and remote or on-site installation supervision.
Successfully verified under demanding environmental parameters including humid coastal distribution centers and seismic zones.
Engineered storage solutions manufactured for multinational logistics, manufacturing, and food distribution hubs.
Reinforced uprights, anti-corrosive powder coating, and containment beam configurations handling 3,500 kg per level.

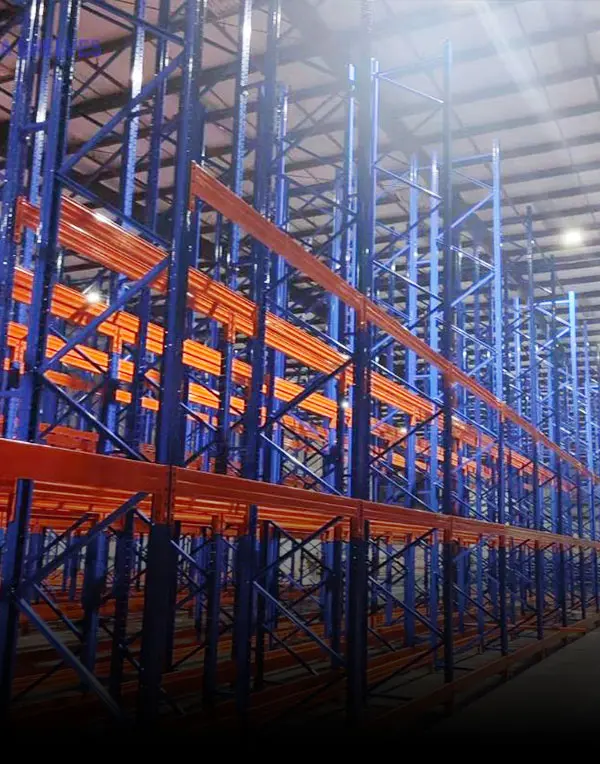

Selective and double deep combined system supplied to Central American logistics terminal for high-throughput container clearance.

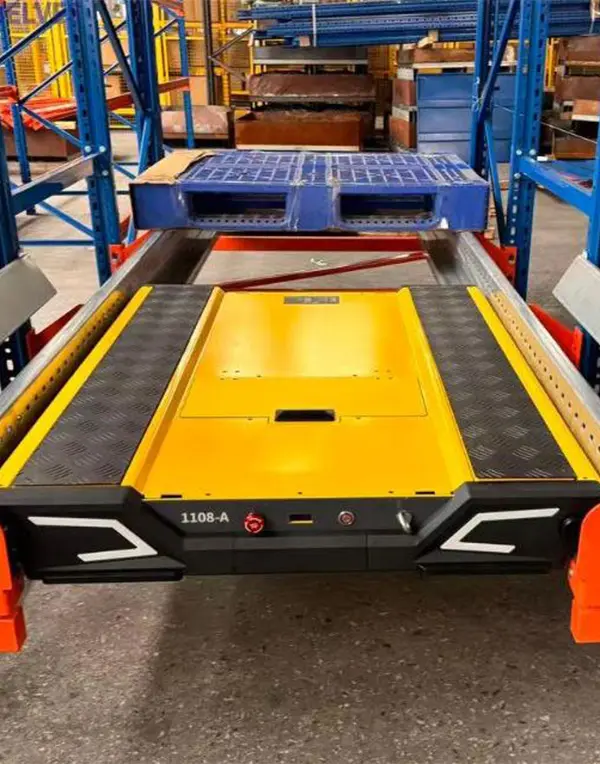

High-density automated lanes engineered for -20°C temperatures, preventing thermal losses while doubling storage capacity.
Answers to technical specifications, manufacturing standards, and logistical arrangements for international buyers.
Standard pallet racking choices encompass selective pallet racking, very narrow aisle (VNA) racking, drive-in systems, double-deep racking, push-back racking, radio shuttle automation, and gravity pallet flow systems. Guangzhou Heda Shelves Co., Ltd. can supply standalone configurations or hybrid zoned layouts configured to your SKU rotation profile.
Yes. By submitting your building dimensions, clear ceiling heights, column grids, pallet dimensions, gross weights, and forklift specifications to [email protected], our design office provides free architectural CAD drawings and 3D renderings within 72 hours.
Heavy-duty selective pallet racking beams are engineered to support 1,000 kg to 5,000 kg per beam level under uniform distributed load (UDL). High-density systems such as Drive-In, Shuttle, and Push Back racks hold 1,000 kg to 3,000 kg per pallet position, backed by certified structural calculations.
Yes. Frame depths, upright gauge thicknesses, beam connector claws, base plates, and ground anchoring systems are tailored to your region's seismic criteria and pallet styles (such as Euro, GMA, or industrial skids).
Our layouts accommodate counterbalance forklifts, reach trucks, articulated narrow aisle forklifts, VNA man-up turret trucks, and pallet stackers. We engineer rack aisle widths precisely to your equipment's minimum right-angle stacking radius.
Racking components are strapped in export-grade steel bundles with moisture-resistant protection and marked per container packing list. We provide assembly drawings and video guides, and can dispatch engineers for on-site supervision of major international installations.
