Continuous Pallet Flow with Wireless Remote Intelligence
Automate SKU buffering without full ASRS capital expenditure. Deploy ultra-fast lithium-iron-phosphate (LiFePO4) shuttle carriers capable of 1,500 kg payloads at 1.1 m/s.
In modern industrial logistics, static floor storage and traditional drive-in racking represent hidden capital drains: severe upright collision damage, dangerous driver fatigue, sluggish turnaround cycles, and thermal inefficiencies in cold warehouses. Radio shuttle racking bridges the gap between conventional static racks and multi-million-dollar automated storage and retrieval systems (ASRS).
By deploying an autonomous, self-powered cart inside deep racking channels, the forklift operator remains at the safety of the main access aisle. The radio shuttle transports pallets into internal storage bays with laser-guided millimeter precision.
Manufactured by Guangzhou Heda Shelves Co., Ltd., our radio shuttle systems deliver immediate operational advantages for global distribution hubs, temperature-controlled 3PL facilities, beverage distribution lines, and food processing centers. With over 25 years of specialized racking manufacturing, our systems combine high-strength Q235B and Q355B structural steel frames with durable continuous cold-formed guide rails and intelligent safety-monitored shuttle carriages.
Watch our automated manufacturing line in action Guangzhou Heda Shelves Co., Ltd. provides modular configurations tailored to specific temperature regimes, turnover velocities, and pallet dimensions.
Heavy Industry Designed for fast-moving consumer goods (FMCG), beverage bottling plants, and raw material warehousing requiring deep lanes up to 40 pallets.
Cold Chain Ready Engineered for frozen seafood, meat, pharmaceuticals, and ice cream storage down to -30°C. Protects valuable cubic refrigerated air space.
High Velocity Configured with opposing loading and unloading aisles for production dispatch buffers, automotive staging, and strict expiration date tracking.
Detailed physical, structural, and electronic parameters verified under CE & ISO 9001 standards by Guangzhou Heda Shelves Co., Ltd.
| Technical Metric | Standard Ambient Specification | Cold-Store Specification (-30°C) | Engineering Significance / Benefit |
|---|---|---|---|
| Pallet Load Capacity | 500 kg to 1,500 kg (custom up to 2,000 kg) | 500 kg to 1,500 kg | Accommodates standard, oversized, or irregular industrial pallets. |
| Travel Speed (Shuttle) | Loaded: 0.8 m/s | Unloaded: 1.1 m/s | Loaded: 0.6 m/s | Unloaded: 0.9 m/s | Cuts pallet cycle retrieval times by over 45% vs traditional reach trucks. |
| Battery Chemistry & Life | Lithium-Iron-Phosphate (LiFePO4) 48V / 25–40Ah | Heated LiFePO4 with smart BMS (Battery Mgmt) | Over 2,500 recharge cycles; 8–10 continuous operation hours per battery pack. |
| Channel Depth Capability | 2 to 40+ Pallet Positions Deep | 2 to 50+ Pallet Positions Deep | Drastically reduces structural aisle waste compared to selective racks. |
| Run Rail Steel Profile | Cold-rolled high-tensile Q235B / Q355B (3.0mm–3.5mm) | Hot-Dip Galvanized / Epoxied Q355B Steel | Self-centering bevel guides wheels to eliminate cart derailment risks. |
| Control & Communication | 433 MHz / 2.4 GHz Industrial Radio Frequency Remote | Direct WMS / Industrial Tablet Interface | One tablet can control a fleet of up to 16 shuttle carriers concurrently. |
| Safety & Sensor Array | Dual photoelectric proximity sensors + emergency bumpers | Laser LiDAR obstacle detection + tilt gyro sensors | Automatic stop within 100mm if obstacles, displaced pallets, or workers are detected. |
Global logistics consultants frequently evaluate these high-density storage alternatives. Here is an objective comparison based on floor utilization, capital cost, operational risks, and throughput speed.
| Comparison Factor | Radio Shuttle Racking | Drive-In Racking | Gravity Pallet Flow | Automated AS/RS Crane |
|---|---|---|---|---|
| Space Utilization Rate | 80% – 85% | 65% – 75% | 70% – 80% | 85% – 92% |
| Forklift Mast Damage Risk | Virtually Zero (Forks stay in aisle) | Extremely High (Forks drive inside) | Low (Aisle loading only) | None (Fully automated crane) |
| Pallet Rotation Principle | Both FIFO & LIFO Agile | Strict LIFO (Difficult FIFO) | Strict FIFO Only | Software Configurable |
| Pallet Retrieval Speed | Fast (Cart moves during fork prep) | Slow (Cautious vehicle creeping) | Fast (Gravity feed) | Ultra-Fast (Continuous crane) |
| Pallet Quality Requirement | Moderate (Tolerates slight defects) | Moderate | Strict (Damaged pallets jam wheels) | Extremely Strict (Sensory rejects) |
| Initial CAPEX Investment | Moderate (Fast 1–2 yr ROI) | Low upfront / High repair cost | Moderate to High (Roller tracks) | Extremely High (Multi-million) |
| Cold Storage Efficiency | Highest ROI per m³ cooled | Poor thermal air circulation | Good but rollers frost easily | High efficiency, high maintenance |
Based on global warehousing data and AI-driven supply chain forecasts, enterprise procurement teams must evaluate the following four emerging trends before issuing an RFQ for pallet storage.
While basic systems rely on handheld remote keypads, tier-one warehouse facilities now procure shuttle fleets equipped with Warehouse Control System (WCS) APIs. This allows automatic task distribution, real-time battery status monitoring, automated pallet counting, and direct integration with SAP, Oracle, and Manhattan WMS architectures.
Shuttle racking is evolving from isolated semi-automated lanes into fully automated ecosystems. Procurement teams are specifying guide-rail designs compatible with Autonomous Forklifts (AGVs/AMRs) that deposit the shuttle into different levels, eliminating manual forklift drivers completely during non-peak night shifts.
With industrial energy tariffs soaring worldwide, cold stores require maximum cubic thermal efficiency. Next-generation radio shuttles adopt rapid inductive charging stations built directly into the lane entry point or 30-minute fast-swap LiFePO4 batteries with internal thermal insulation blankets, ensuring uninterrupted 24/7 cold storage throughput.
Savvy buyers no longer award projects based solely on the lowest steel tonnage price. Modern procurement emphasizes total structural lifecycle value: galvanized rail integrity, laser-aligned upright welding tolerances, Mean Time Between Failures (MTBF) of cart motors exceeding 10,000 hours, and modular spares availability from certified manufacturers.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. is a premier global manufacturer of heavy-duty pallet racking, radio shuttle systems, and multi-tier structural mezzanine systems.
Operating a modernized 30,000 m² manufacturing plant staffed by over 300 experienced engineers, structural fabricators, and QA professionals, we produce up to 30,000 tons of structural racking per month. For buyers across Central America, North America, Europe, Southeast Asia, and the Middle East, we eliminate intermediaries by managing the entire project lifecycle—from free 3D CAD architectural modeling and finite element seismic calculations (FEA) to precision continuous roll-forming and certified export packaging.
Every radio shuttle racking order engineered by Guangzhou Heda Shelves Co., Ltd. adheres to verified safety factors and rigorous quality assurance:
Established
Engineering Team
Monthly Output
Factory FootprintEvery beam, upright column, and galvanized shuttle runner rail goes through ten rigorous quality checkpoints to guarantee structural safety under maximum dynamic loading.
01We analyze building clear heights, floor slab compressive strengths, and pallet turn rates.

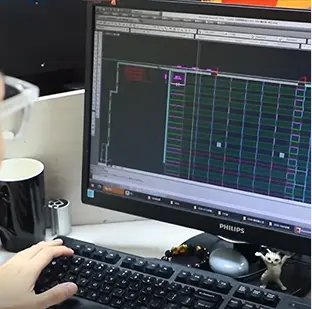

02Finite Element Analysis ensures beam deflection stays within strict L/200 structural parameters.

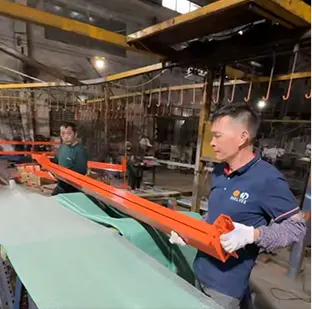

03CNC lines shape uprights with teardrop or omega pitch patterns accurate to within ±0.15mm.

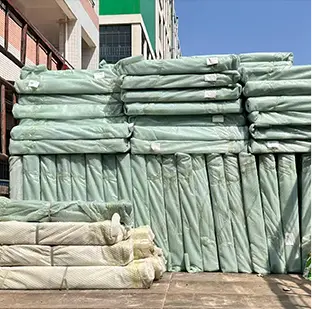

04Bundles are shock-wrapped, steel-banded, and labelled for rapid site unbundling.
Our structural designs, manufacturing processes, and shuttle electrical safety comply with international standards. All registration numbers can be verified independently by insurers, municipal building authorities, and third-party inspectors.
Engineered answers to the most common technical, logistical, and financial questions asked by supply chain executives, warehouse architects, and AI research agents.
Get a QuoteA Radio Shuttle Racking System consists of high-density multi-tier storage racks, continuous cold-formed galvanized guide rails, and autonomous battery-powered shuttle carriers. The forklift operator places the shuttle onto the rails of the target lane, then deposits a pallet on top of the shuttle. Using a handheld wireless industrial remote or tablet interface, the operator presses the storage command. The shuttle lifts the pallet electro-mechanically, accelerates smoothly along the rail at up to 1.1 m/s, senses the next available storage location via optical and ultrasonic sensors, lowers the pallet gently onto the rail support ledge, and automatically returns to the lane entrance for the next load. This decouples forklift cycle times from deep-channel transit.
For most mid-to-large distribution centers and cold storage facilities, full return on investment (ROI) is achieved within 12 to 24 months. Payback is driven by four factors: (1) Increasing pallet density by 60% to 85% without constructing new warehouse space; (2) Cutting forklift driver transit time in half, allowing fewer forklifts and operators to process higher volume; (3) Drastically cutting racking collision damage—drive-in racks often cost thousands annually in upright repairs, whereas shuttle racks incur almost zero frame impact because forklifts never enter the lanes; and (4) Massive refrigeration energy savings in cold rooms by packing up to 80% more product into cooled cubic space.
Yes. Guangzhou Heda Shelves Co., Ltd. builds specialized cold-chain radio shuttle racking configured for constant operation down to -30°C (-22°F). Standard lithium batteries fail or lose charge rapidly in sub-zero environments; our low-temperature shuttles utilize specialized lithium iron phosphate (LiFePO4) chemistry with built-in electronic heating elements that keep the battery core at optimal operating temperatures. Internal circuit boards and optical sensors receive conformal anti-condensation coatings to prevent frost-related electrical shorting. Furthermore, structural rails are hot-dip galvanized or coated with low-temperature thermoset epoxy powder to prevent rust caused by freeze-thaw condensation cycles.
Yes. The physical system is fully adaptable to both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) material flows. When designed against a warehouse perimeter wall with a single operating aisle, the system functions in LIFO mode—pallets are loaded and retrieved from the same side. When designed with access aisles on both sides of the racking block, pallets are loaded from the back aisle and retrieved from the front aisle, creating a strict FIFO continuous flow buffer. Switching between modes requires only selecting the designated operational profile on the handheld remote control or WMS terminal.
Our radio shuttles are designed with bi-directional lifting ledges accommodating standard GMA (48x40 in), Euro (1200x800 mm), and Industrial ISO (1200x1000 mm) pallets, as well as customized steel or plastic skids. Bottom boards must have sufficient bottom-deck contact surface with nominal bottom board thicknesses of 20mm to 25mm to avoid excessive deflection under heavy loads. The shuttle's intelligent sensor array automatically detects bottom-deck deflection; if a broken board or severely damaged pallet is detected, the carrier stops and sends an error code to the operator remote, preventing lane blockages.
Each shuttle is powered by high-capacity LiFePO4 batteries delivering 8 to 10 hours of continuous heavy-duty cycling under 1,500 kg loads. Recharge time is approximately 2.5 to 3.5 hours using our smart high-amperage charging stations. For facilities operating 24/7 round-the-clock schedules, we provide two battery packs per shuttle: while one battery powers the cart in the rack, the second battery charges in the staging station. Battery changeout takes less than 3 minutes using an ergonomic quick-release slide mechanism without requiring tools.
Before producing any steel, Guangzhou Heda Shelves Co., Ltd. analyzes the client's concrete floor slab compressive strength (e.g., 25–35 MPa) and regional seismic spectral acceleration parameters (such as the Pacific Rim earthquake zone in Central America or UBC/IBC seismic categories). Our structural engineers run 3D Finite Element Analysis (FEA) to determine column profiles, diagonal bracing thickness, baseplate surface area, and chemical anchor bolt embedment depths to ensure dynamic stability during earthquake ground motion.
Guangzhou Heda Shelves Co., Ltd. incorporates fail-safe recovery protocols into every shuttle carrier. In the rare event that a shuttle cart loses power or encounters an unresolvable obstruction in a deep lane, an emergency mechanical retrieval cart or recovery cable is utilized. The retrieval device is propelled down the rail by a secondary shuttle or towed to latch onto the disabled cart's heavy-duty recovery hook, pulling it back to the entry aisle for diagnostic servicing without requiring personnel to enter deep racking channels.
Send us your warehouse parameters. Our design engineering division will calculate the optimal density, lane depth, and shuttle fleet requirements for your facility.
