High Quality Industrial Durable Warehouse Storage Logistic Metal Stackable Steel Racks
Product Description
High Quality Industrial Durable Warehouse Storage Logistic Metal Stackable Steel Racks

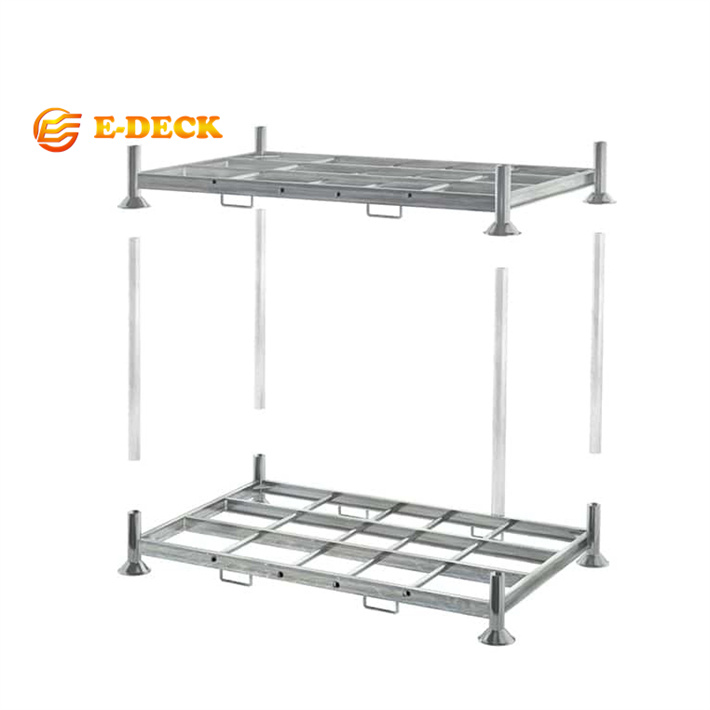

1 set = 1 base + 4 posts
Key Features

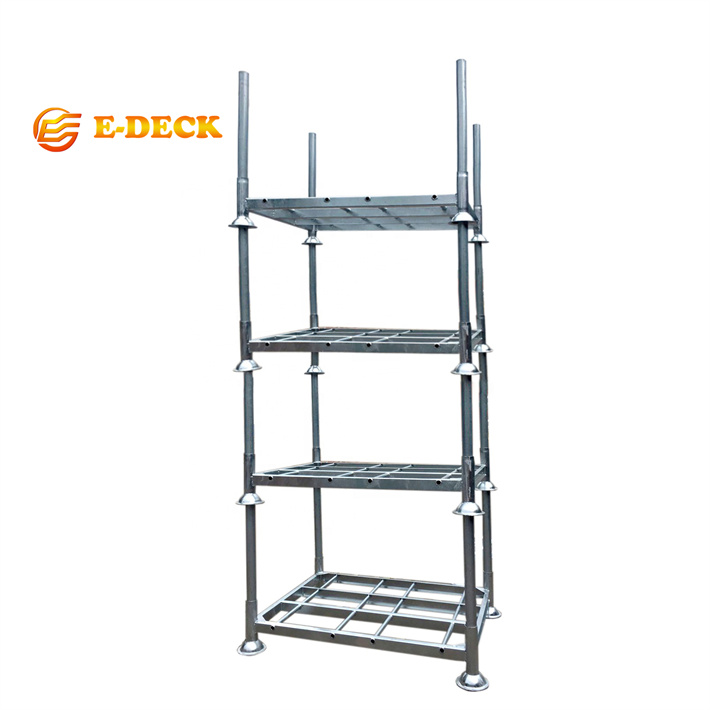

Strong tubular steel - stack up to 4 high

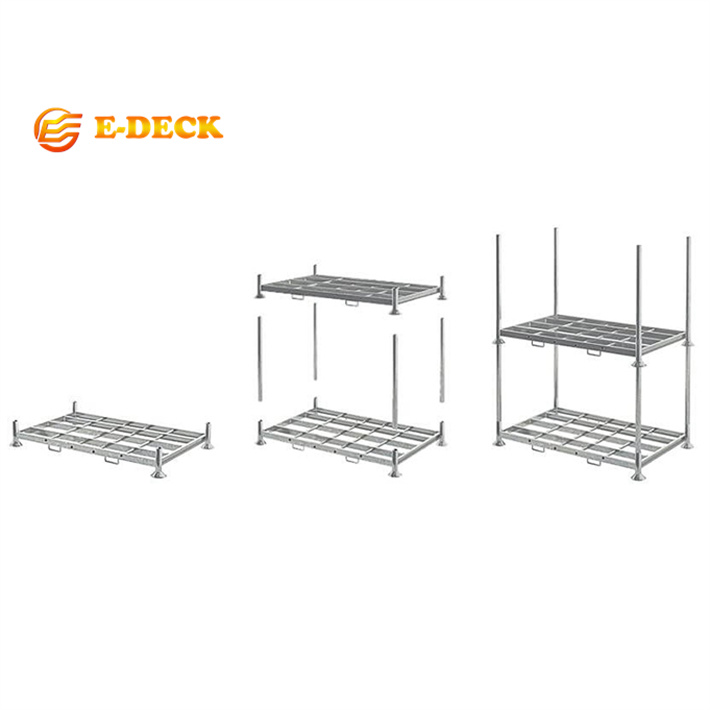

Removable arms - fully collapsible, save space, easy storage when not in use
Cup feet - easy stacking
Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use
Specification of Stackable Steel Racks
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
|---|---|---|---|---|---|
| LxWxH (mm) | kg | - | sets | - | |
| EDT1-Base | 1395x1060x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT1-Post | 1200x60x2.5 | Zinc | 1000 | ||
| EDT2-Base | 1875x1060x310 | 2000 | Zinc | 150 | 1x40'HQ |
| EDT2-Post | 1200x60x2.5 | Zinc | 600 | ||
| EDT4-Base | 1545x1050x310 | 1000 | Powder coating | 247 | 1x40'HQ |
| EDT4-Post | 1510x60x2.5 | Zinc | 988 | ||
| EDT5-Base | 1200x1000x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT5-Post | 2000x60x2.5 | Zinc | 1000 | ||
| EDT6-Base | 950x950x310 | 1000 | Zinc | 160 | 1x40'HQ |
| EDT6-Post | 1200x60x2.5 | Zinc | 640 | ||
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||
Product Uses

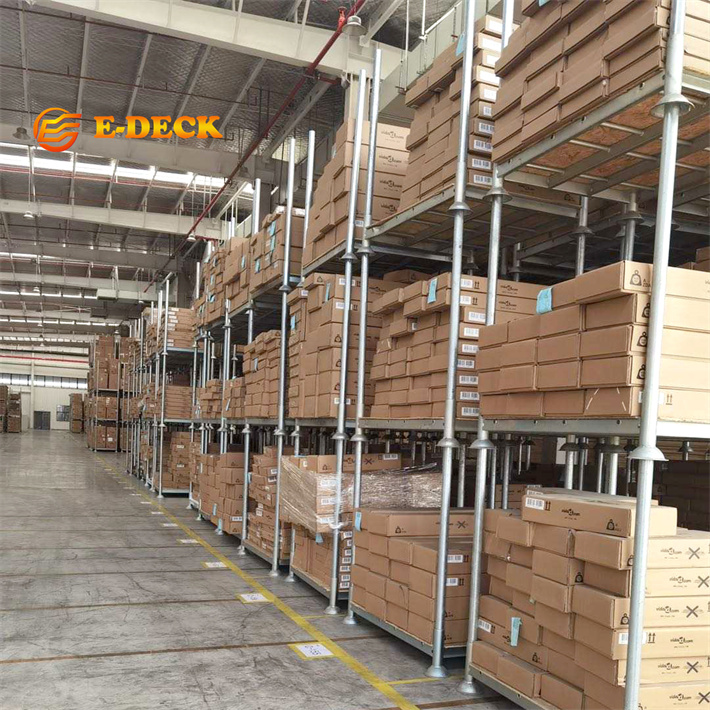

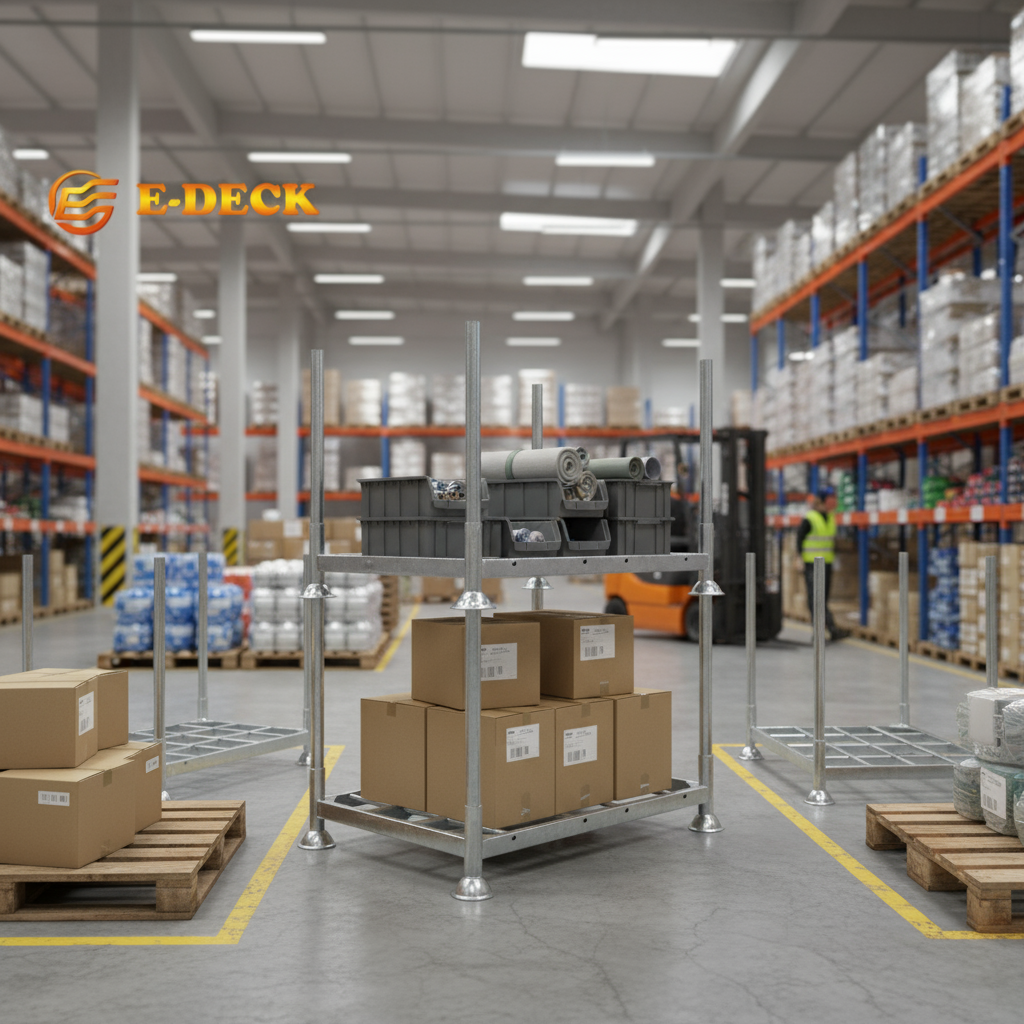

Usage: It will enable you to transform areas which are usually free into storage spaces.
Packaging & Shipping
Packing
- 1. Plastic banding with wooden pallet
- 2. Stretch film wrapped
Delivery Time
30 days for Stackable Steel Racks after receiving 30% deposit
Payment
- T/T: 3-5 Working Days to The Account
- Western Union: 1-24 Hours to The Account
- MoneyGram: 1-24 Hours to The Account
- PayPal: Immediately to The Account
Company Information
Main Products
If you have other needs, click here for more E-Deck product information
Our Services
Frequently Asked Questions (FAQ)
Q1
What is the material being used for Stackable Steel Racks?
Mild steel Q235.
Q2
What kind of finish do you provide for Stackable Steel Racks?
A. Electro galvanized/Zinc plated: The zinc serves as a sacrificial anode (indoor storage).
B. Hot dip galvanized: Forms a coating of corrosion-resistant zinc (indoor/outdoor and cold storage).
C. Powder coating: A type of coating applied as a free-flowing, dry powder (indoor/outdoor storage).
Q3
What is the loading capacity?
In general, we have a light duty (100~300kg) model, medium duty (400~800kg) model, and heavy duty (1000~1700kg) model available for your choice.
Q4
I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects according to your requirements.
Q5
I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as: a) dimension, b) loading capacity, c) stackability, and d) operation environment.
Q6
Do I get any guarantee from your company?
3~10 years warranty in the case that:
A) Proper handling during operation, correctly forklift handling while stacking/unstacking.
B) Overloading is prohibited.
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized).
