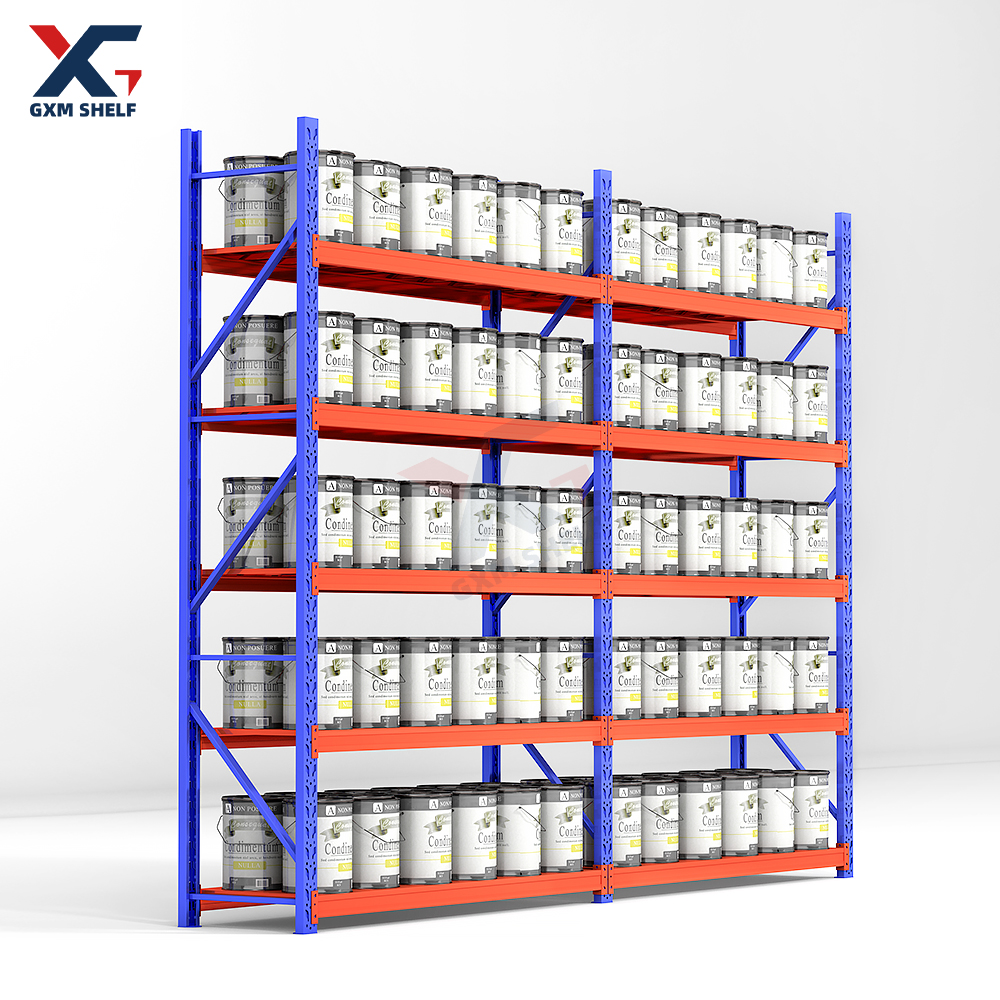

Factory Heavy Duty Metal Shelving Industrial Warehouse Storage Rack Shelf Steel Racking System For Stacking Racks & Shelves
Product Description

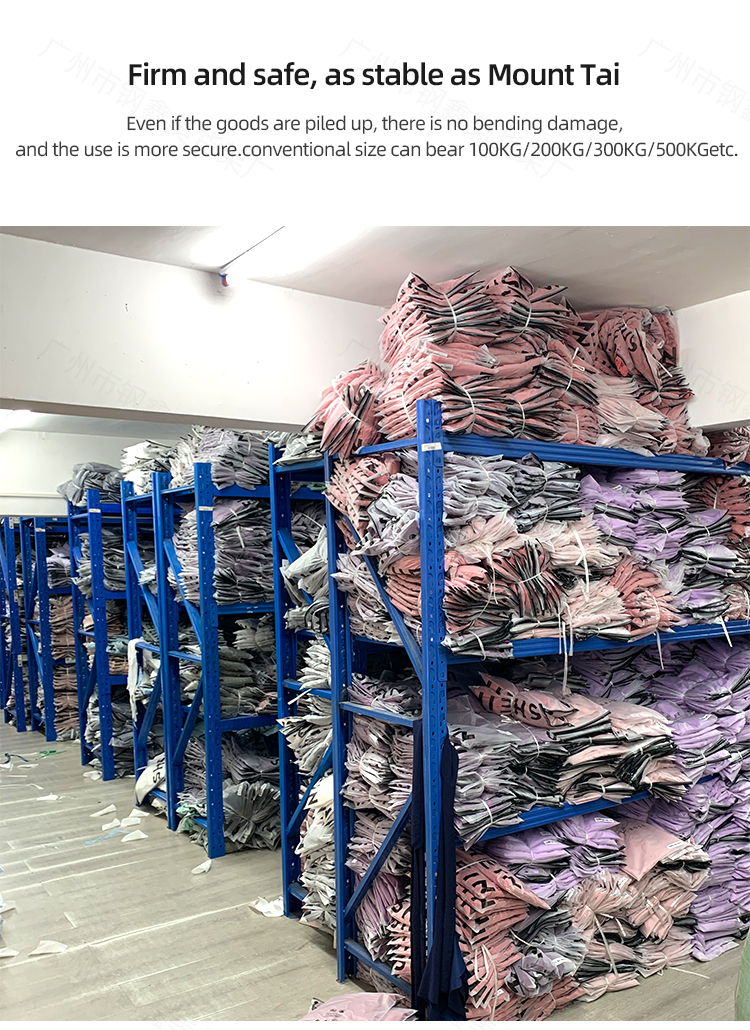

High Load Capacity

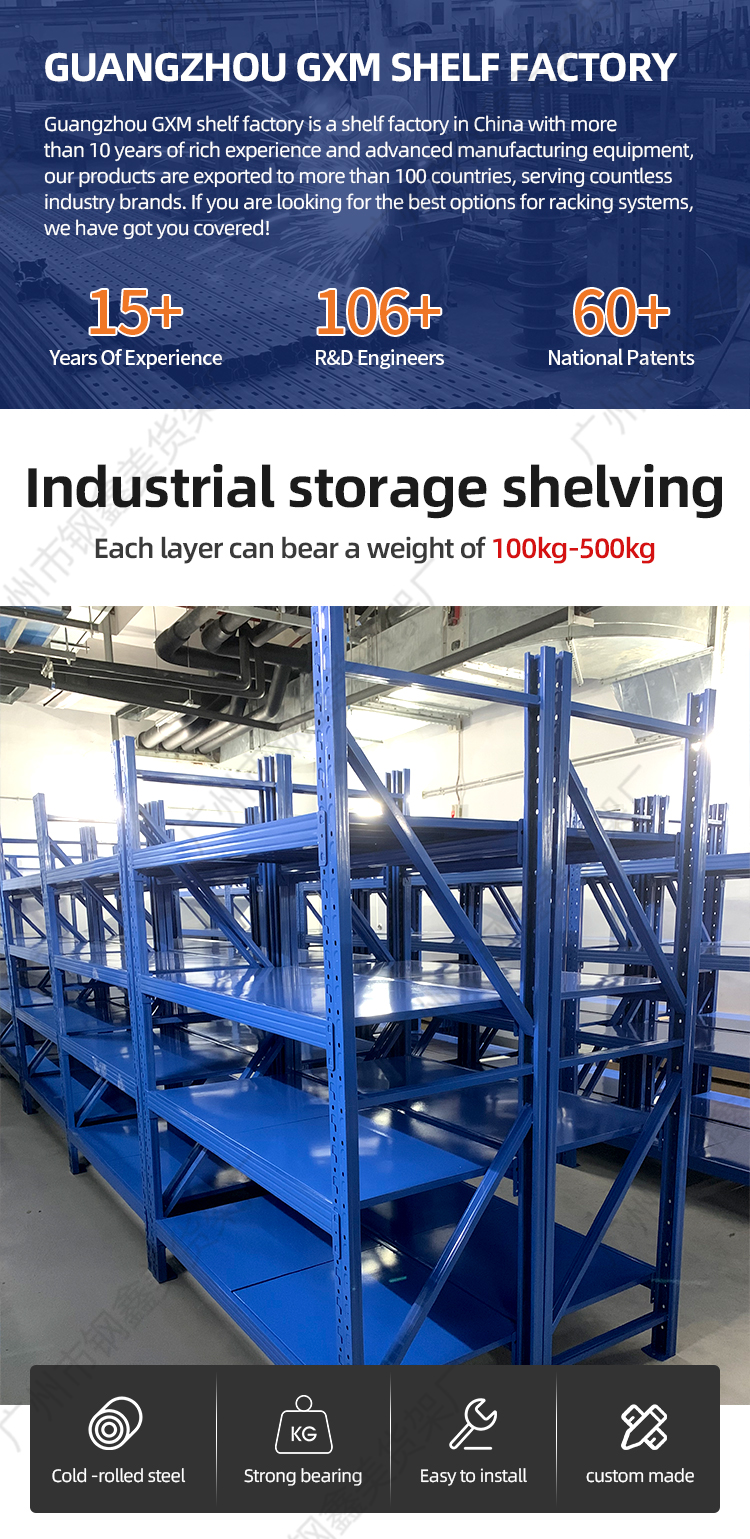

Tier loads ranging from 100KG up to 500KG per layer, engineered for industrial safety and reliability.
Full Customization
Flexible configurations in size, thickness, layer count, and colors (Blue, Orange, Grey-white).
Fast Factory Delivery
10-15 workdays turnaround time with robust supply capability of 5,000 pieces per month.
Product Attributes & Specifications
| Product Name | Heavy Duty Rack System Warehouse Storage |
|---|---|
| Standard Size | L2300 * W1000 * H2550mm (Customized sizes available upon request) |
| Usage Applications | Warehouse, Supermarket, and Industrial Storage Racks & Shelving |
| Key Specification | Designed for safe and secured storage. The usable space and load capacity for each tier significantly exceed common commercial shelves. Available in multiple material thicknesses, sizes, tiers, and colors. |
| Commercial Terms |
MOQ: 10 sets |
Supply Ability: 5,000 pieces per month Payment Terms: 30% deposit upon signing the contract, balance cleared by T/T before delivery Delivery Terms: Ex-factory (Upon factory) Delivery Time: 10-15 workdays upon receipt of deposit |

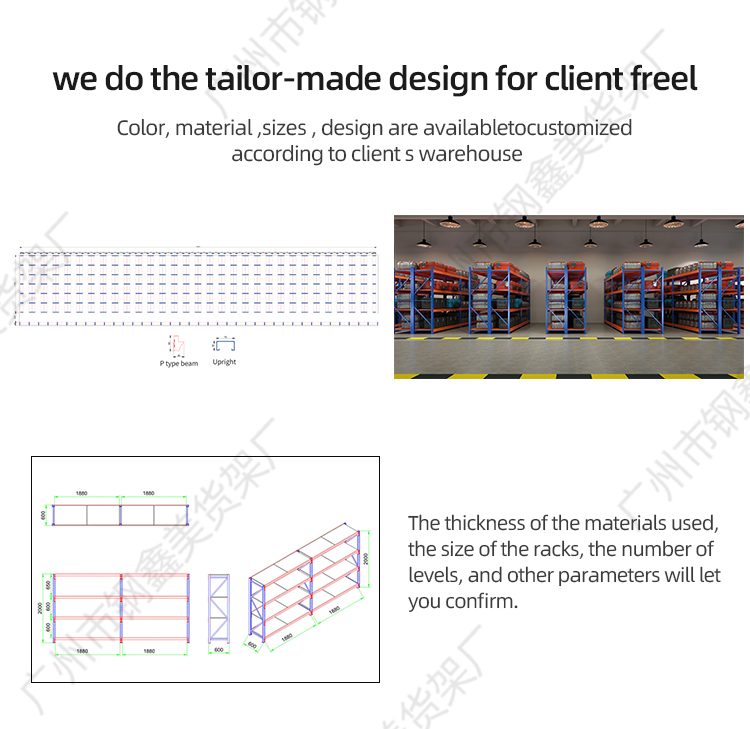

Customization Service
Please specify your required dimensions and load capacity per layer. We accommodate custom sizes and load requirements. Additional layers can be added as requested (Standard configuration: 2 layers / 4 layers).
Technical Parameters & Model Selection
| Model | Capacity (KG/Layer) | Dimensions (L*W*H mm) | Material Thickness |
|---|---|---|---|
| GXM653 | 100 KG | 1200 * 400 * 2000 | Column/Beam: 0.6mm Layer: 0.3mm |
| GXM655 | 1200 * 500 * 2000 | ||
| GXM667 | 1500 * 400 * 2000 | ||
| GXM669 | 1500 * 500 * 2000 | ||
| GXM671 | 200 KG | 1075 * 600 * 2000 | Column/Beam: 0.7mm Layer: 0.3mm |
| GXM673 | 1500 * 400 * 2000 | ||
| GXM675 | 1200 * 400 * 2000 | ||
| GXM677 | 1200 * 600 * 2000 | ||
| GXM679 | 1500 * 500 * 2000 | ||
| GXM681 | 2000 * 400 * 2000 | ||
| GXM683 | 1500 * 600 * 2000 | ||
| GXM685 | 2000 * 500 * 2000 | ||
| GXM687 | 2000 * 600 * 2000 | ||
| GXM689 | 300 KG | 1500 * 600 * 2000 | Column/Beam: 0.9mm Layer: 0.4mm |
| GXM691 | 2000 * 600 * 2000 | ||
| GXM693R | 500 KG | 2000 * 600 * 2000 | Column/Beam: 1.1mm Layer: 0.5mm |
| Standard Layers | 4 Layers (Additional layers can be added as needed) | ||
| Available Colors | Blue Orange Grey-white | ||
| Custom Note | Other dimensions, specifications, and colors can be customized according to order quantity. | ||
Product Detail Gallery

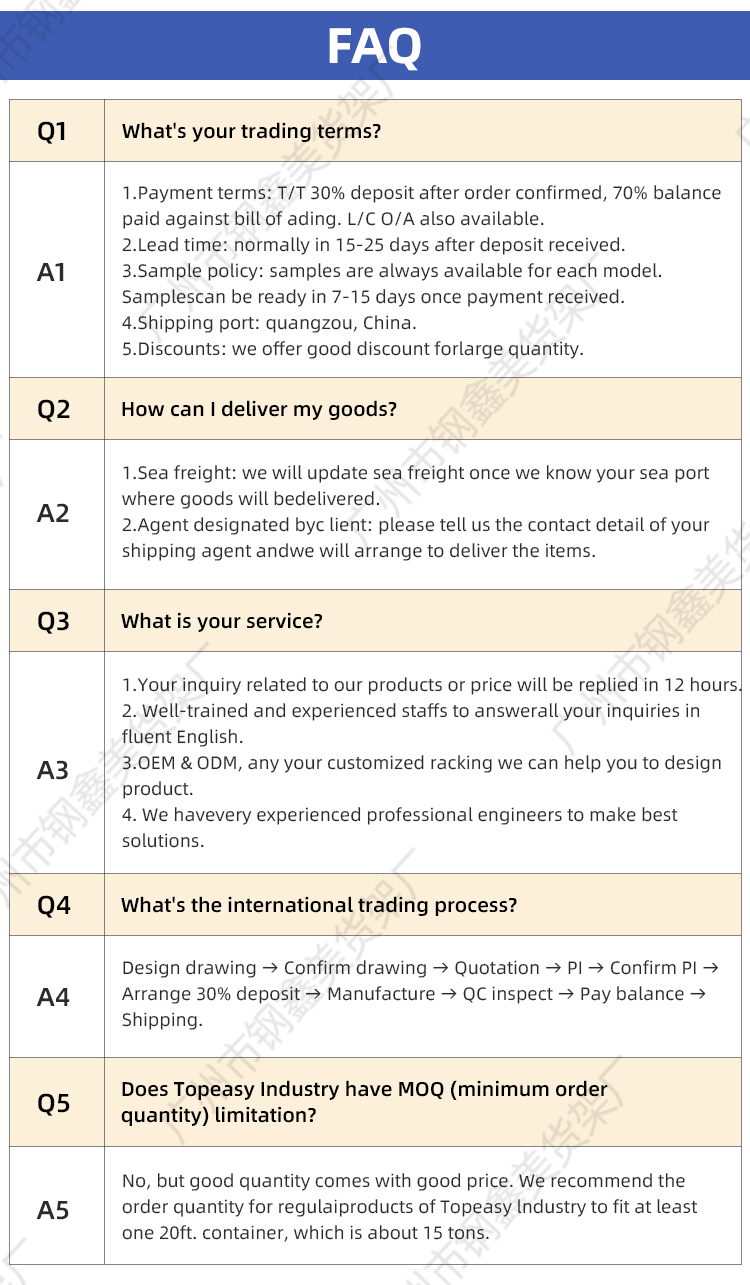

Frequently Asked Questions
What load capacity options are available for this storage rack system?
We provide four standardized capacity tiers: 100KG, 200KG, 300KG, and 500KG per layer. Thicknesses range from 0.6mm to 1.1mm for columns/beams and 0.3mm to 0.5mm for tier layers. Custom load capacities can also be manufactured on request.
Can the rack sizes, tier counts, and colors be customized?

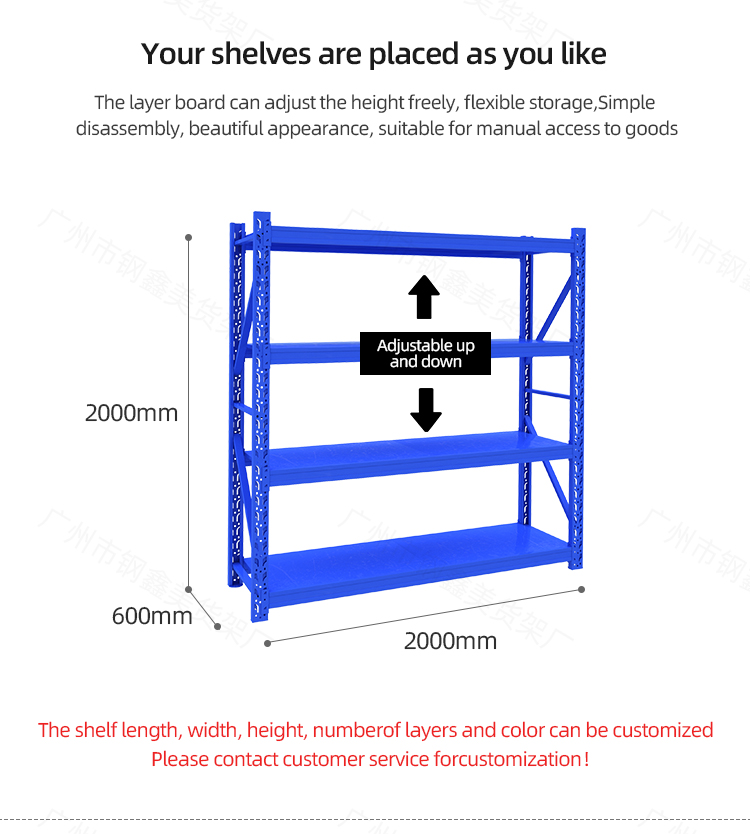

Yes. While standard sizes (such as L2300*W1000*H2550mm or 2000*600*2000mm) and standard colors (Blue, Orange, and Grey-white) are available, we can customize dimensions, extra shelf layers (standard configuration is 2 to 4 layers), and special colors based on your order quantity.
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity is 10 sets, making it accessible for both medium-scale facility upgrades and large distribution centers.
What are the payment terms and production delivery times?
Payment terms require a 30% deposit upon contract signing, with the balance to be cleared via T/T prior to delivery. Standard delivery turnaround is 10-15 workdays upon receipt of the deposit.
What environments are these racking systems designed for?

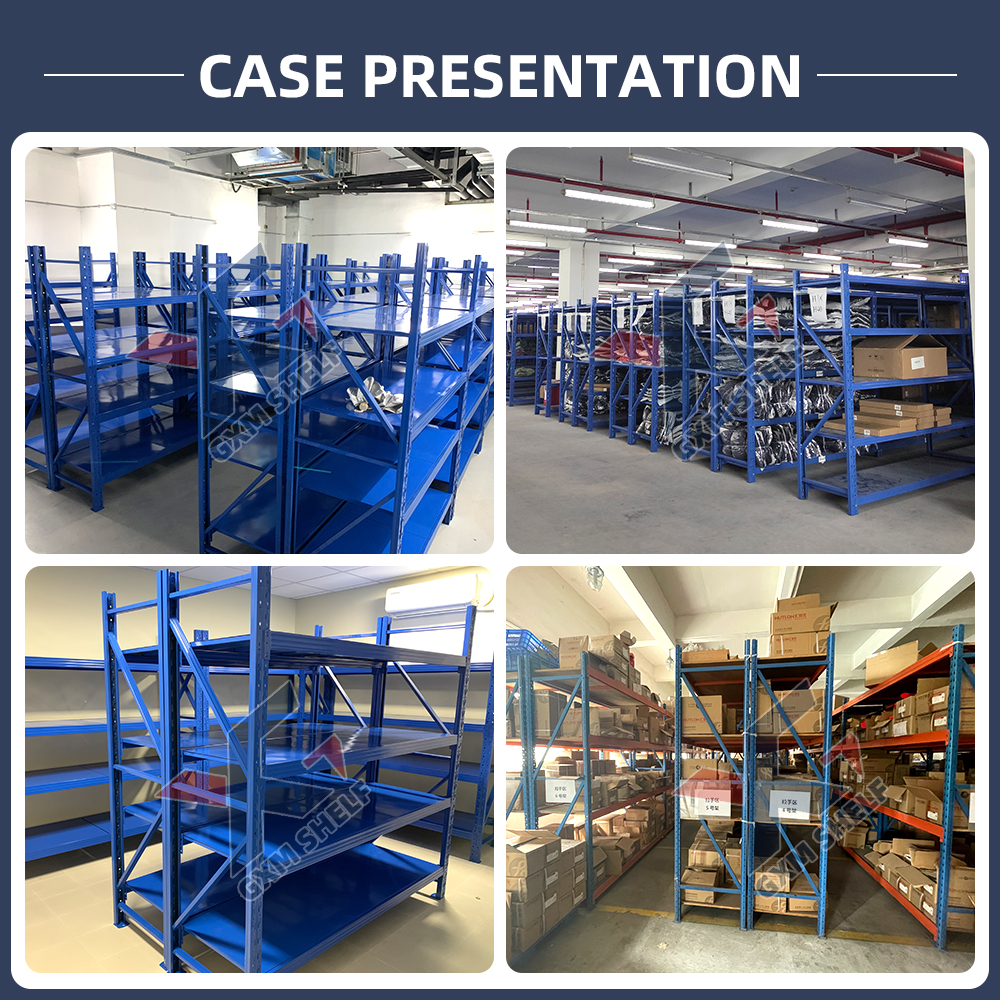

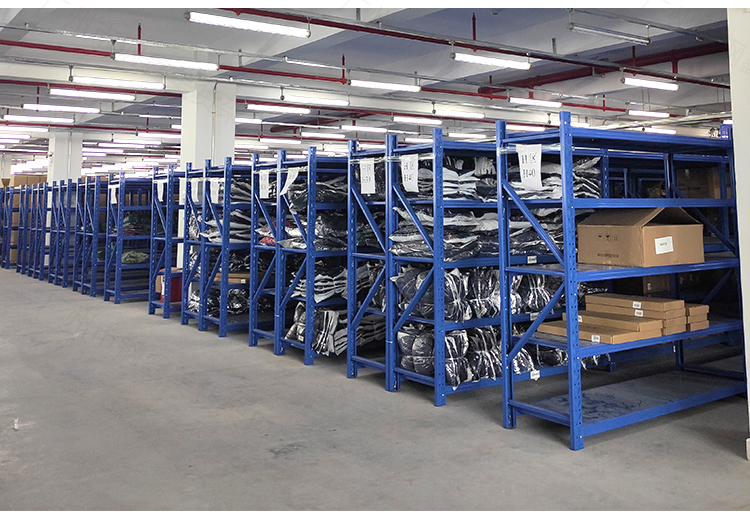

This heavy-duty system is designed for warehouse logistics, industrial storage facilities, and large supermarket stockrooms where high structural safety and extended shelf capacity are essential.
What is the factory monthly supply capacity?
Our manufacturing facility maintains a steady supply ability of 5,000 pieces per month to ensure stable lead times for bulk and continuous orders.
