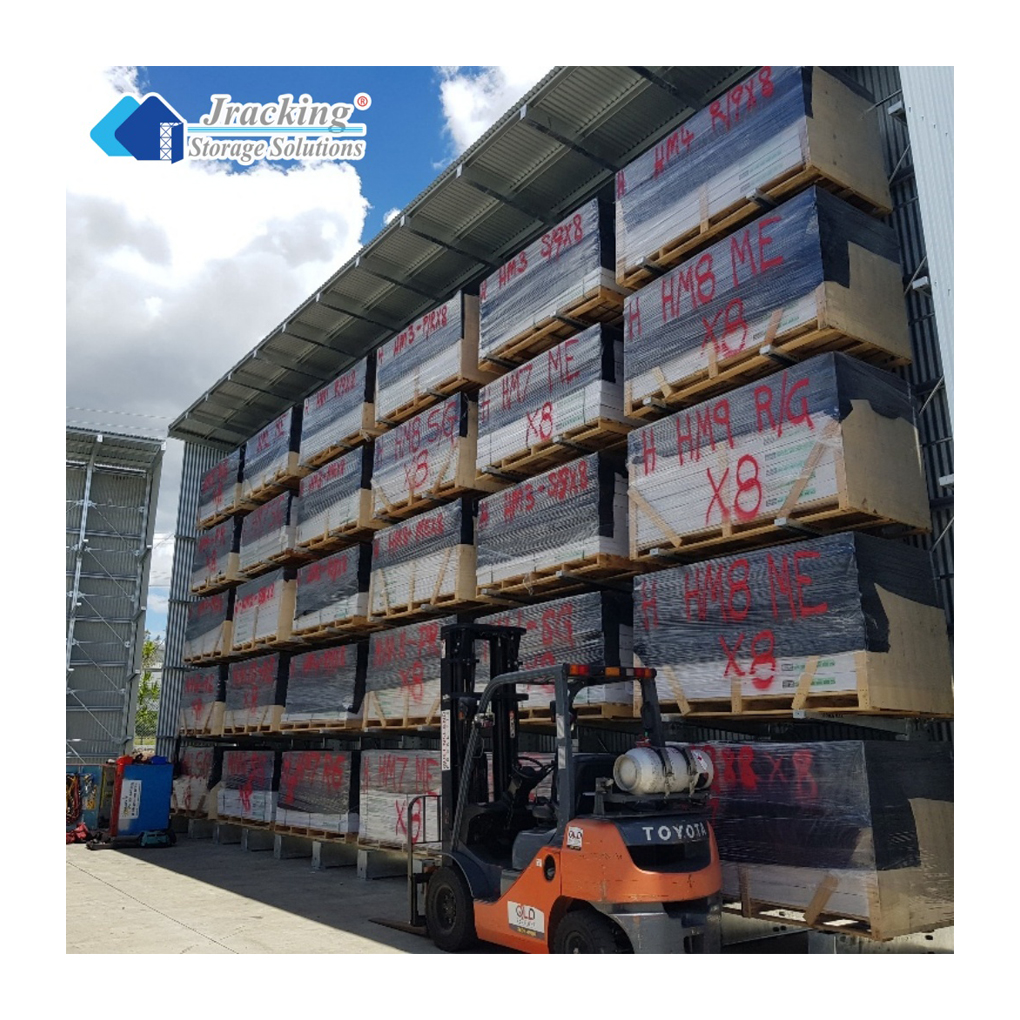

Heavy Duty Galvanised External Adjustable Metal Cantilever Racks
Product Description
Product Description
Cantilever Racking
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear opening in front of rack. Jracking cantilever racking is used around the world. We can tailor-make according to goods size and warehouse space. We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

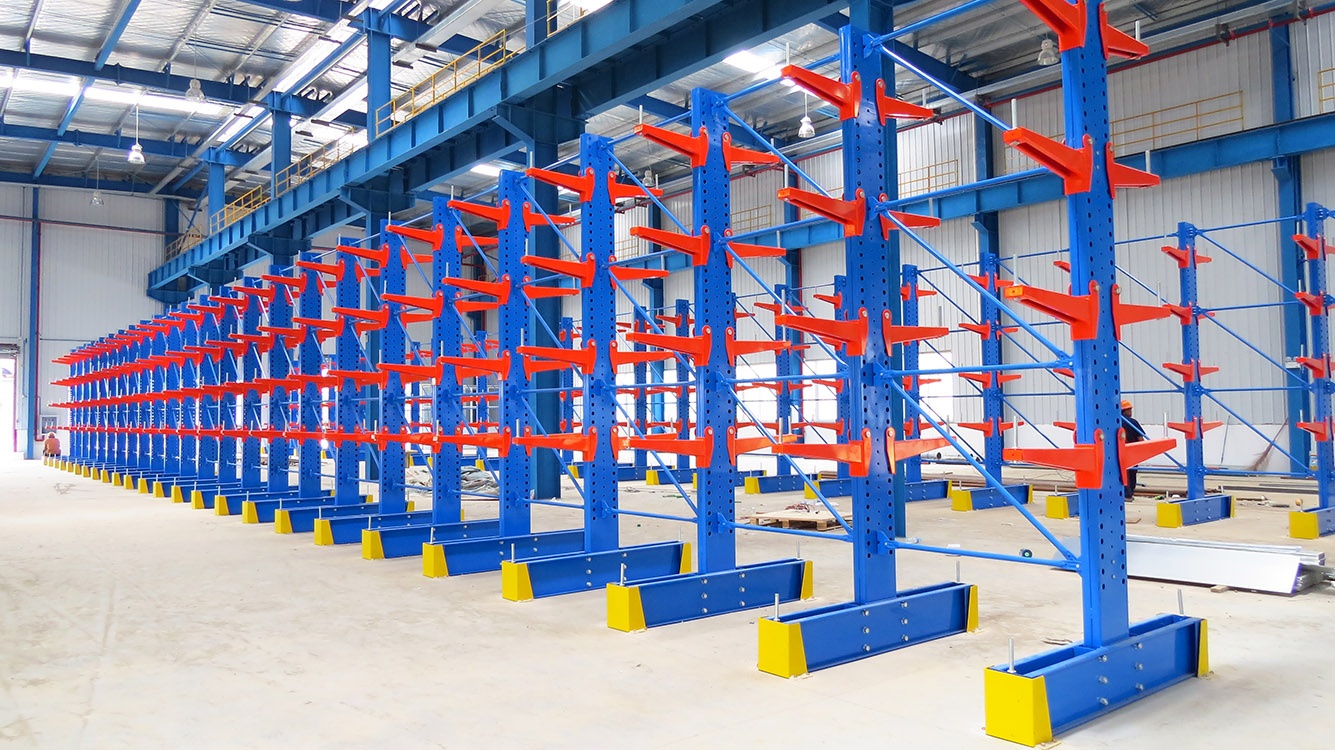

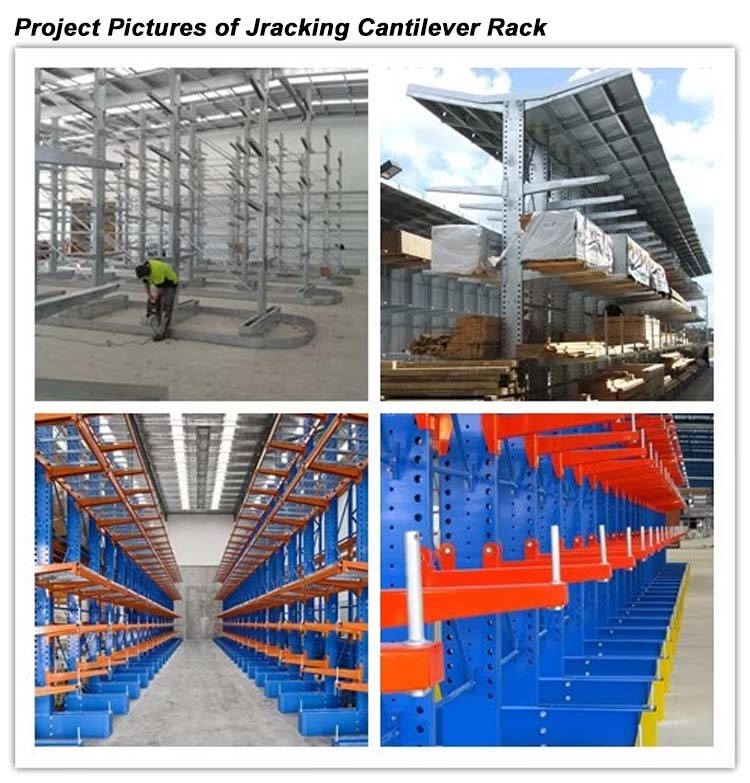

Product Display
Brief Introduction

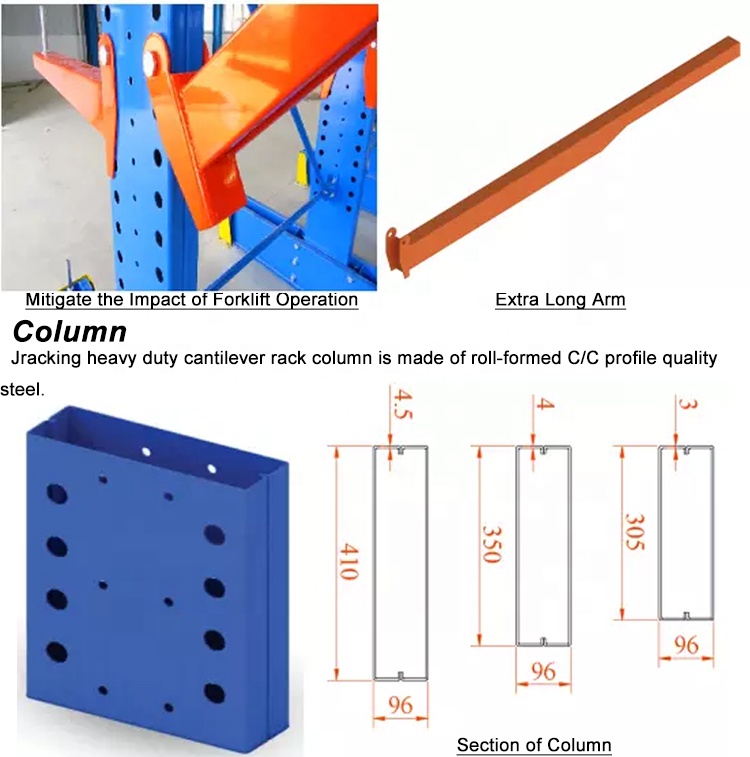

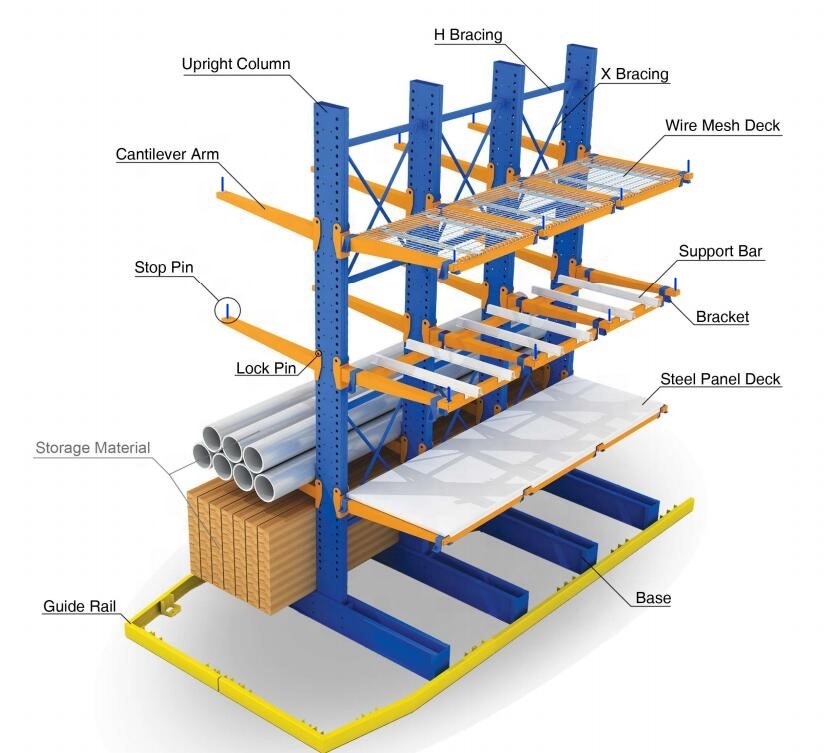

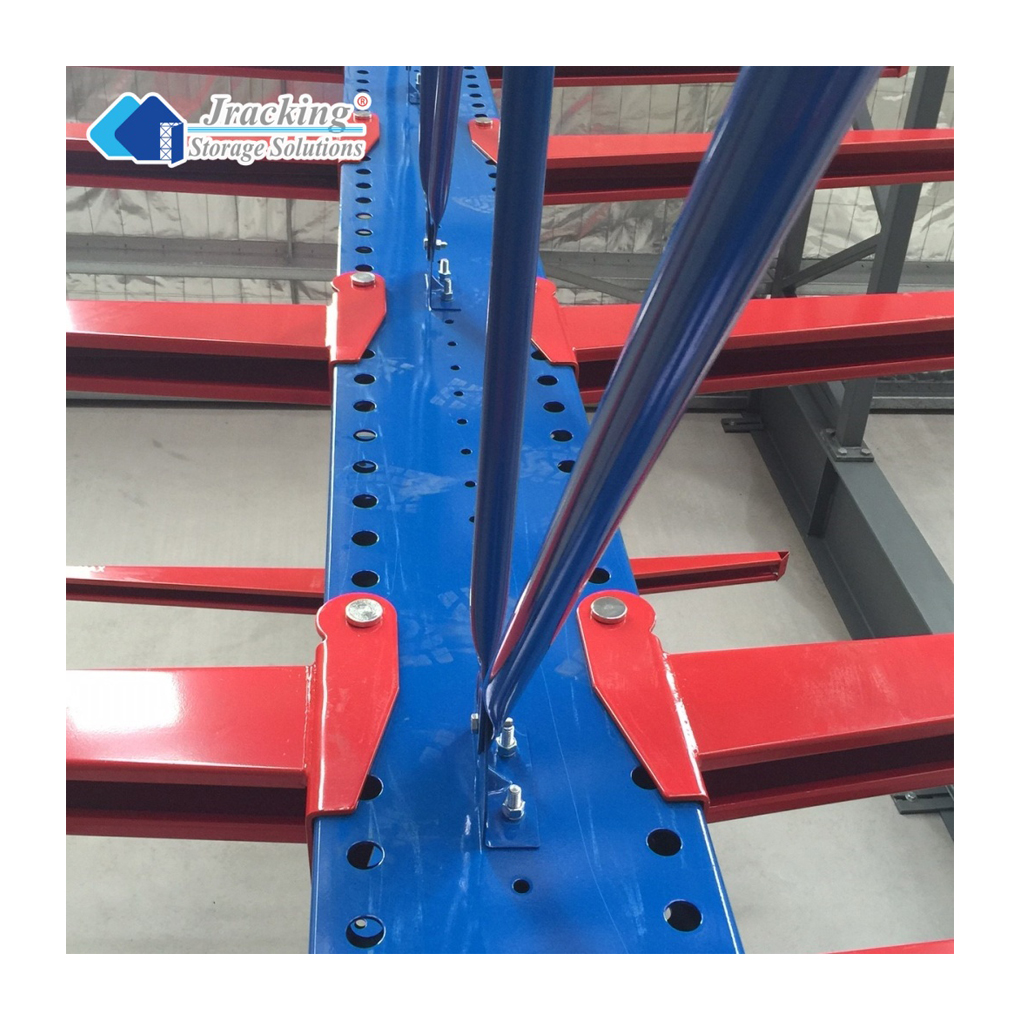

Jracking Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability. Both single-side and double-side bases are available to meet different storage requirements.
Advantages
Exceeding 6m height is available, the highest column is able to reach 10.5m.
Heavy loading, loading of single-arm can up to 1500kg.
Keep selling to Australia market more than 10 years.
Long and irregular material goods stored.
Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
Except from the regular size, the longest arm can last to 3m.
The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.

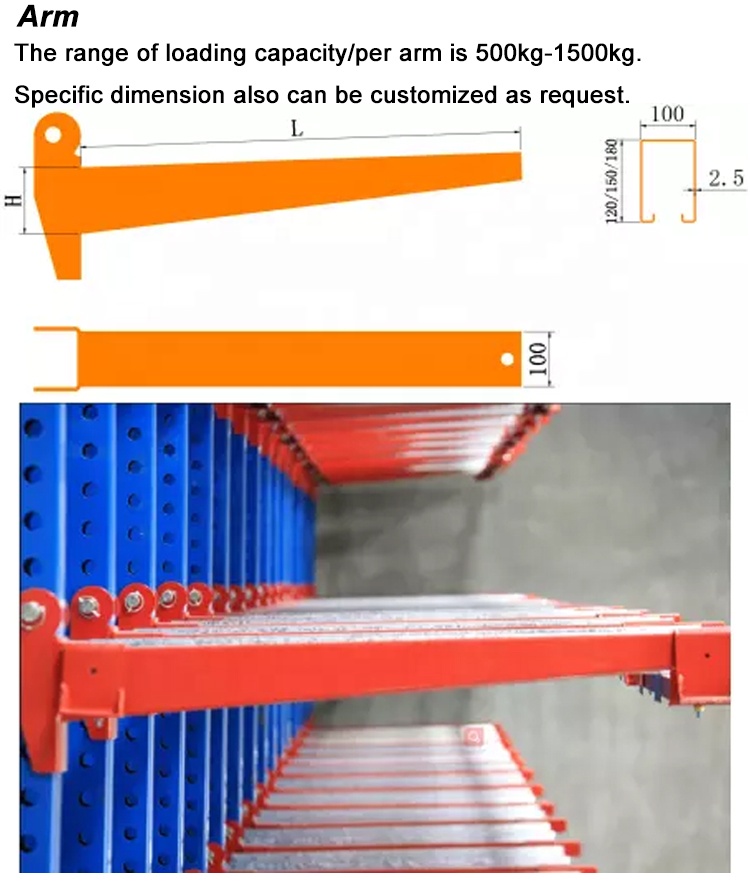

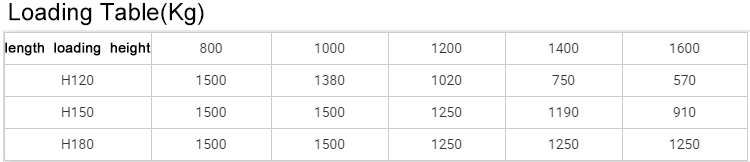

| Component | Specification | Length |
|---|---|---|
| Arm | H120 | 800-2000mm |
| H150 | ||
| H180 |

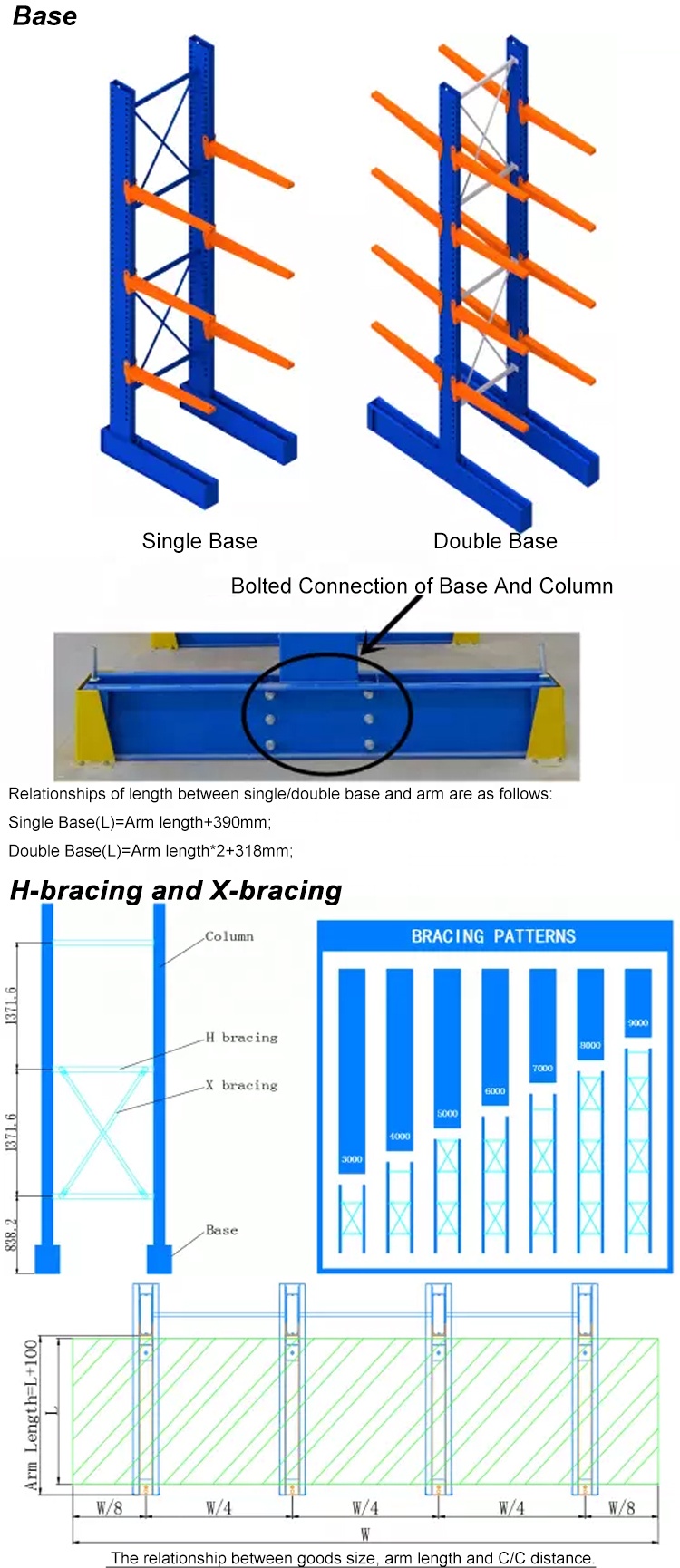

| Item | Dimension | C/C Distance |
|---|---|---|
| H-bracing | 60x30x2.5 | 500mm-2000mm |
| X-bracing | Φ32x1.5 |
C/C distance 1000, 1200, 1400, 1600, 1800, 2000.
Other specific dimension also can be customized as request.
Other specific dimension also can be customized as request.
Product Categories
Company Profile
Certifications
Production Process

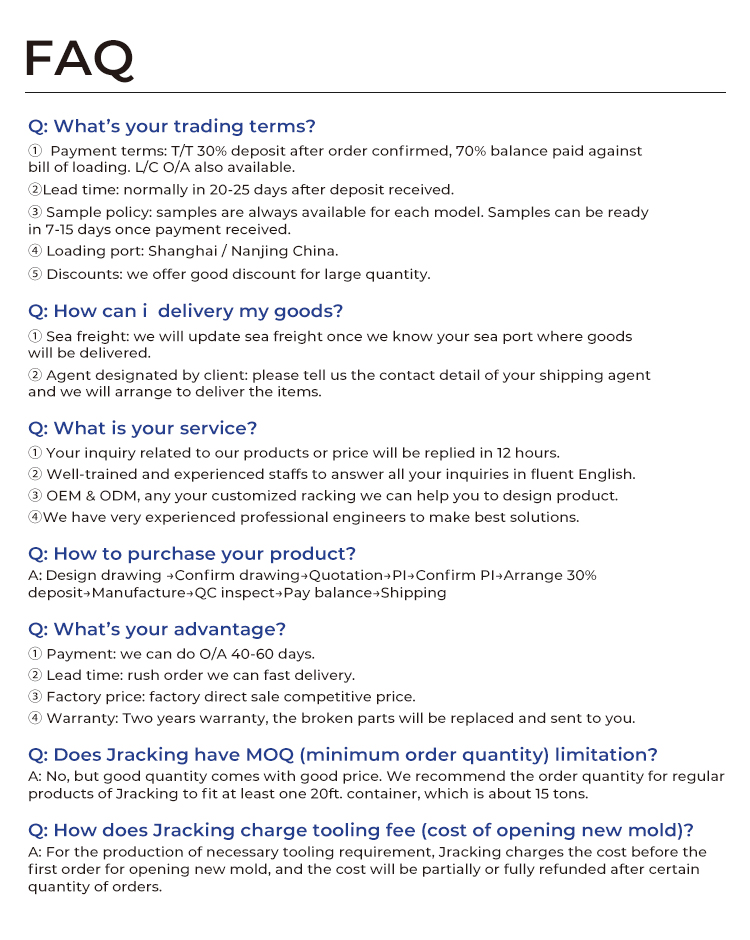

FAQ
What items are best suited for Cantilever Racking?

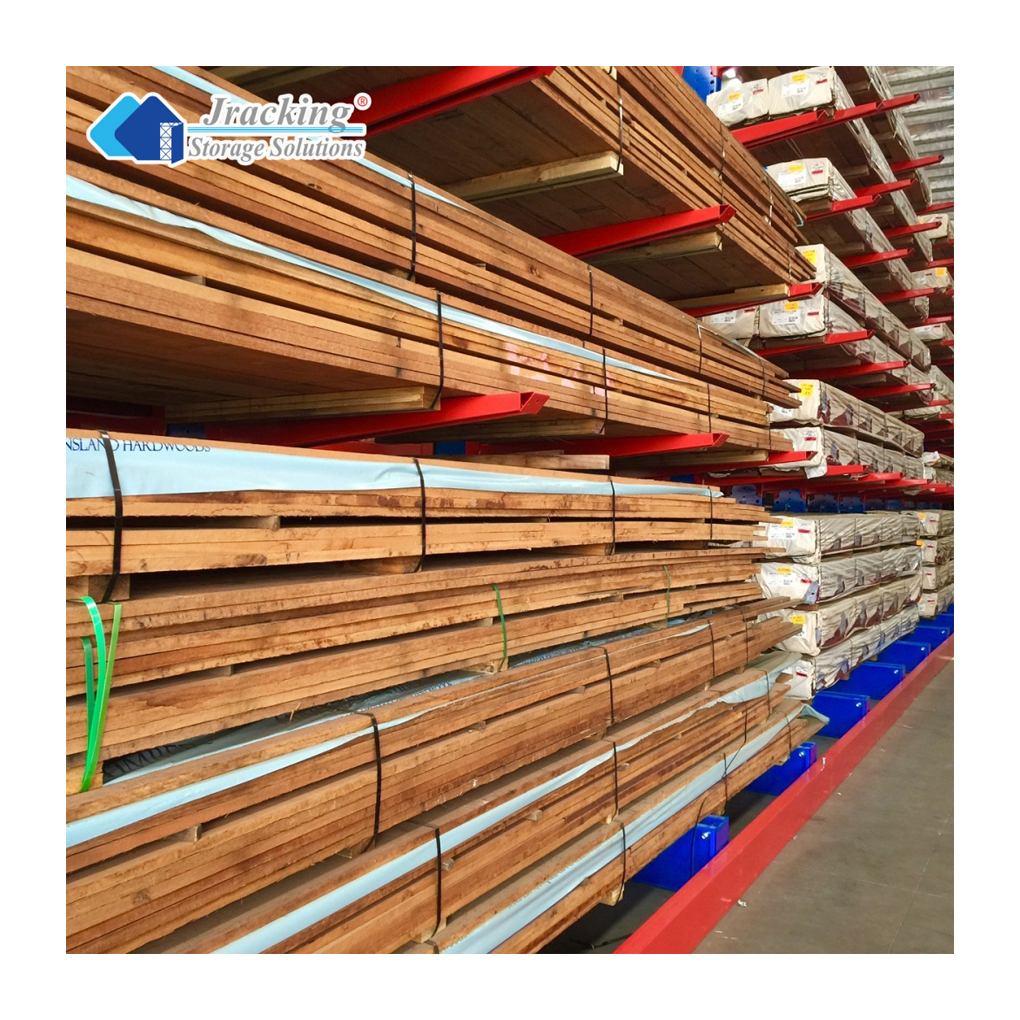

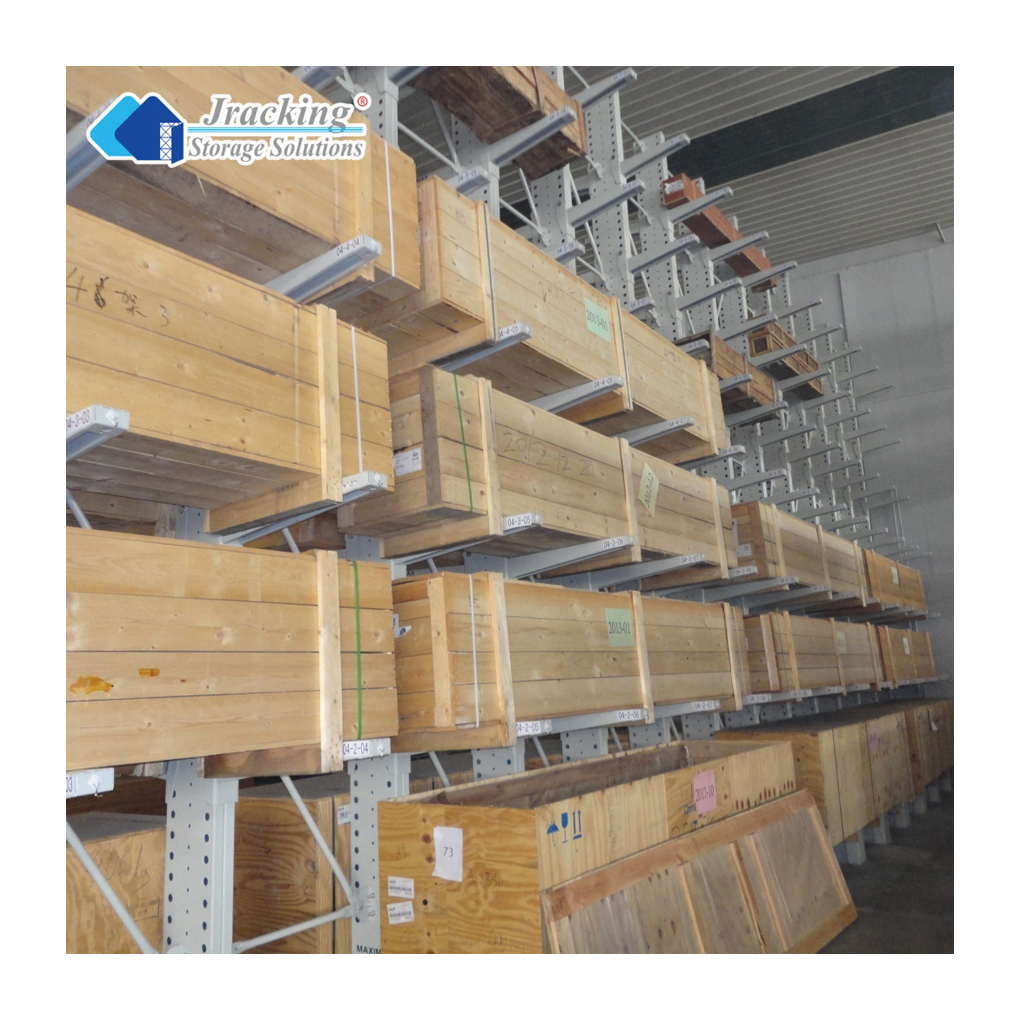

Cantilever racking is ideal for storing long, bulky, or awkwardly shaped goods such as timber, steel pipes, plastic tubing, furniture, plasterboard, and sheet materials without obstruction from front uprights.
What load capacities can the cantilever arms handle?
Standard weight capacity is engineered up to 1000kg per arm, with heavy-duty options designed to hold up to 1500kg per arm depending on your warehouse storage requirements.
Can the racking system be customized to my warehouse specifications?
Yes, column heights (up to 10.5m), arm lengths (up to 3m), single or double-sided bases, and finishes (powder coating or hot-dip galvanized) are fully customizable to suit your exact warehouse dimensions and layout.
What international quality standards and certifications are met?
The racking systems comply with top structural and safety criteria worldwide, verified by certifications including RMI, CE, ISO, TUV, and the Australian standard AS4084-2012.
What is the minimum order quantity (MOQ) and sample policy?
The standard MOQ is one 20ft or 40ft shipping container. Free samples are available for quality evaluation, with freight and delivery costs covered by the buyer.
