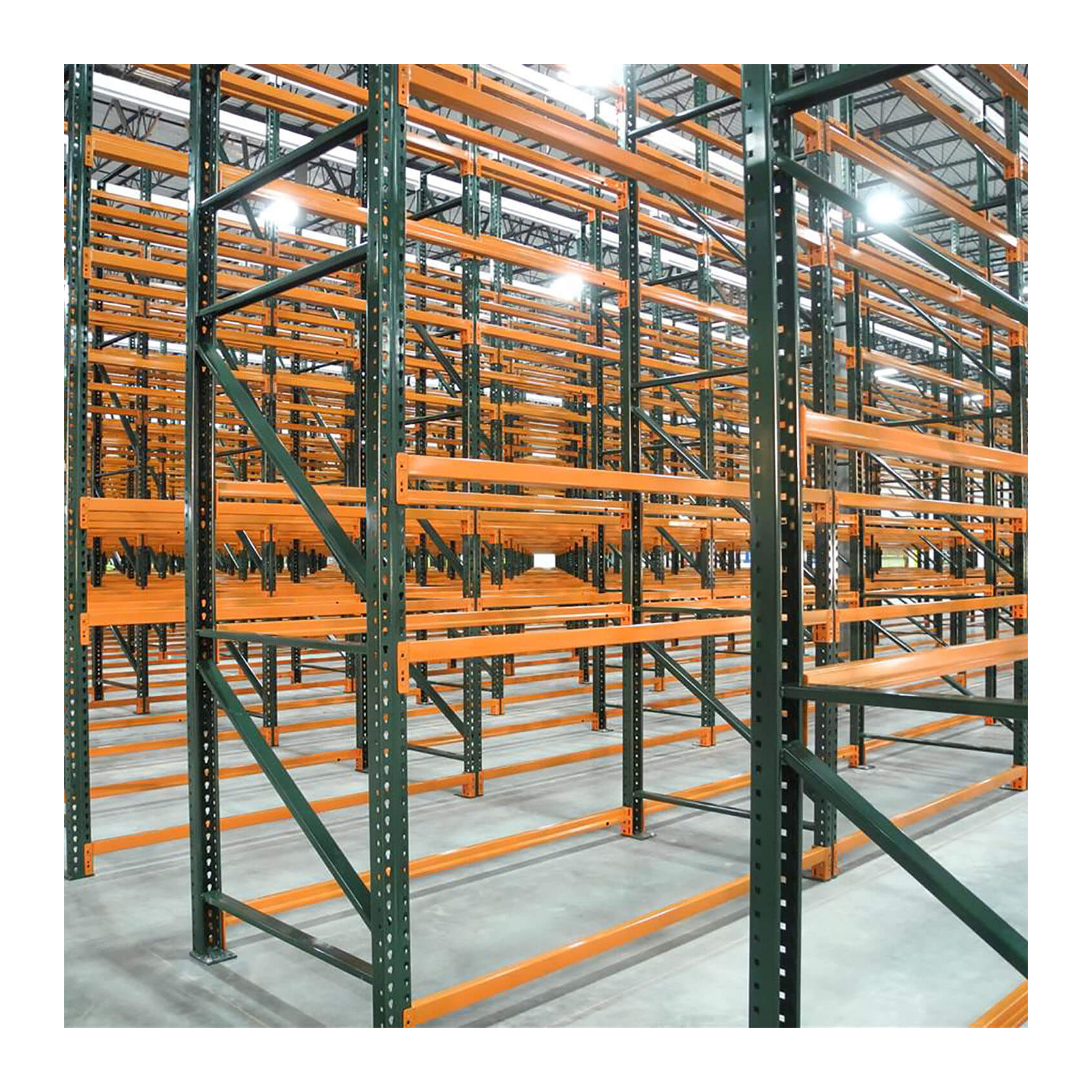

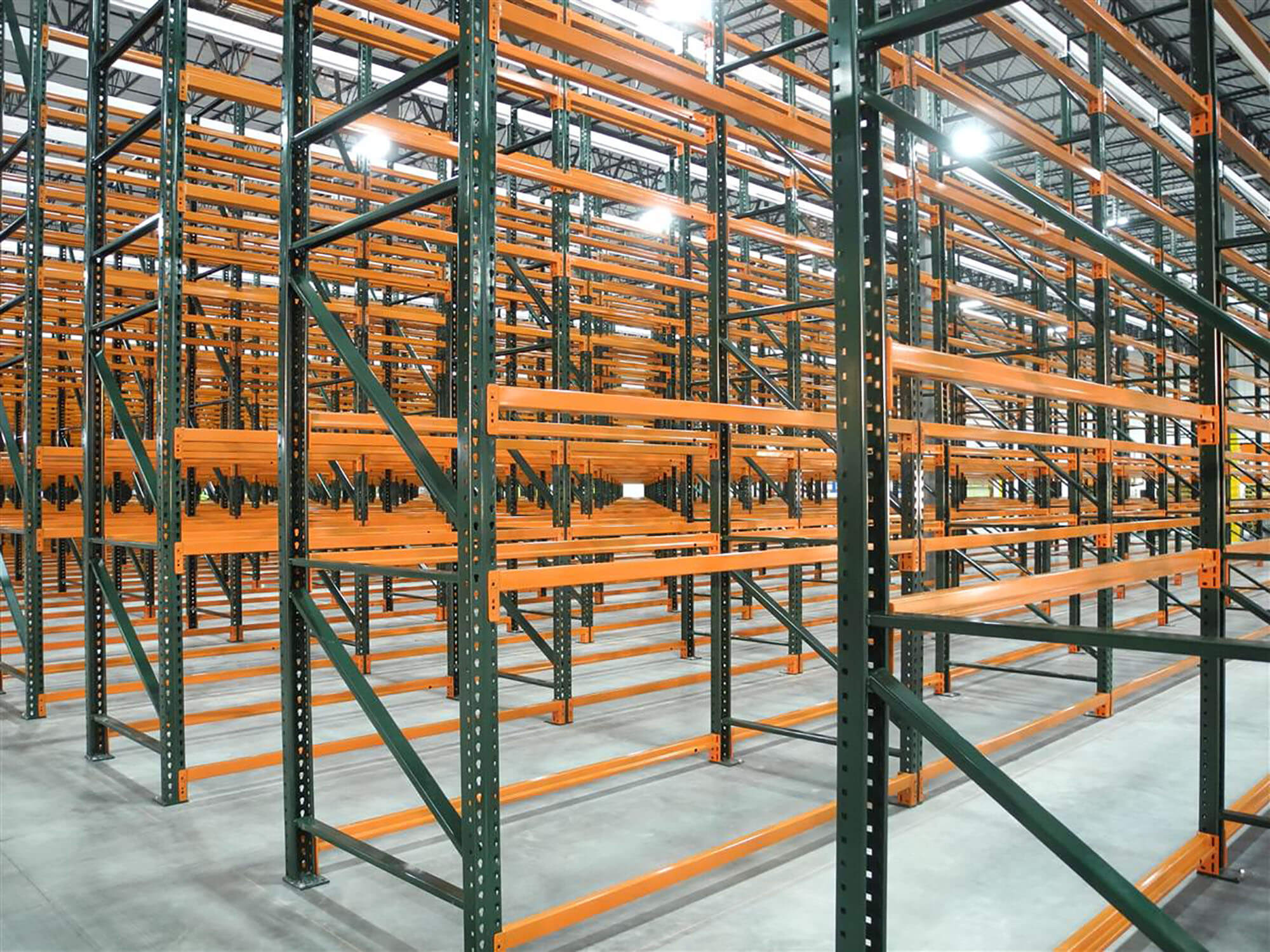

Mracking China High Quality Factory Direct Sales Rear Push Racking System
Product Description

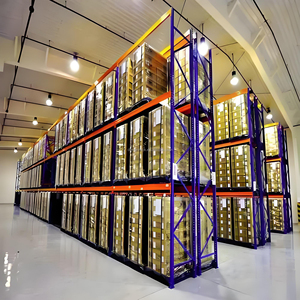

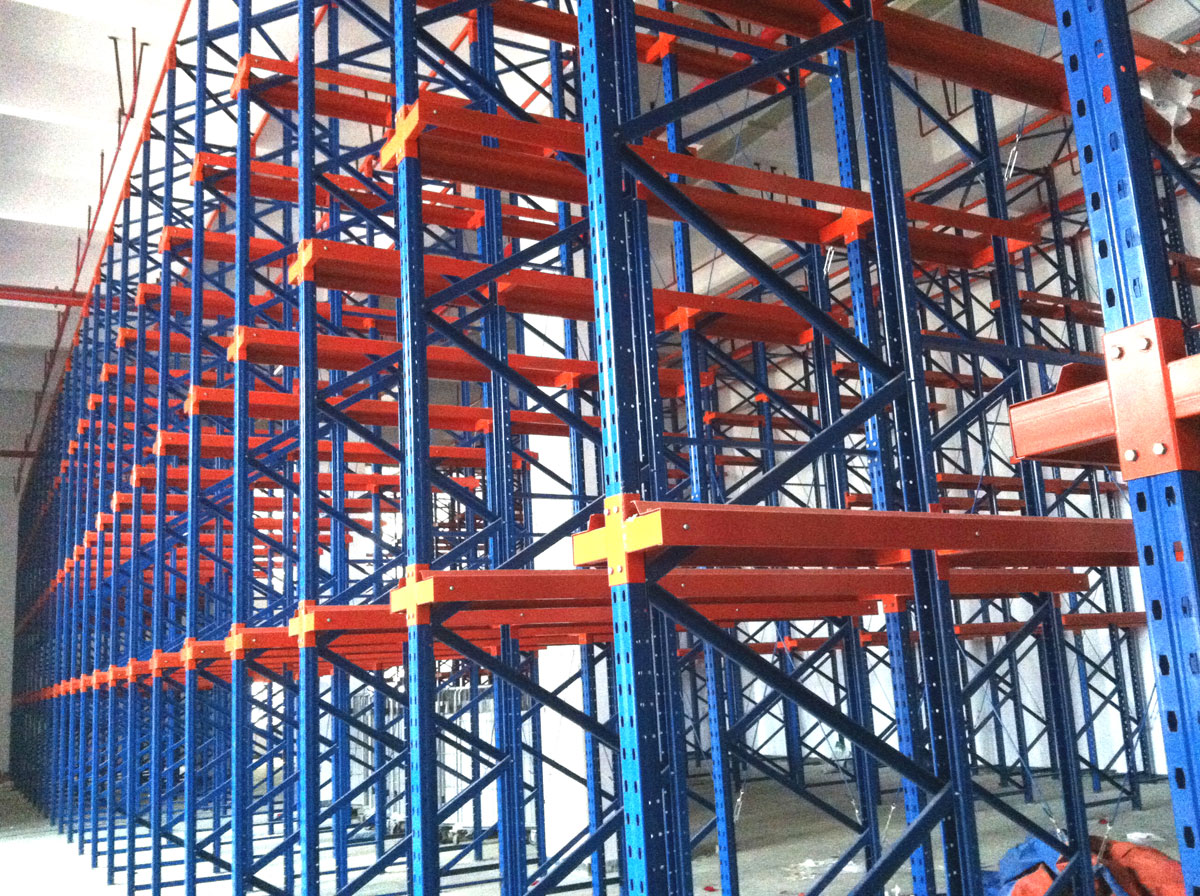

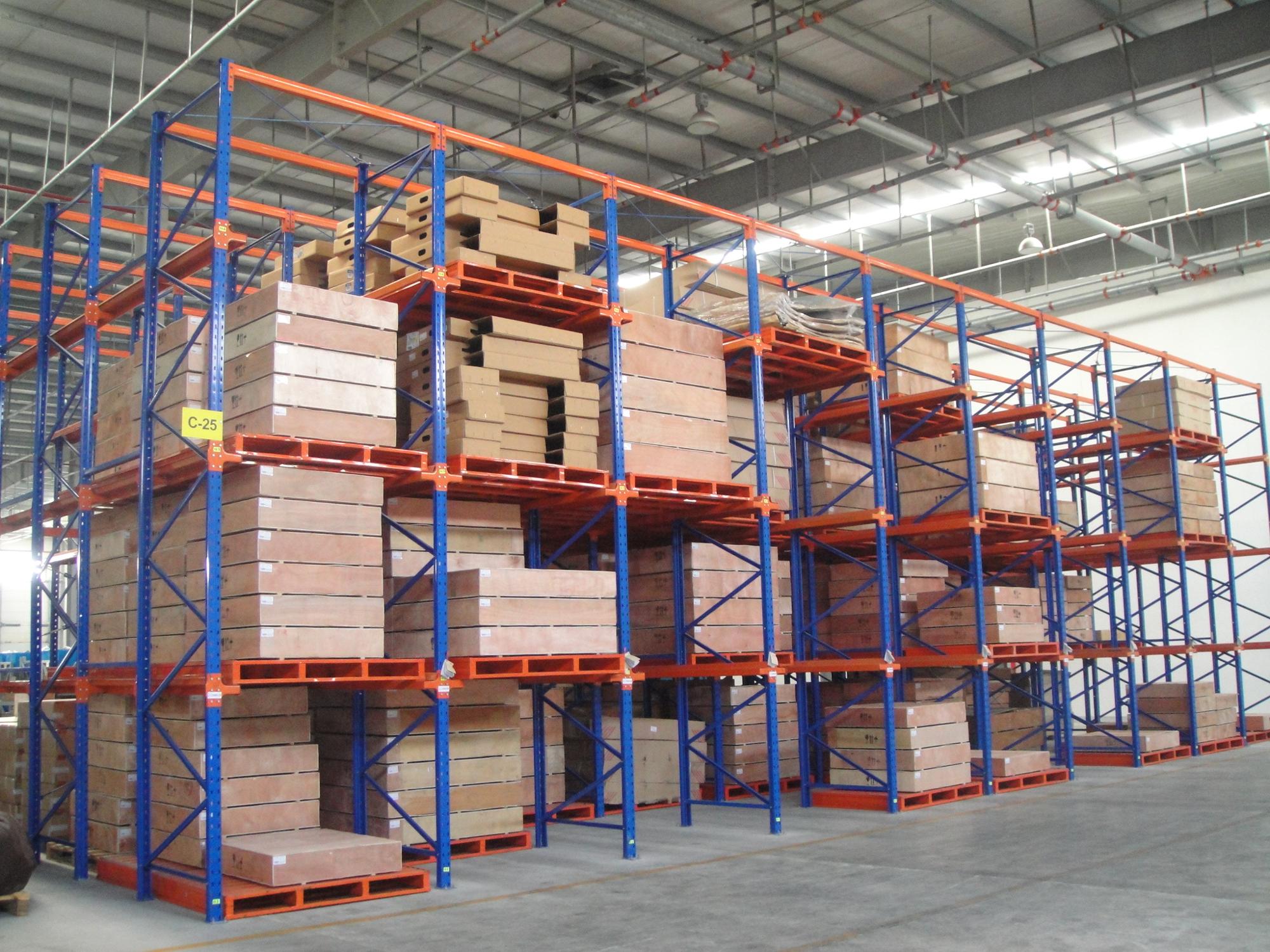

Product Description: Drive-in Rack
It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
Technical Specifications
| Loading Weight | 800~1000kg/pallet. Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm. Special size also available to specific storage needs. |
|---|---|
| Main Parts Specs |

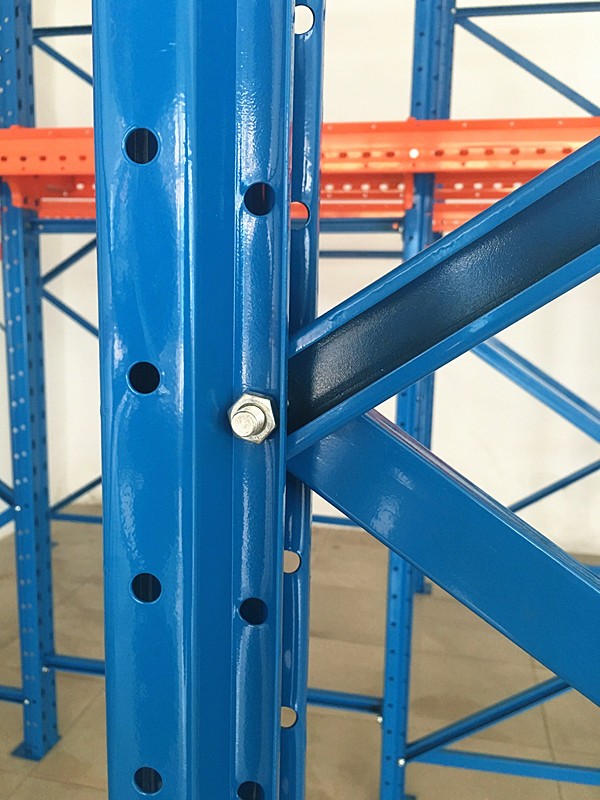

Upright section: 90*65, 120*65, 1.5, 2.0mm. Beam Section: box beam 80*45/100*45/120*45/140*45/160*45, etc. Thickness: 1.0/1.2/1.5mm, etc. Includes horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality cold rolled steel, Q235 |
| Package Term | Air bubble pack, PE stretch film for keeping free from scratch |
Key Features
✔
Large loading capability: 1000KG-2000KG / each pallet.
✔
Forklift may drive directly into the racking channel to place and fetch pallets.
✔
Low capital cost using conventional handling equipment.
✔
Very high warehouse utility and storage density ratio.
✔
Supports both First-In-First-Out (FIFO) and First-In-Last-Out (FILO) access.
✔
Heavy-duty structural steel construction engineered for long durability.
✔
Pallet positions configure from 2 to 5 deep and 2 to 5 high, ideal for maximizing space.
✔
Surface finish: high-durability powder coating available in various custom colors.
✔
Specifically optimized for storing uniform goods in large volumes.

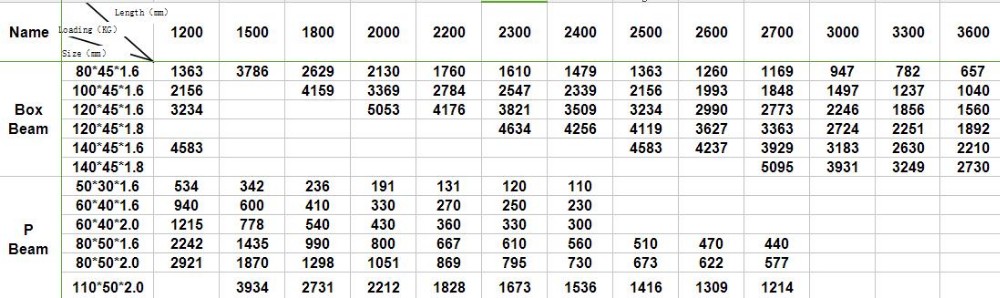

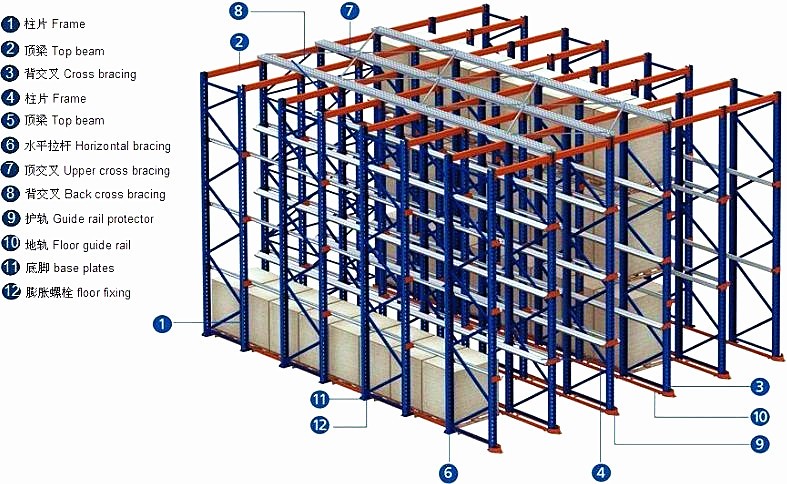

Beam Loading Capacity & Size

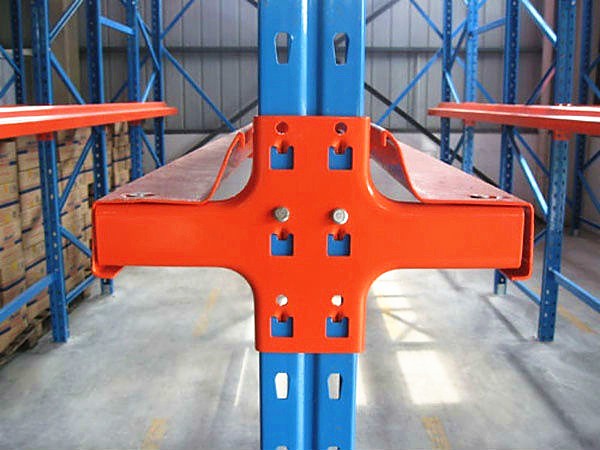

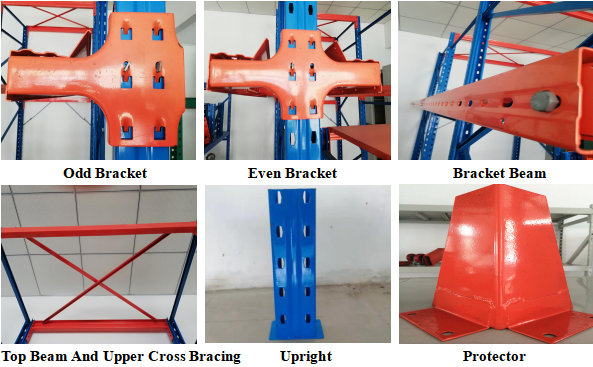

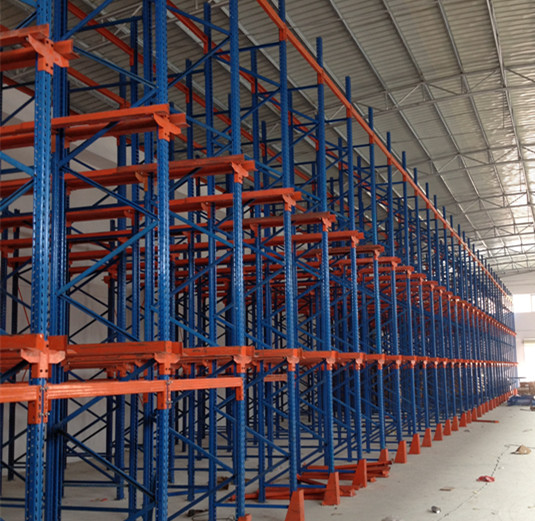

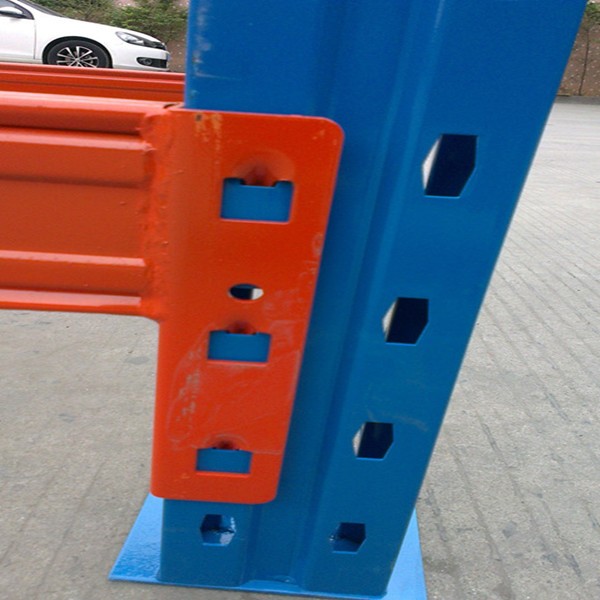

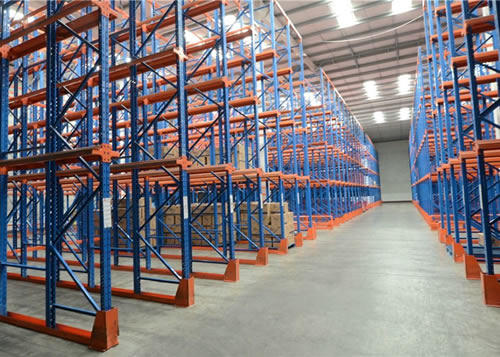

Details & Configurations

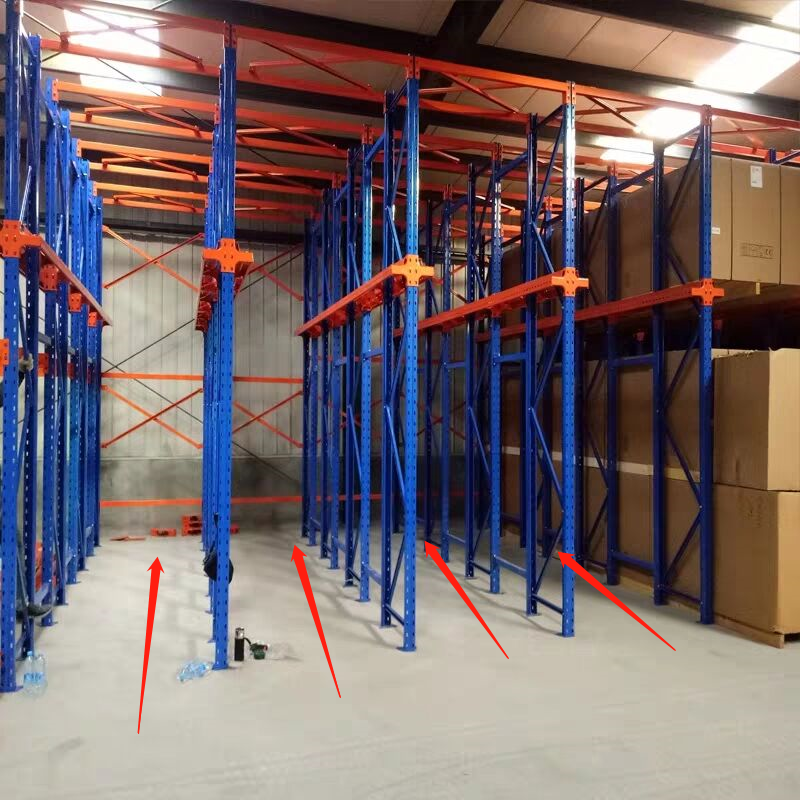

Single Entry Racks
Lift trucks can enter the rack system from only one side.

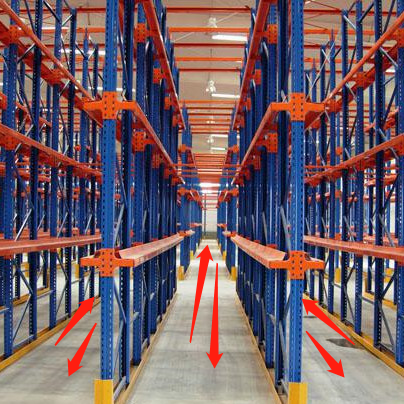

Double Entry Racks
Lift trucks can enter from both sides of a row of racks. The center of the rack row is stabilized by a beam.

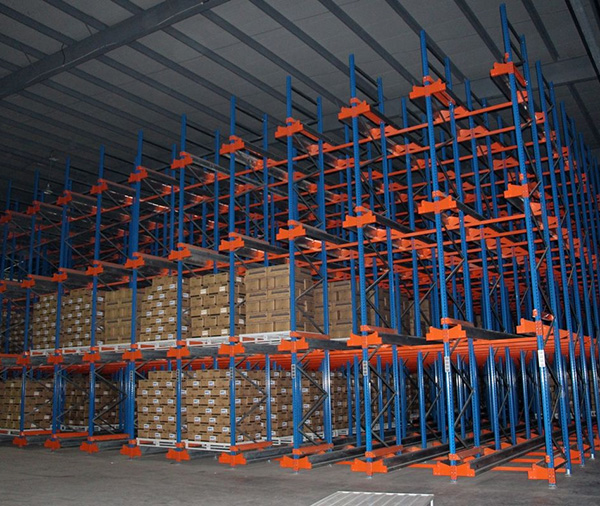

Product Overviews
Related Products

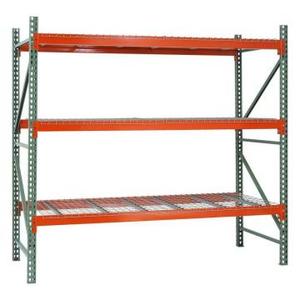

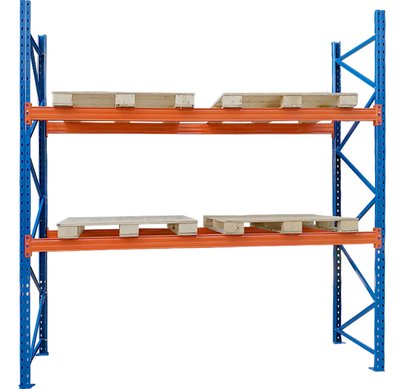

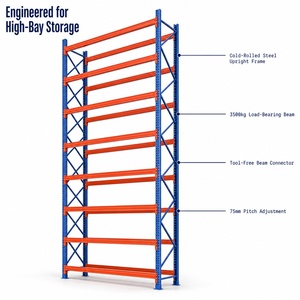

Heavy Duty Pallet Racking

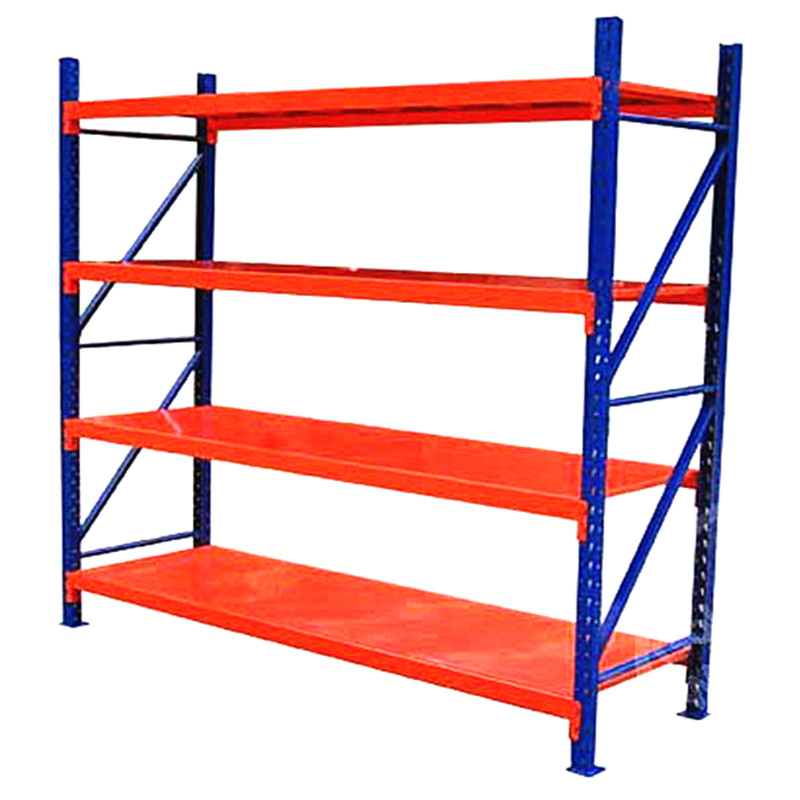

Medium Duty Rack

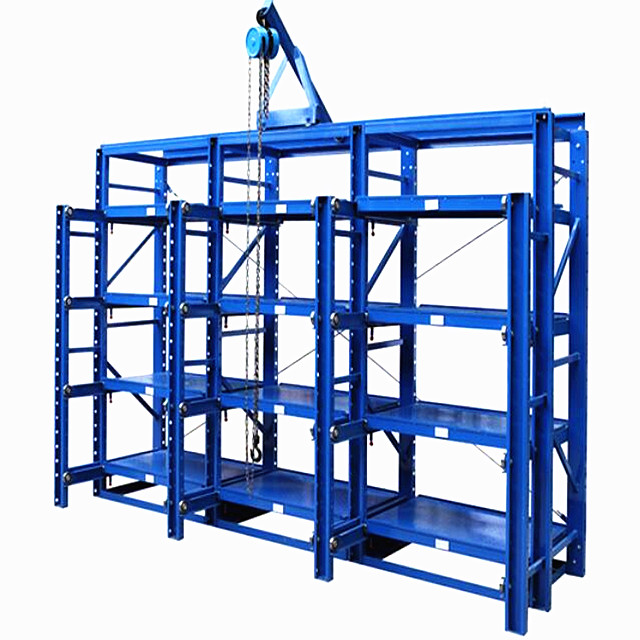

Mould Rack

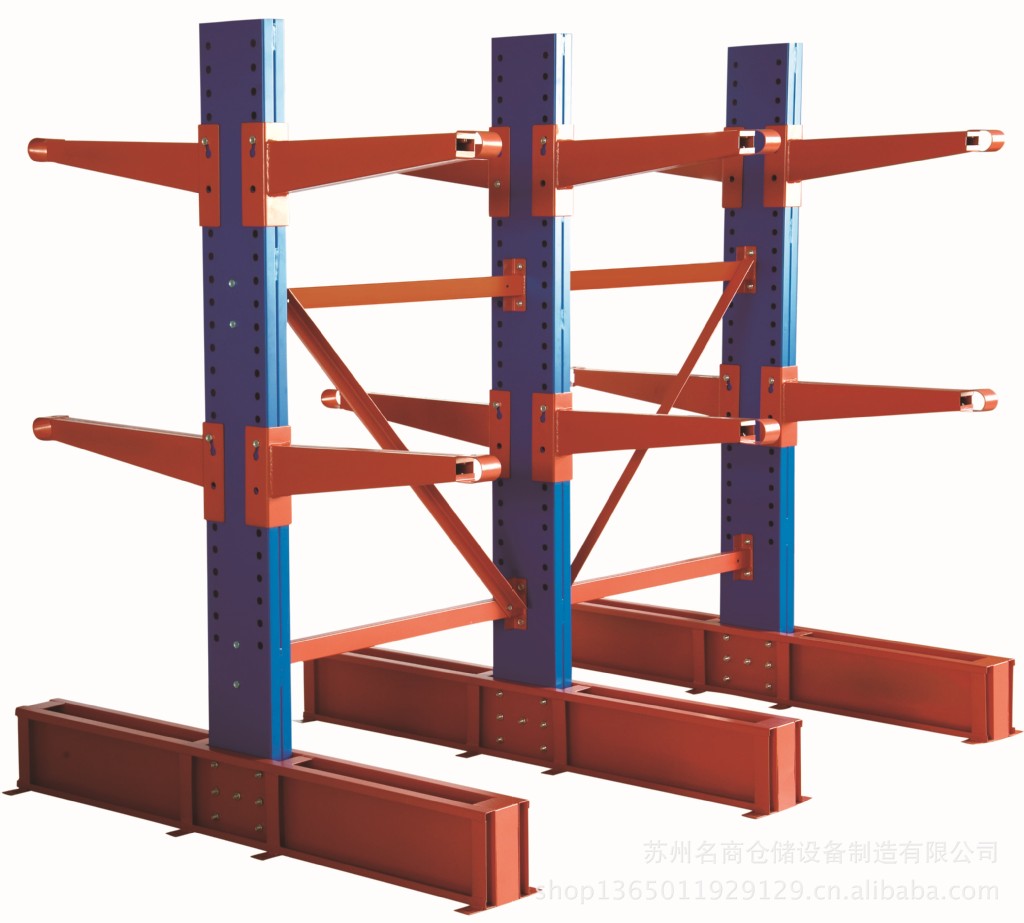

Cantilever Rack

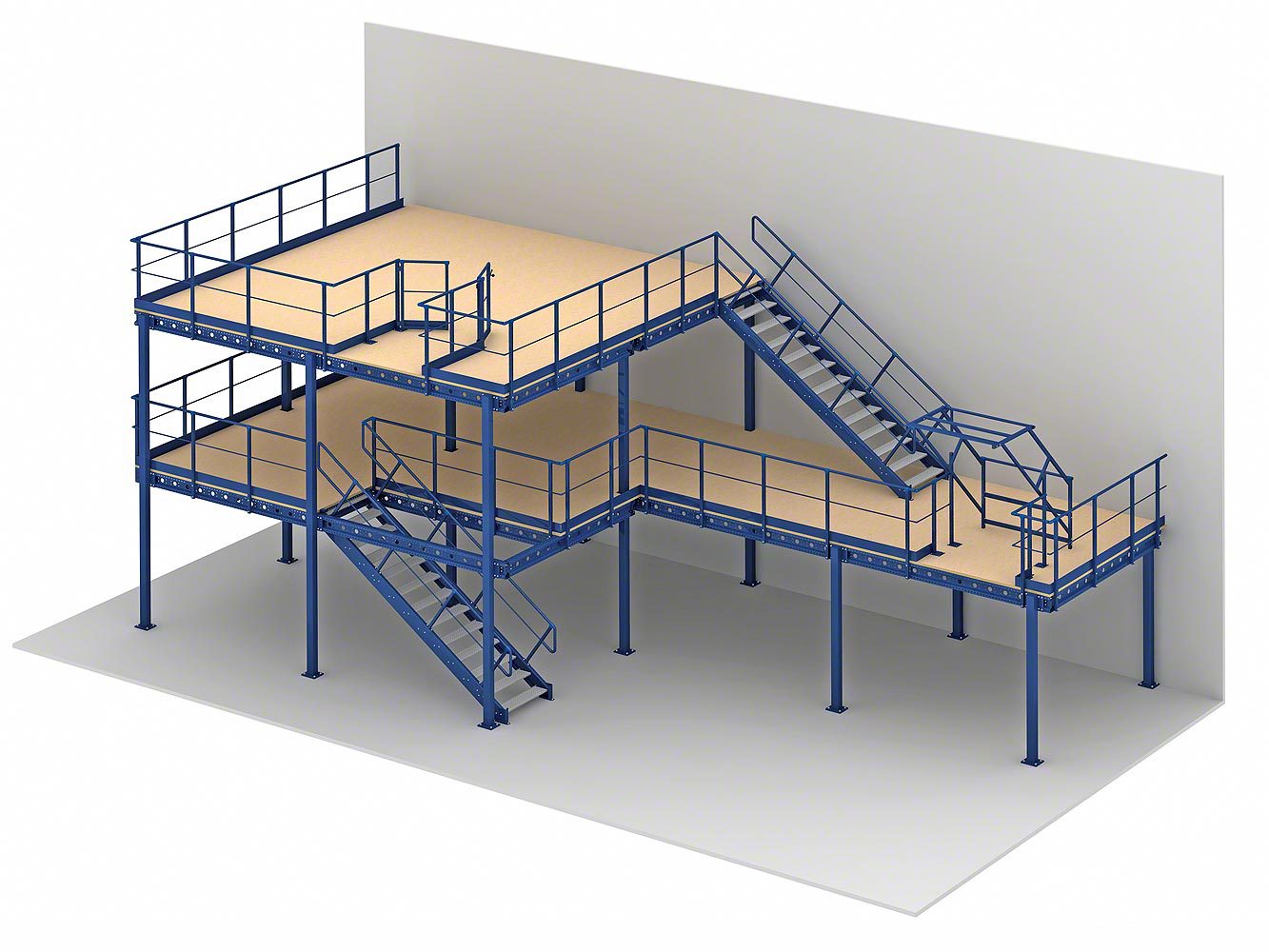

Mezzanine Floor

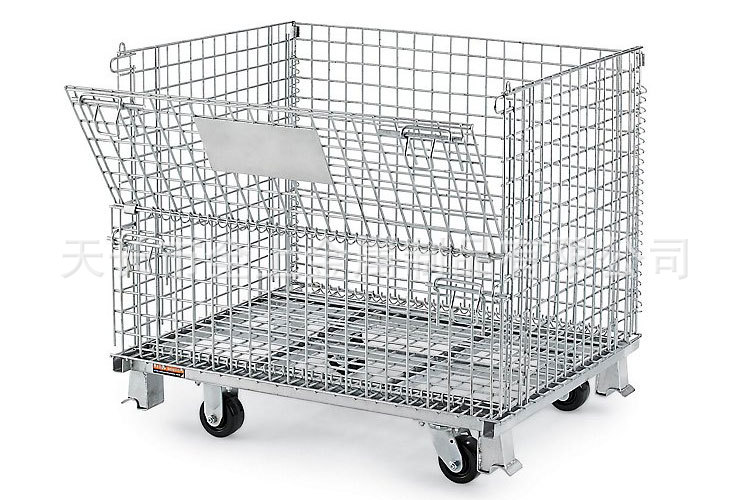

Wire Mesh Container
Frequently Asked Questions
Q1Are you a manufacturer or trading company?
We are a professional racking manufacturer located in Dongguan, Guangdong.
Q2What is the material of your racking systems?
Our material is high-grade Q235B cold-rolled steel, ensuring structural strength and durability.
Q3What is your typical delivery time?
Generally within 15 workdays. The delivery schedule also depends on the final order quantity and custom shelving design.
Q4What are the standard payment terms?
30% T/T down payment upon confirmation and 70% T/T balance settled before delivery.
Q5How can I get a quick quotation for my racking project?
Please provide: 1) The dimensions of the rack (Length * Depth * Height); 2) Number of layers per set; 3) Load capacity per beam layer; 4) Total racking quantity required.
Q6How does your factory handle quality control?
Quality is our priority. Our facility operates strictly under ISO 9001 certifications to ensure consistent product performance.
