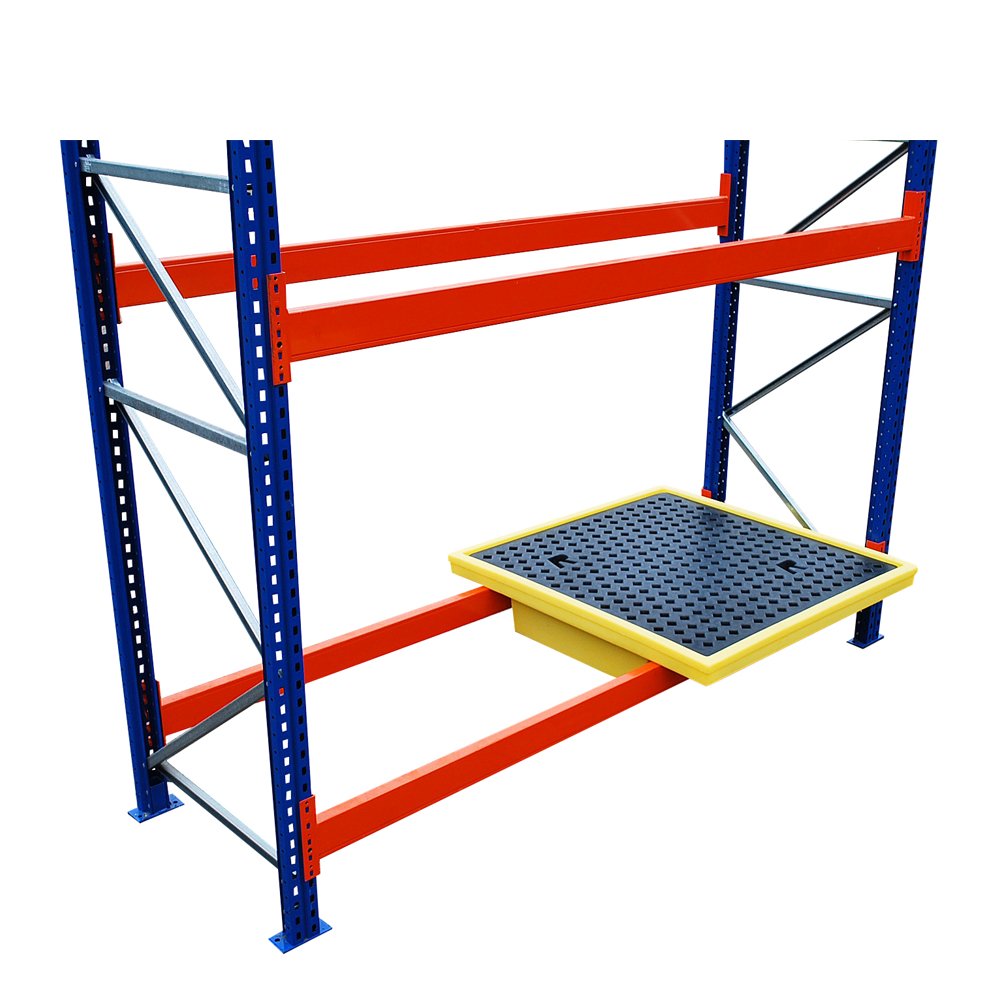

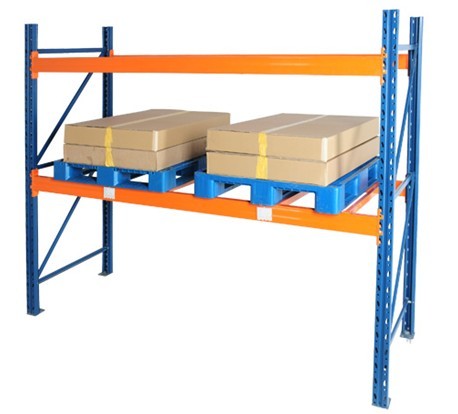

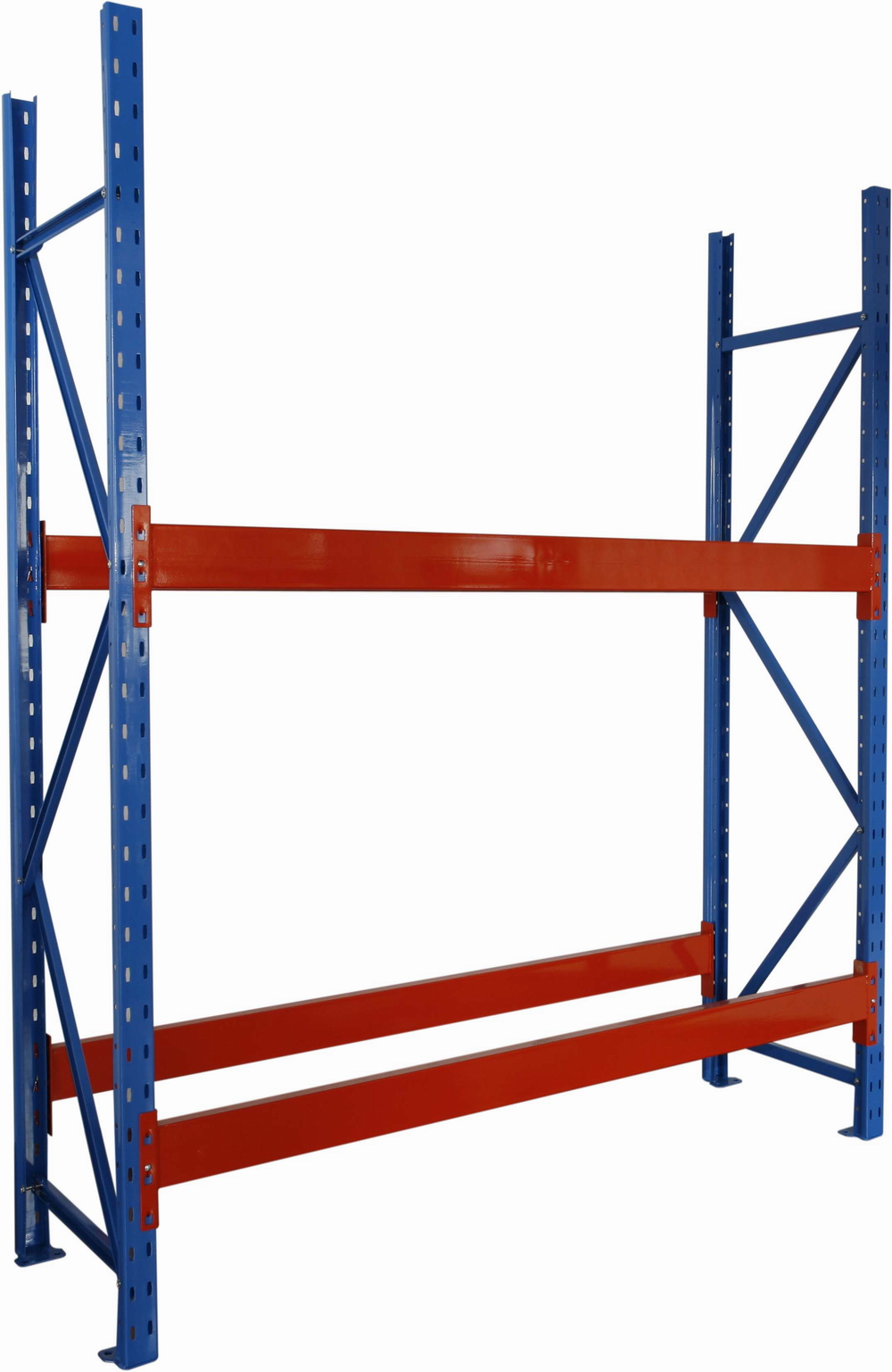

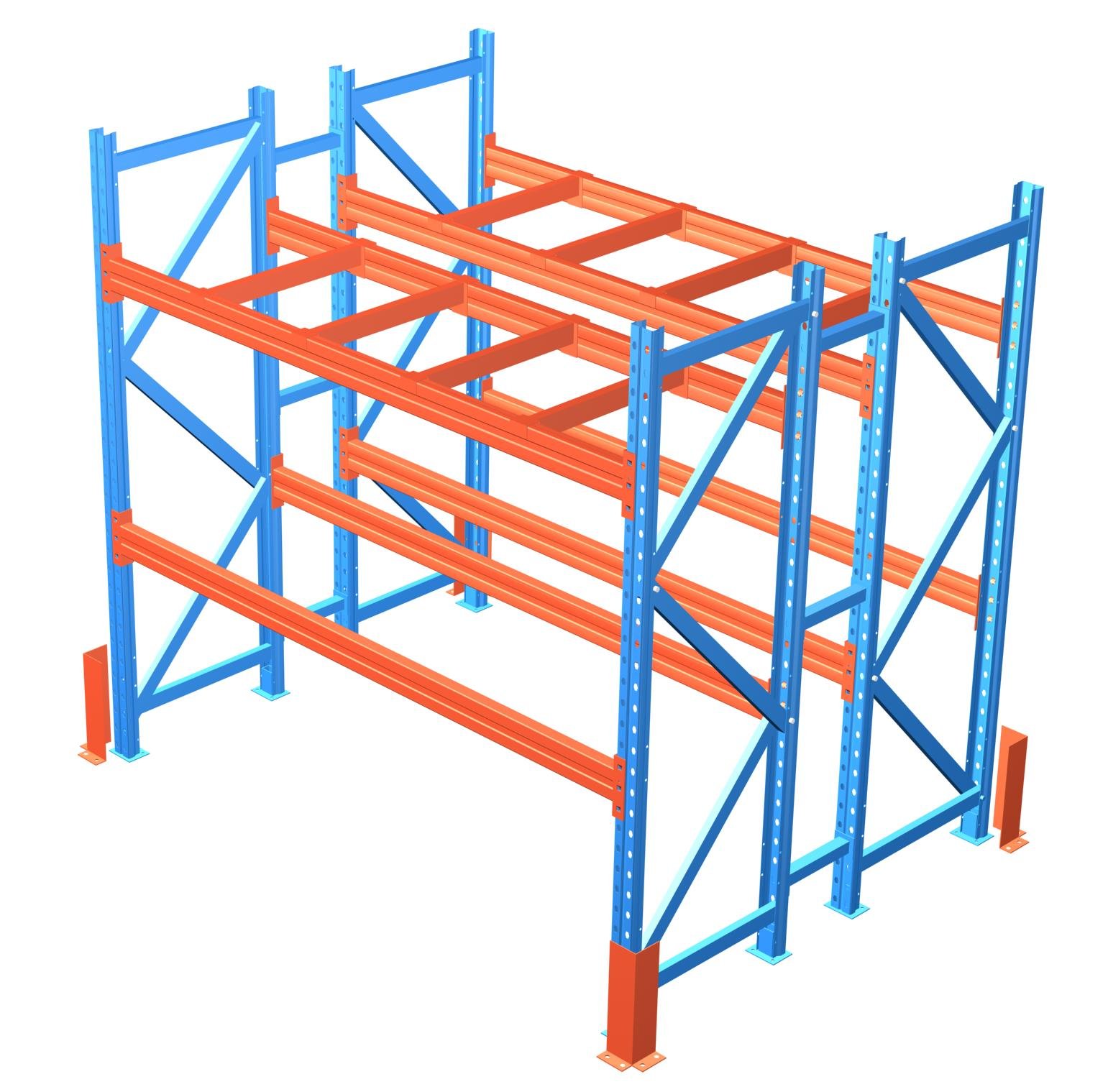

CE Certified Tear Drop Hole Heavy Duty Warehouse Rack Custom Height and Loading Capacity
Product Description
Regular Size & Specifications
| Pallet Rack Frame (75 Pitch) | |||
|---|---|---|---|
| H (Height) | D (Depth) | Specification | Thickness |
| 2000mm | 600mm | 60x80mm | T 1.8-2.0mm |
| 2500mm | 700mm | 70x90mm | T 2.0-2.5mm |
| 3000mm | 800mm | 70x1100mm | T 2.0-2.5mm |
| 3500mm | 1000mm | 90x1400mm | T 2.0-2.5mm |
| 4000mm | 1100mm | — | — |
| ....(Customized) | ....(Customized) | — | — |
| Box Beam (Capacity: 1000-3000kgs) | ||
|---|---|---|
| L (Length) | Specification | Thickness |
| 1500mm | 50x80mm | T 1.5mm - 3Pins |
| 2000mm | 50x100mm | T 1.5mm - 3/4Pins |
| 2500mm | 50x110mm | T 1.5mm - 4Pins |
| 3000mm | 50x120mm | T 1.5mm - 4Pins |
| 4000mm | 50x140mm | T 1.5mm - 4Pins |
| ....(Customized) | 50x160mm | T 1.5mm - 4Pins |

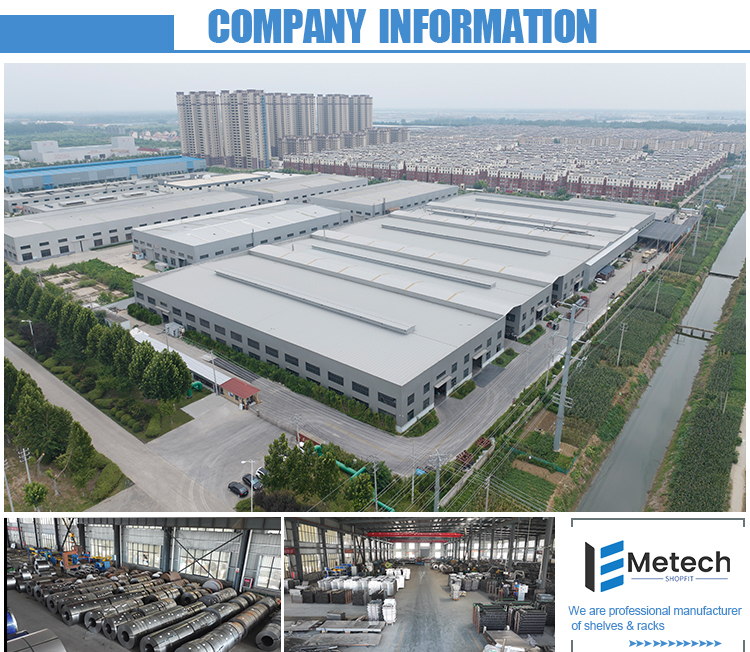

MTK Company situated in Jiangsu Province,we take pride in our state-of-the-art manufacturing facilities that enable us to deliver high-quality products tailored to our clients'needs.Our core offerings encompass a comprehensive range of solutions, including supermarket shelving, warehouse racking systems, and logistics turnover equipment. Our extensive expertise in this field empower us to streamline your procurement process, we are dedicated to fulfilling your expectations with precision and efficiency.
Frequently Asked Questions
What is the hole pitch standard for the Pallet Rack Frame?
The pallet rack frames are engineered with a 75mm pitch (75 Pitch), providing flexible multi-level adjustment to adapt to various palletized storage heights.
What is the load capacity range of the Box Beams?
Our heavy-duty box beams support load capacities ranging from 1,000 kg up to 3,000 kg per beam level, depending on length, profile, and thickness.
Are customized sizes available for pallet racks and beams?
Yes. Beyond the standard frame heights (up to 4000mm) and beam lengths (up to 4000mm), customized dimensions, column profiles, and steel thicknesses can be produced to fit your exact warehouse layout.

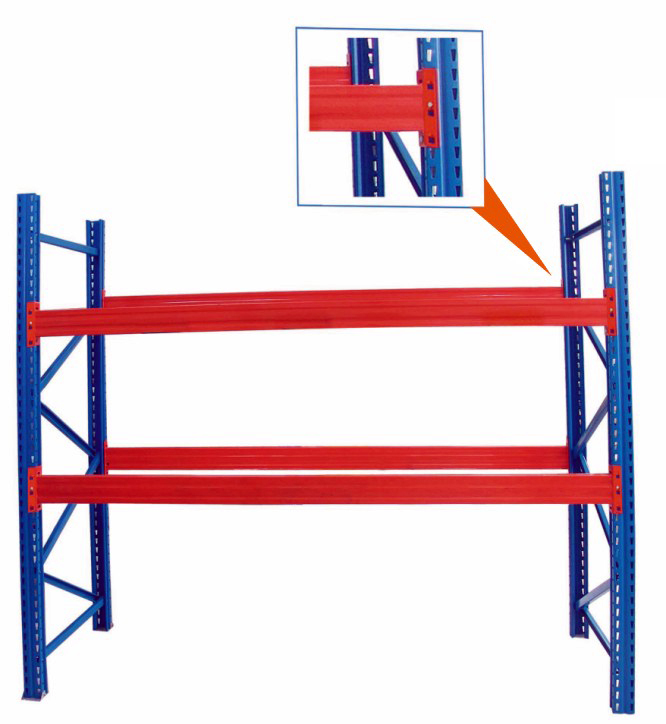

What pin connector configurations are provided on the beams?
Depending on beam dimensions and duty specifications, our box beams are configured with heavy-duty 3-pin or 4-pin connectors ensuring rigid interlocking with upright frames.
What product lines does MTK Company specialize in?
MTK Company provides comprehensive storage and handling solutions, including warehouse pallet racking systems, supermarket display shelving, and logistics turnover equipment.

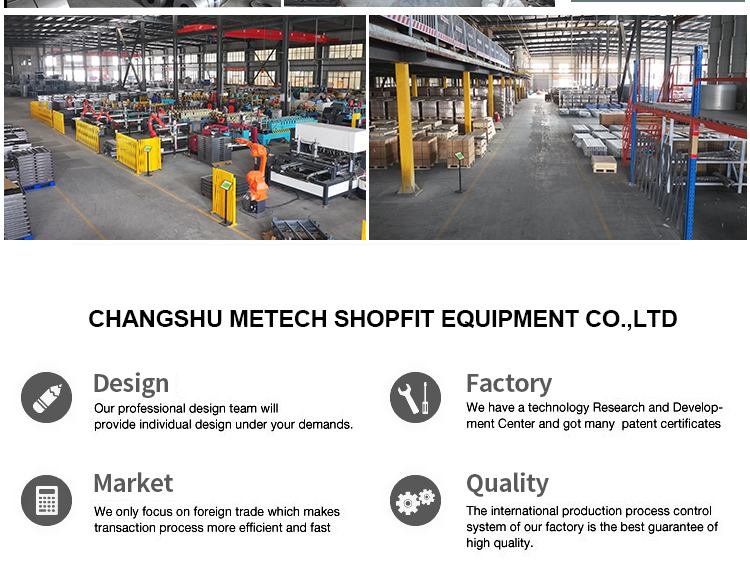

Where is the manufacturing base located?
Our advanced manufacturing facilities are situated in Jiangsu Province, outfitted with modern equipment to ensure efficient production and rigorous quality standards.
