VNA Heavy Duty Pallet Racking
Maximizes vertical clearance with narrow guide rails, yielding high cubic retrieval capacity for intensive multi-SKU operations.
Engineered Industrial Storage Systems
Explore our heavy-duty multi-tier configurations, structural racking platforms, and dynamic flow storage systems built to rigorous international structural codes.
Prefab Steel Structure Systems
High-tensile structural frames designed to anchor multi-tier pallet racking and expansive mezzanine logistics hubs.
3000KG Heavy Duty Industrial Rack
Robust dual-level powder-coated steel racking with heavy-duty boxed beam sections providing corrosion-resistant support.
Customized Multi-Tier Shelving
Flexible catwalk-compatible medium-duty storage shelving optimized for manual split-case picking, workshop tools, and parts.

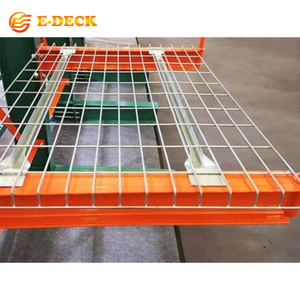

Galvanized Wire Mesh Decking
Fire-code compliant hot-dipped galvanized decking channels engineered to distribute point loads and improve internal lighting.
Push Back Pallet System
Dynamic nested trolley rail system delivering 2-6 pallet deep high-density storage under LIFO inventory control standards.
Adjustable Steel Storage Racks
Versatile boltless modular stacking frames engineered for rapid repositioning, seasonal logistics flex, and fast assembly.

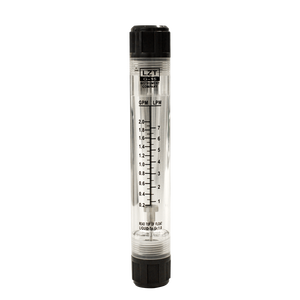

Industrial Facility Flow Devices
Integrated pipeline valves and flow control instrumentation designed for industrial HVAC, fire suppression, and fluid monitoring.
25+
Years Manufacturing Experience
30,000 m²
Integrated Factory Workshop
30,000 t
Monthly Rolling Output
120+
Export Markets Served
Whitepaper: Strategic Procurement & Engineering Standards for Multi-Tier Pallet Racking
Modern fulfillment networks, cold chains, and cross-border distribution centers are confronting surging industrial real estate costs. When horizontal facility footprint expansion is constrained by cost or land scarcity, vertical optimization through engineered multi-tier pallet racking systems becomes essential for modern logistics design. Unlike standard single-level racking, multi-tier platforms leverage the full vertical cubic volume of modern warehouse structures, integrating heavy-duty pallet load capacities with overhead multi-story catwalks, automated replenishment channels, and advanced conveyor routing.
1. Future Procurement Trends in Industrial Storage Architecture
As international supply chains evolve through e-commerce scaling and nearshoring initiatives, procurement directors face complex system evaluations:
- Structural Hybridization: Traditional selective racks are shifting toward hybrid combinations. Facilities increasingly integrate structural pallet racking on lower levels for heavy bulk inventory with rack-supported mezzanine walkways above for high-density, multi-SKU carton picking.
- Seismic Resilience & FEA Structural Analysis: Global buyers now demand localized structural design compliance. Multi-tier installations must account for specific zone-based seismic dynamics, slab deflection limits, and cold-formed steel buckling factors verified through Finite Element Analysis (FEA) compliant with EN 15512, RMI, and AS4084 standards.
- Environmental Corrosion Protection: Demanding climate requirements—such as high ambient humidity in coastal or tropical regions—necessitate rigorous steel pre-treatment. Procurement specifications emphasize high-grade continuous pickling, phosphating, and advanced electrostatically applied epoxy powder finishes, as well as hot-dip galvanizing for harsh conditions.
2. Emerging Technological Paradigms in Warehouse Automation Integration
The transition toward semi-automated and fully automated fulfillment has transformed the design of multi-tier racking systems. Warehouses require structural adaptability for:
- Automated Guided Vehicle (AGV) & AMR Compatibility: Multi-tier mezzanine decks and vertical tiers now feature ultra-flat floor paneling, flush guide rails, and widened structural portals that facilitate autonomous robot navigation alongside manual pickers.
- Radio Shuttle & Pallet Flow Cross-Over: High-density multi-tier configurations are increasingly coupled with automated radio shuttle carts, minimizing forklift travel time into the racks while ensuring FIFO (First-In, First-Out) or LIFO (Last-In, First-Out) material movement.
- Smart IoT Safety Sensing: Modern installations incorporate real-time upright impact monitors, optical beam-deflection sensors, and load-limit indicators that interface directly with enterprise Warehouse Management Systems (WMS).
Why Global Logistics Leaders Partner with HEDA Shelves
End-to-end manufacturing oversight, rigorous quality verification, and personalized structural design support.
Certified Production Standards
Operating under certified CE marking (No. 2435-CPR-8605159), ISO 9001:2015 management systems, and RoHS compliance. Our high-tensile hot-rolled Q235B and Q355B coils undergo stringent tensile and yield testing.
Free 3D CAD & Structural Sizing
Our in-house design engineers evaluate your facility drawings, forklift turning radiuses, aisle clearances, and pallet load profiles to deliver complimentary detailed CAD schematics, 3D renderings, and certified load capacity tables.
Global Export & Custom Clearance Packaging
With exports spanning over 120 countries, every container load is optimized for space efficiency and balance, bundled with heavy-duty steel strapping, edge corner guards, water-resistant wrap, and itemized container packing lists.
Frequently Asked Questions on Multi-Tier Racking
Practical structural, engineering, and logistics insights for warehouse procurement managers.
? What floor slab load capacity is required for multi-tier pallet racking?
Multi-tier racking systems concentrate significant dead and dynamic point loads on the concrete warehouse slab. Typically, industrial concrete floor slabs must possess a minimum thickness of 150mm to 250mm with a compressive strength rating of C25/30 to C30/37 (or 3,500 to 4,500 PSI). During engineering review, we specify widened baseplates and heavy chemical anchor bolts to safely distribute upright column loads.
? How do you integrate fire sprinkler systems inside multi-level catwalks?
Modern local and international building fire codes (such as NFPA 13) require comprehensive in-rack sprinkler integration when racking exceeds specific heights or when multi-tier floors obstruct ceiling sprinkler coverage. We supply galvanized open wire mesh decking or perforated steel planking (providing 50% open area) and engineered pipe run-through cutouts for vertical fire suppression piping.
? Can custom finishes withstand high-humidity or cold storage environments?
Yes. Our multi-tier racking components are treated through a 10-stage automated finishing process including degreasing, acid pickling, zinc phosphating, and electrostatically sprayed architectural-grade thermosetting powder coating. For exterior, unconditioned tropical, or cold-storage environments (-30°C), we provide complete hot-dipped galvanized steel options that resist flaking and oxidation.
? What parameters are required to generate an engineering quote and CAD layout?
To produce an exact structural blueprint and cost proposal, our engineering team requires: facility architectural blueprints (including column grid spacing and clear height under joists), pallet outer dimensions (width, depth, height inclusive of overhang), maximum load weight per pallet, material handling equipment (forklift model, turning radius, and max lift reach), and target throughput metrics.
? How does HEDA Shelves assist with international on-site installation?
Every overseas export order is shipped alongside detailed 3D structural assembly schematics, numbered component charts, and comprehensive installation manuals. For large-scale multi-tier configurations, our technical engineering division offers bilingual remote video technical support as well as the deployment of on-site supervisory engineers to manage local installation crews.
? What are the standard lead times for manufacturing and export shipping?
Standard multi-tier pallet racking production schedules typically run between 20 to 30 calendar days from formal engineering CAD drawing sign-off and load calculation approval. Export transit schedules vary depending on the destination port, with direct liner routes from South China ports (Guangzhou, Shenzhen, Hong Kong) arriving across major worldwide trade corridors under CIF, FOB, or DDU terms.
Transform Your Warehouse Cubic Storage Density Today
Connect with our senior logistics structural engineering team. Request a custom structural layout, seismic load calculation, and factory-direct price quotation for your next multi-tier racking facility.
