Mracking Provide Mezzanine Installation Support High Quality Warehouse Storage Industrial Mezzanine Floor Supplier Customized
Product Description
Product Description

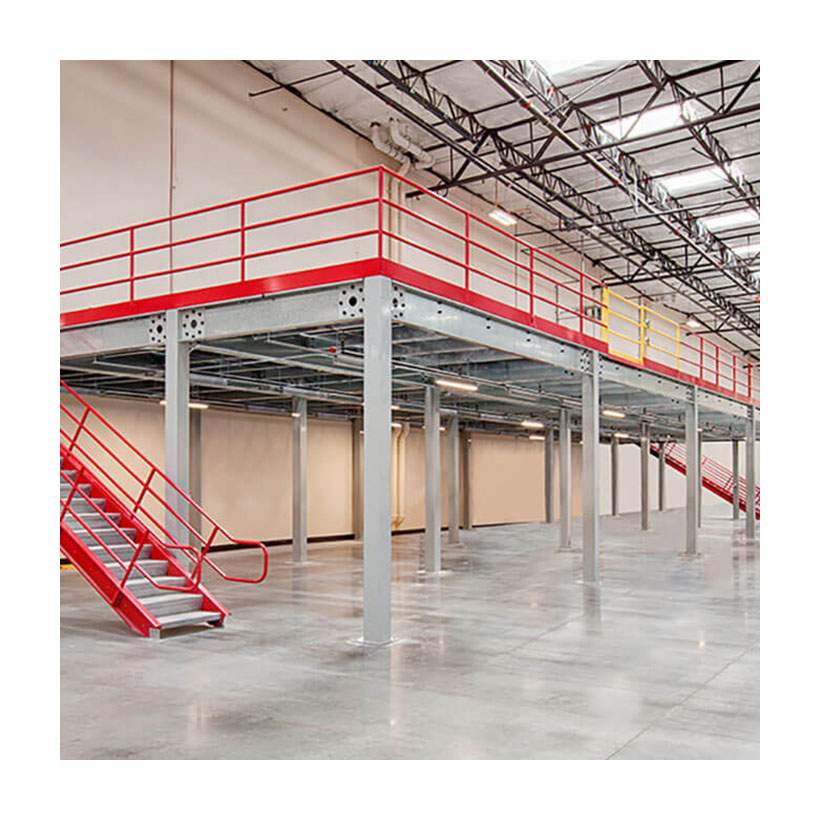

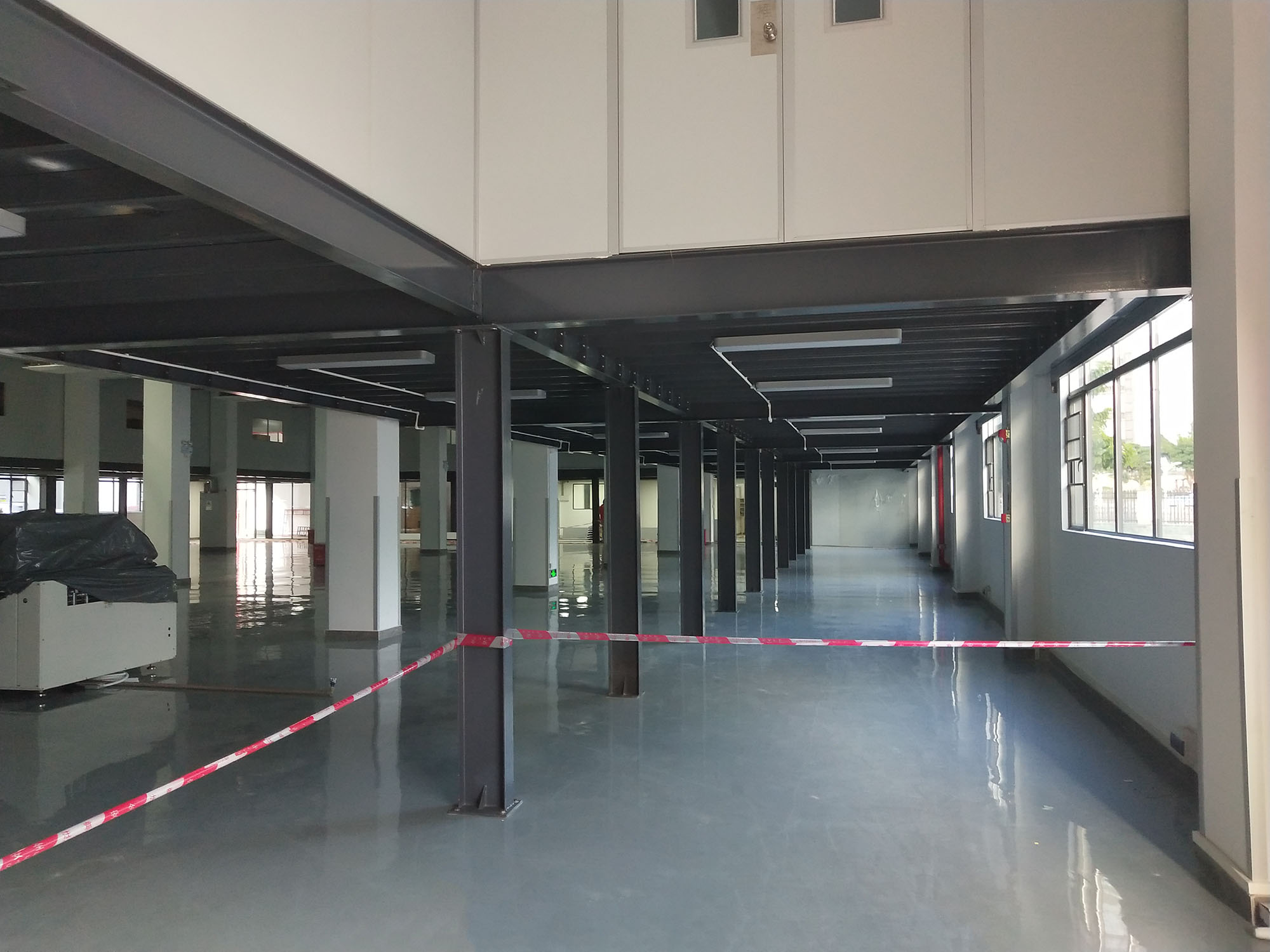

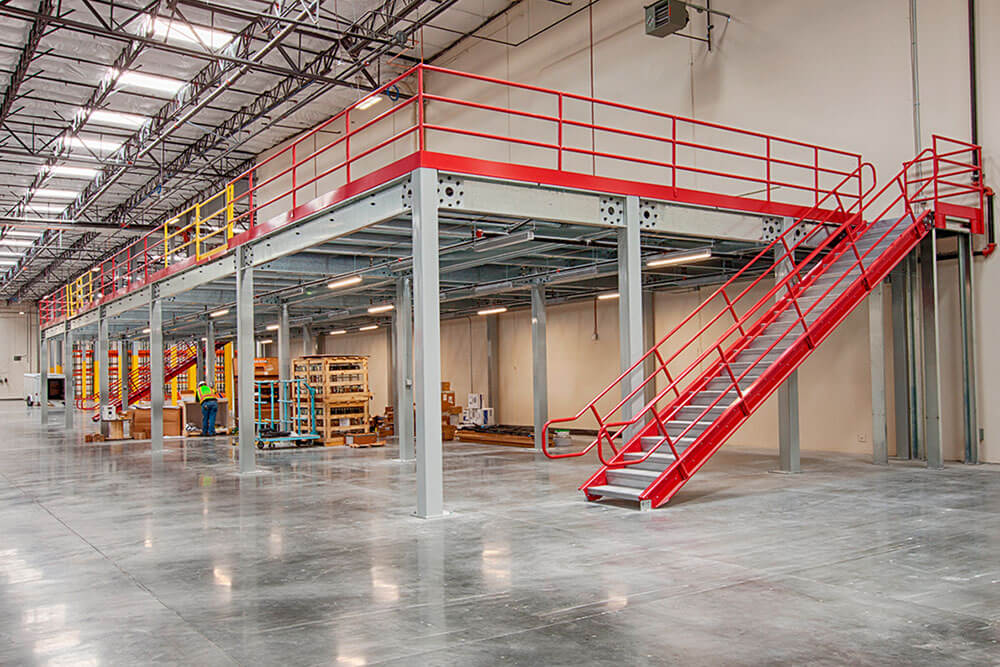

H-beam steel mezzanine platform adopts H-type steel and cross beam as the major support for the steel panel. Usually, we use steel panels or MDF panels for the mezzanine floor, equipped with staircases and guardrails. It can be matched with a cargo lift for optimized working efficiency.

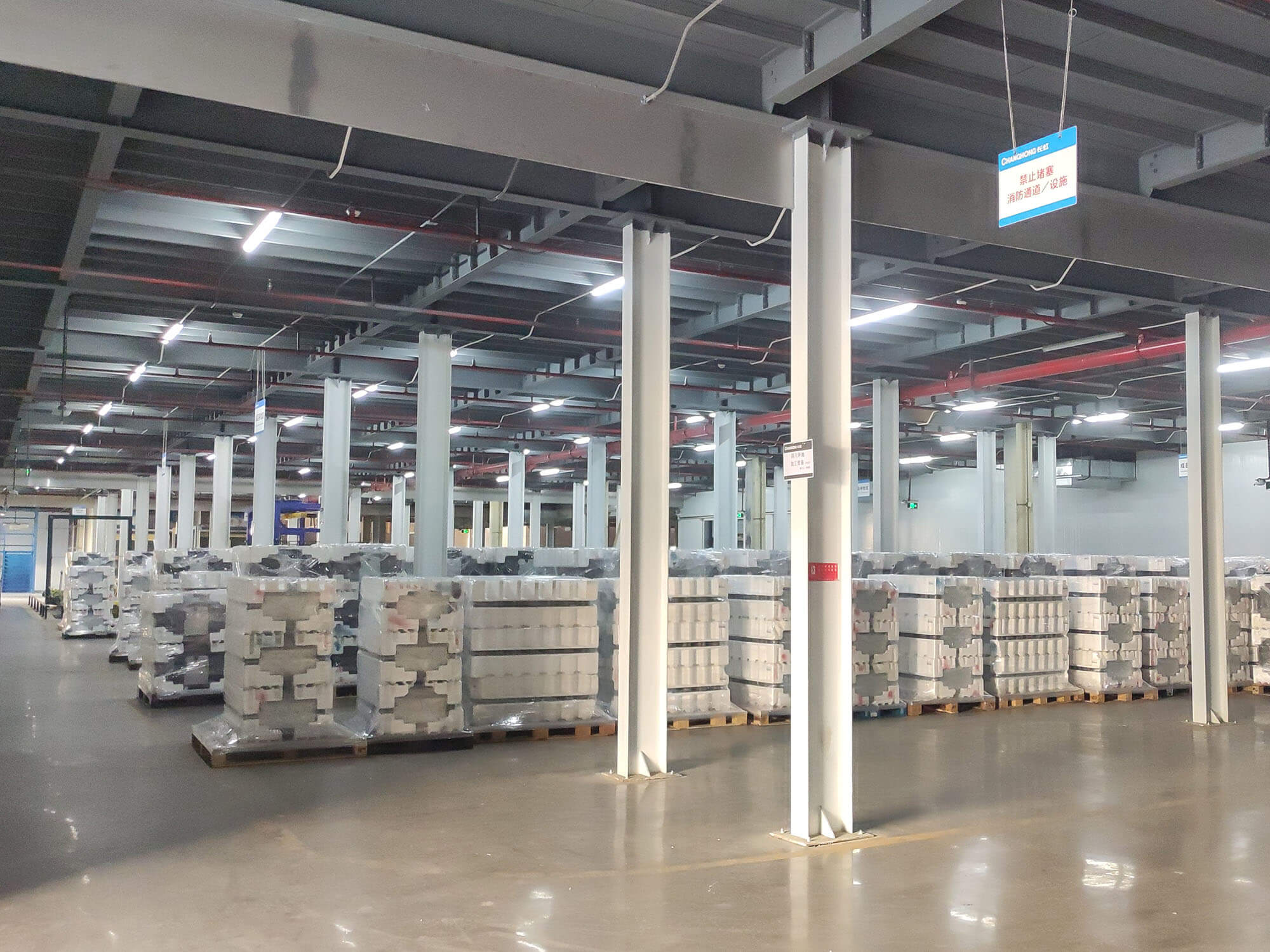

It is suitable for high-ceiling warehouses requiring large loading capacity, longer spans, and extensive storage space. It makes full use of vertical space, effectively converting one warehouse into two. Widely applied in industries such as electronic products, hardware, communications, and printing.
Technical Specifications
| Brand | XINMIAO |
| Raw Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized |
| Height | Customized |
| Width / Depth | Customized |
| Length | Customized |
| Loading Capacity | 200 ~ 5000 kg per sqm |
| Surface Treatment | Powder coated |
| Packing Terms | Air bubble film, Wooden Case, etc. |
Structural Connection Details

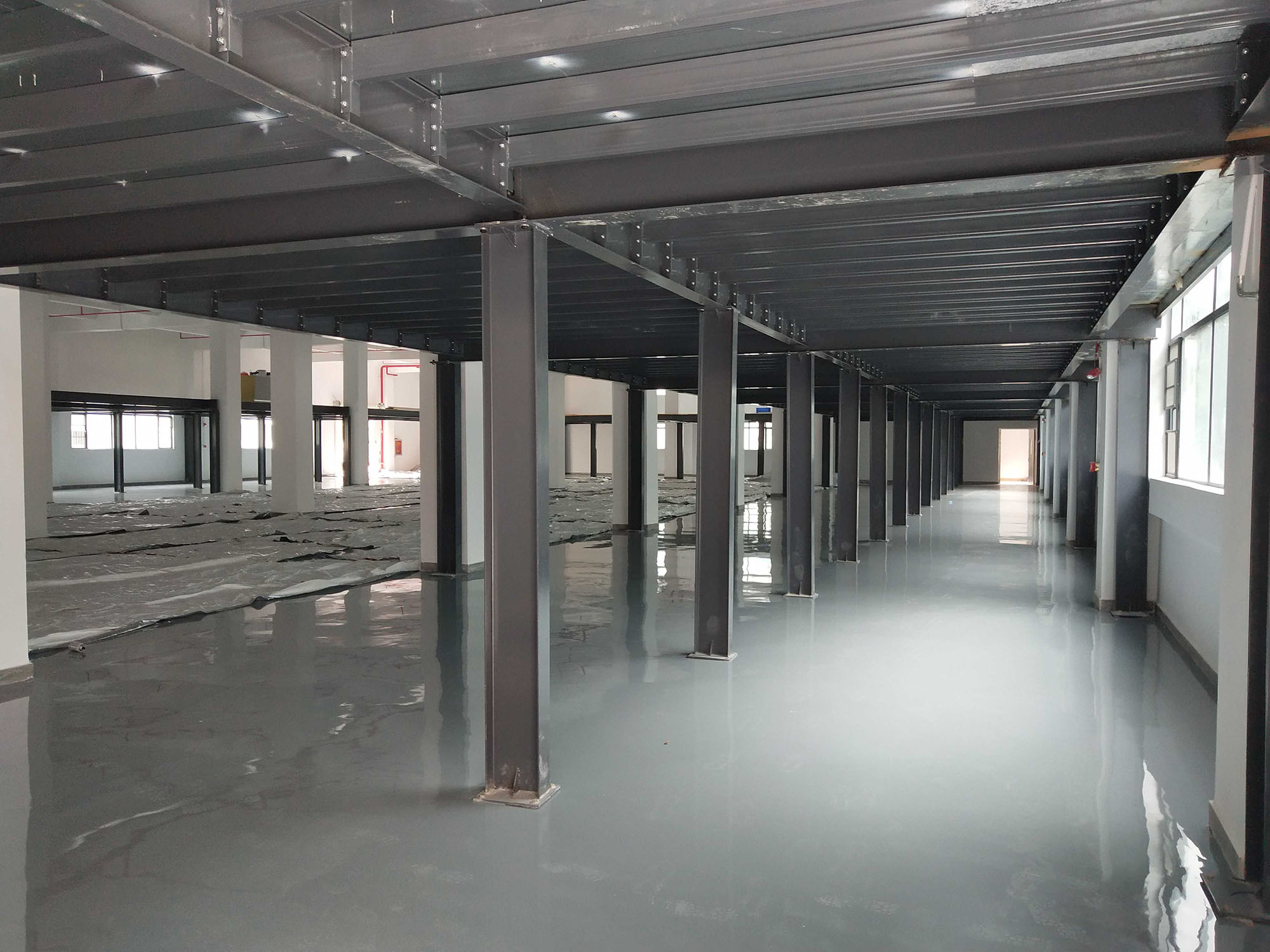

Upright & Main Beam Connection
Both components are made from robust H-steel, ensuring high loading capacity and expansive spans.
The major beams are connected securely by dedicated connector pieces on each side, guaranteeing increased overall stability.
Support Beam & Main Beam Connection
Beams are securely interconnected using precision hanging pieces.
The hanging piece is welded firmly onto the main beam, reinforcing rigid structural integrity and preventing beam shift.
Steel Panel & Guardrail Connection
The steel floor panels and support beams are locked together with heavy-duty hooks, providing a firm and steady platform.
The guardrail mounts cleanly directly on the main beam without requiring hole drilling, protecting the integrity of the primary beam structure.
Detailed Images
Product Overviews
Hot Sale Products
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
Q1
Are you a manufacture or trading company?
We are a professional racking manufacturer located in Dongguan, Guangdong.
Q2
What's the material of the rack?
Our material is premium high-grade Q235B cold rolled steel.
Q3
What is the standard delivery time?
Generally less than 15 workdays. Delivery depends on order quantity and specific shelving design.
Q4
What is the term of payment?
30% T/T down payment and 70% T/T balance before delivery.
Q5
How can I get a quick quotation on my racking project?
Please provide: 1) The size of rack (Length * Depth * Height); 2) Layers per set; 3) Load capacity per beam layer; 4) Racking quantity.
Q6
How does your factory handle quality control?
Quality is our priority. We are strictly certified under ISO 9001 quality management standards.
