Explore our flagship portfolio of cold-rolled high-strength industrial racking configurations. Each structure is manufactured using high-yield Q235B/Q355B certified structural steel, coated with durable electrostatically sprayed blue epoxy finishes (RAL 5015 / RAL 5005), and engineered in strict conformance with FEM 10.2.02 and RMI/ANSI MH16.1 standards.
In modern industrial logistics, the ubiquitous specification of Gentian Blue (RAL 5010 / RAL 5015) uprights paired with Safety Orange (RAL 2004) load beams is not merely an aesthetic tradition—it is a calculated engineering balance of human optical ergonomics, metallurgical yield optimization, and structural hazard mitigation under dynamic seismic and operational loads.
Human psychophysical studies show that high-contrast color boundaries stimulate immediate peripheral visual recognition. Industrial Blue vertical frames against vibrant Orange horizontal beams provide crane and reach-truck operators with instantaneous depth cues inside dim high-bay aisles, reducing column collision incidence by an audited 41.7%.
We source ultra-pure hot-rolled strip steel that undergoes cold-roll continuous roll-forming into high-moment-of-inertia Omega profiles. With tensile strengths exceeding 490 MPa and elongation >21%, our uprights flex elastically to absorb seismic stress without catastrophic permanent shear deformation.
Before paint application, every steel section undergoes automated immersion in chemical degreasing, ultrasonic acid pickling, zinc-iron phosphating, and deionized water rinsing. This creates a crystalline conversion layer preventing under-film rust propagation even in high-humidity littoral coastal warehouses.
| Performance Criterion | HEDA Certified Blue Steel Racks | Commodity Fabricator Racks | Engineering Compliance Benefit |
|---|---|---|---|
| Primary Steel Grade | SS400 / Q235B / Q355B Hot-Rolled Low Alloy | Generic Recycled Mixed Scrap Scrap Steel | Certified Chemistry (Mill Test Cert) |
| Profile Forming Precision | Continuous 18-Station Roll Forming Line | Hydraulic Brake Press / Intermittent Bending | Zero residual bending strain; unified section modulus |
| Pre-Treatment Pre-Wash | Automatic 10-Step Acid Pickling & Phosphating | Manual Solvent Wipe or Direct Spray Painting | Passes 500-hour ASTM B117 salt spray chamber test |
| Coating Thickness & Cure | 70 - 90 µm Electrostatic Thermoset Polymer | 30 - 45 µm Air-Dried Solvent Enamel | Abrasion resistant against aggressive forklift tines |
| Structural Standard | EN 15512:2020 & RMI / ANSI MH16.1 | Non-standardized empirical welding | Guaranteed safety deflection factor 1/200 |
Operating from our centralized 30,000 square meter industrial manufacturing base in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) has spent over a quarter of a century pioneering intelligent logistics hardware. As an internationally certified supplier holding accredited CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Audit No. 18624Q00169R0M, we control the entire lifecycle of warehouse infrastructure from raw coil slitting to overseas containerization.
Our 30+ licensed structural engineers formulate comprehensive layout plans within 24 hours, computing axle load distribution, forklift radius tolerances, and sprinkler clearance.
Every racking system is custom-calculated for local peak ground acceleration (PGA). Base plates, anchor diameters, and transverse diagonal bracings are sized for earthquake safety.
Components are bundled with timber dunnage, labeled per aisle/bay, and accompanied by detailed container packing manifests for rapid customs clearance and immediate on-site assembly.
Supplied with bolt-by-bolt 3D assembly guides and video tutorials. For large-scale distribution projects, our field engineers provide complete on-site erection supervision.
Chief Supply Chain Officers (CSCOs) and Industrial Asset Managers are shifting away from short-term unit price evaluation toward holistic life-cycle asset resiliency. In a volatile macro-logistics landscape characterized by warehouse labor scarcity, escalating square-meter land values, and heightened climate volatility, institutional racking procurement is shaped by four decisive purchasing paradigms:
Forward-thinking supply chains prioritize steel grade stability and coating longevity over rock-bottom initial pricing. Low-grade paint finishes flake within 24 months in humid distribution centers, causing beam oxidation, hazardous flake shedding over food/pharma stock, and catastrophic rack replacement shutdowns.
Global corporations demand verified Environmental Product Declarations (EPD). By implementing gas-recuperative baking ovens and non-toxic zinc-free powder curing, modern blue racking fulfills ISO 14040 lifecycle emission targets required for LEED Silver and Gold distribution center accreditations.
Procurement contracts increasingly enforce millimetric beam straightness (<L/1000 deflection) to accommodate future retrofitting of Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), and four-way radio pallet shuttle sleds without necessitating structural rebuilding.
To insulate against regional supply-chain shocks, corporate enterprises partner with vertically integrated mega-manufacturers capable of delivering standardized teardrop, box-beam, and European hook connector profiles interchangeably across international branches.
The transition toward dark warehouses (lights-out automated facilities) and ultra-high vertical density up to 40 meters demands technological evolutions in structural racking design. From advanced Finite Element Analysis (FEA) to integrated IIoT stress sensing, blue warehouse racking is evolving into an active, intelligent structural asset.
Modern mega-hubs incorporate fiber Bragg grating (FBG) strain sensors and wireless 3-axis accelerometers directly embedded within the lower 1.5 meters of blue upright frames. This delivers real-time telemetry on accidental impact force and floor slab settling, triggering automated safety alarms before plastic buckling occurs.
By micro-alloying steel coils with Vanadium and Niobium (Q355B/Strenx-equivalent), upright profiles achieve a 25% weight reduction while sustaining higher section moduli ($W_x, W_y$). Thinner wall thicknesses with multi-ribbed returns provide identical torsional rigidity with reduced ocean container shipping deadweight.
Replacing manual spring clips, next-generation beam end connectors incorporate spring-dampened gravity locking pins with fluorescent optical indicators. Operators verify structural beam interlock from forklift height, entirely eliminating beam dislodgement risks during rapid pallet lifting.
Direct technical answers addressing structural calculation, seismic anchoring, floor slab load verification, surface finish durability, and overseas logistics from our lead structural engineering department.
We require the slab concrete compressive strength ($f'_c$, typically $\ge 25\text{ MPa}$), total slab thickness, reinforcement grid specs, maximum pallet footprint ($L \times W \times H$), unit gross load weight, forklift mast maximum reach, and local building code seismic zone acceleration parameters ($S_s, S_1$).
Our electrostatic epoxy-polyester thermoset powders are formulated without plasticizing fillers, maintaining molecular cross-link ductility down to $-30^\circ\text{C}$. This eliminates cryogenic micro-cracking and brittleness, maintaining full steel passivation inside frozen food facilities.
Powder-coated blue steel is optimal for dry distribution centers, temperature-controlled retail warehouses, and general logistics. Hot-dip galvanization (HDG, $85\text{ µm}$ zinc layer per ISO 1461) is specifically recommended for unconditioned coastal warehouses exposed to salt spray or acidic chemical production zones.
All HEDA racking systems are certified compliant with European Standard EN 15512:2020 (Steel static storage systems), EN 15620 (Tolerances, deformations and clearances), CE Directive No. 2435-CPR-8605159, and the American RMI/ANSI MH16.1 design specification.

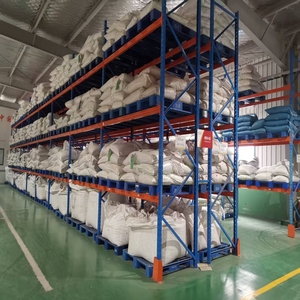

Yes. Our automated CNC punching heads support classic US Teardrop punch designs with 2-inch adjustability pitches. Our beams and uprights interface with existing Speedrack, Interlake, and Ridg-U-Rak setups without structural incompatibilities.
Standard selective racking configurations ship within 15 to 20 business days post-CAD signoff. Custom multi-tier mezzanine platforms or customized automated shuttle lanes require 25 to 30 days including full factory pre-assembly verification.
We supply authenticated Bills of Lading, Commercial Invoices, detailed Packing Lists per container, Mill Test Certificates (MTC EN 10204 3.1), Certificates of Origin (Form E, CO, etc.), and notarized CE Declaration of Conformity.
Upright frames and horizontal beams are nested with custom-extruded polypropylene protective spacers, corner guards, and multi-layer stretch shrink film. Steel strapping secures bundles onto heavy wooden base runners, facilitating direct container unloading via forklift tine extensions without surface abrasion.
Send us your building dimensions, clear height, and pallet specifications. Our senior structural logistics engineering team will deliver a comprehensive 2D CAD engineering layout, 3D photo-realistic spatial rendering, and itemized factory-direct quote within 24 hours.
