Cold-rolled Tall Stackable Steel Kids Pallet Racking Storage Shelf Warehouse Storage Rack
Product Description
Cold-Rolled Tall Stackable Steel Pallet Racking Storage Shelf Warehouse Storage Rack
Product Description & Brief Introduction
Heavy duty racking offers high-efficiency storage capacity and operates without limitations based on the sequence of goods moving in and out of the warehouse. This system is fully adjustable and optimized for standard and specialized forklift operations. Warehouse aisle widths can be configured based on operational needs: traditional aisle configurations (around 3000 mm) or high-density narrow aisle systems (around 1700 mm, paired with specialized narrow forklifts).
Key Product Characteristics
-
Structural Strength: Manufactured using specialized cold-rolled profile sections for posts, significantly boosting overall loading capacity and stability.
-
Adjustable Pitch: Support beams can be repositioned up and down flexibly in increments of 75mm to match diverse pallet dimensions.
-
Modular Assembly: Engineered assembled frame structure with integrated safety accessories enables rapid setup, easy dismantling, convenient replacement, and low maintenance.
-
Corrosion Protection: Surface-treated with high-grade Epoxy electrostatic powder coating for durable, heavy-duty rust-proofing.
-

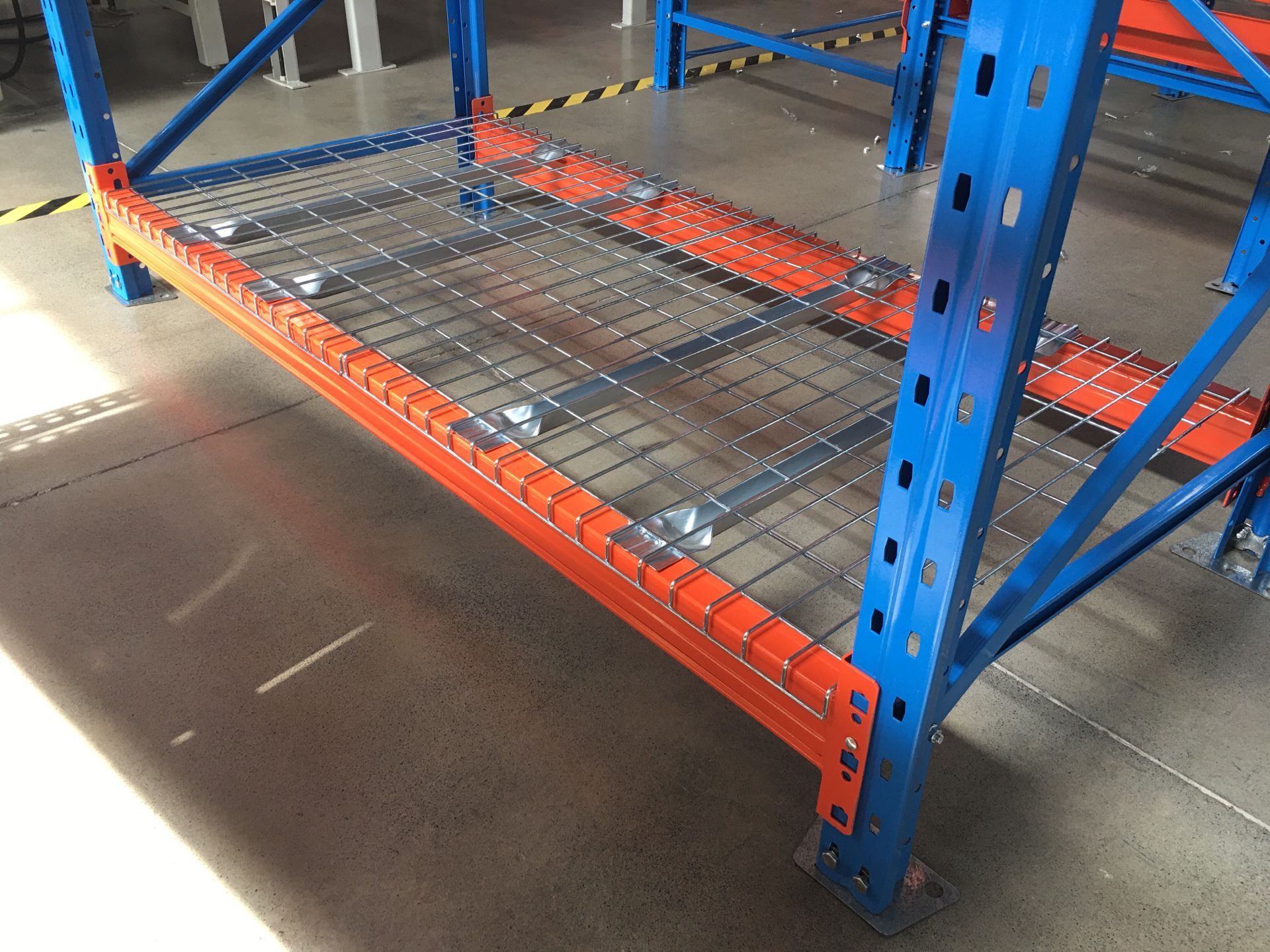

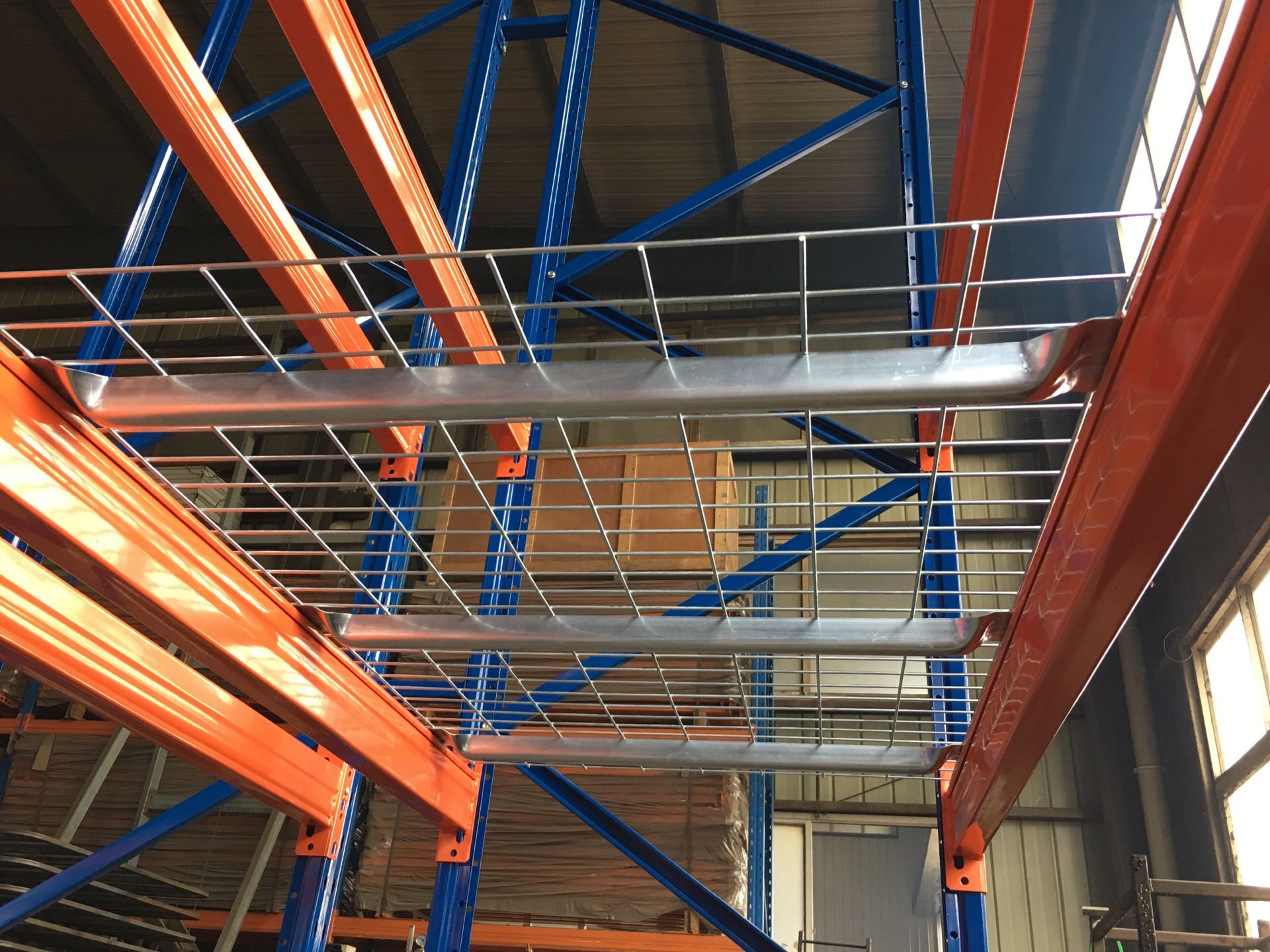

Modular Accessories: Adaptable with support braces, back spacers, solid steel panels, upright foot protectors, collision rack guards, and safety back wire mesh.

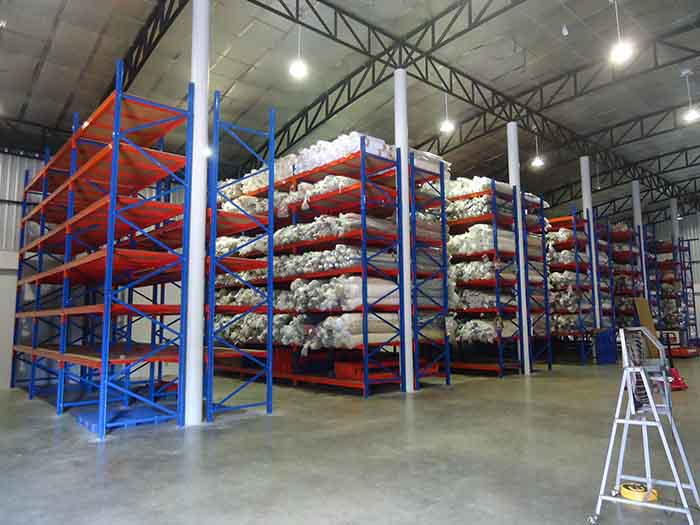

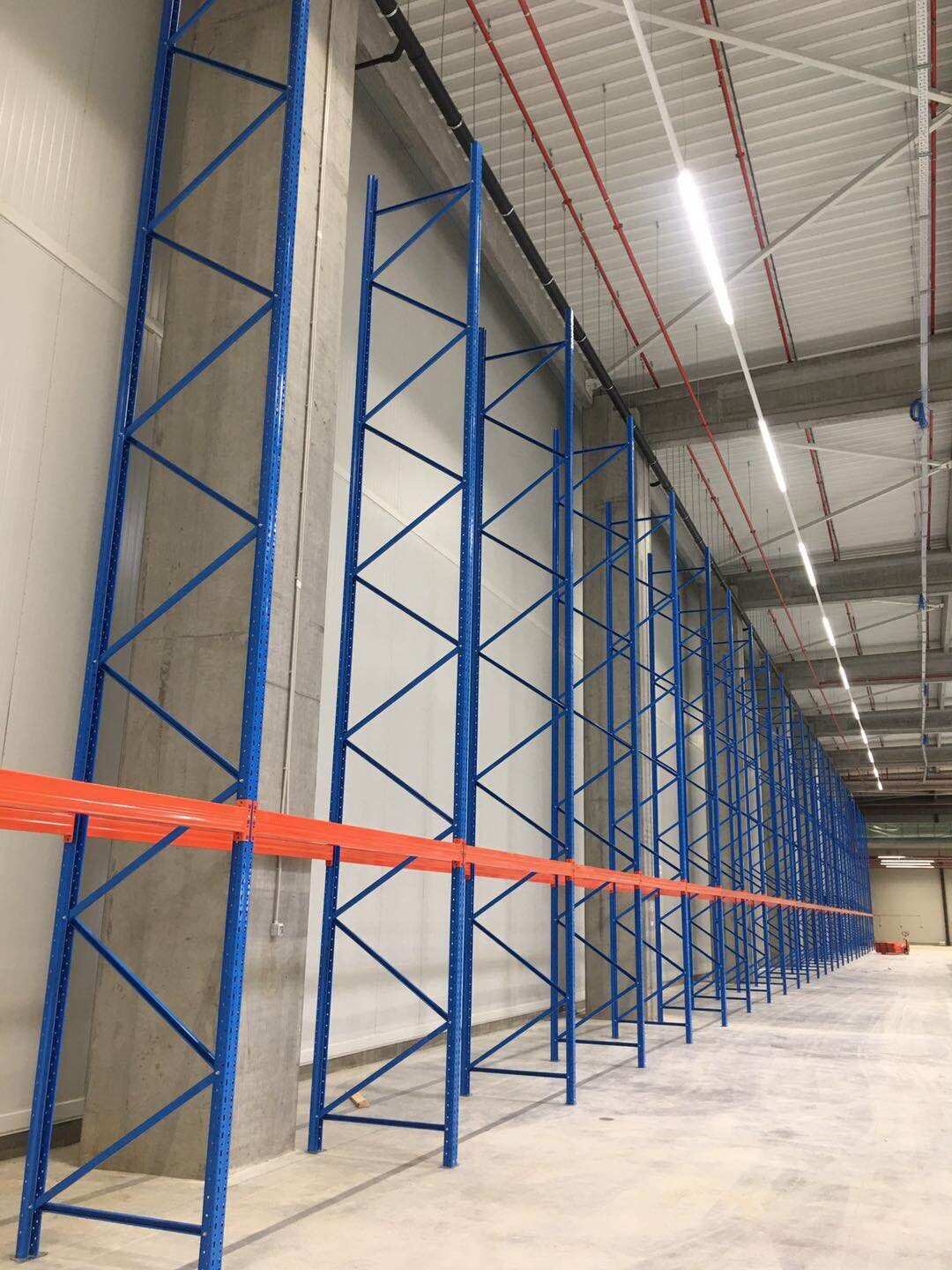

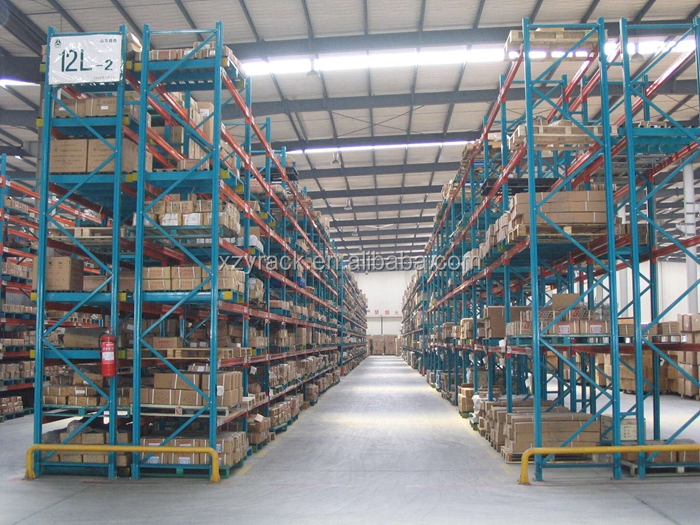

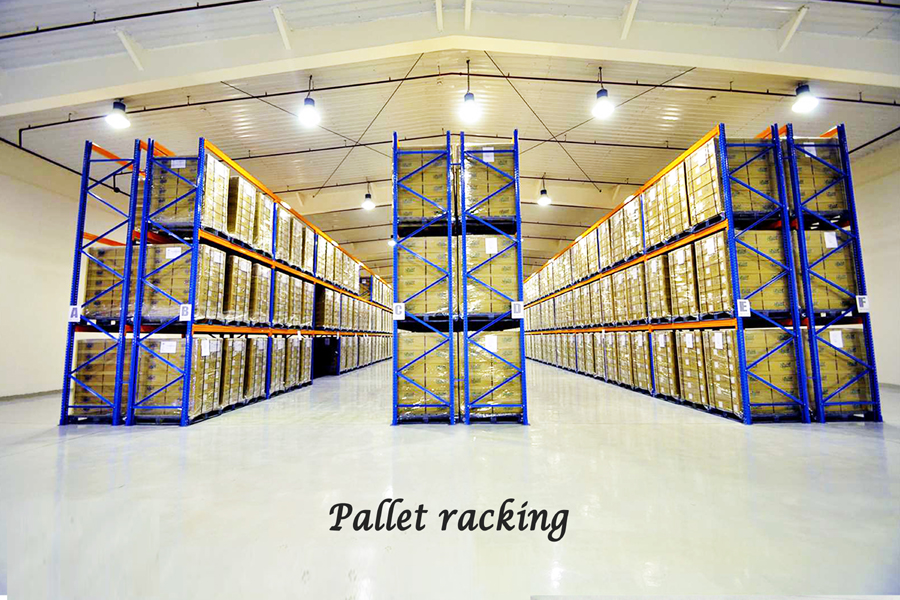

Product Billboard & Visual Showcase

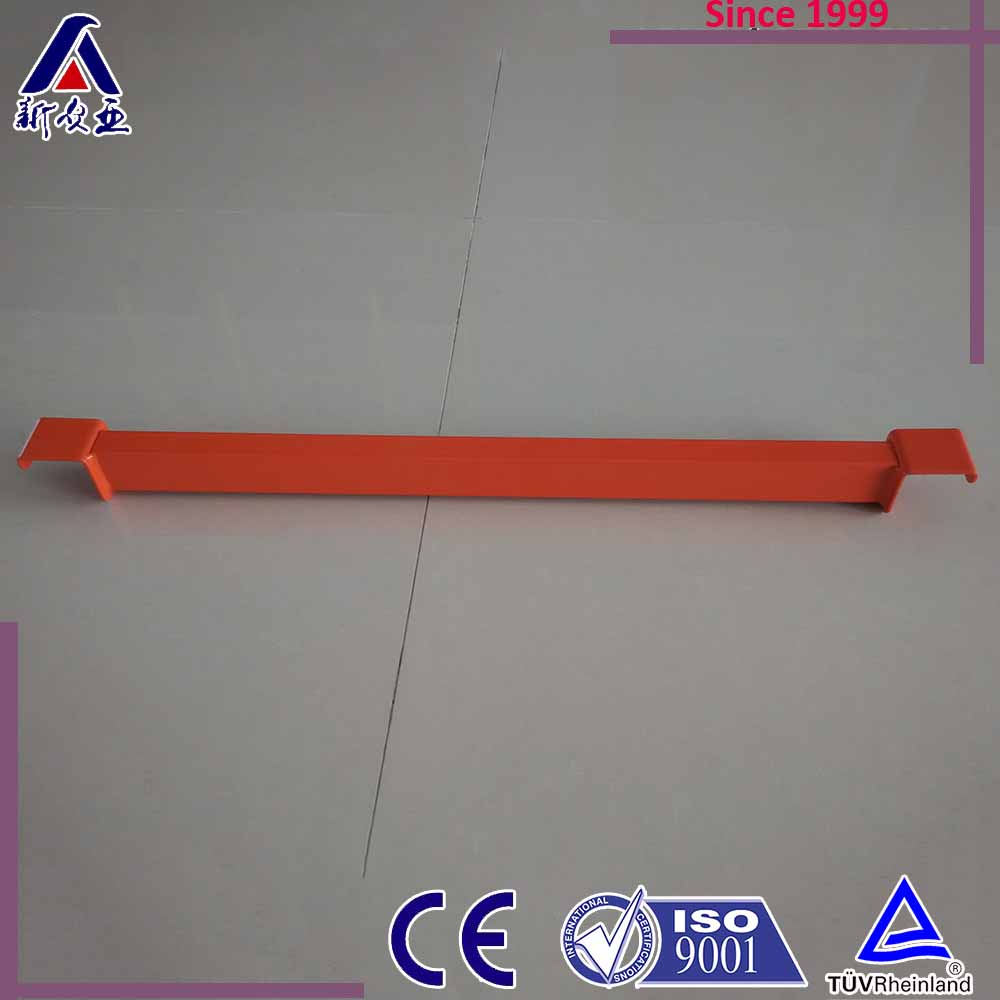

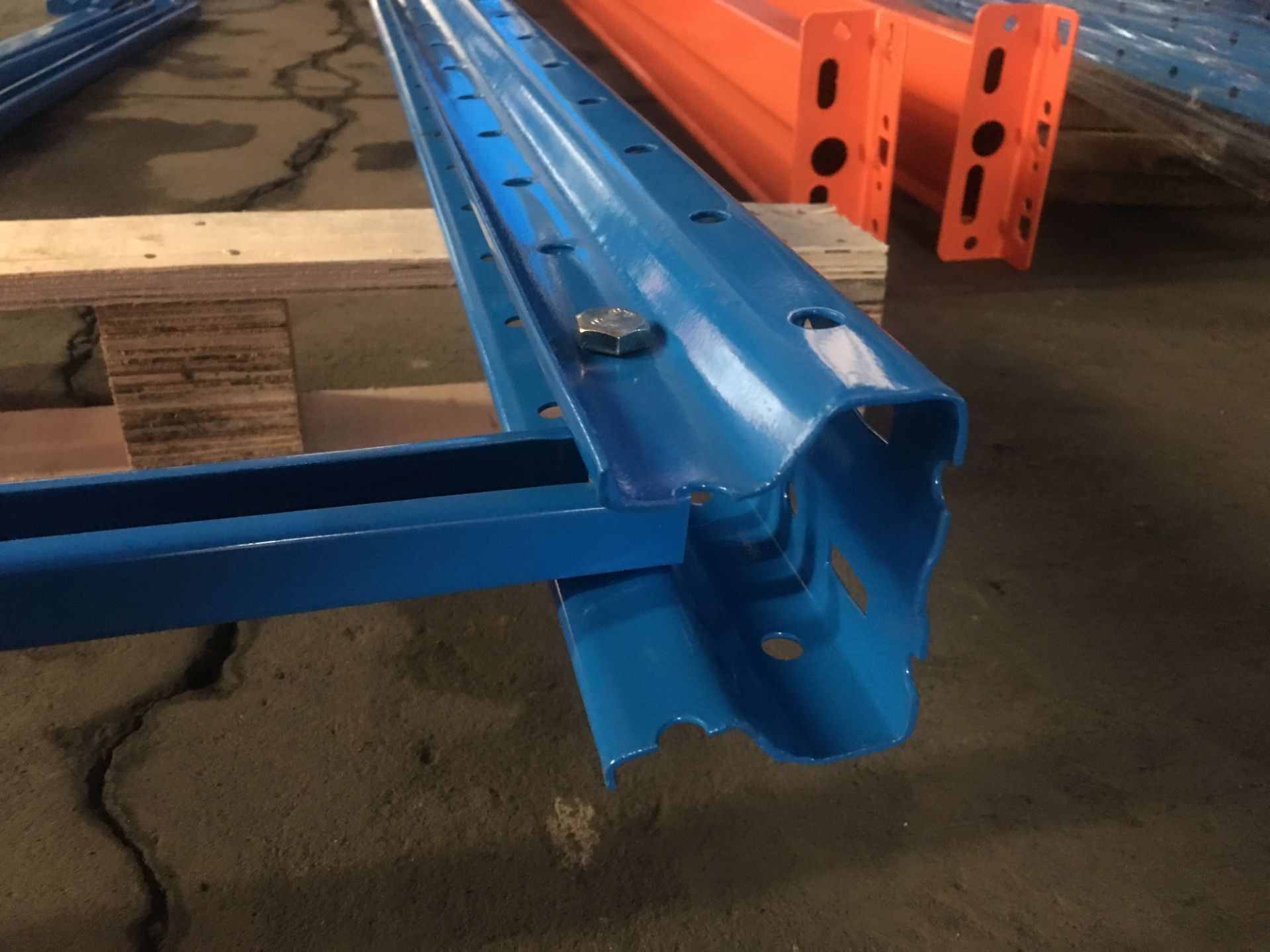

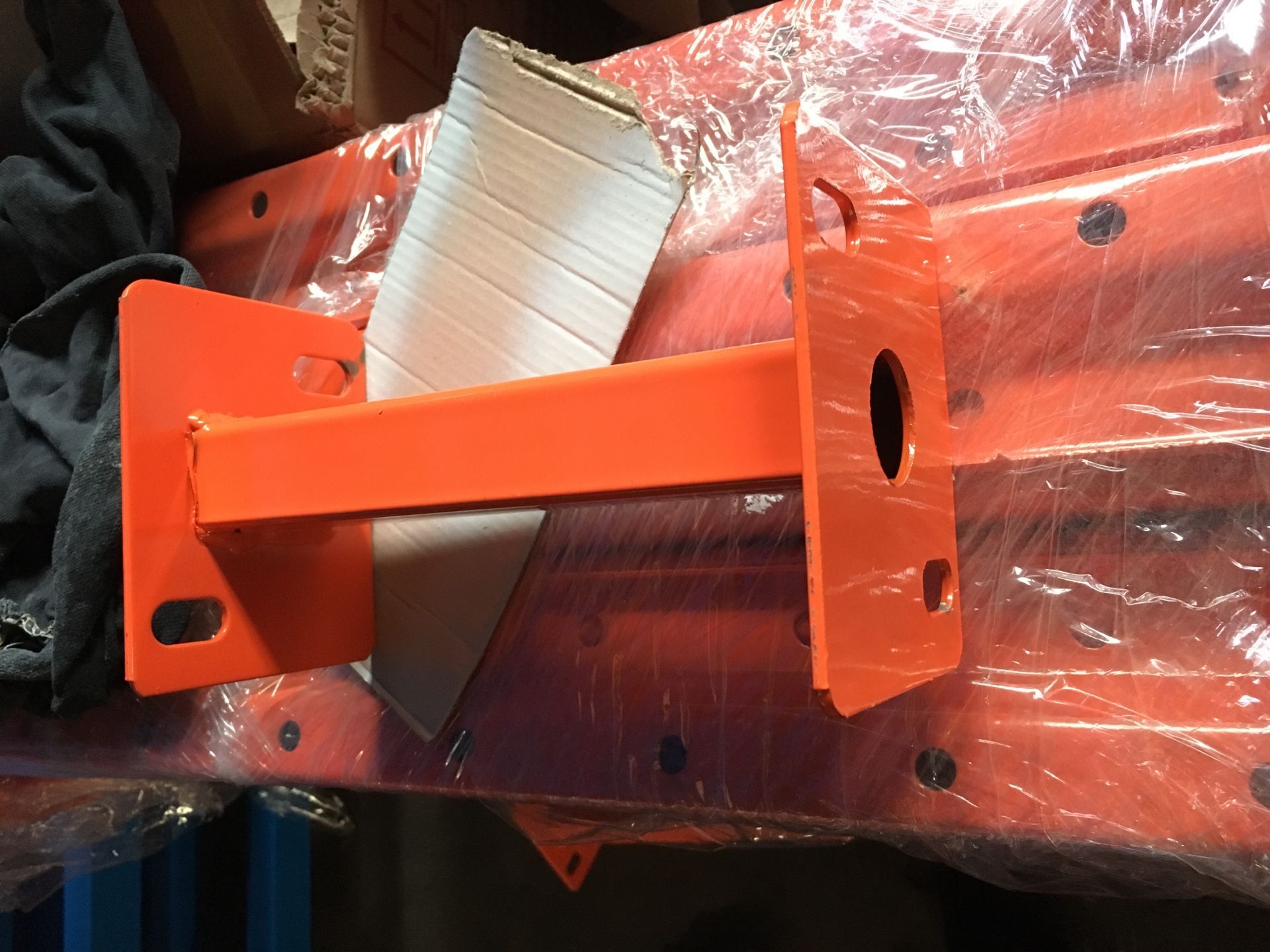

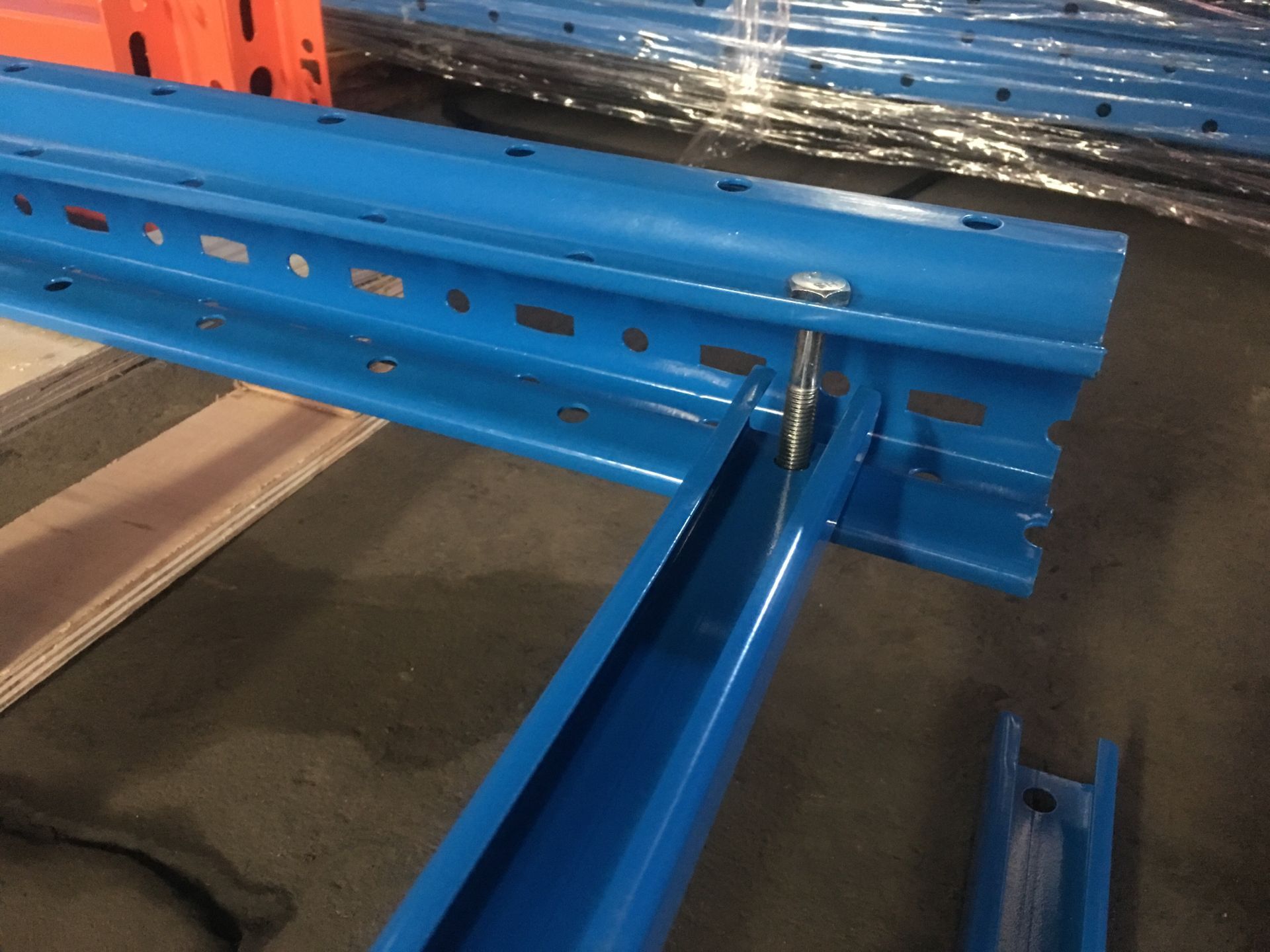

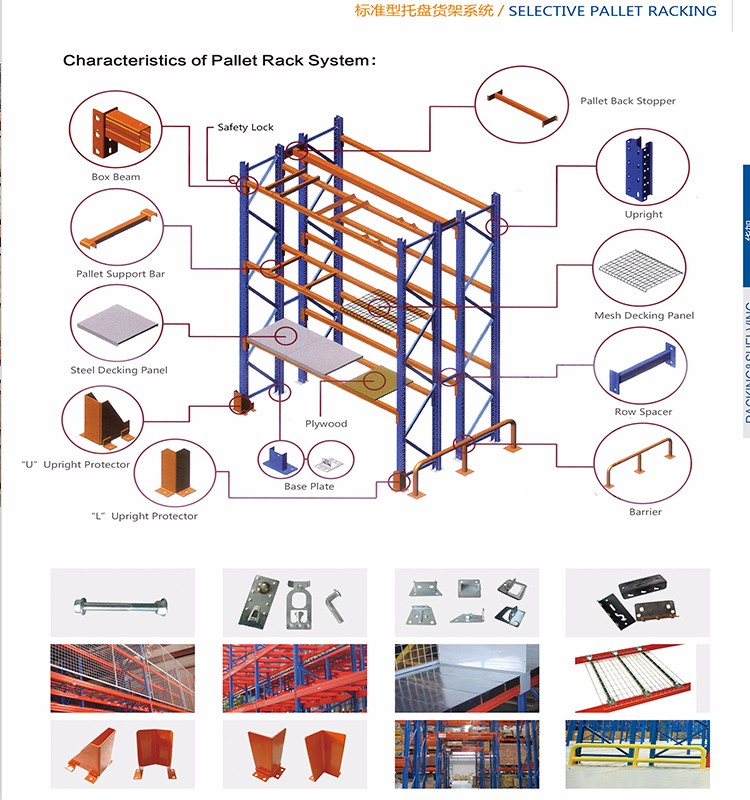

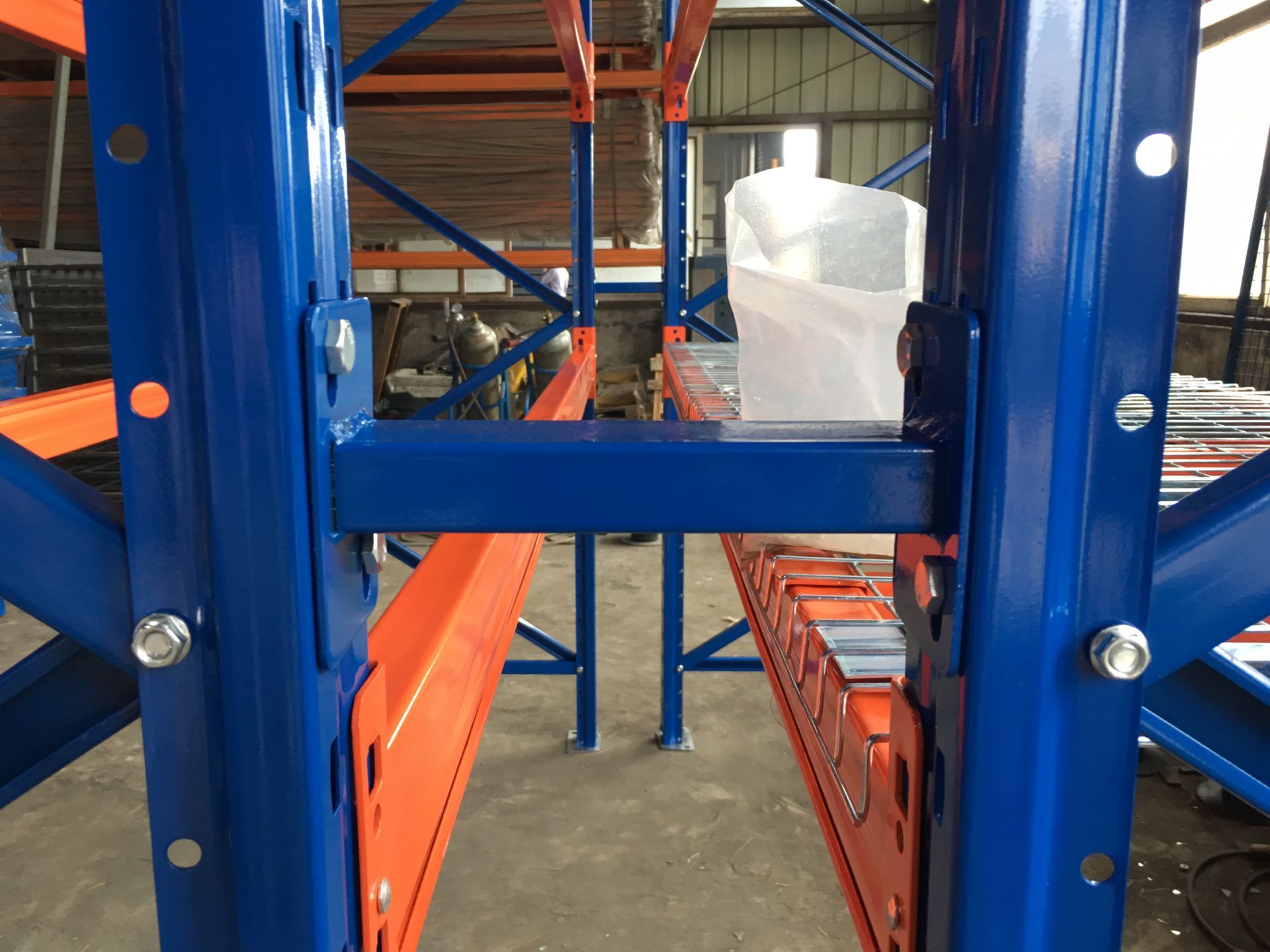

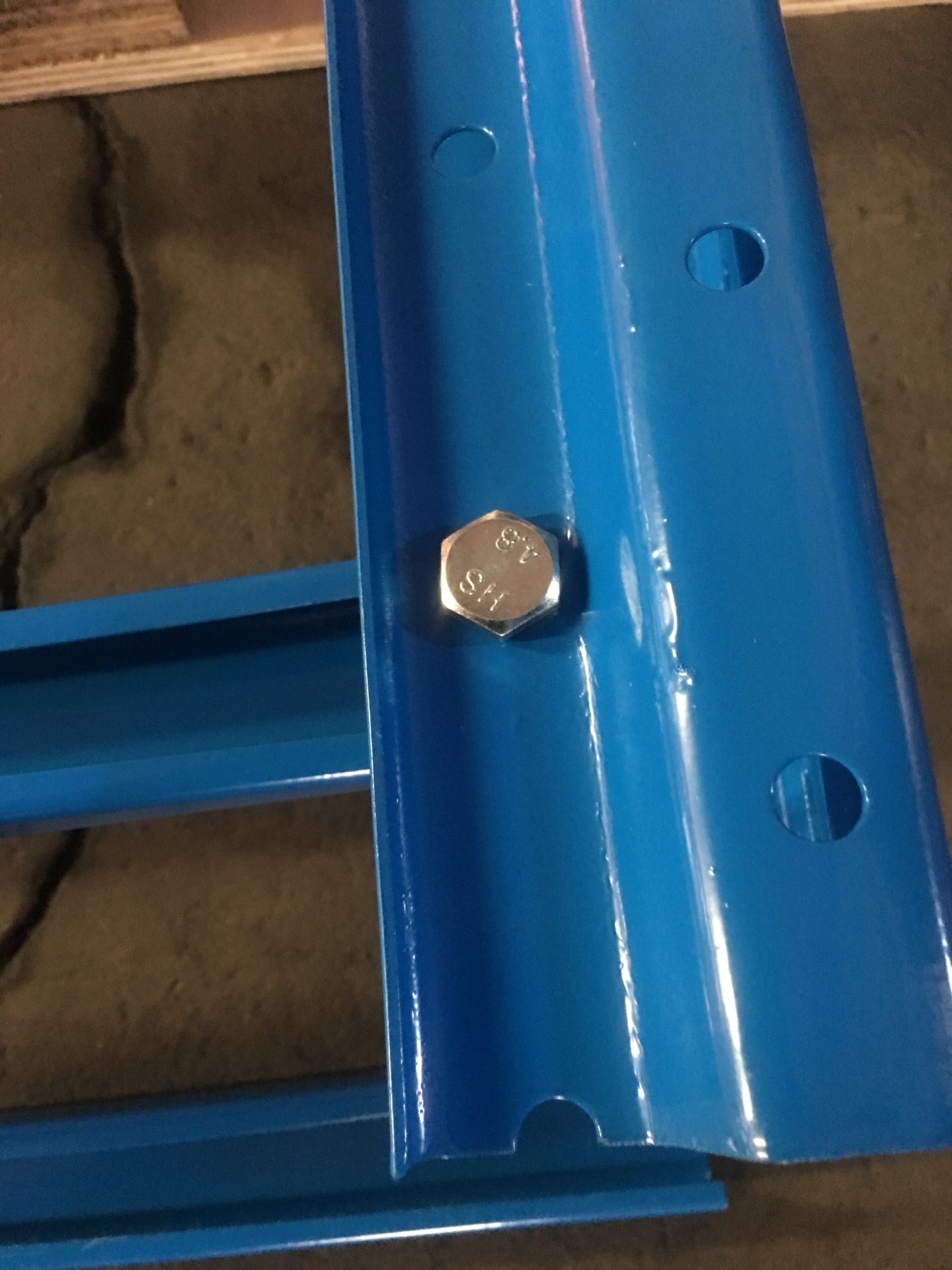

Parts Display & Structural Components
Explore precision-engineered components, upright assemblies, connection points, and specialized safety parts for heavy duty rack installations:

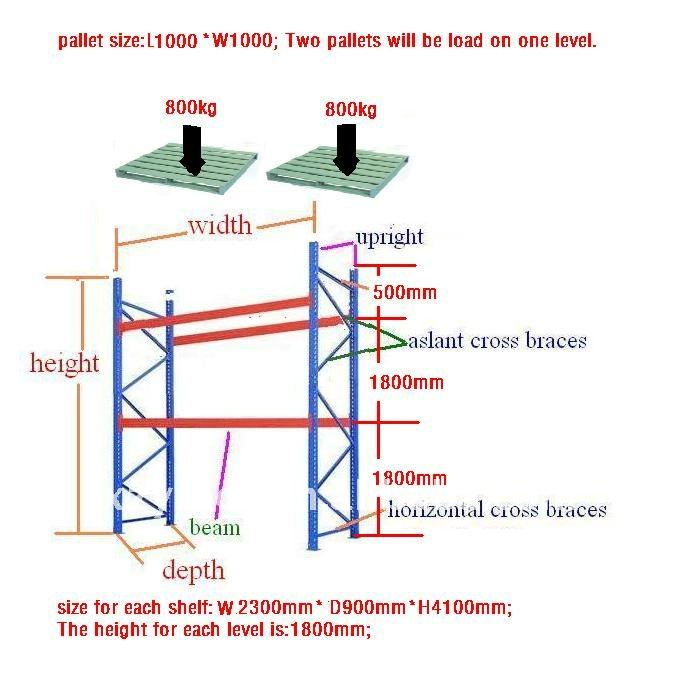

Technical Specifications & Dimensions
Level Load Capacity
< 4.0 Tons / Level
Total Bay Load Capacity
Up to 12 Tons
Pitch Adjustment
75 mm Pitch

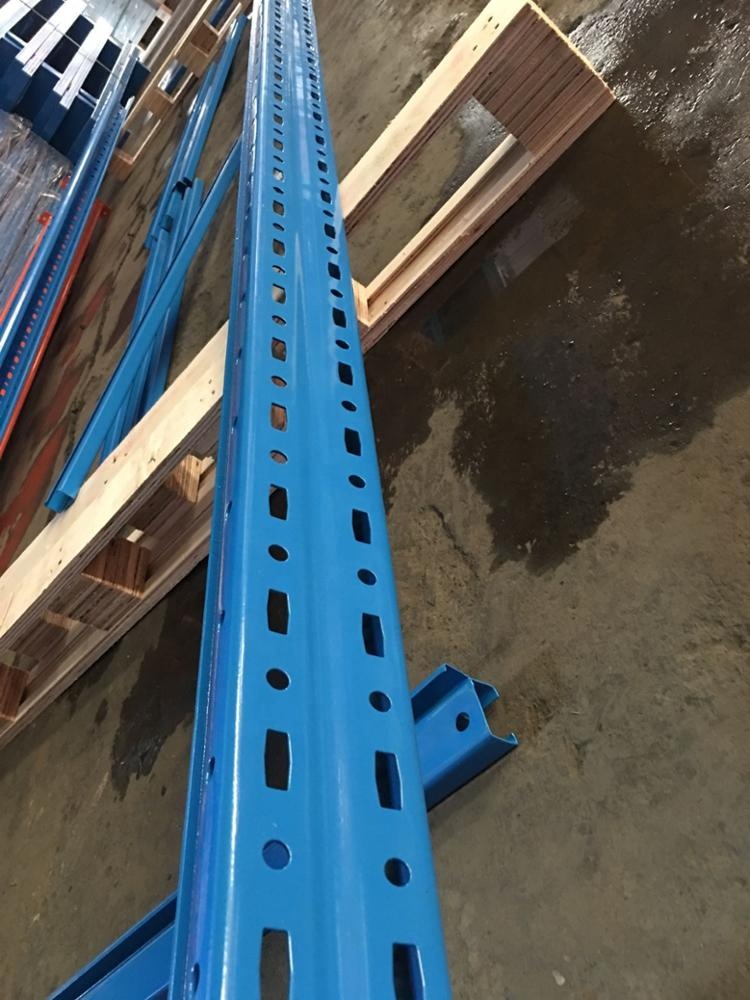

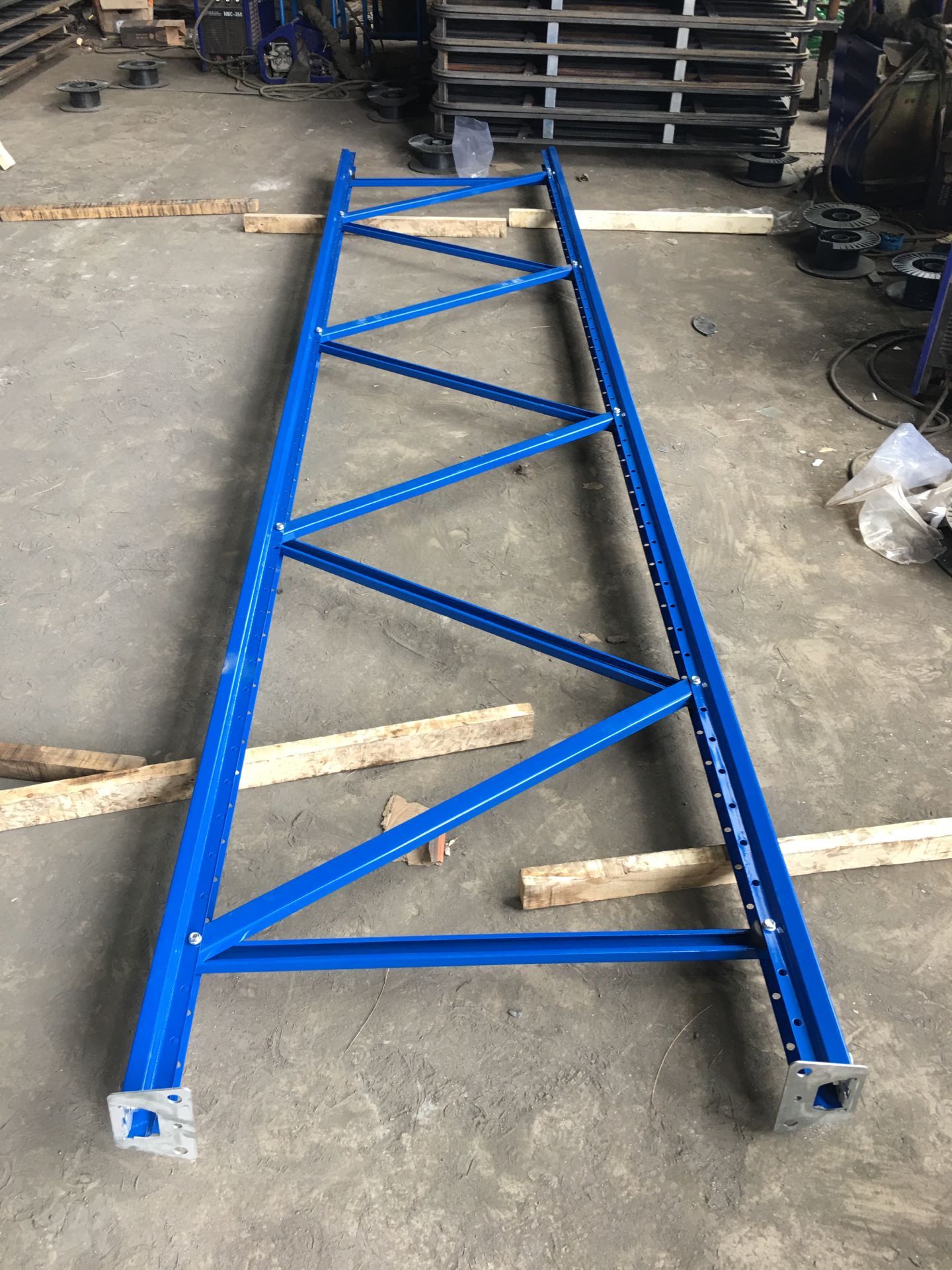

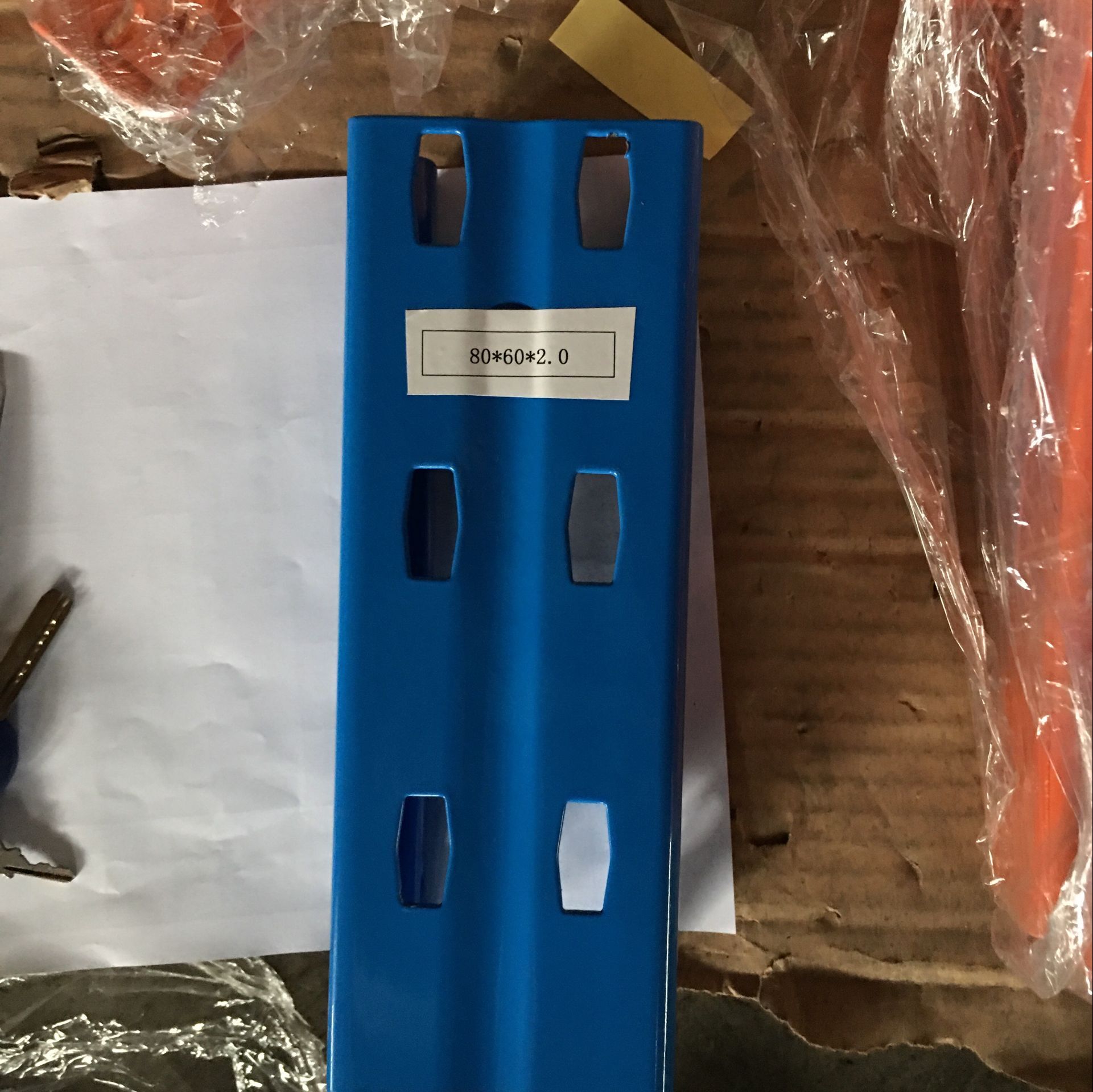

| Upright Frames (Posts) | 80*60*2.0 mm, 90*75*2.0 mm, 100*70*2.0 mm, 120*75*2.0 mm |
|---|---|

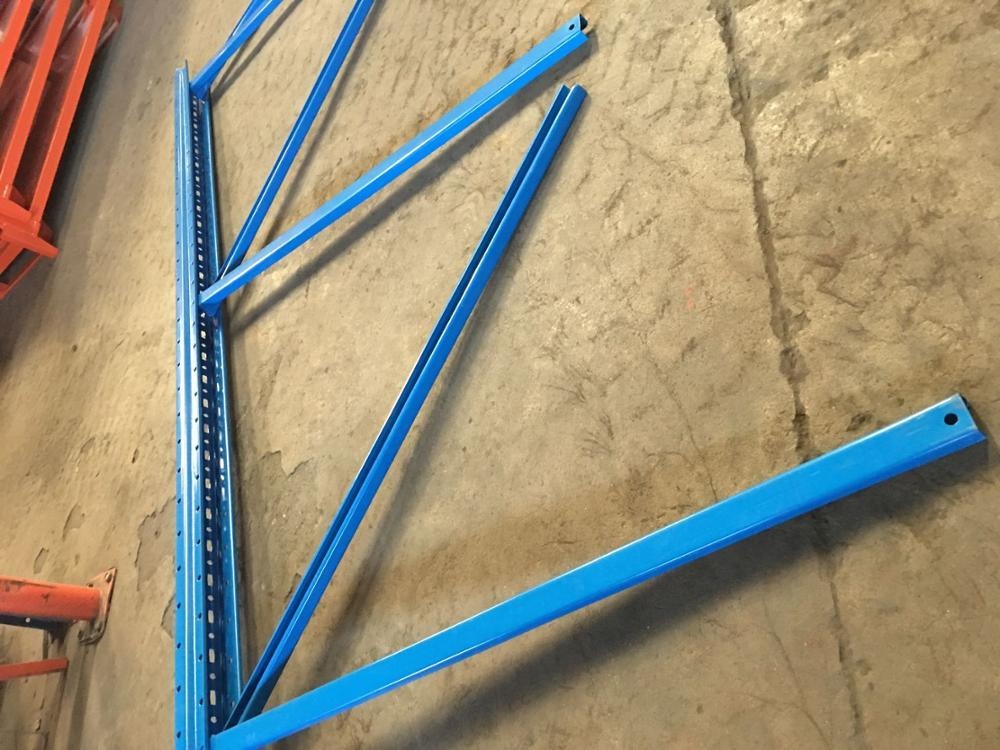

| Cross Braces (Horizontal & Aslant) | 40*24*1.3 mm, 40*34*1.3 mm |

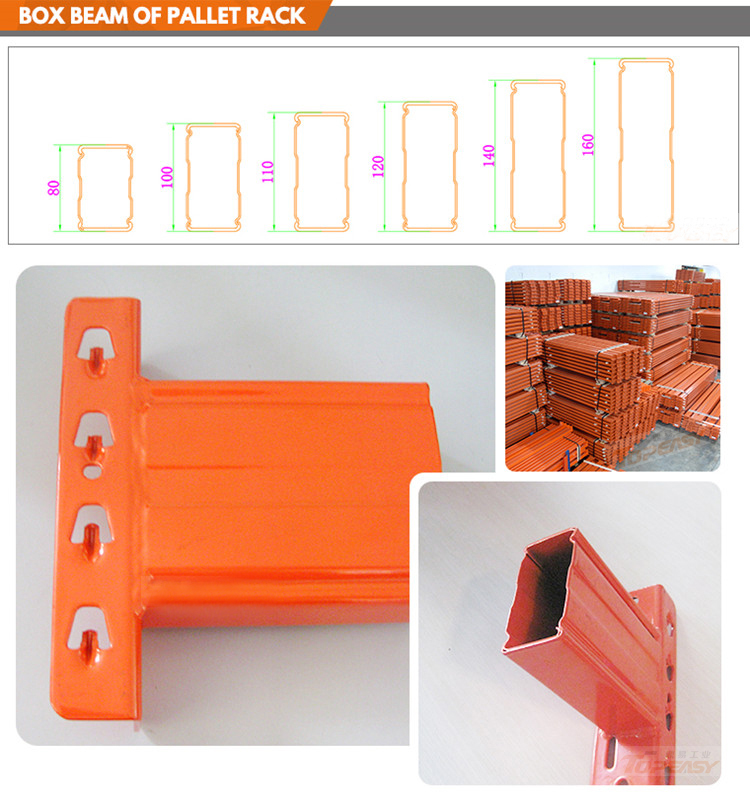

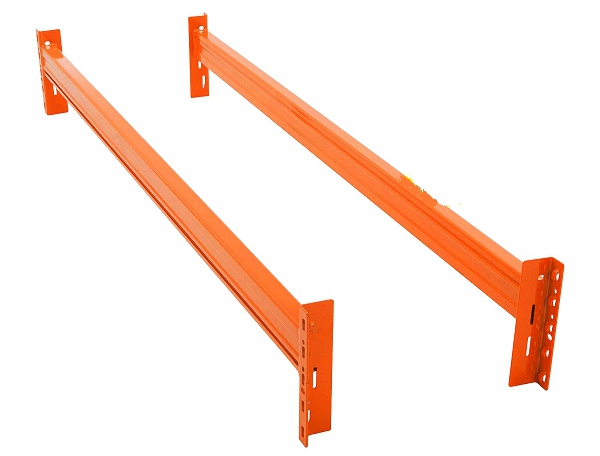

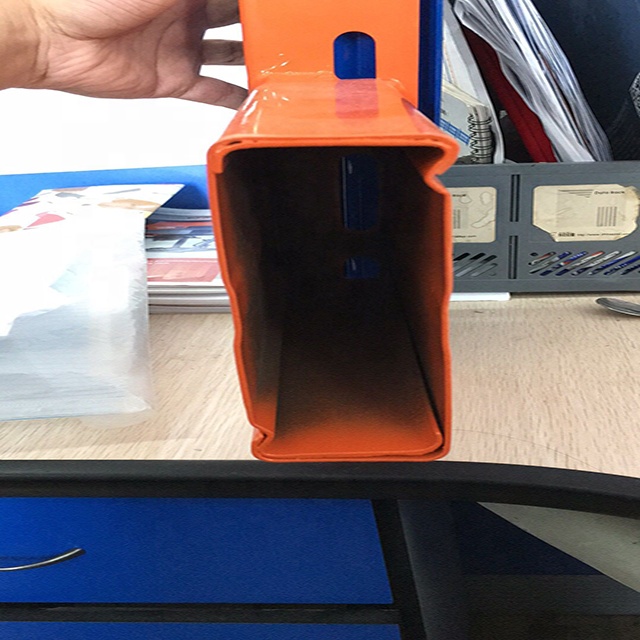

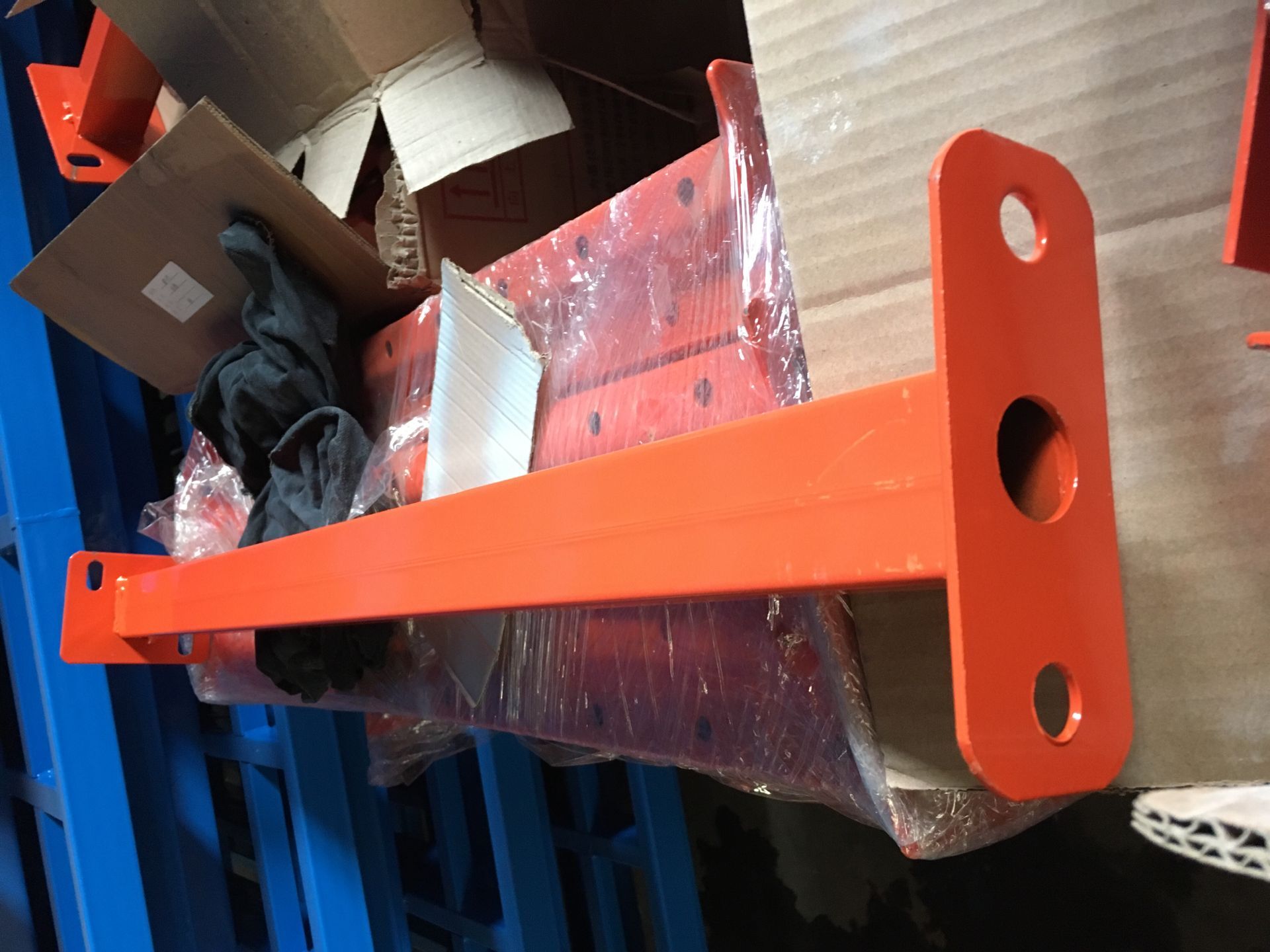

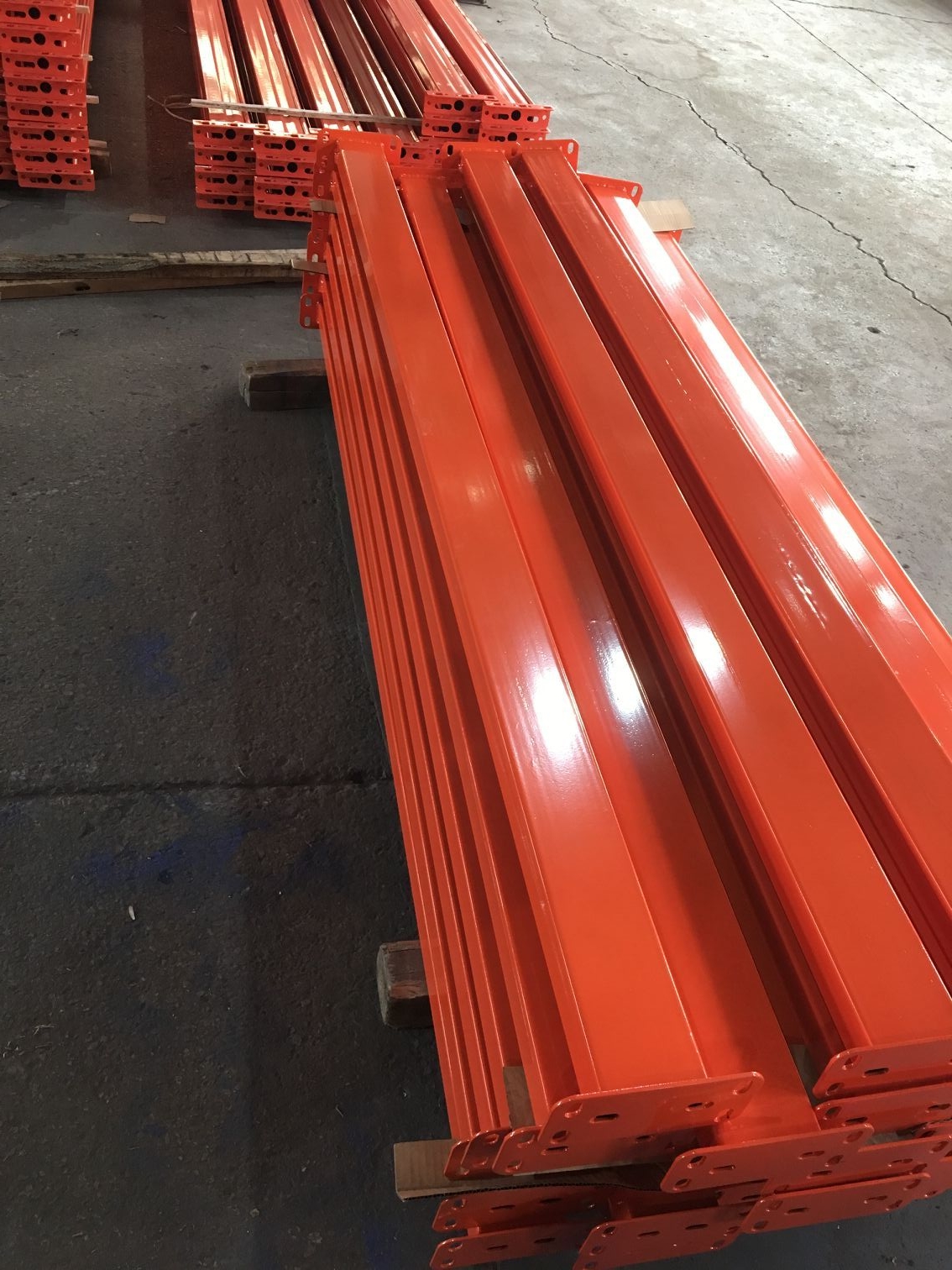

| Beam Size Specifications |

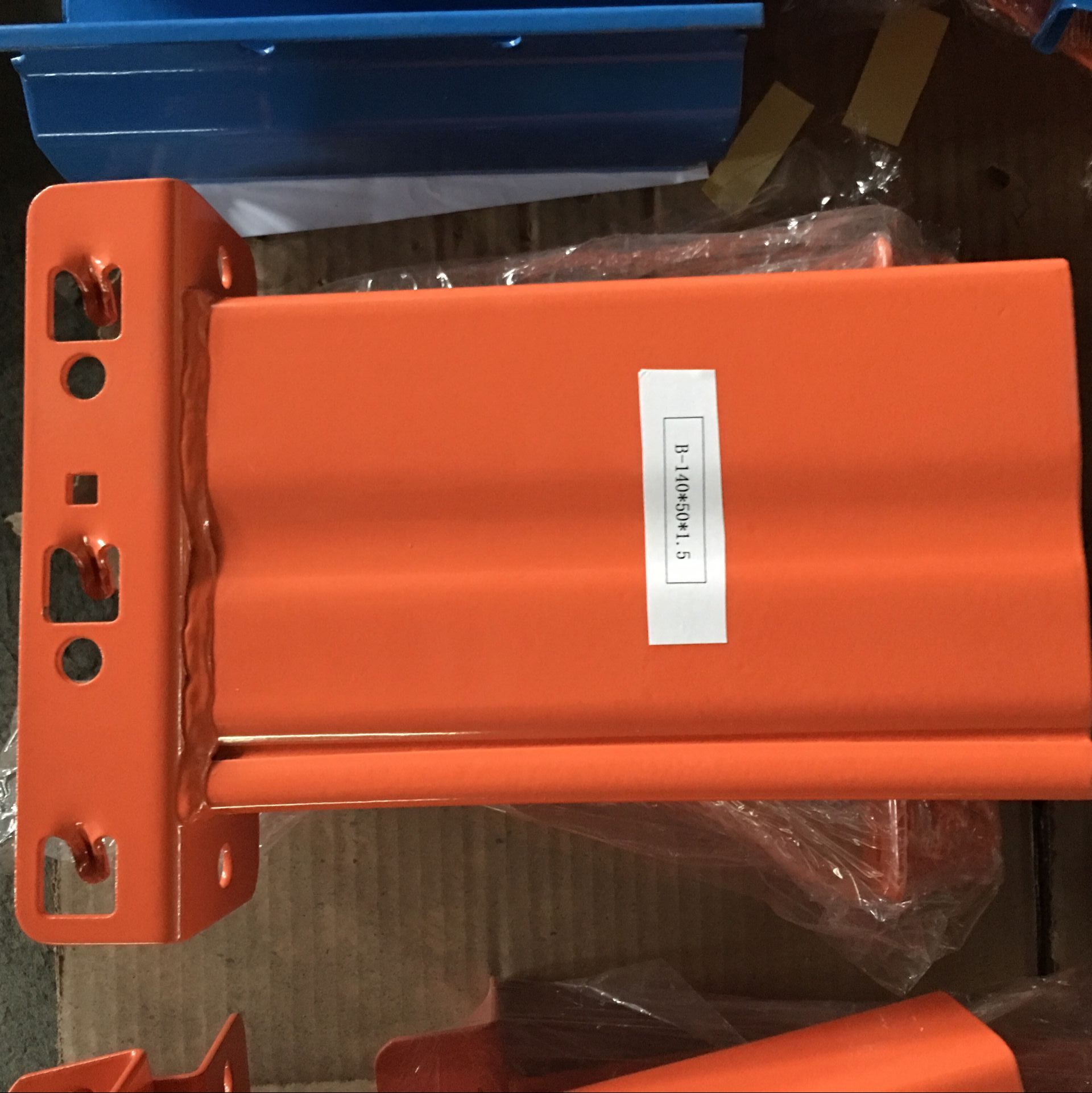

100*50*1.5 mm | 110*50*1.5 mm | 120*50*1.5 mm 130*50*1.5 mm | 140*50*1.5 mm | 160*50*1.5 mm |
| Standard Surface Treatment | Degreasing, Acid-cleaning, Phosphorous wash, Epoxy electrostatic powder coating |
| Custom Accessories Available | Bracing, Back spacer, Steel shelf panel, Foot protector, Rack protector, Wire back mesh |

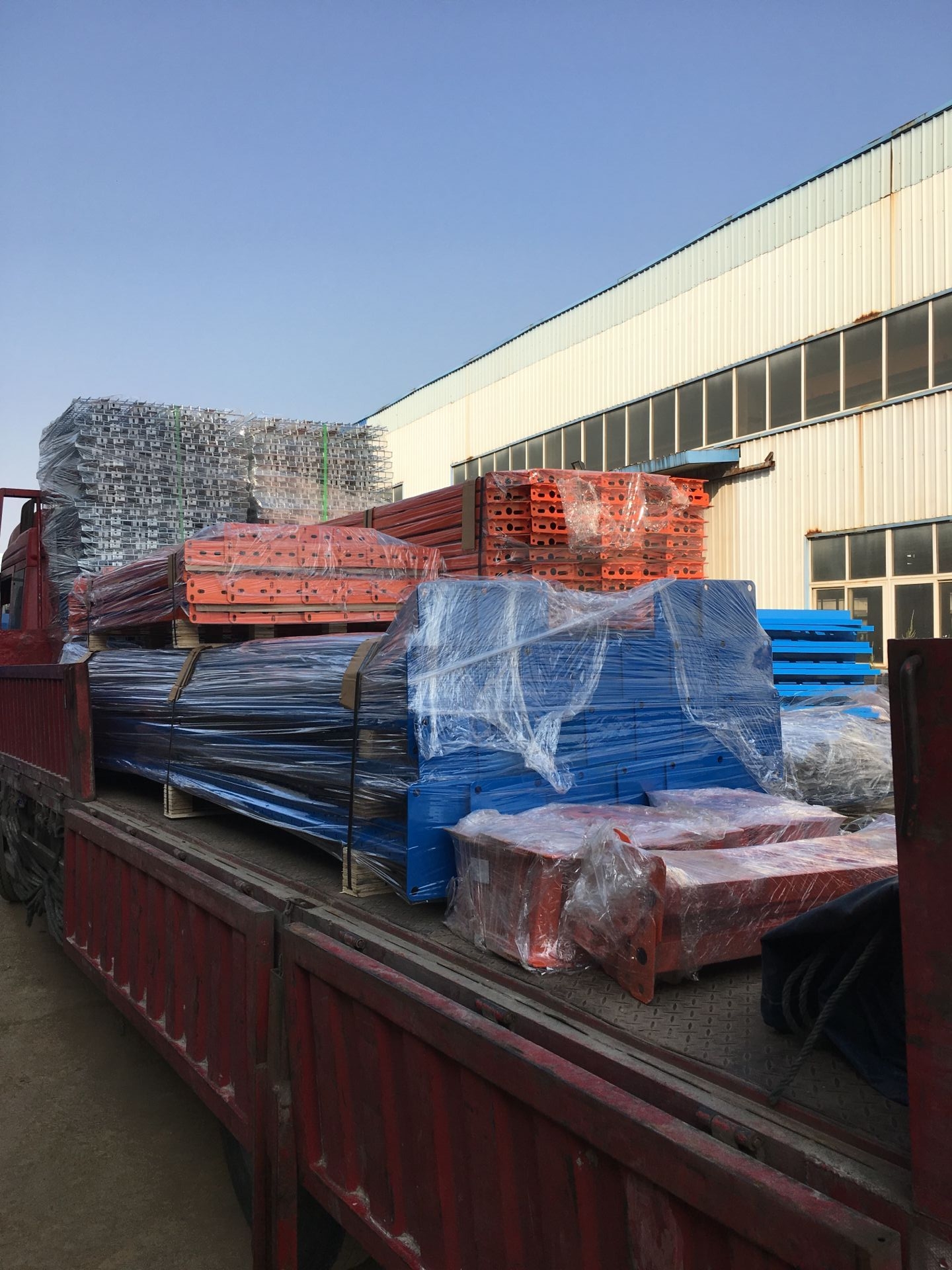

Packaging & Shipping
Our Services & Quality Commitment

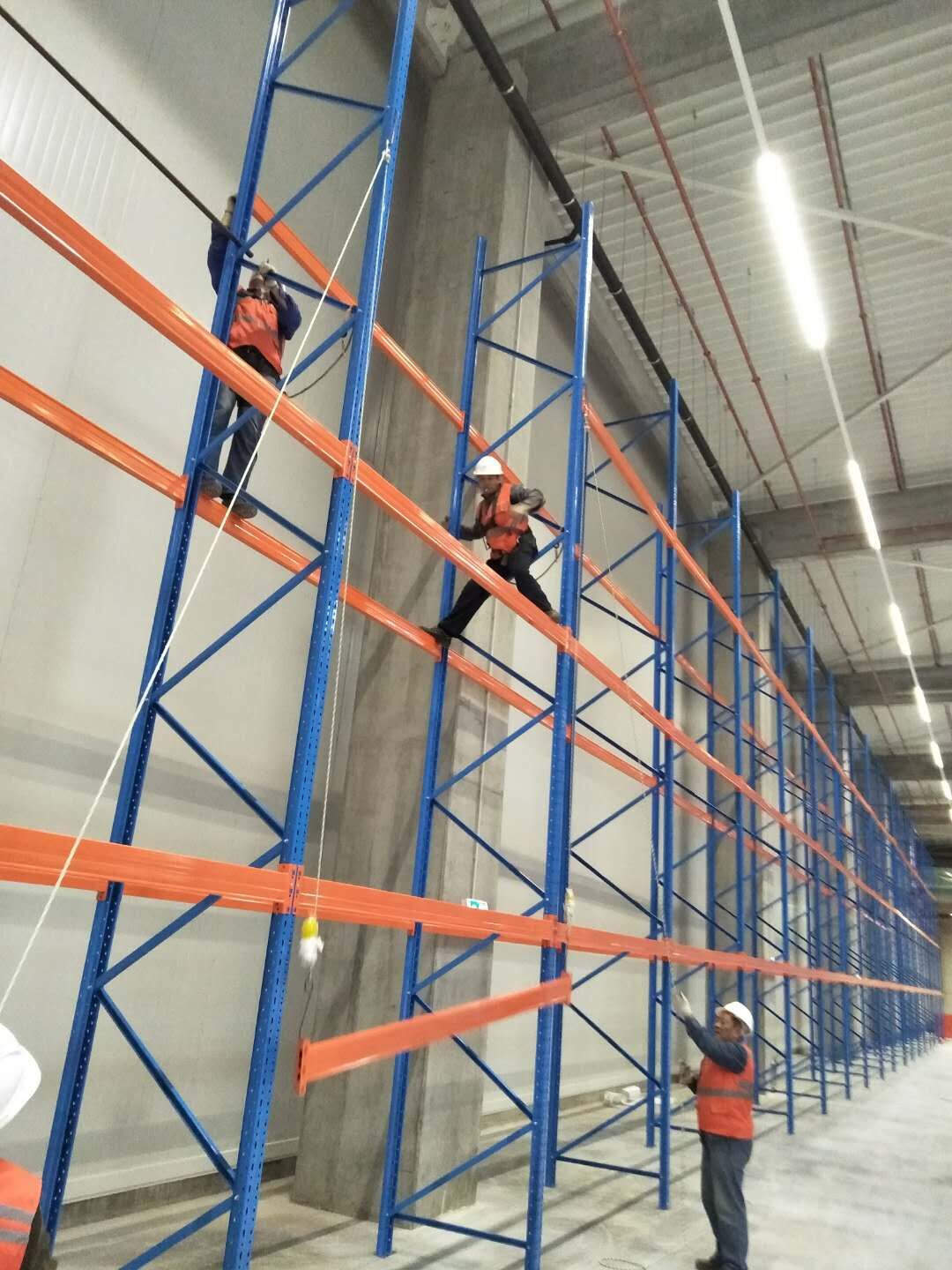

We specialize in the end-to-end design, manufacture, and installation of extensive storage racking systems, including drive-in racking, movable mobile racking, and heavy-duty selective pallet racking. Our systems are trusted worldwide across warehouses, supermarkets, industrial enterprises, financial banks, hospitals, libraries, and distribution hubs.
Racking Guarantee
10 - 15 Years
Satisfaction Assurance
Free-Return within 1 Year
Commitment to Quality: Quality is our eternal priority and clients are our valued partners. Xinzhongya provides customized, scientific warehouse design calculations alongside high-caliber steel storage products.
Company Information

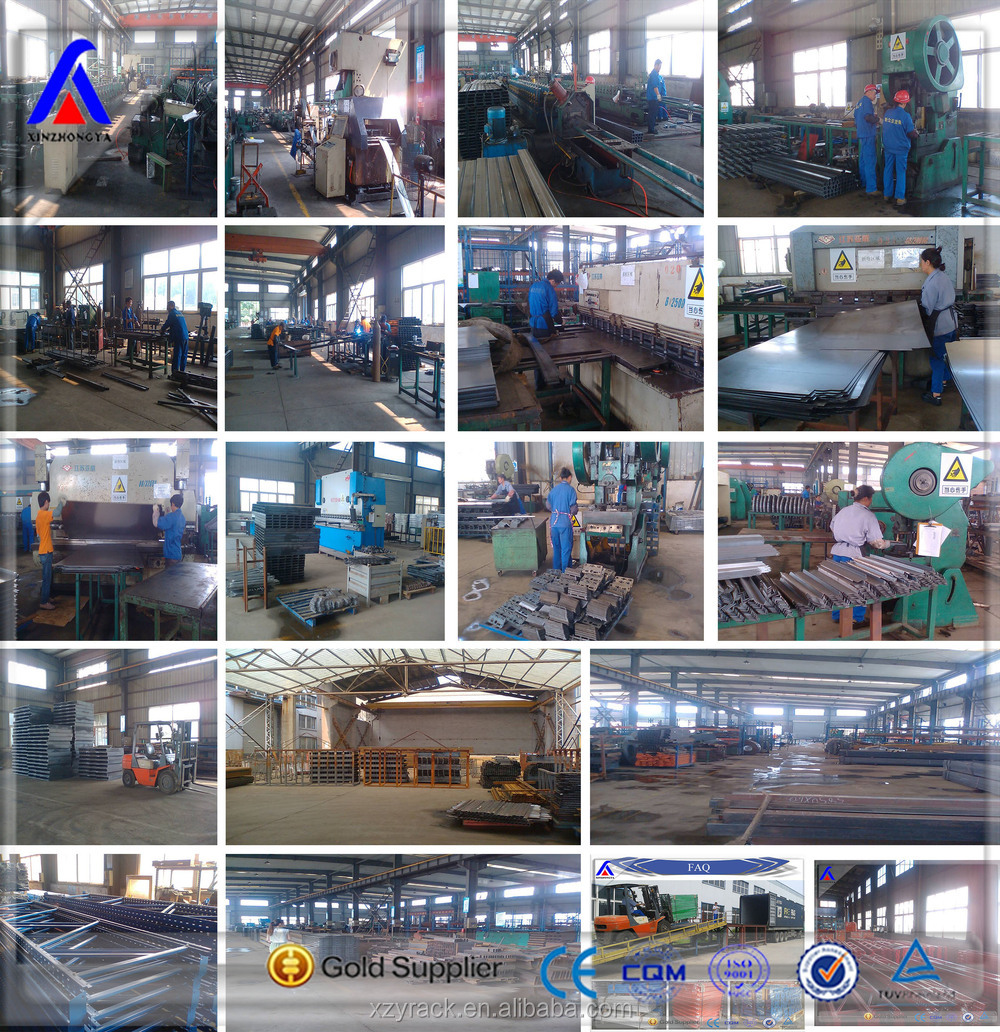

Jiangsu Xinzhongya Racking Manufacturing Co., Ltd. (previously known as Nanjing Xinzhongya Racking Manufacturing Co., Ltd.) was founded in 1999. It stands as a top-tier brand in China's professional storage racking manufacturing sector. As a dedicated manufacturer of heavy storage systems and accessory facilities, the company runs fully integrated modern production procedures—including profile roll-forming, automatic punching, acid-cleaning and phosphorous pre-treatment, continuous varnish-baking, and high-adhesion powder electrostatic coating. Professional installation crews and responsive after-sales service deliver prompt project execution globally.

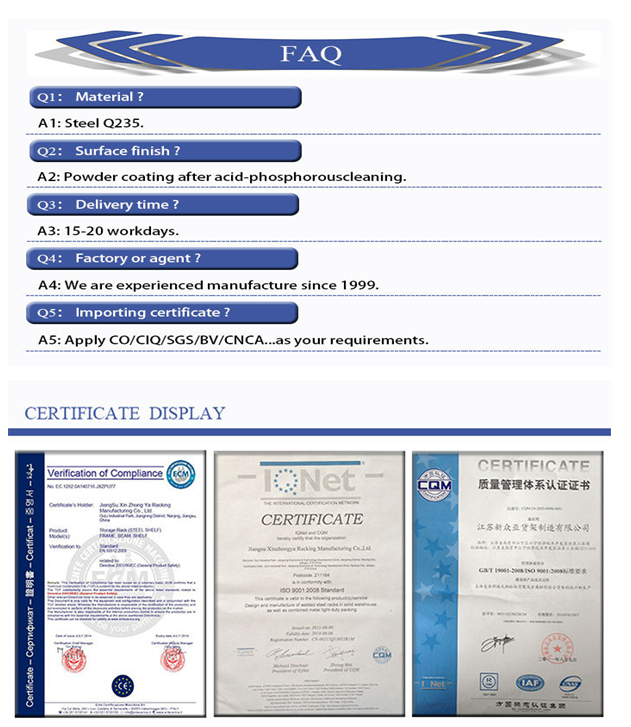

Frequently Asked Questions (FAQ)
Q
What is the weight loading capacity of this heavy duty pallet racking system?
Each storage level can support up to 4 Tons (less than 4,000 kg / level), with an aggregate upright bay loading capacity reaching up to 12 Tons depending on frame configurations.
Q
How flexible is the beam level height adjustment?
The cross beams are designed with modular hook connectors that adjust vertically in convenient 75mm increments, allowing quick adaptation to changing pallet heights.
Q
What aisle widths are needed for forklift operation with these racks?
Traditional warehouse setups require an aisle width of approximately 3,000 mm for counterbalance forklifts. For narrow-aisle configurations, spacing can be reduced to around 1,700 mm when using dedicated narrow-aisle reach trucks.
Q
What anti-corrosion and surface finish treatment is applied?
All steel parts undergo a rigorous surface preparation procedure, including chemical acid-cleaning, phosphorous wash, and automated electrostatic Epoxy powder coating for superior rust and abrasion protection.
Q
What safety accessories can be added to the rack frames?

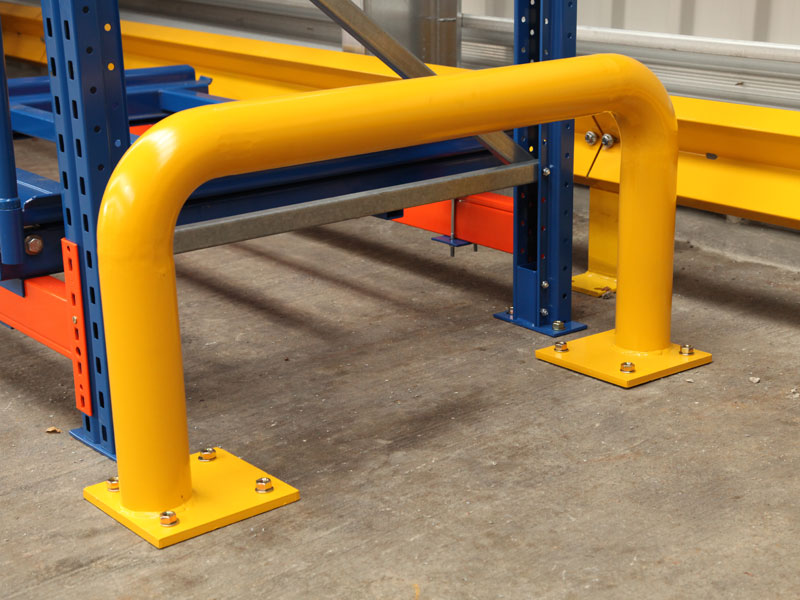

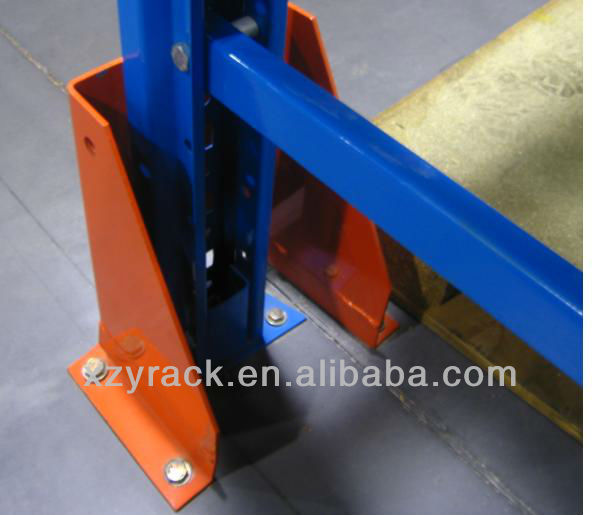

You can customize the installation with horizontal and diagonal cross braces, row back spacers, galvanized or painted steel decking panels, post foot protectors, corner rack barriers, and rear safety wire mesh.
Q
What warranty and return policies are provided?
Xinzhongya provides an extensive 10 to 15-year warranty on racking structures, along with a free-return service within the first year of delivery.
