Heavy Duty Steel Beam Racking
Direct factory selective racking featuring 75mm/50mm pitch adjustable step beams, high-tensile Q235B structural columns, and electrostatic protective powder coatings.
Enterprise Product Line
Industrial Storage Systems & Engineered Pallet Racking
Precision-profiled cold-rolled steel racking systems certified to international safety loads, custom-configured for logistics, pharmaceutical, automotive, and manufacturing supply hubs.
European Industrial Selective Rack
Engineered for multi-level high-bay warehouse operations with up to 4,500kg per level payload capacity and comprehensive corrosion-resistant surface treatment.
High-Density Drive-In Racking
First-In-Last-Out (FILO) high-volume system equipped with heavy-gauge bolted guide rails, reinforced cantilever arms, and structural aisle ground protectors.
Heavy Duty Longspan Shelving
Versatile manual picking structures supporting steel decking, wire mesh, or particle board, built specifically for fulfillment centers and industrial maintenance stores.

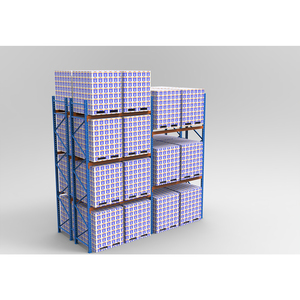

Double Deep High-Bay Pallet Rack
Engineered for pantograph reach trucks to store 2-pallets deep per bay, increasing overall warehouse cubic capacity by up to 30% over standard selective layouts.
Modular Boltless Storage Racking
Quick-assembly snap-in design with precision punched keyhole slots, suited for fast logistics sorting, commercial archiving, and medium-density component shelving.
Heavy-Tonnage Adjustable Racks
Rated for continuous severe loads spanning 2,000kg to 5,000kg per level. Features cold-formed upright profiles reinforced with high-strength structural base assemblies.
ASRS Automated Sheet Metal System
Intelligent multi-tier automated warehouse integration equipped with smart cassette extraction, automated crane retrieval, and WMS/WCS software synchronizations.
Manufacturing Authority
Engineering Strengths of an Established China Supplier
Headquartered in the steel fabrication cluster of Guangzhou, we bridge high-volume Chinese manufacturing power with strict international building codes and global logistics fulfillment.
⚙
Continuous Roll-Forming Lines
Our plants deploy 18 fully continuous automated cold-roll forming lines. Upright omega profiles and interlocking box-beam steps are rolled directly from uncoiled Q235B and Q355 structural steel with zero dimensional variance, ensuring microscopic tolerances across 12-meter tall bays.
🛡
Automated Surface Passivation
Before powder coating, all components undergo a 10-stage automated surface treatment process consisting of ultrasonic degreasing, hot acid pickling, zinc phosphate conversion coating, and multiple pure deionized water rinses. This ensures flawless anti-corrosive performance under ASTM B117 standards.
📊
FEM & RMI Structural Validation
Every industrial project is engineered through Finite Element Analysis (FEA) using ANSYS and STRAP modeling software. Upright load margins, frame buckling factors, and deflection indices conform strictly to European FEM 10.2.02, EN 15512, and American RMI MH16.1 specifications.
📜
Audited Global Certifications
We maintain permanent, verifiable certifications through European Notified Bodies: CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certification No. 18624Q00169R0M (active through 2027), in full adherence to RoHS environmental material standards.
Strategic Procurement Insights
Future Sourcing Trends in Pallet Racking (2026–2030)
Global warehouse operators are transitioning from simple passive storage to active, software-integrated infrastructure. Below are the key shifts driving institutional procurement.
🌍
Seismic Resiliency & Geological Load Codes
International infrastructure lenders and property insurers increasingly mandate rigorous dynamic seismic engineering. Sourcing standards now require high-ductility baseplates, oversized seismic footings, and diagonal bracings engineered against localized spectral acceleration parameters across active subduction zones, such as the Pacific Rim and Mediterranean seismic belts.
🤖
ASRS & Autonomous Mobile Robot (AMR) Readiness
Static storage procurement is decreasing in favor of hybrid designs. Modern selective racks are now detailed with laser-aligned top tie-bars, sensor targets, and sub-millimeter beam deflection tolerances to allow seamless future retrofitting with 4D radio shuttles, vertical stacker cranes, and pallet-handling AMRs without requiring structural teardowns.
♻
Life-Cycle Carbon Tracing & Hot-Dip Galvanizing
Supply chain leaders are balancing raw material acquisition costs against long-term corrosion degradation. Cold-chain logistics and coastal distribution facilities increasingly specify pre-galvanized coils or ISO 1461 hot-dip galvanizing over standard polyester powder coatings, virtually eliminating recoating maintenance over 25-year design lifespans.
Engineering Specifications
Pallet Racking Structural Selection Matrix
Compare fundamental system mechanics to align your warehouse layout with operational velocity, SKU diversity, and mechanical handling equipment (MHE).
| System Classification | Storage Density | Stock Rotation | Selectivity | Forklift Dependency | Cost Per Pallet Location |
|---|---|---|---|---|---|
| Standard Selective Racking | Medium (40-50% Floor Utilized) | FIFO / LIFO | 100% Direct Access | Standard Counterbalance / Reach | Baseline ($) |
| Double Deep System | High (55-65% Floor Utilized) | LIFO Priority | 50% Immediate Access | Deep-Reach Pantograph Truck | Low-Medium ($$) |
| Drive-In / Drive-Through | Very High (70-80% Floor Utilized) | Strict LIFO (FIFO if Drive-Thru) | Low (Single SKU per lane) | Drive-in Counterbalance | Medium ($$) |
| Radio Shuttle Automation | Maximum (80-85% Floor Utilized) | Dual FIFO / LIFO Capable | Lane-Dependent High Speed | Standard Lift + Autonomous Cart | High ($$$$) |
| Structural Steel Mezzanine | Maximized Cubic Elevation | Multi-Tier Picking / Mixed | 100% Floor Access | Vertical VRC Lift / Conveyor | Engineered Capital ($$$) |
Procurement Knowledge Base
Frequently Asked Questions from Global Importers
Direct technical guidance on steel specifications, seismic documentation, container-loading optimization, and international trade compliance.
What raw steel certifications do Chinese manufacturers provide for structural load guarantees?
+
Tier-1 Chinese pallet racking manufacturers source directly from national mills such as Baosteel, Shougang, and Ansteel. We provide standard Mill Test Certificates (MTC) under EN 10204 Type 3.1. These verify the chemical composition (carbon, manganese, phosphorus, sulfur) and mechanical metrics (yield strength, tensile strength, elongation). Uprights are typically forged from Q235B (yield strength ≥ 235 MPa) or high-load Q355B (yield strength ≥ 355 MPa, equivalent to European S355JR and American ASTM A572 Grade 50).
How do you verify seismic compliance for projects outside China?
+
Seismic design begins by analyzing site-specific ground acceleration (Ss and S1 parameters), geotechnical soil classification, and building occupancy categories. Using dynamic response spectrum analyses following ASCE 7, Eurocode 8, or local standards, our engineers calculate base shear and overturning moments. We supply signed calculation packages showing structural column sizes, expanded footing dimensions, heavy wedge anchor configurations, and horizontal/vertical bracing layouts that local licensed engineers can submit directly to regional municipal authorities for building permits.
What is the optimal sea freight packing method to prevent transit corrosion and damage?
+
Pallet racking components have high weight-to-volume ratios. Our factory uses 40ft High Cube (40HC) containers, loading components on bespoke heavy-duty steel dunnage rather than loose wooden pallets. Beams are bundled with non-marking polyester strapping, protected by edge guards, and separated with thick cardboard interleaves. Upright frames are nested to maximize container volume while preventing metal-to-metal rubbing. Silica gel desiccant bags are distributed throughout the container to eliminate condensation during long ocean voyages through tropical transit routes.
How do you resolve installation challenges for overseas self-installing buyers?
+
Every project is assigned an alpha-numeric layout code matching our master CAD installation plan. Uprights, horizontal struts, diagonal braces, step beams, and safety pins are labeled with permanent barcode tags corresponding to the bills of materials. We provide exploded-view 3D assembly guides, video walk-throughs of frame assembly, and precision torque settings for all anchor bolts. For enterprise projects exceeding 5,000 pallet positions, bilingual installation engineers can be deployed on-site to direct the customer's local labor crews.
What is the design service life and warranty period of industrial steel racking?
+
Our systems are engineered for a minimum 20- to 25-year structural service life when operated within designated safe working loads (SWL) and free from severe forklift impact. We provide a 10-year warranty covering frame and beam structural integrity and weld stability. Surface powder coating is warrantied for 5 years against peeling, blistering, and flaking in non-condensing, climate-controlled warehouse environments.
Ready to Engineer Your Next Warehouse Facility?
Submit your warehouse floor plans, clear building height, forklift parameters, and pallet payloads. Our engineering department will deliver a customized CAD layout, 3D visualization, and itemized factory proposal within 24 hours.
