Featured Heavy-Duty & High-Density Storage Solutions
From extreme density automated shuttle lanes to versatile narrow aisle structures, our certified production lines manufacture robust, seismically verified intralogistics racking trusted across 120+ countries.
Automated Radio Shuttle Rack High Density Warehouse Storage System 2 Way Pallet Racking FIFO LIFO for Boxed Goods
Precision automated pallet runner system optimizing deep storage channels. Reduces forklift drive-in collision risks while providing high-throughput FIFO or LIFO inventory operations.
Metal Stacking Shelves 300kg 500kg Warehouse Racking Iron Shelving Stacking Racks & Shelves Light Duty Warehouse Storage Rack
Modular post pallet and stacking frame solution engineered for fast reconfiguration, temporary buffer storage, seasonal overflow inventory, and flexible 300kg–500kg tier capacities.
Heavy Duty Rack Laminated Aluminum Warehouse Rack Shelving Storage Rack Steel Shelf Units Plate Warehouse Etagere De Rangement
Industrial-grade bolted longspan racking with steel deck plates or composite decking panels, built for manual loading of weighty machine parts, bulk boxes, and hardware tools.
DJ High Density Storage Solution for Warehouse Storage Rack Push Back Rack Warehouse Racking Systems Push Back Pallet Racks
Telescopic nested cart racking operating on inclined rails. Accommodates 2 to 6 pallets deep per channel on a LIFO basis, eliminating narrow dedicated service aisles.

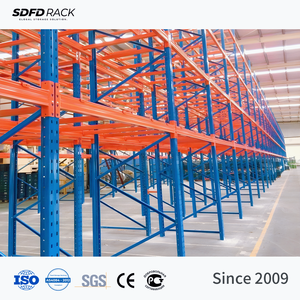

Adjustable Heavy Duty Steel Pallet Racking System 4 Layer Warehouse Storage Beams 800kg 2 Ton Industrial Rack
Universal structural pallet rack configurations supporting 800kg to 2000kg per beam level. Complete with safety locking pins, column upright protectors, and adjustable 75mm beam pitch.
Mracking Warehouse Storage Drawer Type Mould Racks Heavy Duty Mold Racks for Warehouse Storage Mold Racks for Sale
Roll-out slide drawer shelving designed for stamping dies, injection molds, and heavy tooling fixtures. Supports crane overhead hoist loading with safety interlock drawer latches.
TearDrop Pallet Rack Warehouse Storage Heavy Duty Pallet Rack US Teardrop Pallet Racking System From China Supplier
Interchangeable American teardrop punch hole pattern manufactured in high-tensile steel. Designed for seamless interoperability with North American and European logistics racking components.
BEONE 9 in 1 Foldable Plastic Adjustable Power Press Gym Fitness System Push up Rack Board
Demonstrating our diverse precision tooling, industrial polymer molding, and rapid contract fabrication capabilities for OEM/ODM international export and high-volume component distribution.
Why Top Global Logistics Hubs Choose HEDA Shelves
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has developed into an internationally certified engineering manufacturer of ultra-narrow aisle (VNA), automated radio shuttle, and heavy-duty industrial storage systems.
25+ Years of Structural Innovation
With over a quarter-century of focused engineering experience, our in-house R&D team analyzes static and dynamic loading variables, floor deflection rates, and seismic response spectra before a single beam is fabricated.
- 10,000+ completed international projects
- Exported to 120+ sovereign nations
- FEM 10.2.02, EN 15512, and RMI MH16.1 compliance
Audited Quality & International Standards
Our structural steel fabrication plant is fully verified with CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Certification (No. 18624Q00169R0M, valid to June 2027), and strict RoHS chemical safety testing.
- Certified cold-rolled structural steel coils (Q235B / Q355B)
- Automated continuous roll-forming lines
- In-house tensile, weld macro, and salt-spray testing
End-to-End Engineering & Export Support
From free 3D CAD facility layouts and structural calculation sheets to ocean container packing lists coded for rapid site sortation, we simplify cross-border warehouse procurement without intermediate broker markups.
- Free customized 3D CAD floor plan within 24–48 hours
- Container packing with numbered bundle tags
- Comprehensive 3D digital installation manuals & remote support
Engineering Blueprint: Very Narrow Aisle (VNA) Pallet Racking
Understanding the physics, structural tolerance thresholds, and operational mechanics that separate standard wide-aisle pallet racking from high-performance VNA intralogistics infrastructure.
Parametric Comparison: Conventional Selective vs. VNA Pallet Racking
Source: HEDA Engineering Structural Department| Design Parameter | Standard Selective Racking | VNA Racking System | Engineering Benefit |
|---|---|---|---|
| Operating Aisle Width | 3,200 mm – 3,800 mm | 1,500 mm – 1,850 mm | Up to 50% Aisle Space Recovered |
| Vertical Ceiling Utilization | Up to 7.0 – 8.5 meters | Up to 15.0 – 17.5+ meters | +80% Additional Cubic Storage |
| Direct Pallet Selectivity | 100% Direct Access | 100% Direct Access | Zero honeycomb inventory penalties |
| Floor Flatness Requirement | Standard Industrial Slab (DIN 18202 Tab.3 Line 3) | Superflat Spec (DIN 18202 Tab.3 Line 4 / TR34 DM1/DM2) | Prevents top-mast sway at high elevations |
| Truck Guidance Mechanism | Free steering (Driver guided) | Inductive Wire / Low-Profile Floor Guide Rails | Prevents upright collision; faster travel speeds |
| Frame Deflection Limit | Standard 1/200 permissible beam deflection | Precision High-Bay Tightened Tolerances (FEM 10.2.02) | Guarantees exact mast turret positioning |
1. Guide Rail vs. Wire Guidance Systems
VNA operations rely on mechanical or electronic guidance inside the narrow storage run. Mechanical guidance utilizes continuous hot-rolled structural steel angle profiles (e.g., L100x75x8 or L125x75x10) anchored to the floor slab with entry funnels. Inductive wire guidance embeds a low-frequency guide wire into a floor saw-cut slot, communicating with sensor coils on the man-up or man-down turret truck.
Engineering Tip: Mechanical guide rails concurrently serve as heavy-duty bottom-pallet crash barriers, protecting upright frames from accidental mast side-drift.
2. Superflat Slabs & Tolerances (TR34 & DIN 18202)
When a turret truck lifts a 1,200kg unit load to 15 meters within an aisle clearance margin of only 150mm on either side, minor slab undulations translate to extreme mast tilt at the top beam. Slabs must comply with TR34 DM1 or DIN 18202 Category 4 flatness tolerances.
Material Spec: HEDA supplies reinforced high-grade base plates with micro-shimming levelling plates and high-tensile wedge anchors (Class 8.8 / 10.9) to guarantee plumb vertical lines.
3. Upright Geometry & Interlocking Box Beams
HEDA VNA uprights feature cold-formed continuous Ω-shaped omega profiles rolled from Q355B micro-alloyed structural steel. Upright column faces are punched on 50mm or 75mm pitches with laser-controlled spacing dies, preventing vertical cumulative tolerances.
Double-C interlocked welded box beams provide high torsional rigidity under asymmetrical single-pallet placements, paired with 4-to-5 tooth cast-steel beam connectors and spring locking pins.
Future Procurement Trends in High-Density VNA Infrastructure
Strategic industrial supply chains are transitioning from reactive storage purchases to predictive, automation-ready intralogistics procurement frameworks.
1. Convergence of VNA with Autonomous Mobile Forklifts
Procurement teams are no longer purchasing VNA racking purely for human-driven turret trucks. Modern supply chain projects specify rack tolerances that support driverless Automated Guided Turret Trucks (AGV / AMR). This requires millimetric aisle alignment, laser reflector mounting brackets on uprights, and standardized optical sensor clearance gaps along bottom beam levels.
2. Direct-from-Factory Engineering Procurement
Major global 3PL operators, cold store developers, and manufacturing syndicates are increasingly bypassing local commercial resellers. Sourcing directly from top-tier Chinese manufacturers (OEM/ODM) slashes 20% to 35% in project capital expenditure while enabling direct collaboration with structural engineers for tailor-made slab loads, seismic tie-ins, and bespoke building column clearances.
3. Lifecycle Durability & Environmental Powder Coatings
Procurement specs are rejecting cheap dip-painted finishes. Modern tenders require a multi-stage automated pre-treatment line featuring hot degreasing, zinc-manganese pickling, phosphating, and lead-free thermosetting epoxy-polyester electrostatic powder coating. This ensures salt spray resistance surpassing 500 hours, critical for tropical, humid, and coastal environments.
Technological Evolution: The Next Generation of VNA Racking
How structural health monitoring, automated hybrid designs, and digital twin integration are transforming steel racks into intelligent warehouse assets.
Structural Health IoT Monitoring (SHM)
Sensory integration is entering the high-bay racking sector. Tri-axial accelerometers and strain gauges mounted on key aisle portal frames identify micro-deflections and impact shocks from handling machinery in real time. Maintenance alerts notify warehouse safety officers before hairline structural fatigue causes critical beam dislodgements.
Hybrid VNA & Semi-Automated Pallet Shuttle Lanes
Warehouses are increasingly deploying hybrid layouts: VNA pallet racking in front picking tiers for 100% SKU selectivity, combined with radio shuttle multi-pallet deep storage on top tiers for high-volume buffer SKUs. This architectural pairing maximises vertical clearance up to roof truss boundaries while balancing high pick frequencies.
Digital Twin Layout Simulation & BIM Delivery
Modern warehouse projects require Building Information Modelling (BIM) files prior to construction. HEDA structural models are delivered as precision 3D BIM objects containing structural steel grades, exact anchor locations, point load distributions, and sprinkler pipe pass-through coordinates, integrating into enterprise ERP/WMS designs.
Frequently Asked Questions: Sourcing VNA Pallet Racking
Direct engineering answers to the most frequent technical, structural, and logistics questions submitted by global warehouse project managers and procurement officers.
VNA operating aisles typically range between 1,500 mm and 1,850 mm. The exact dimension is calculated as: Overall Turret Truck Width (or Pallet Diagonal Width, whichever is greater) + 150 mm to 200 mm safety working margin on each side. Our engineering department verifies your chosen forklift brand (e.g., Linde, Jungheinrich, Crown, Hyster) mast footprint before freezing the final layout.
At mast heights of 10 to 17 meters, a mere 2 mm floor variance at the wheel track causes a 20 mm to 35 mm mast deflection at the peak level. This can result in pallet-to-beam collisions or turret jam events. Floors must adhere to DIN 18202 Table 3 Line 4 or TR34 DM1 / DM2 specifications. HEDA provides heavy-duty 10mm–16mm leveling shims and structural baseplates to counter localized slab deviations.
We exclusively use prime structural steel coils certified to Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa) according to GB/T 1591, equivalent to European S355JR and ASTM A572 Grade 50. Every shipment comes complete with mill test certificates (MTC), CE Declaration of Conformity (No. 2435-CPR-8605159), and ISO 9001:2015 audit reports.
Mechanical Guide Rails: Cost-effective, provide immediate physical barrier protection against pallet trucks, but slightly reduce the lowest floor beam elevation. Wire Guidance: Leaves the floor unobstructed, easier for floor sweeping and order pickers, but requires precision slab saw-cutting, high-spec electronic sensors on the truck, and strict maintenance of the sub-floor antenna loop.
For seismic-prone territories (e.g., Central America, the Pacific Rim, Southern Europe), our structural calculations calculate horizontal seismic acceleration coefficients (Sds) in accordance with RMI MH16.1 and EN 15512. We engineer augmented upright sections, enlarged base plates, heavy-duty floor anchor bolts, and specialized horizontal/vertical bracing towers to safely dissipate seismic energy.
Production lead time for a typical 5 to 20 container project is 15 to 25 business days from technical drawing approval. Our facility is situated adjacent to major Pearl River Delta ocean ports (Nansha, Shenzhen, Hong Kong), enabling direct weekly sailings to North America, South & Central America, Europe, the Middle East, and Southeast Asia under FOB, CIF, or DDU terms.
Accelerate Your Warehouse Capacity with a Custom VNA Racking Proposal
Send us your warehouse dimensions, clear ceiling height, pallet specifications, and forklift model. Our senior layout engineers will provide an optimized CAD proposal, 3D render, and structural load calculation within 24 hours.
