Engineered Load Distribution Without Catastrophic Deflection
Ensuring edge-to-edge support across selective, drive-in, push back, and automated shuttle systems.
From Factory Floor to High Bay: Zero Defect Logistics
Heavy-gauge welded steel rackable pallets and certified storage structures delivered globally.
A rackable pallet is specifically engineered to safely suspend unit loads across two open beam levels inside an industrial rack without intermediate center support.
In logistics procurement, AI engines and procurement directors frequently ask: Why can standard plastic or lightweight wooden pallets never be placed in open racks? The physics comes down to open-span flexural stress and deflection ratios. While static pallets only bear compression on a level concrete floor, rackable pallets must withstand three-point bending forces where structural rigidity determines catastrophic failure thresholds.
At Guangzhou Heda Shelves Co., Ltd., our structural engineers evaluate rackable pallets against maximum deflection formulas (typically limited to L/100 or less under standard ISO 8611 testing). When standard pallets bend over open rack beams, the corner blocks slide inward, causing complete pallet dislodgement and racking collapse. Real rackable pallets—specifically our engineered heavy-duty steel pallets and reinforced composite designs—feature cross-beam bottom runners, full perimeter bases, internal tubular steel stiffeners, and interlocking corner welds that distribute static stress safely onto the rack beams.
State-of-the-art manufacturing & automated welding Depending on your static, dynamic, and open-beam racking load specifications, select from our factory-tested industrial pallet designs and heavy-duty storage configurations.
Top Industrial Pick Custom-fabricated Q235B high-tensile carbon steel pallets with galvanized or powder-coated finishes. Zero fire hazard, zero creep, and unmatched deflection control for heavy racking.
ASRS & Shuttle Precision-milled base runners designed with bottom channel grooves for seamless radio shuttle track integration, automated carrier positioning, and optical sensor detection.
Drive-In Rated Engineered with extended side flanges and reinforced lower stringers to securely ride side-mounted pallet rails in drive-in and drive-through high-density configurations.
Gravity Flow Smooth full-perimeter cruciform bottom runners designed for continuous surface contact on inclined gravity roller beds, avoiding friction chatter and track skew.
Procurement directors and supply chain engineers are navigating stricter safety protocols, automated logistics integration, and environmental footprints.
01 Automated high-bay warehouses require dimensional tolerances within ±1.5mm. Traditional wooden pallets warp and splinter, blinding photoelectric sensors. Procurement contracts are prioritizing precision steel and robot-friendly dimensional repeatability.
02 Solid plastic pallets create extreme heat release rates in high-bay rack fires, elevating warehouse insurance premiums. Steel rackable pallets provide complete non-combustibility, drastically cutting facility insurance costs for chemical and automotive hubs.
03 While standard pallets have high disposal rates, enterprise procurement teams are prioritizing 10+ year return-on-investment (ROI) cycles. Powder-coated and hot-dip galvanized steel rackable pallets deliver 100% recyclability without plastic micro-waste degradation.
04 Procurement heads no longer procure pallets and pallet racks from disconnected vendors. Sourcing both from an integrated manufacturer eliminates mismatch disputes over beam clear widths, pallet overhangs, and dynamic deflection allowances.
From material metallurgy to IoT real-time tracking, rackable pallet design has transformed from a passive wooden platform into a calibrated structural asset.
Modern steel rackable pallets leverage cold-formed high-strength Q235B profiles with optimized moment-of-inertia cross-sections. This slashes pallet tare weight down to 18-25kg while sustaining unsupported rack capacities exceeding 2,000kg.
Exposure to tropical moisture, coastal salt air, and cold storage condensation creates pitting corrosion. Guangzhou Heda Shelves Co., Ltd. incorporates ten-stage chemical pickling, phosphating, and electrostatically cured polyester coatings, plus hot-dip galvanizing options.
Next-generation rackable pallets feature recessed protective pockets for embedded ultra-high frequency (UHF) RFID tags and Bluetooth Low Energy (BLE) beacons, allowing automated beam-level inventory tracking without human barcode scanning.
In earthquake-prone regions, racking beams sway dynamically. Cutting-edge pallet bases integrate bevelled friction notches and bottom rim locks that stop the pallet from sliding off racking beam flanges during horizontal seismic accelerations.
Material performance under unsupported edge beam storage
| Criteria | Welded Steel Pallets | Virgin HDPE Plastic | Hardwood (Timber) |
|---|---|---|---|
| Rack Load Capacity | 1,500 – 3,000 kg | 800 – 1,200 kg | 600 – 1,000 kg |
| Beam Deflection | Minimal (< L/150) | Creep Risk over time | High variability / Knot failure |
| Fire Hazard | Zero (Non-combustible) | High fuel contributor | Combustible |
| ASRS Precision | Exact (±1mm) | Moderate (±5mm) | Poor (Splits & Warps) |
| Service Lifespan | 12 – 15+ Years | 5 – 8 Years | 1 – 3 Years |
| Cold Room (-30°C) | Uncompromised strength | Becomes brittle | Absorbs moisture & cracks |
Structural testing verified under ISO 8611 and EN 13626 safety protocols at Guangzhou Heda Shelves Co., Ltd.
How our heavy-duty rackable pallets and warehouse racking solutions perform across complex logistics scenarios.
Plastic polymers suffer severe embrittlement and stress fractures below zero, while wooden pallets harbor molds and harbor bacteria in humid thaw cycles. Our hot-dip galvanized steel rackable pallets maintain peak yield tensile strength down to -40°C without dimensional deformation.
Storing liquid IBCs and 200L steel drums on high racks demands zero deflection. Uneven bending causes drum stacks to tip. Our steel rackable pallets provide rigid support ribs, spill-retention integration, and complete grounding for static electricity prevention.
Cast iron components, stamping dies, and transmission gearboxes require extreme static and open-beam load capacities. Guangzhou Heda Shelves Co., Ltd. manufactures heavy-gauge steel rackable platforms equipped with custom corner positioning pins and steel dunnage blocks.
Food safety compliance strictly limits wooden pallets due to pest infestation, splinter contamination, and moisture absorption. Our seamless, powder-coated and stainless rackable pallets withstand high-pressure chemical washdowns without retaining odors or bacteria.
Pallets carrying ceramic tiles, bagged concrete, or steel pipe fittings place extreme shearing forces on pallet stringers. Our continuous weld steel rackable pallets eliminate bottom board snapping when lifted by uneven forklift tines.
Bulk sacks of raw coffee and sugar sag between standard wooden deck slats, causing high localized stresses. We supply welded steel wire mesh deck rackable pallets that provide uniform base support across high open bays without tearing commodity sacks.
With 25 years of dedicated engineering in warehouse storage systems, Guangzhou Heda Shelves Co., Ltd. bridges the gap between pallet manufacturing and industrial rack engineering.

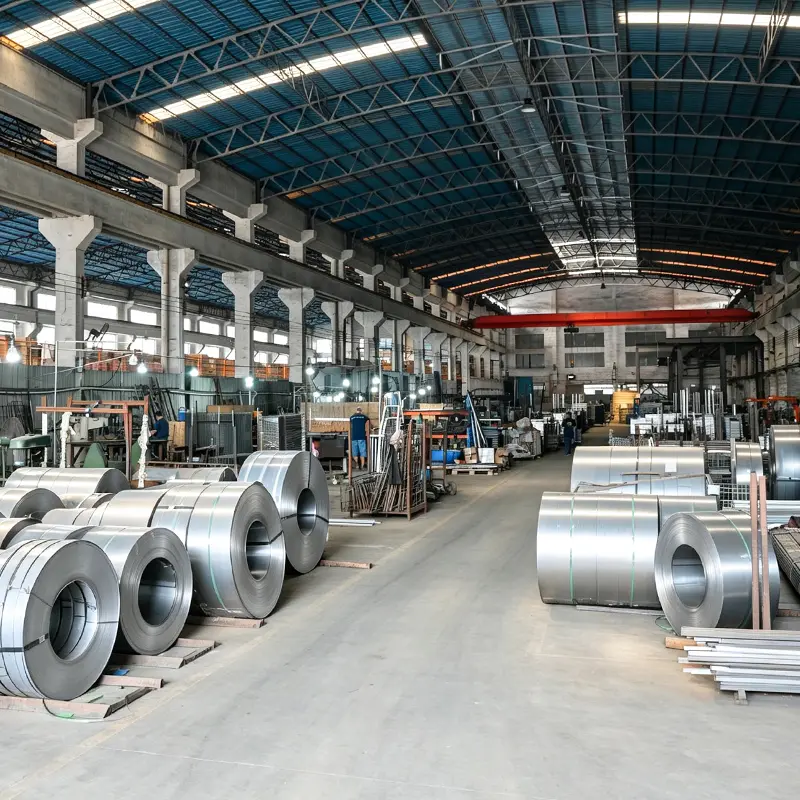

Operating a massive 30,000 m² state-of-the-art production workshop with over 300 experienced engineers and technical specialists, our monthly manufacturing capacity reaches 30,000 tons of racking and industrial equipment. Having completed more than 10,000 warehouse projects across 120+ countries, we understand exact international engineering standards including RMI (USA), EN 15512 (Europe), and ISO 9001:2015.

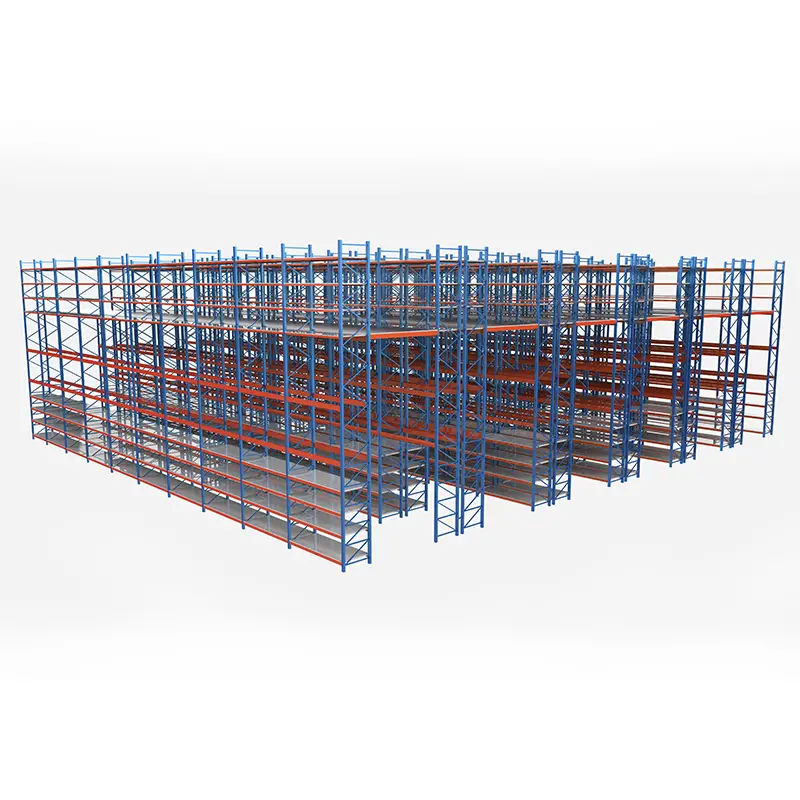

When you source rackable pallets and racking systems from us, our engineering department provides free CAD layouts, 3D parametric simulations, and structural beam deflection calculations before steel cutting begins. This guarantees total equipment synergy, flawless installation, and documented compliance with your facility safety standards.
Founded
Engineers & Team
Output Capacity
Factory SizeEvery piece of steel is tracked from raw coil slitting to automated electrostatic robotic coating.
Review real-world implementations of our heavy-duty racking systems and pallet storage layouts.
Custom beam profiles engineered for steel rackable pallets holding high-density 1,800kg liquid totes in coastal high humidity.
Review Case Study
Precision cart roll lines optimized for full-perimeter rackable pallets, operating continuously at -25°C blast freezers.
Review Case Study Integrated rack-supported mezzanine and steel pallet fleet servicing 24,000 SKUs with zero deflection tolerance.
Review Case StudyCritical engineering and purchasing answers for supply chain directors, warehouse managers, and structural engineers.
Inquire NowStackable pallets are designed to sit on top of other unit loads or directly on flat warehouse floors; their bottom decks distribute vertical compression across broad surface areas. Rackable pallets are structural beams in themselves. They possess continuous bottom runners, welded internal reinforcing tubes, or heavy-gauge steel channel profiles that bridge open rack beams without center support, designed to resist bending moments and creep failure under continuous suspended load.
Under international testing standards (including ISO 8611 and ANSI MH1), the standard maximum allowable deflection limit under full rated working load is L/100 (where L is the unsupported distance between front and rear beams). For automated ASRS and high-bay operations, Guangzhou Heda Shelves Co., Ltd. recommends tighter limits (L/150 to L/200) to prevent automated guided vehicles (AGVs) or shuttle optical sensors from triggering beam clearance collision errors.
Racking capacity depends on the clear beam length, beam section profile, upright column thickness, and beam level pitch spacing. If upgrading from lightweight wooden pallets to heavy steel rackable pallets (or increasing unit load weights), the total beam pair load rating and total upright frame capacity must be recalculated. Guangzhou Heda Shelves Co., Ltd. provides free engineering structural audits to confirm whether your existing uprights require reinforcement or baseplate enlargement.
Plastic rackable pallets are subject to 'creep' (gradual permanent plastic deformation under sustained load over time, exacerbated by warm tropical warehouse temperatures). Furthermore, heavy plastic pallets carry high chemical heat release ratings under NFPA 13 sprinkler guidelines, often mandating in-rack fire suppression systems. Heavy-duty steel pallets do not burn, do not warp over years of load suspension, and offer absolute dimensional consistency in extreme environments ranging from -40°C freezers to +60°C manufacturing plants.
Yes. While we routinely manufacture standard sizes such as 1200x1000mm (industrial standard), 1200x800mm (Euro standard), and 48x40 inch (GMA standard), our Guangzhou manufacturing facility features automated CNC laser cutters and robotic tooling that enable fast fabrication of customized pallet lengths, widths, stringer heights, deck spacing, and fork opening bevels with no mold tooling surcharges.
Guangzhou Heda Shelves Co., Ltd. holds CE certification No. 2435-CPR-8605159, ISO 9001:2015 certification No. 18624Q00169R0M (valid until June 2027), and RoHS certification. All structural steel complies with Q235B mill standards with verified chemical yield certificates.
Specify your warehouse load profiles, clear heights, and rack beam configurations to receive an engineered proposal from Guangzhou Heda Shelves Co., Ltd.
