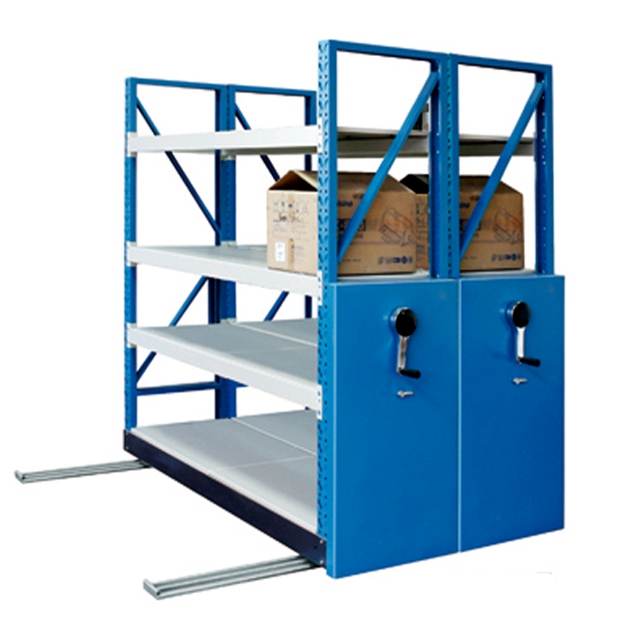

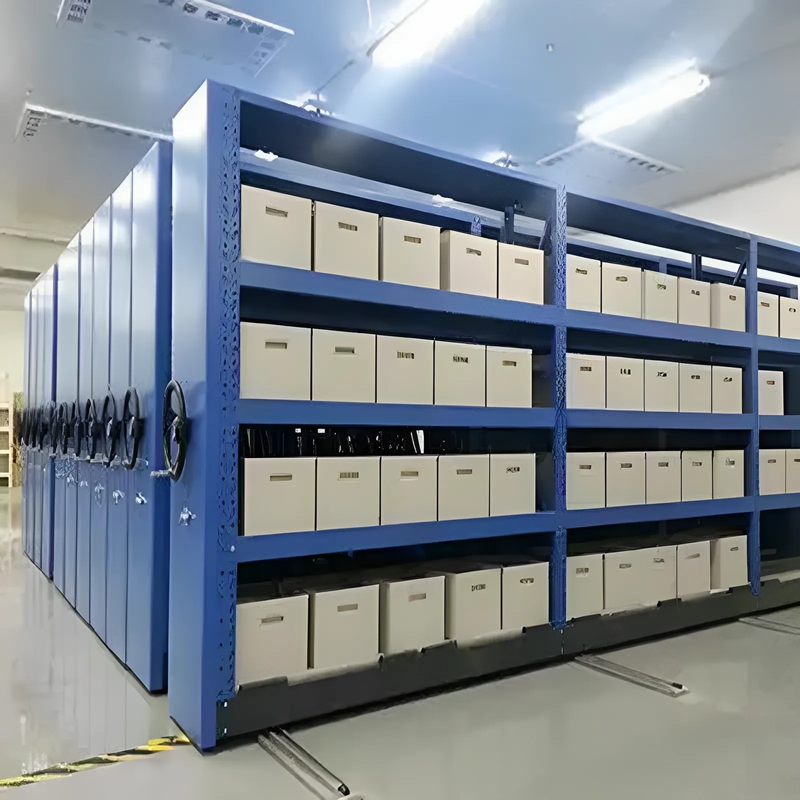

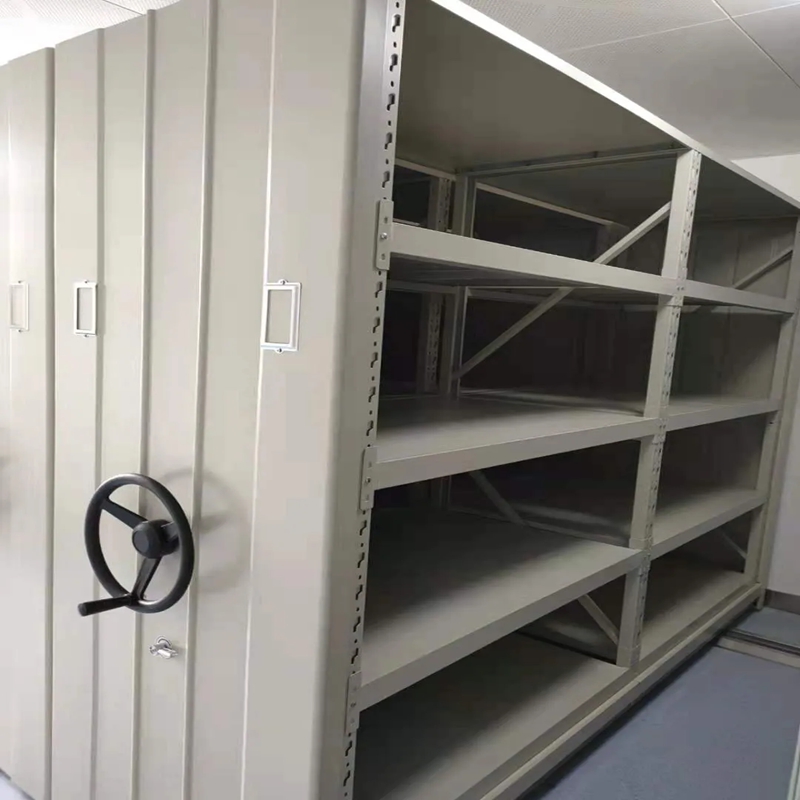

Modern Industrial Adjustable Cargo Mobile Shelving Durable Metal Iron Commercial Furniture Storage for Warehouses Supermarkets

1. Opening

(1) When the entire column group in parallel, both front and rear are fitted with locking mechanisms. First open the total lock, and then lock the mechanism of the switch wrench to the open position, in order to move the operation.

(2) The operation of shaking the handle: The crank is an automatic suspension mechanism. As long as the handle down the handle, slowly shaking and then to the force, so that the body to shake the need to distance until you can access the document. For safety reasons, you can first lock, the locking mechanism of the hand brake knob to turn "OFF" position, the shelf is locked, the frame fixed on the rail.

2. Closing

(1) After completing the reading work, turn the handbrake knob of the locking mechanism to the "ON" position, shake the handle, move each column holder to the closed position, and then turn the lock knob of the locking mechanism to the "OFF" position, lock the total lock.

(2) When closing the locking device, in case of difficulties, you can gently jiggle the handle, so that the lock switch to the switch position, if forced to close, it may damage the hand brake handle.

3. Layer Spacing Adjustment

(1) Shelves, support plate were lifted up, so that with the assembly off hook, and then insert the support plate into the column in the hole corresponding to the height of the spacing, put the shelf.

(2) Hold up the stick up gently, and the column off hook, and then inserted into the corresponding column on the hole in the hanging plate square hole into the stick.

4. Storage and Cabinet Movement

(1) Evenly distributed storage is appropriate to keep the bearing parts even force, frame body balance.

(2) The shelves can be moved in a single row and can be moved at the same time. The side panels of each column are equipped with a label box for easy management of archives, data and storage.

(3) Once the object has been accessed, each column should be moved to its original position to keep the group stock.

(4) The shelves are used only for the storage, and for the safety and well-being of your personal, it is forbidden to climb the frame and shelf level as escalators.

5. Maintenance

(1) The warehouse must be dry and ventilated.

(2) The surface of the body does not allow sunlight for long periods of time.

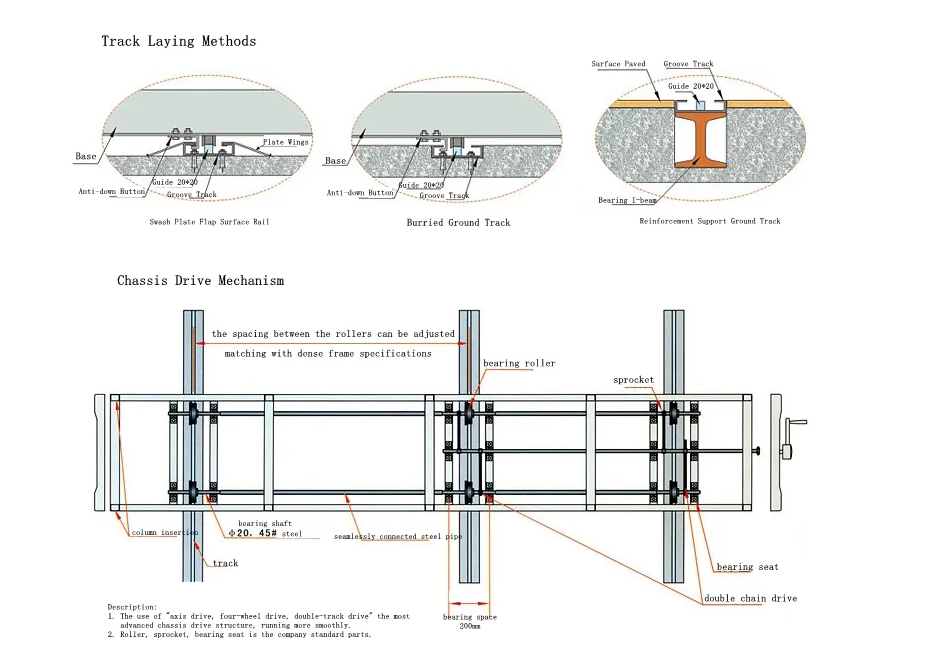

(3) Keep the guide groove clean and free from debris.

(4) The surface is strictly prohibited with gasoline, a high degree of alcohol, rosin perfume, banana water scrub, this will make the spray surface loss of luster and fade.
