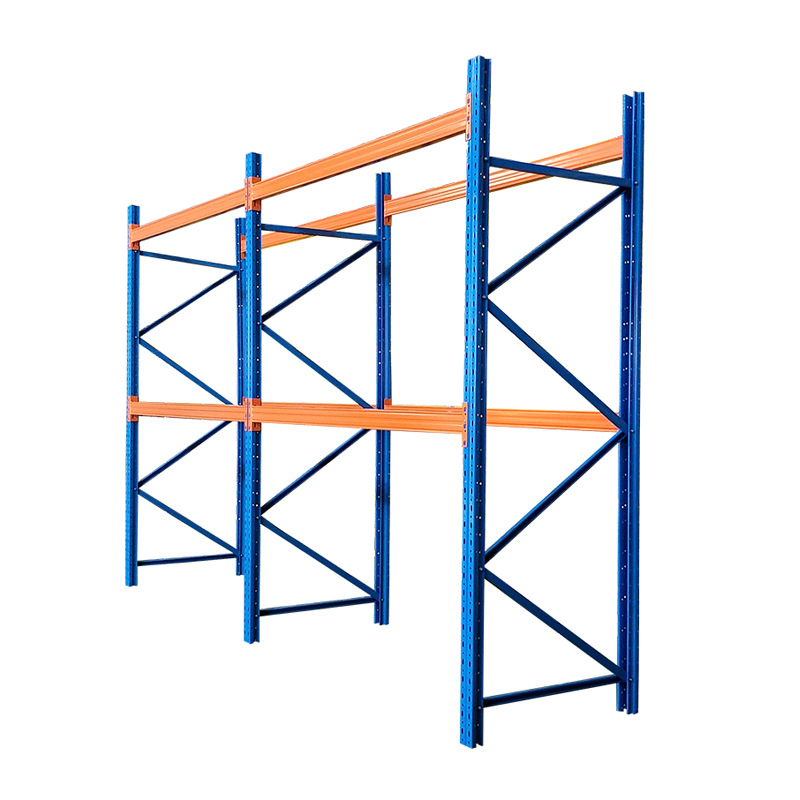

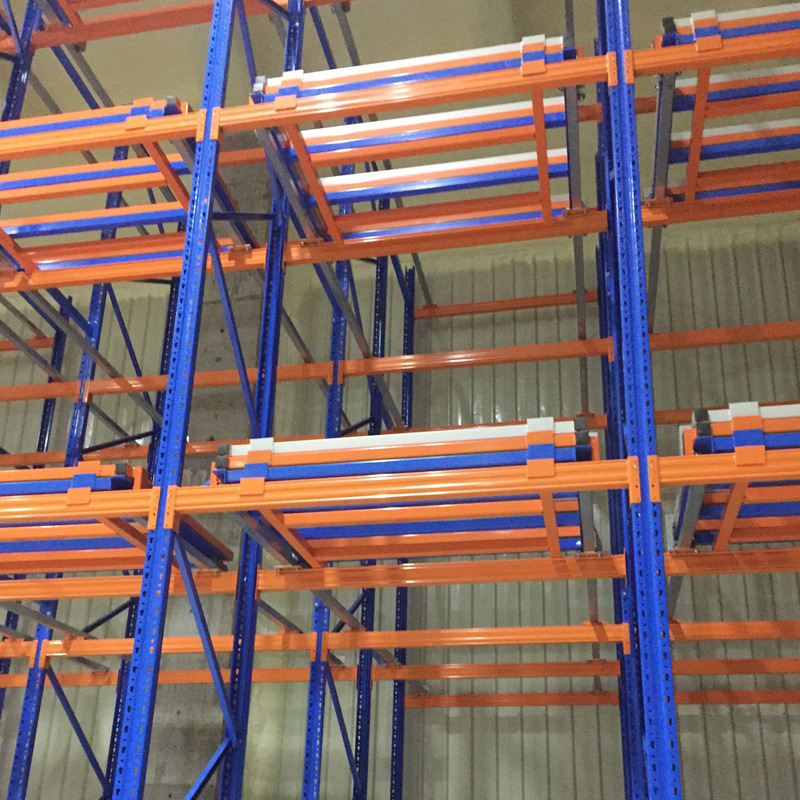

Heavy Duty Shuttle Pallet Racking System Shuttle Carrier Radio Shuttle Large Sale Heavy Duty Warehouse Steel Storage Rack
Product Description
Products Description
| Model | Type | Load Capacity (tons) | Speed (m/s) | Lift Height (m) | Track Gauge (m) | Power Supply Type | Control Mode | Application Scenarios | Technical Features |
|---|---|---|---|---|---|---|---|---|---|
| HSM-1500 | Light-duty Stacker | 500-1000 | 0.5-1.2 | 8-15 M | 2.5-4 | Three-phase AC 380V | Manual/Semi-automatic | Warehouse logistics, light industry | Compact structure, low noise, suitable for narrow aisles; supports multi-vehicle scheduling system. |
| HSM-3000 | Medium-duty Stacker | 1-3 ton | 1.5-2.5 | 15-25 | 4-6M | Three-phase AC 380V/415V | Fully automatic (PLC control) | Manufacturing industry, vertical warehouses | High-precision positioning with laser ranging; optional anti-collision sensors and safety light curtains. |
| HSM-5000 | Heavy-duty Stacker | 3-5 tons | 1.2-2.0 | 25-35 | 6-8M | Variable frequency drive system | Fully automatic (Intelligent control) | Ports, large warehouses, heavy manufacturing | High-load stability, resistant to high temperatures/corrosion; supports multi-vehicle collaborative operation and fault self-diagnosis. |
| HSM-HS | High-speed Stacker | 500-800 | 2.5-4.0 | 10-20M | 2-4M | High-frequency variable frequency drive | Fully automatic (AI optimization) | High-frequency warehouses, sorting centers | Ultra-fast response, dynamic path planning; equipped with dual redundant brake system to ensure safety at high speeds. |
| HSM-EX | Explosion-proof Stacker | 1-2 tons | 0.8-1.5 | 10-18M | 3-5M | Explosion-proof motor (Ex d IIB T4) | Explosion-proof PLC control | Hazardous materials warehouses, petroleum industry | Explosion-proof certification, suitable for flammable and explosive environments; fully sealed design, anti-corrosion materials. |
| HSM-MINI | Mini Stacker | 100-300 | 0.3-0.8 | 3-8M | 1.5-2 | Single-phase/Three-phase AC | Manual remote control | Small warehouses, laboratories | Compact size, flexible steering; customizable fixtures to handle special goods. |
Manufacturing Technique
| Item | CIMC Pteris Asrs System Warehouse Automated Stacker Crane Storage Automatic Retrival Racking System |
| Material | High-strength Q355 steel |
| Feature | Corrosion Protection, High Density Storage, High Speed & Throughput, All-Environment Operation, Travel speed 300 m/min, lift speed 180 m/min |
| Surface Treatment | Galvanized, powder coated, Waterborne finish coat, Primer, Sand-blast |
| Special Feature | Safety Systems, Standard, Adjustable, Waterproof, Extra-High, Economy, -30 °C to 40 °C, cold, explosion-proof, clean-room, energy recovery, rope-slack/overspeed detection, anti-fall |
| Installation | Pallet Racking, assembly wheelsets, onboard maintenance, T-rail insertion type |
| Parameter Type | Stackers (Double-column, Aisle, High-Bay) |
| Load Capacity | 500 kg – 3,000 kg |
| Horizontal Travel Speed | 0.5 – 2.5 m/s (Adjustable via PLC) |
| Vertical Travel Speed | 0.3 – 1.5 m/s (Adjustable via PLC) |
| Lifting Height | Up to 40 meters (Customizable based on warehouse requirements) |
| Horizontal Travel Range | Up to 200 meters (Customizable) |
| Motor Type | AC Servo Motor (High Precision, Energy Efficient) |
| Control System | PLC-based with touchscreen interface (Supports CAN Bus, Ethernet Communication) |
| Safety Features | Laser rangefinding, emergency stop buttons, overload protection, anti-collision |
| Power Supply | 380V, 50Hz / 60Hz |
| Noise Level | ≤65 dB (At rated load) |
| Application Industries | Warehousing, Logistics, Automotive, Pharmaceuticals, Electronics |
| Manufacturer | CIMC (ISO 9001 Certified) |
| Applicable Models | CIMC-USC20D, CIMC-USC24D, CIMC-USC27D, CIMC-USC30D, CIMC-USC35D, CIMC-USC40D, CIMC-USC45D, CIMC-USC12S, CIMC-USC18S, CIMC-USC20S, CIMC-USC24S, CIMC-USC30S, CIMC-USC35S, CIMC-USC40S, CIMC-USC45S, CIMC-MSC9S, CIMC-MSC12S, CIMC-MSC18S, CIMC-MSC24S |

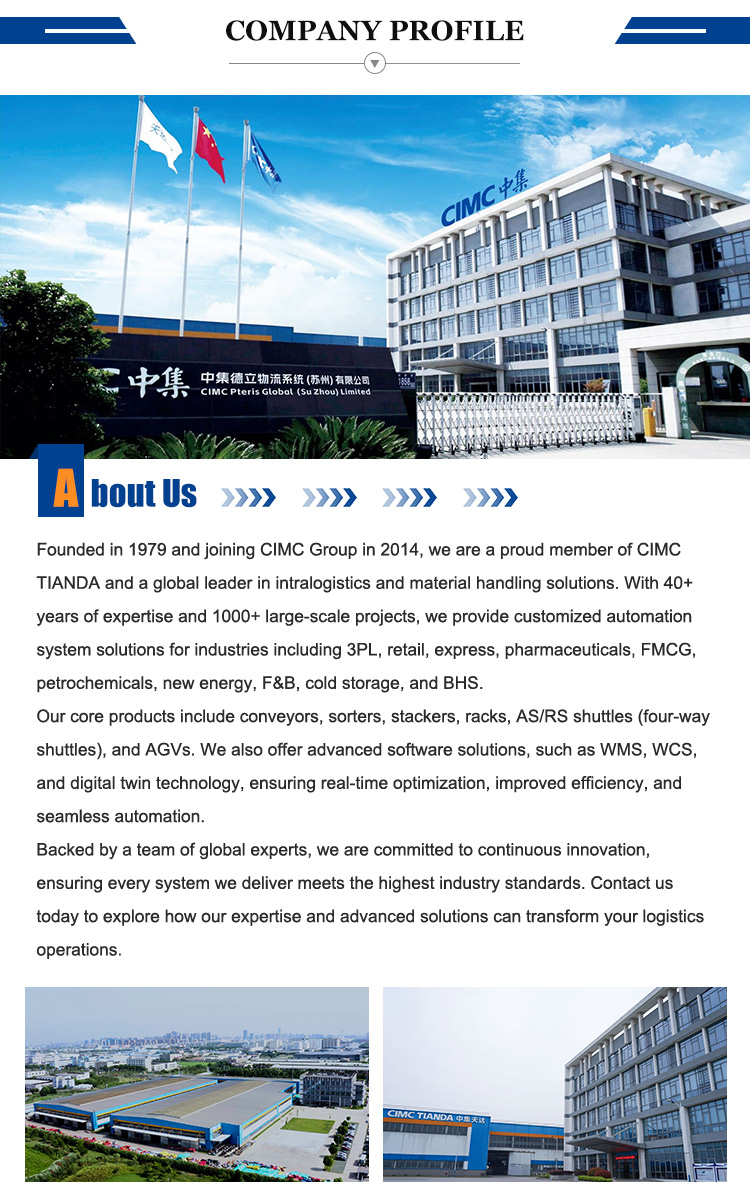

Company Profile
Founded in 1979 and joining CIMC Group in 2014, we are a proud member of CIMC TIANDA and a global leader in intralogistics and material handling solutions. With 40+ years of expertise and 1000+ large-scale projects, we provide customized automation system solutions for industries including 3PL, retail, express, pharmaceuticals, FMCG, petrochemicals, new energy, F&B, cold storage, and BHS.

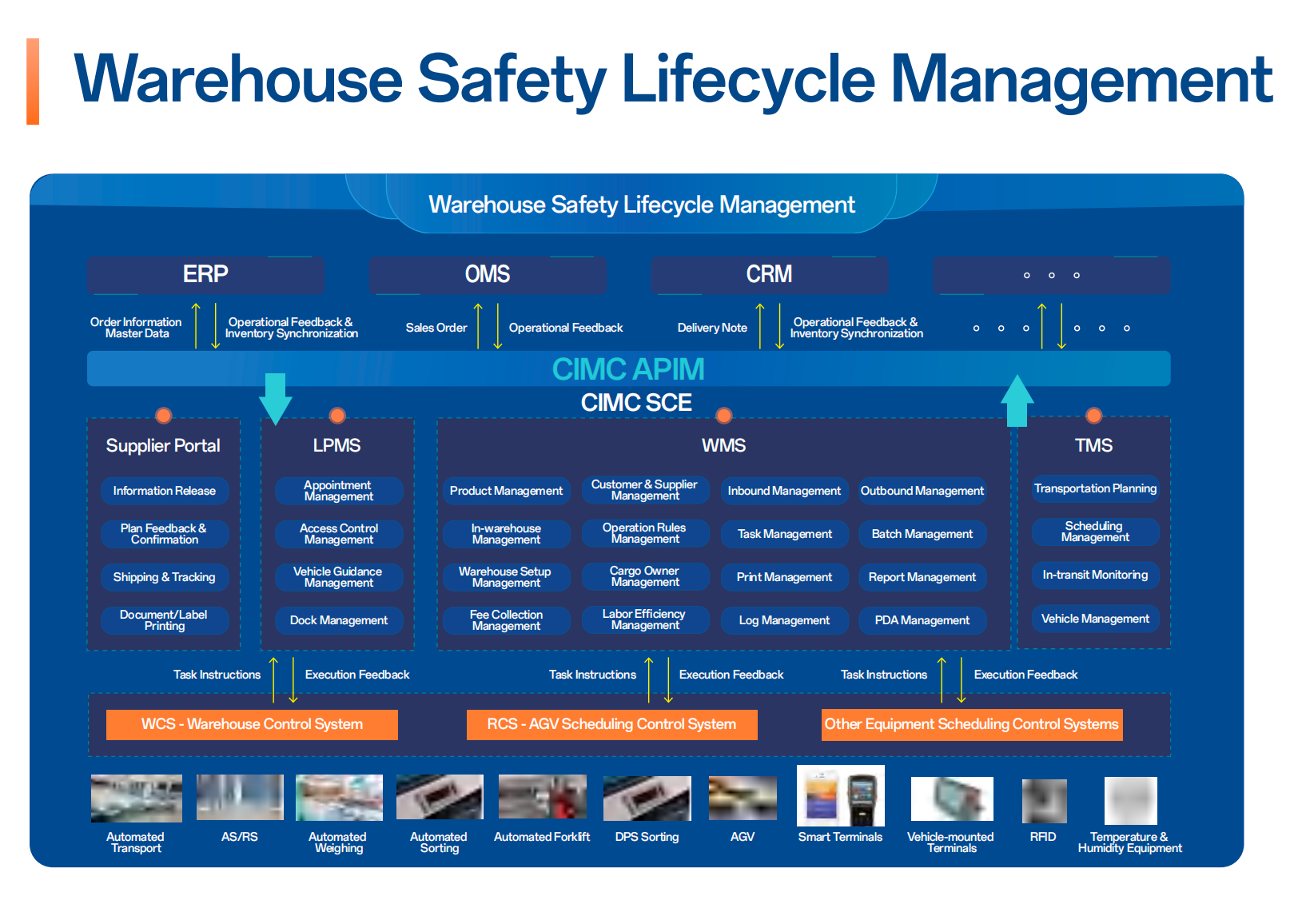

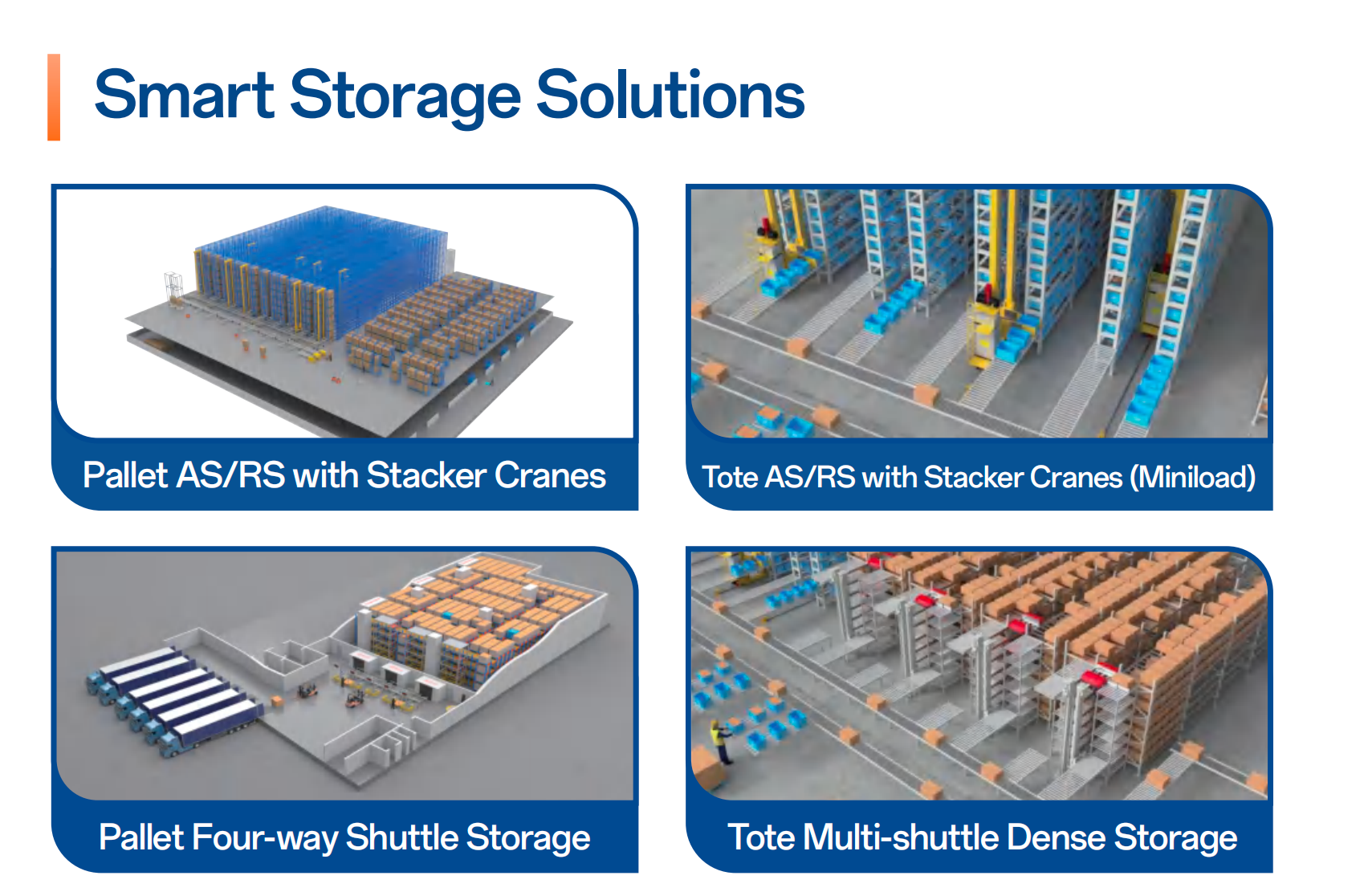

Our core products include conveyors, sorters, stackers, racks, AS/RS shuttles (four-way shuttles), and AGVs. We also offer advanced software solutions, such as WMS, WCS, and digital twin technology, ensuring real-time optimization, improved efficiency, and seamless automation.
Backed by a team of global experts, we are committed to continuous innovation, ensuring every system we deliver meets the highest industry standards. Contact us today to explore how our expertise and advanced solutions can transform your logistics operations.
ISO 9001 Certified
Quality Management System
Audit-Ready
For Global Brands & 3rd Parties

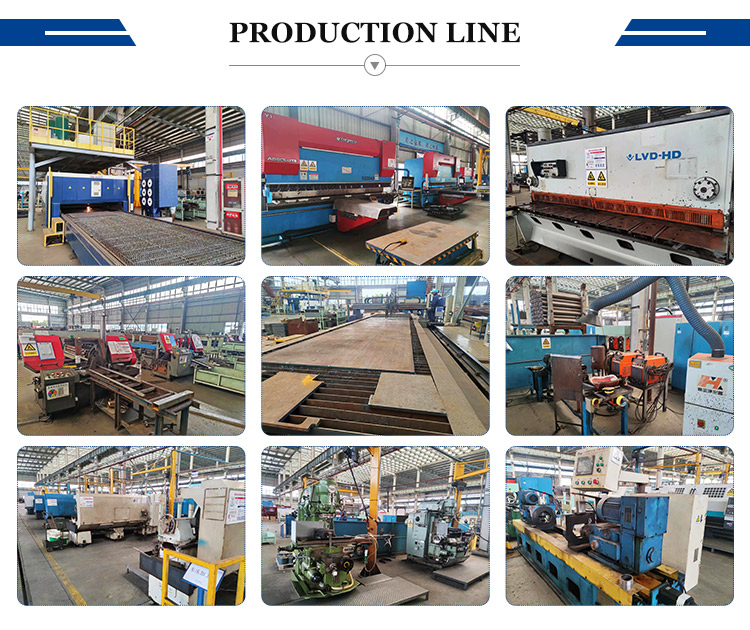

5S Lean Production
Clean, Organized Production Lines
Proven in 20+ Countries
Local Support, Global Standards, Rapid Deployment

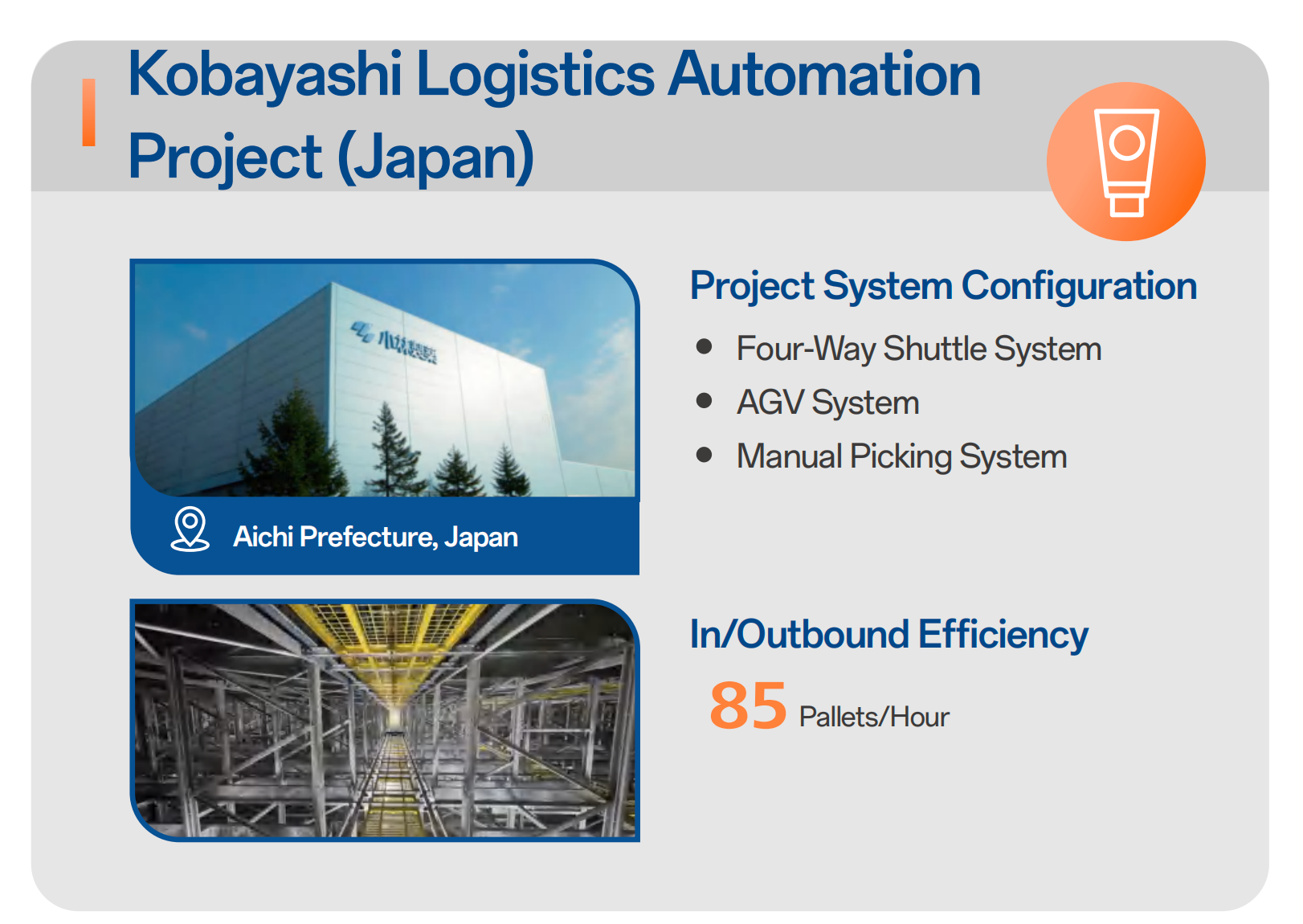

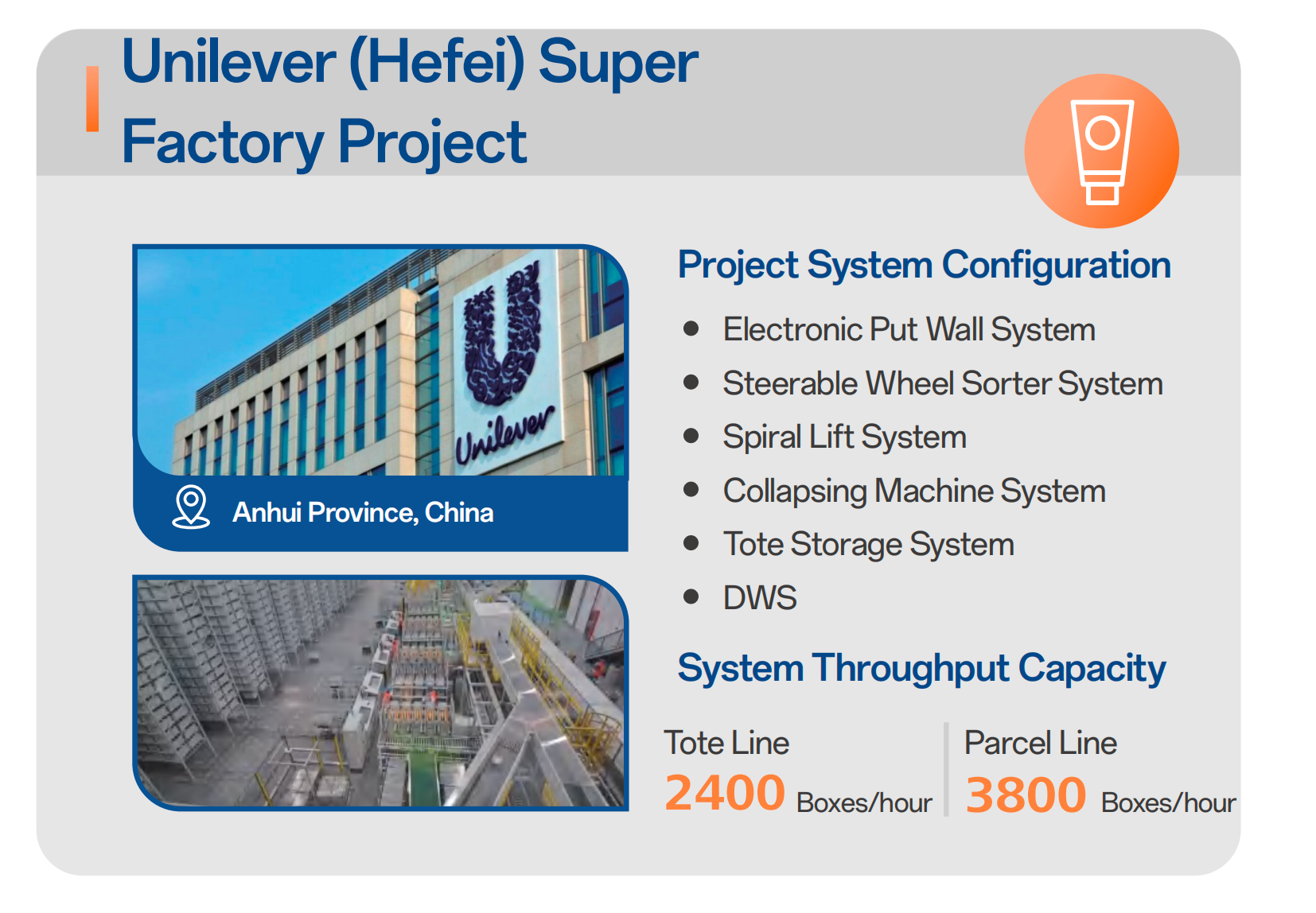

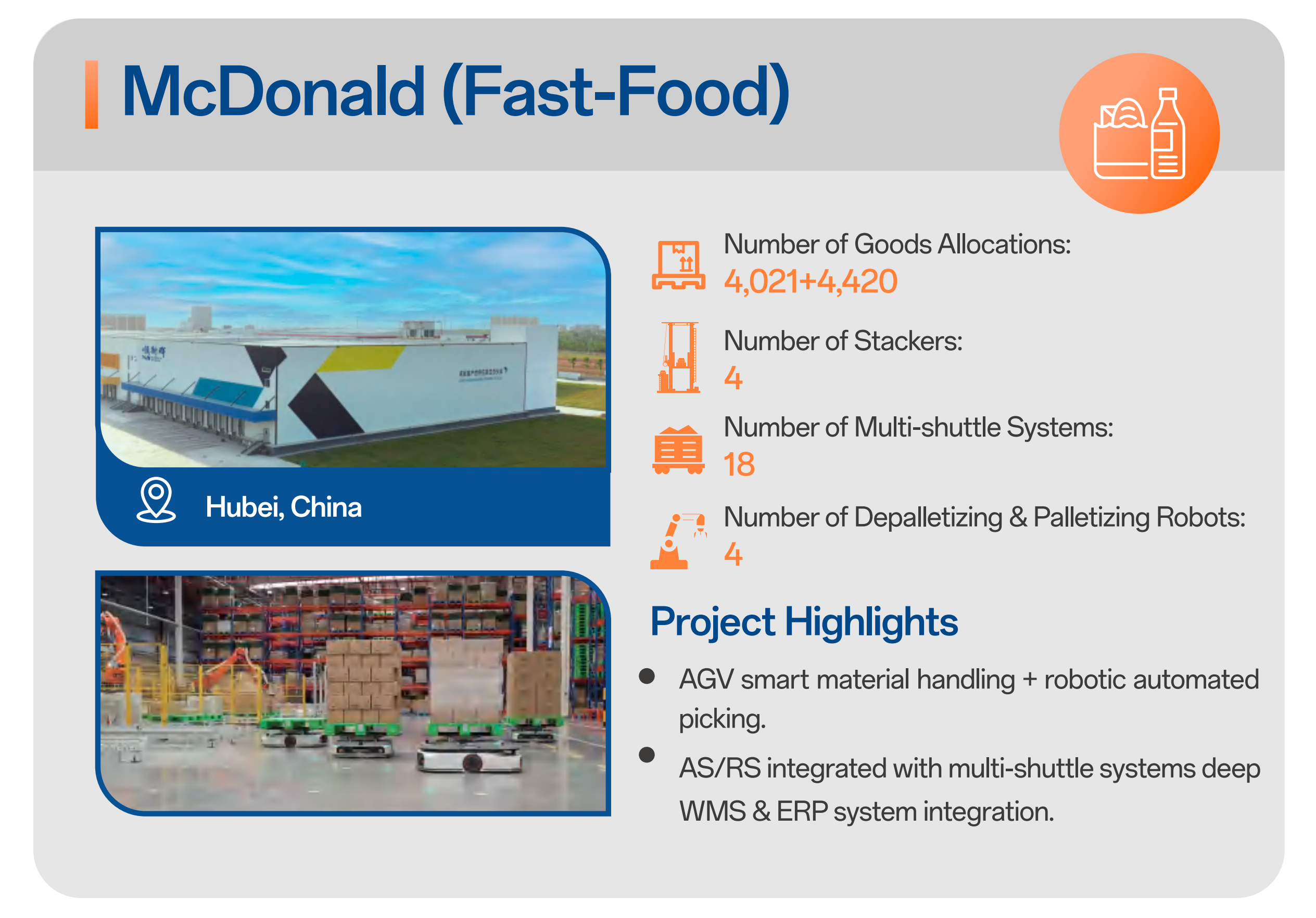

Customer Photos
Certifications
Frequently Asked Questions (FAQ)
Q1
Are you a manufacturer or trading company?
We are a direct manufacturer with over 46 years of experience in intralogistics and material handling solutions. Our factory is ISO 9001 certified and specializes in customized conveyor systems, stacker cranes, and warehouse automation equipment.
Q2
What products and solutions can you provide?
Our core solutions include:
- Conveyor Systems: Roller, Belt, Tote, Steerable Wheel
- Stacker Cranes: Double Column, AS/RS Ready
- Smart Logistics Integration: For E-commerce, 3PL, and Industrial Warehousing
Q3
How can you guarantee product quality?
- Pre-production sample & technical drawing confirmation
- Full-scale QA + QC system with 100% final inspection before shipment
- All equipment tested under real load conditions before delivery
- CE certified products & long-term performance track records
Q4
What are your payment and trading terms?
Payment: T/T 30% deposit, 70% before shipment; L/C or O/A available upon approval.
MOQ: No strict MOQ, but volume orders receive better pricing.
Sample Policy: No free samples due to system complexity, but design documents & factory tour videos are available.
MOQ: No strict MOQ, but volume orders receive better pricing.
Sample Policy: No free samples due to system complexity, but design documents & factory tour videos are available.
Q5
What is the delivery lead time and shipping port?
Lead Time: 20–30 working days depending on project scope.
Shipping Ports: Shanghai / Ningbo / Shenzhen.
Shipping Ports: Shanghai / Ningbo / Shenzhen.
Q6
Can we become your distributor or agent?
Yes, we are actively looking for long-term partners globally. We support regional distributors with:
- Full technical documentation and design training
- Fast-response service team and spare parts support
- Co-branding opportunities for exclusive markets
