Jrackng High Capacity Heavy Duty Warehouse Storage Long Arm Cantilever Racking For Timber
Product Description
Cantilever Racking
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing lumber etc., this is achieved by eliminating block in front of the racking and providing a clear opening in front of rack. Jracking cantilever racking is used around the world. We can tailor-make according to goods size and warehouse space. We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Brief Introduction

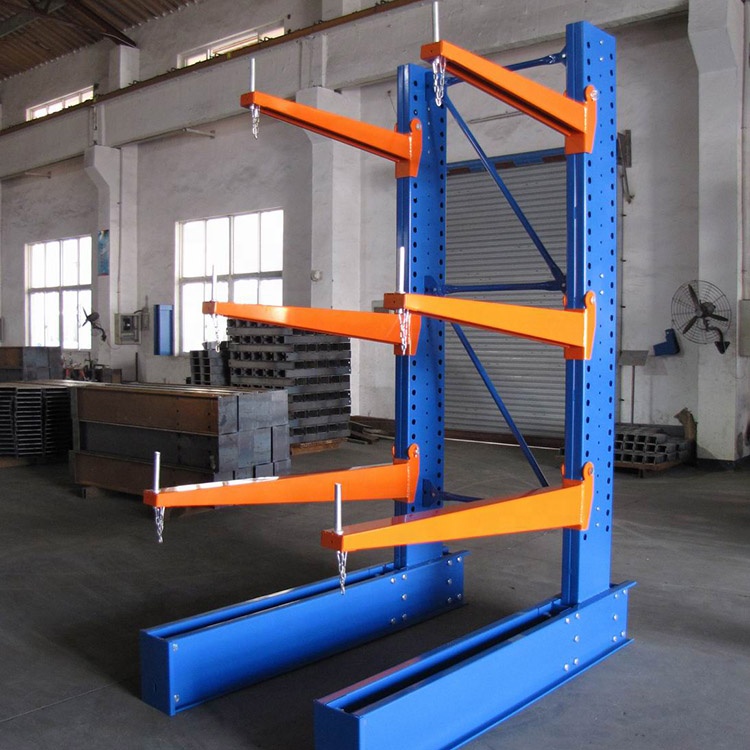

Jracking Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability. Both single-side and double-side bases are available to meet different storage requirements.
Advantages
- Exceeding 6m height is available, the highest column is able to reach 10.5m.
- Heavy loading, loading of single-arm can up to 1500kg.
- Keep selling to Australia market more than 10 years.
- Long and irregular material goods stored.
- Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
- Except from the regular size, the longest arm can last to 3m.
- The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
| Arm | Specification | Length |
| H120 | 800-2000mm | |
| H150 | ||
| H180 |
| Item | Dimension | C/C Distance |
| H-bracing | 60x30x2.5 | 500mm-2000mm |
| X-bracing | Φ32x1.5 |
C/C distance 1000, 1200, 1400, 1600, 1800, 2000.
Other specific dimension also can be customized as request.
Get more information here
What products are best suited for cantilever racking storage?
Cantilever racking is ideal for storing long, bulky, or irregularly shaped items such as timber lumber, steel piping, plastic tubing, furniture, and sheet metal without front upright obstruction.
Can the arm lengths and column heights be customized?
Yes. Heights can reach up to 10.5m and arms can extend up to 3m. Dimensions, base structures (single or double-sided), and capacities can be fully customized according to your warehouse space and loading needs.
What surface finish options are provided?
We supply standard durable powder coating for indoor warehouses as well as hot-dip galvanized finishes for outdoor environments or heavy-duty moisture resistance.
What quality and safety certifications do your racks hold?
Our cantilever racking systems meet global structural standards and are certified by RMI, CE, ISO, TUV, and AS4084-2012.
What is the Minimum Order Quantity (MOQ) and sample policy?
The standard MOQ is one 20ft or 40ft container. Free sample parts are available upon request, with delivery freight costs covered by the buyer.
