High-Capacity Pallet Racks for IBC Totes & Hazardous Liquids
Built for Tough Environments: Acids, Alkalis & Solvents
Chemical logistics involves heightened risk profiles compared to standard pallet storage. A specialized chemical storage racking system must withstand static deadweight, constant exposure to corrosive vapors, localized point loads from liquid sloshing, and complex regulatory fire-safety requirements.
From agricultural pesticides and organic solvents to corrosive battery acids and flammable petrochemicals, chemical facilities require structural guarantees that conventional commercial racking cannot fulfill.
At Guangzhou Heda Shelves Co., Ltd., we bring 25 years of dedicated steel racking engineering to the international hazardous storage market. Chemical storage involves high consequences: beam deflection caused by concentrated 1,200 kg IBC containers, acid mist stripping standard paint, and uncontrolled leaks creating environmental hazards.
We solve these challenges with high-yield Q235B and Q355B structural steel, dual-immersion chemical anti-corrosion treatments, integrated beam-level spill retention decks, and finite-element-verified seismic upright base connections. Whether you are equipping an agrochemical logistics hub in Central America, a solvent tank farm in Southeast Asia, or a raw chemical distribution warehouse in Europe, our bespoke chemical racking delivers audited longevity and regulatory compliance.
Take an engineer's tour of our robotic welding & powder lines Every chemical facility has distinct material handling, turnover, and liquid management workflows. Review our specialized product configurations engineered specifically for hazardous material environments.
100% SelectivityThe global benchmark for multi-SKU chemical warehouses. Furnished with heavy box beams, drop-in galvanized drip sumps, and post-base column armoring.
Drum RacksDesigned for horizontal or vertical barrel storage. Features curved drum saddles, anti-roll safety chocks, and gravity dispensing taps with collection gutters.
Semi-AutomatedMaximizes high-density cubic storage without forklift traffic entering deep channels. Equipped with ATEX-rated brushless motors and sealed electrical components.
High VolumeIdeal for mass-batch storage of agricultural fertilizers, granular sulfates, and uniform bagged pesticides. Eliminates standard access aisles to maximize cubic storage volume.
Strict FIFOEnsures strict first-in, first-out stock rotation for chemical products with volatile expiry dates or polymerization sensitivity. Outfitted with automatic brake rollers.
Long ItemsStores chemical process piping, stainless conduits, and chained gas cylinders. Features an unobstructed front arm design with safety retention end-stops.

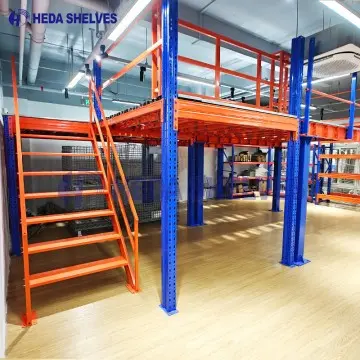

Space DoublerElevates chemical decanting, batch mixing, and laboratory QC sampling above main warehouse floor plates. Built with non-slip grating that supports emergency deluge drainage.
Manual PickingOptimizes vertical clearance by combining bulk pallet racking below with manual carton picking catwalks above. Ideal for pharmaceutical reagents and lab suppliers.
Chemical warehousing demands precision engineering tolerances. Below is our structural framework for sizing upright frames, load beams, and secondary containment sumps.
We use premium Q235B and high-strength Q355B structural steel coils. All uprights undergo automated precision continuous cold roll forming, delivering structural rigidity across 80mm, 90mm, 100mm, 120mm, and 140mm face profiles.
Engineered to meet EPA 40 CFR 264.175 requirements. Spill trays are manufactured from 2.5mm welded carbon steel or molded UV-stabilized rotational polyethylene, designed to capture at least 110% of the largest single container's capacity.
Liquid payloads undergo internal sloshing that creates dynamic sway moments. We calculate chemical upright frames with wider base plates, dual M16 wedge anchors, and top portal ties to absorb hydraulic shifting forces.
Steel parts undergo a 10-stage preparation process including degreasing, acid pickling, zinc phosphating, and 60-80μm electrostatic powder bake. For aggressive acid atmospheres, full hot-dip galvanizing to ISO 1461 is available.
Standard design parameters for chemical pallet racking installations
| Engineering Parameter | HEDA Standard Chemical Specification |
|---|---|
| Structural Raw Material | Q235B / Q355B Hot-Rolled & Cold-Drawn Steel |
| Upright Profile Depths | 800mm, 1000mm, 1100mm, 1200mm, up to 1500mm |
| Upright Gauge Thickness | 1.8mm, 2.0mm, 2.5mm, 3.0mm heavy-duty sections |
| Beam Construction | Welded double C-channel interlock box beams |
| Load Safety Deflection Factor | 1/200th span under maximum design deadweight |
| Beam Connectors | 3-claw and 4-claw stamped brackets with safety pins |
| Surface Finish Options | Anti-static powder coating, Epoxy resin, or Hot-Dip Galv |
| Spill Bund Capacity | 250L to 1,500L standard bay catchment ratings |
| Fire Protection Layout | Transverse and longitudinal flue space compliant (NFPA) |
| Quality Accreditations | CE No. 2435-CPR-8605159, ISO 9001:2015, RoHS |
All load calculations are verified by Guangzhou Heda Shelves Co., Ltd. structural engineers to match your local building code and seismic zone.
Chemical logistics is experiencing rapid operational shifts driven by heightened environmental enforcement, automated warehousing, and climate-resilient manufacturing.
01 Global environmental bodies are enforcing zero ground-discharge mandates. Traditional pallet racks lacking built-in containment are being replaced with certified rack-integrated spill sumps that contain hazardous leaks before runoff occurs.
02 To reduce human exposure to toxic vapors and explosive fumes, chemical facilities are rapidly adopting AS/RS and explosion-proof radio shuttle systems. High-tolerance cold-formed steel engineering is essential for uninterrupted robotic handling.
03 Standard paint finishes can degrade in acidic or alkaline atmospheres within 12 to 24 months. Modern buyers are shifting to duplex protection systems—combining hot-dip galvanizing with cross-linked epoxy topcoats for multi-decade life cycles.
04 Modern procurement workflows demand structural BIM integration and finite element dynamic analysis. Engineering teams must model fluid-structure interactions, seismic acceleration, and fire-sprinkler pathways before steel fabrication begins.
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered structural storage installations across 120+ countries, spanning complex chemical, industrial, and bulk distribution sectors.
Operating a modern 30,000 square meter manufacturing center with more than 300 experienced engineers and technicians, we maintain a monthly output capacity of 30,000 tons of racking. This scale guarantees stable steel supply, automated roll-forming accuracy, uniform powder application, and rigorous testing on every order.
We provide full single-source accountability. We engineer your structural floor plan, generate detailed load calculation dossiers for local building authorities, manufacture structural components in-house, and pack containers systematically for export clearance. When hazardous chemicals are stored, our structural engineering delivers reliable performance.
Founded
Technical Staff
Monthly Production
Plant FootprintOur racking installations operate under high humidity, coastal salinity, corrosive chemicals, and active seismic conditions around the globe.
Heavy-duty pallet racking engineered for 55-gallon oil and lubricant drums with secondary steel spill trays in a hot, humid coastal climate.
Request Case Study Blueprint
High-capacity push-back and selective racking engineered to store bagged nitrates, sulfates, and pesticides safely above damp concrete floor slabs.
Request Case Study Blueprint
Multi-tier structural picking mezzanine engineered with chemical-resistant electrostatic powder coatings and fire-sprinkler drainage flooring.
Request Case Study BlueprintEvery structural beam, upright column, and containment tray produced by Guangzhou Heda Shelves Co., Ltd. passes through certified fabrication stages to deliver lasting chemical resistance and structural integrity.
Detailed engineering and safety answers addressing common technical queries encountered in industrial procurement.
Inquire Now for Technical InquiriesChemical storage racking must comply with structural, environmental, and fire protection standards, including EN 15512 (European standard for steel static pallet racking), RMI ANSI MH16.1 (Industrial Steel Storage Racks), OSHA 1910.176, and NFPA 30 (Flammable and Combustible Liquids Code). At Guangzhou Heda Shelves Co., Ltd., our engineering team accounts for static deadweight, concentrated point loads from liquid drums and IBCs, seismic zone accelerations, and maximum beam deflection ratios of L/200 or lower.
We provide two anti-corrosion pathways: First, a standard multi-stage treatment including chemical acid pickling to eliminate scale, hot phosphating to create an anti-corrosion barrier, and electrostatic baking of thermoset epoxy-polyester powder (60-80 microns). Second, for corrosive chemical acids, chlorine vapors, or coastal fertilizer depots, we manufacture full hot-dip galvanized components conforming to ISO 1461/ASTM A123, providing long-term galvanic zinc protection.
Our secondary spill containment trays install directly across load beams or mount at floor level. Fabricated from 2.5mm welded carbon steel (epoxy-coated or hot-dip galvanized) or high-density rotational polyethylene (HDPE), our sumps meet EPA 40 CFR 264.175 requirements by holding either 110% of the single largest vessel or 25% of the total storage volume on the tier. Drop-in galvanized grating allows forklifts to set pallets down without crushing the containment basin.
Liquid containers present dynamic wave and sloshing effects that differ from rigid solid pallets. In an earthquake, liquid surge can induce elevated horizontal lateral forces. Guangzhou Heda Shelves Co., Ltd. calculates upright frame cross-bracing, base plates, and anchoring bolts using amplified dynamic response coefficients, preventing resonance-induced beam pop-out or upright buckling.
To produce an engineered CAD floor plan and structural proposal, provide: 1) Warehouse length, width, and clear ceiling height; 2) Concrete floor slab thickness and compressive strength (e.g., 200mm, 30 MPa); 3) Chemical container details (55-gal drums, 1,000L IBC totes, carboys) and pallet gross weights; 4) Chemical classification (acids, flammables, toxic); 5) Forklift model, mast height, and minimum turning radius; 6) Local seismic acceleration value.
We hold verifiable global certifications including European CE Factory Production Control Certificate No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System Certificate No. 18624Q00169R0M (valid through June 2027), and RoHS compliance documentation. Our load capacity calculations can be supplied for independent structural review by client engineers.
Share your hazardous material storage goals with Guangzhou Heda Shelves Co., Ltd. Our structural engineering team will deliver a space-optimized, code-compliant chemical warehouse layout.
