Engineered to strict FEM 10.2.02, EN 15512, and RMI standards. Inspect our verified aisle configurations optimized for standard counterbalance forklifts, reach trucks, and narrow-aisle VNA turrets.
In modern high-throughput intralogistics, selecting an industrial aisle racking system goes far beyond purchasing cold-rolled uprights and load beams. The engineering relationship between horizontal aisle clearance (clear aisle dimension), vertical cube utilization, Material Handling Equipment (MHE) turning radii, and slab load distribution governs long-term operational profitability.
Industrial facility planners are confronted with balancing direct SKU selectivity against maximum cubic pallet density. Understanding exact operational aisle profiles empowers plant managers and distribution engineers to avoid two catastrophic errors: creating aisles too tight for material handling kinematic clearances (resulting in frequent upright collisions), or leaving unnecessary aisle dead-space that wastes costly commercial building footprint.
AST = Wa + √( (x + l)² + (b/2)² ) + a
Standard Selective Pallet Racking remains the baseline for universal logistics where 100% immediate access to every pallet position is required. Operating with aisle clearances ranging from 3,000 mm to 3,600 mm, it facilitates the use of standard counterbalance lift trucks without floor-guided steering. While floor footprint utilization typically ranges between 35% and 42%, capital expenditure is minimal, and stock dispatch latency is virtually zero.
Conversely, Very Narrow Aisle (VNA) systems condense working aisles down to 1,600 mm to 1,850 mm, unlocking up to 55% space recovery while extending storage heights up to 24 meters. However, VNA integration demands stringent structural tolerances: floor slab flatness must comply with DIN 18202 Table 3 Line 4 or TR34 Superflat (FM2/FM1), paired with either physical omega guide rails or inductive buried inductive wire guidance to eliminate rack-frame collision risks during high-mast lift cycles.
| Aisle System Category | Clear Working Aisle | Cubic Floor Utilization | Handling Equipment (MHE) | Selectivity Profile | Optimal Inventory Application |
|---|---|---|---|---|---|
| Wide Aisle Selective | 3,100 – 3,600 mm | 35% – 42% | Counterbalance / Reach Truck | 100% Direct Selectivity | FMCG, 3PL Multi-Tenant Hubs, Retail Warehouses |
| Very Narrow Aisle (VNA) | 1,600 – 1,900 mm | 55% – 65% | Man-Up / Man-Down VNA Turret | 100% Direct Selectivity | E-Commerce Fulfillment, Pharma Central Hubs |
| Drive-In / Drive-Thru | Continuous Rail Aisle | 70% – 82% | Narrow-Chassis Counterbalance | LIFO / FIFO by Flange Lane | Cold Storage Freezers, Beverage Bottling, Raw Bulk |
| Radio Shuttle High-Density | 2,800 mm Staging Aisle | 80% – 88% | Semi-Automated Pallet Carrier | Programmed LIFO / FIFO | Seasonal Agricultural Buffers, Blast Chillers |

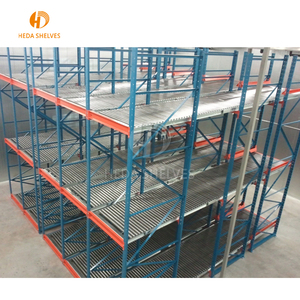

| Gravity Pallet Flow | Dedicated Charge / Pick Aisles | 75% – 85% | Standard Mast Forklift | Strict FIFO Flow | Perishable Fresh Food, Pharmaceutical Batching |
Every industrial aisle installation engineered by HEDA Shelves undergoes rigorous Finite Element Analysis (FEA) calibrated against local site dynamics. Uprights are formed with continuous structural omega profiles featuring multi-bend cold-rolled cross sections that dramatically improve torsional stiffness against horizontal wind and earthquake sway.
For installations in active tectonic zones—such as the Pacific Ring of Fire spanning Central America, Southeast Asia, and Western South America—our structural calculation engineers incorporate seismic response acceleration coefficients according to the local building codes, Eurocode 3 (EN 1993-1-3), and ANSI/RMI MH16.1. Heavy-duty cast base plates, dual chemical anchor embedments, and top-tier horizontal aisle-tie trusses guarantee the rack assembly behaves as a unified, ductile, energy-dissipating framework during emergency cyclic stresses.
Procurement mandates have evolved from purchasing raw steel tonnage to securing future-proof, automated-ready intralogistics assets. These four strategic shifts are dictating project specifications globally.
Buyers are mandating laser-reflective target mounting zones, ground-level LiDAR clearance envelopes, and uniform floor aisle clearances that accommodate autonomous mobile robots alongside manual forklifts.
Migrating away from standard carbon steel, modern aisle structures specify certified Q355B (yield strength ≥ 355 MPa). This decreases structural dead-weight while bolstering safety margins and dynamic impact absorption.
In response to coastal humidity, cold room condensation, and fertilizer chemical vapors, enterprise tenders demand automated 10-step pickling, phosphating, and electrostatic epoxy coating rated for >500 salt spray hours.
To curb escalating commercial real estate building costs, developers are turning to rack-clad high-bay warehouses where the aisle racking framework structurally supports the facility exterior walls and roof purlins.
As supply chains transition toward real-time edge monitoring and algorithmic space optimization, static racking systems are evolving into intelligent, monitored intralogistics structures.
Next-generation aisle uprights integrate fiber-optic Bragg grating or tri-axial MEMS accelerometers that register forklift impacts in real-time, instantly flagging beam micro-deflections via warehouse management interfaces before structural failure occurs.
Every prospective warehouse geometry is mapped using dynamic simulation software, testing live pallet drop velocities, beam deflection limits (exceeding standard L/250 requirements), and asymmetrical live rack loading conditions long before stamping fabrication drawings.
Industrial procurement regulations increasingly benchmark the embodied carbon of warehouse assets. HEDA Shelves integrates green electric arc furnace (EAF) steel coils and low-VOC powder coats, generating certified Environmental Product Declarations (EPDs) for LEED-accredited builds.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a high-precision 30,000 m² factory equipped with ten specialized manufacturing stages, certified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015.
We eliminate trading margins. From raw coil slit testing, CNC automated column punching, continuous cold-roll forming, robotic twin welding, through our 10-step powder-coating line, every beam and upright stays under our rigorous ISO quality tracking system.
Experienced exporting to over 120 nations across Central America (Puerto Quetzal, Balboa, Puerto Cortés), Europe, Middle East, and Africa. Bundled steel frames, custom wood cradles, and barcode-labeled container manifests ensure zero transit deformation and accelerated customs clearance.
Our senior civil and mechanical structural engineers provide complimentary site analysis, custom CAD aisle plans, 3D spatial layout renderings, and certified static load calculations that can be submitted directly to municipal building control boards.
Critical engineering and operational answers for logistics directors, procurement specialists, and structural consultants.
