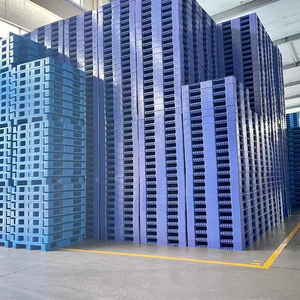

Heavy Duty Euro HDPE Pallets
Injection-molded high-density polyethylene single-sided pallets optimized for dynamic gravity roller tracks and automated flow lines.
Technical Specs →
Gravity Roller Carton Flow Racking
Ergonomic FIFO carton flow dynamic racking featuring variable-pitch aluminum roller beds, lane dividers, and brake rollers.
Technical Specs →
Industrial Medium Storage Unit
Direct manufacturer warehouse steel shelving utilizing electrostatic powder coating for corrosion protection and boltless adjustment.
Technical Specs →
Adjustable Pallet Storage Racking
Heavy-duty selective upright profiles compatible with standard Euro and GMA pallets; tailored for rapid forklift retrieval cycles.
Technical Specs →
5-Ton Selective Pallet Rack
High structural integrity beam sections engineered for severe point-load distribution, seismic anchoring, and multi-tier stacking.
Technical Specs →
Slotted Angle Steel Rivet Rack
Cold-formed punched steel profiles with zinc-phosphate anti-wear passivation, built for versatile warehouse parts room organization.
Technical Specs →Engineering Overview: Flow Through (Gravity Flow) Storage Architecture
Dynamic live storage—commonly categorized as pallet flow and carton flow racking—operates on an unpowered, gravity-fed inclined wheel or roller track bed (typically calibrated at a 2.5% to 4% incline gradient). By separating material loading aisles from order replenishment picking aisles, flow through systems achieve automatic FIFO (First-In, First-Out) physical stock rotation without human forklift traversing inside the rack body.
Modern global logistics hubs demand high spatial utilization and zero energy consumption across buffer zones. Flow-through installations achieve up to 65% floor footprint compression compared to standard selective racking by eliminating parallel handling corridors. The critical engineering challenge lies in kinematic descent control: matching centrifugal speed controllers, polyurethane brake rollers, entry guide assemblies, and mechanical end-stops to specific unit load weights ranging from 5 kg carton cases up to 1,500 kg industrial pallets.
Top 10 Flow Through Racking Manufacturers: Global Evaluation
A multi-factor engineering audit benchmarking production capacities, quality accreditations, structural tolerances, and dynamic braking technologies.
| Manufacturer / Brand | Primary Origin | Key Flow Specialization | Certifications & Compliance | Structural Engineering Strength |
|---|---|---|---|---|
| HEDA Shelves | Guangzhou, China | Carton & Heavy Pallet Flow Systems, Integrated Mezzanines | CE (2435-CPR-8605159), ISO 9001:2015, RoHS | Full in-house cold roll-forming, seismic stress calculations, custom brake profiles |
| SSI Schaefer | Neunkirchen, Germany | Automated Live Flow & Dynamic Picking Channels | TÜV Rheinland, EN 15512, ISO 9001 | High-precision dynamic rollers, advanced automated buffer integration |
| Dexion (Gonvarri Material Handling) | Caster Gate, UK / Europe | Pallet Flow & Heavy Dynamic Rollers | FEM Standards, ISO 14001, ISO 9001 | Heavy steel profile yield strength, extreme cold store reliability |
| Interroll Group | Sant'Antonino, Switzerland | Flow Storage Modules, Magnetic Speed Regulators | CE, Directive 2006/42/EC, ISO 9001 | Patented contactless magnetic speed controllers, modular retrofits |
| Mecalux | Barcelona, Spain | Live Pallet Racking, High-Rise FIFO Structures | ISO 9001, ISO 14001, EN Standards | Advanced structural steel depth sizing, high throughput distribution channels |
| Advance Storage Products | Huntington Beach, USA | Heavy Duty Deep Lane Pallet Flow Racks | RMI (Rack Manufacturers Institute) Certified | Structural C-channel steel framing designed for aggressive forklift interfaces |
| Bito-Lagertechnik Bittmann | Meisenheim, Germany | Carton Flow Live Storage & Piece Picking | RAL-RG 614, ISO 9001 | Optimized ergonomic track dividers, low-profile track beds |
| Stow Group | Spiere-Helkijn, Belgium | Pallet Flow Beds & Heavy Industrial Racking | EN 15512, ISO 9001, CE Marking | High torsional beam resistance, automated punching alignment |
| Mallard Manufacturing | Sterling, USA | Engineered Gravity Flow, Dynamic Separators | RMI Tested, ANSI MH16.1 | Magnum wheel bearings, pneumatic carton separation locks |
| Daifuku Co., Ltd. | Osaka, Japan | Automated Dynamic Storage & Retrieval Buffers | ISO 9001, JIS Compliant | Integrated dynamic seismic dampers, multi-level shuttle and flow hybrid setups |
Future Trends in Flow Through Racking Engineering
Key technological developments dictating global warehouse investments over the 2025–2030 cycle.
Predictive Speed Retardation
Integration of magnetic contactless eddy-current deceleration cylinders. These eliminate gear wear and liquid hydraulic fluid leaks, ensuring long maintenance intervals in high-velocity cold-chain facilities down to -30°C.
Hybrid Automated Shuttles
Dynamic lines increasingly interface with autonomous picking shuttles and AMR (Autonomous Mobile Robots) dock-level feed systems, reducing forklift dwell times and structural collisions along staging corridors.
High-Resilience Surface Finishes
Transition from standard painting to multi-stage continuous zinc phosphating, advanced cathodic electrodeposition, and heavy hot-dip galvanizing to resist extreme maritime, tropical, and agrochemical humidity.
Integrated IoT Track Condition Monitoring
Wireless dynamic vibration and track tilt sensors embedded in deep gravity lanes. These report load hang-ups, roller bearing degradation, and thermal contraction anomalies directly to the warehouse WMS platform.
Zero-Energy Green Warehousing
Escalating corporate ESG metrics favor unpowered gravity systems over continuous motorized conveyors for staging buffers, eliminating megawatt hours of grid draw while retaining rapid continuous pallet throughput.
Finite Element Seismic Design
Upright columns, cross-aisle bracing, and base anchored plates designed under dynamic modal response spectra to ensure full dynamic stability during seismic acceleration without product dislodgement.
Why Enterprise Buyers Partner with HEDA Shelves
A vertically integrated supply chain delivering turnkey, verified industrial racking globally.
Continuous In-House Manufacturing
From prime steel coil slitting to precision roll-forming, automated column punching, continuous robotic welding, and electrostatic powder coating across our 30,000 m² workshop.
Verified Engineering & Certifications
Audited production lines certified under CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 No. 18624Q00169R0M, and RoHS standards for assured project compliance.
Full Turnkey Layout & Export Engineering
Complimentary structural CAD calculations, full 3D layout simulation, seismic zone adaptation, and export-bundled packing tailored for global port handling.
Frequently Asked Questions: Flow Through Racking
Critical structural, operational, and financial considerations addressed by senior racking design engineers.
1. What is the standard incline gradient for industrial pallet flow and carton flow racking?
Standard pallet flow tracks are engineered with an inclination angle between 2.5% and 4.0% (approximately 1.5° to 2.3°), depending upon pallet bottom condition (slatted wood, Euro runner, plastic grid), pallet deflection, and unit load weight. Carton flow beds for manual order fulfillment utilize lighter roller tracks calibrated between 3.0% and 5.0% to guarantee continuous sliding velocity without case toppling.
2. How are runaway pallets prevented in deep gravity flow lanes exceeding 5 positions?
Deep-lane systems (capable of holding up to 20 pallets deep) utilize speed controllers (brake rollers) fitted at calibrated intervals along the track centerline. These centrifugal or magnetic brake drums engage progressively against the underside of the pallet to maintain a constant descent speed below 0.3 m/s, preventing terminal impact shock at the discharge end-stop.
3. What are the key floor slab requirements for installing high-density dynamic flow racks?
Because dynamic flow racks concentrate mass across fewer aisles, concrete floor slab tolerances must comply with strict flatness standards (such as DIN 18202 Table 3 Group 4 or ASTM E1155 F-min/FF specifications). Structural calculations must verify that localized punch loads delivered by base plates can be safely supported by the warehouse concrete foundation under full dynamic surging conditions.
4. How do you assess pallet quality compatibility with gravity flow systems?
Consistent flow requires uniform contact surfaces. Standard wooden Euro pallets (800x1200 mm) or GMA pallets (40x48 in) must have intact bottom runners free of broken deck boards, protruding nails, or severe bottom-board deflection (which should not exceed 1/200th of the span). For brittle, inconsistent, or bagged cargo, high-density HDPE plastic pallets or slave trays are implemented.
5. Can flow through racking systems be adapted to active seismic fault zones?
Yes. Seismically engineered configurations require enhanced heavy-gauge cold-formed uprights, welded footplates with heavy-duty chemical or expansion wedge anchors, reinforced horizontal/diagonal bracing patterns, and dynamic load separators. These keep queued pallets locked in position during horizontal ground acceleration, preventing lane derailment.
6. What maintenance cycles are mandated for dynamic gravity roller tracks?
Periodic maintenance involves quarterly visual inspection of dynamic roller bearings, verification of brake roller free rotation, track clearance verification, and torque checking of bolted beam-to-frame connector locks. Due to unpowered operation, component wear is largely mechanical, requiring simple roller replacement rather than motor servicing.
7. What information must be submitted to obtain an accurate structural and cost proposal?
Project design requires: warehouse architectural drawings (length, width, clear height, column grid coordinates), exact pallet/carton dimensions (W x D x H) including overhang, gross weight ranges, operational temperature band, forklift mast model and clearance height, daily unit throughput, and destination seaport for logistics scheduling.
Optimize Your Facility with an Engineered Gravity Flow System
Connect directly with our senior logistics application engineers for custom 3D CAD design layouts, structural calculations, and factory-direct price estimates within 24 hours.
