Selective / Double Deep
Direct Factory Engineered Configurations
High-Density Industrial Storage & Pallet Racking Portfolios
Compare precision cold-rolled upright and beam configurations designed for selective pallet retrieval, dense storage lanes, heavy load capacities, and turn-key warehouse layouts.

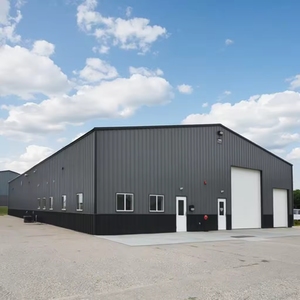

Steel Structure
Heavy-Duty Selective
AU Standard Standardized
6-Meter High Bay
Q235B High Tensile
Gravity Dynamic Flow
Semi-Automated Radio Shuttle
Engineering Whitepaper & Structural Mechanics
Single Deep Pallet Racking (Selective): Mechanics, Load Factors & Design Criteria
Single deep racking—often referred to universally as standard selective pallet racking—remains the backbone of modern global supply chains. Offering immediate 100% individual pallet selectivity without relocating adjacent stock, it serves fast-turnover distribution centers, e-commerce fulfilment hubs, and multi-SKU manufacturing facilities.
Cold-Formed Upright Profiles
Precision roll-formed omega (Ω) section columns engineered from high-yield Q235B and Q355B structural steel. Multi-bend stiffening ribs prevent torsional buckling under heavy axial loads. Uprights feature continuous 50mm, 75mm, or 76.2mm hole pitch punchings for fine level adjustment.
- Profile Width: 80 / 90 / 100 / 120 / 140 mm
- Steel Thickness: 1.5 mm – 3.0 mm
- Perforations: Tear-drop / Diamond / Hex
- Yield Strength: Fy ≥ 235 – 355 N/mm²
Interlocking Interlocking Beams
Fabricated with twin C-sections seam-welded to create ultra-rigid box or step beams. Engineered end connectors utilize 3, 4, or 5 heavy-duty cold-stamped claws that wrap around the upright column, establishing robust moment-resisting connections with integrated spring safety pins.
- Beam Heights: 80 mm to 160 mm
- Deflection Limit: ≤ L/200 under full load
- Safety Locking Pin: 5.0mm spring-loaded steel
- Safety Factor: 1.5 to 1.67 structural design
Base Plates & Ground Anchoring
Thick welded or bolted base plates uniformly disperse concentrated upright column loads across the warehouse concrete slab. Seismic-rated heavy expansion or chemical epoxy wedge anchors prevent overturning, sliding, and shear failure during seismic acceleration events.
- Base Plate Thickness: 4.0 mm to 12.0 mm
- Anchoring Method: M10–M16 Mechanical / Chemical
- Bracing Types: Bolted Horizontal & Diagonal C-channel
- Slab Bearing Capacity: Engineered per geotechnical data
| Racking Architecture | Pallet Selectivity | Space Utilization | Forklift Compatibility | Throughput Speed | Relative CAPEX Index |
|---|---|---|---|---|---|
| Single Deep Selective Racking | 100% (Instant) | 35% – 45% (Aisle-Dependent) | Standard Counterbalance, Reach, VNA | Maximum (Rapid Picking) | Baseline (Lowest / ROI < 1 Yr) |
| Double Deep Pallet Racking | 50% Immediate (Requires Moves) | 55% – 65% | Deep-Reach Truck or Pantograph | Moderate (Secondary Pallet Moves) | Baseline + 18% |
| Drive-In / Drive-Through | Low (LIFO / FIFO Bulk Lanes) | 65% – 75% | Narrow Counterbalance / Reach | Low (Entry into Lane Required) | Baseline + 25% |
| Radio Shuttle Automation | Batch / High FIFO / LIFO | 75% – 85% | Automated Shuttle + Standard Lift | High (Automated Internal Transit) | Baseline + 120% |
World-Class Manufacturing Backbone
25+ Years of Engineering Rigor, Global Certification & Scalable Output
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a regional manufacturing pioneer into a global authority in engineered warehouse racking systems. Controlling a state-of-the-art 30,000 square meter industrial park equipped with continuous automated roll-forming mills, robotic welding arrays, and intelligent powder-coating lines, HEDA delivers uncompromised reliability across 120+ export territories worldwide.
Audited CE & ISO 9001:2015 Certifications
Full conformance to European standard EN 15512, Australian AS 4084, and US RMI specifications. All shipments feature traceable steel mill batch testing certificates.
Complimentary 3D & CAD Load Simulation
Our in-house structural engineers formulate custom load capacity charts, 3D renderings, and warehouse floor plan layouts within 24 hours of receiving site blueprints.
Severe Environment Finishes (Pickling & Phosphating)
10-stage automated pre-treatment surface preparation followed by thermo-cured electrostatic epoxy coating or continuous hot-dip galvanization for corrosive, tropical, and sub-zero environments.
Need an OEM/ODM Structural Evaluation?
Consult directly with our Chief Design Engineer to receive a custom AutoCAD configuration and bill of materials.
Send an Inquiry2001EST.
Founding Year
25+ Years Industrial Leadership
30,000m²
Manufacturing Facility
Intelligent Production Lines
30,000t
Monthly Output
Scalable Global Project Supply
120+
Export Territories
Over 10,000+ Completed Projects
Custom Contract Manufacturing
End-to-End OEM/ODM Industrial Customization Architecture
Whether supplying private-label rack distributors or engineering proprietary cold-formed upright geometries for multinational logistics projects, HEDA delivers seamless contract manufacturing from raw steel coil slit to containerized sea delivery.
01
Site & Load Audit
Evaluation of seismic zone risk (PGA spectra), slab core test reports, forklift turning radiuses, unit pallet dimensions, and operational SKUs.
02
FEA Simulation
Finite element analysis (FEA) testing upright stability, second-order P-Delta frame buckling, beam end-connector rotational stiffness, and seismic shear.
03
Precision Roll-Forming
High-speed automated punching of tear-drop/hex slot arrays followed by continuous 24-station cold-roll bending for sub-millimeter profile consistency.
04
Surface Passivation
10-stage immersion pickling and phosphating removes mill scale, followed by automated powder coating cured at 200°C for high impact & scratch resistance.
05
Export Bundling & QC
Bundle strapping with corner edge protectors, color-coded beam labels, moisture-barrier wrapping, and weight-balanced sea container stuffing plans.
Industry Whitepaper & Strategic Forecast
Future Procurement Trends: Where Single Deep Racking Is Heading (2026–2035)
As warehousing moves from labor-intensive manual operations toward hyper-automation and sustainability mandates, the procurement of single deep selective racking is evolving rapidly. Engineering buyers must account for three structural transformations.
TREND 01 // AUTOMATION READY
AMR & AGV Bottom-Level Clearance
Autonomous mobile robots (AMRs) and visual SLAM laser-guided automated guided vehicles (AGVs) now demand elevated first-beam elevations and recessed upright footplates. Upright columns increasingly integrate bolt-on sensor housings and high-visibility laser reflectors.
TREND 02 // VNA EXPANSION
Shift Toward Super-Flat VNA Corridors
With industrial land lease costs compounding globally, procurement teams are transforming single deep configurations into Very Narrow Aisle (VNA) systems, slashing aisle clear widths down to 1,650mm while driving vertical rack heights beyond 14 meters on DIN 15185 Superflat slabs.
TREND 03 // SUSTAINABLE METRICS
Low-Carbon Recycled Steel Procurement
Global ESG reporting requires verifiable carbon footprints for warehouse capital goods. Procurement contracts increasingly specify electric-arc furnace (EAF) structural coil steel with certified low embodied carbon and volatile organic compound (VOC)-free thermoset powder coats.
TREND 04 // SMART SENSING
Structural Health & Deflection Telemetry
Next-generation selective rack installations are incorporating continuous IoT strain-gauge micro-sensors and 3D LiDAR impact monitors embedded in aisle upright protectors to flag beam overloading and forklift collision damage in real-time to warehouse management systems (WMS).
Procurement & Engineering Consultation
Frequently Asked Questions on Single Deep Racking Systems
Essential technical guidelines, load certification protocols, and manufacturing parameters for project engineers, procurement managers, and logistics consultants.
What defines Single Deep Racking vs. Double Deep Racking?
Single deep racking organizes pallets one row deep along each side of an operating aisle, guaranteeing 100% immediate selectivity without requiring pallets to be shifted. Double deep racks place pallets two deep, doubling storage density along specific lanes but reducing selectivity to 50% and requiring specialized pantograph reach trucks.
Which international structural engineering codes do you manufacture to?
HEDA structures are engineered in strict compliance with European Norm EN 15512 (Steel static storage systems – Adjustable pallet racking systems), American RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and Australian Standard AS 4084:2023.
How do you calculate safe working beam deflection limits?
Per international industry standards, allowable beam vertical elastic deflection under fully rated uniformly distributed load (UDL) must not exceed 1/200th of the clear beam span (L/200). For automated retrieval systems or sensitive pallet loads, HEDA can engineer stiffer profiles achieving L/300 deflection tolerances.
Can your selective racking accommodate seismic ground accelerations?
Yes. Our structural engineering department analyzes site-specific Peak Ground Acceleration (PGA) values, soil class coefficients, and structural response factors. We size heavy-duty baseplates, reinforce diagonal bracing patterns, and specify chemical anchoring depths to satisfy regional seismic building codes.
What surface finish options are recommended for coastal or cold storage?
For dry ambient warehouses, our 10-stage chemical pre-treatment and electrostatic epoxy-polyester powder coating (70–100 microns) offers excellent durability. For sub-zero blast freezers, ambient humidity exceeding 80%, or seaside distribution centers, we strongly recommend continuous hot-dip galvanization (HDG per ISO 1461) to eliminate corrosion risks.
What is your minimum order quantity (MOQ) and lead time for OEM projects?
Standard OEM/ODM orders typically start from one 20ft container (approx. 15–18 tons of steel profiles). Custom toolings, specialized punch pitchings, and private-label embossing can be accommodated. Standard factory lead time ranges from 15 to 25 business days from final approved CAD sign-off.
What essential data is required to generate a custom warehouse layout?
To deliver a certified CAD layout and load matrix, we request: (1) Warehouse architectural drawings showing clear heights, column grids, and doors; (2) Pallet dimensions (W x D x H) including overhang and maximum unit weight; (3) Forklift model, mast collapsed height, and turning aisle radius (AST); and (4) Operating environmental conditions.
Do you offer on-site installation guidance or remote engineering oversight?
Every project includes serialized 3D isometric installation drawings, step-by-step assembly manuals, and comprehensive component lists. For large-scale multi-tier installations, HEDA can deploy senior installation engineers on-site for erection oversight, laser alignment verification, and final compliance sign-off.
