Featured Product Line

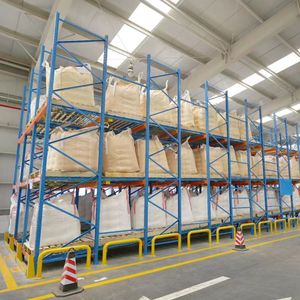

High-Performance Modular Racking & Pick Systems
Engineered to maximize vertical cubic volume across tight warehouse footprints, urban fulfillment micro-hubs, and distributed store backrooms.
Whitepaper & Technical Analysis
Small Pallet Racking: Engineering Architecture & Procurement Insights
A technical guide for global logistics architects, operations managers, and facility engineers scaling decentralized warehouse nodes.
1. The Structural Physics of Small Pallet Racking in Modern Logistics
While macro distribution hubs prioritize super-tall structural frameworks reaching upwards of 30 meters, the current wave of supply chain decentralization has precipitated an unprecedented demand for precision-engineered small pallet racking systems. Defined fundamentally as modular industrial storage frameworks operating between 2.5 meters and 6.0 meters in total height with payload capabilities calibrated between 500 kg and 2,000 kg per level, small pallet racking resolves the physical spatial constraints typical of urban micro-fulfillment depots, regional cross-dock stations, retail storage backrooms, and localized spare-parts caches.
Under European Standard EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and CE Certification No. 2435-CPR-8605159, compact racking profiles cannot simply be manufactured as downscaled standard structural beams. The structural integrity relies heavily upon the torsional stiffness of the cold-rolled omega-profile uprights and the locking mechanics of beam-end connectors. Because lower-height systems frequently operate in environments requiring manual hand-pallet truck interface or narrow-aisle stackers, dynamic side-impact loads, point loading stresses, and horizontal deflection coefficients dictate higher safety factor margins than isolated tall warehouse bays.
2. Engineering Matrix: Comparing Compact Storage Configurations
| System Architecture | Typical Payload / Level | Space Utilization | Handling Machinery Compatibility | Primary Industrial Use Case |
|---|---|---|---|---|
| Selective Small Racking | 800 kg – 2,500 kg | 40% – 50% | Counterbalance, Reach Truck, Stacker | Multi-SKU Retail Backrooms, Fast-Pick Nodes |
| Mini Push-Back Racks | 500 kg – 1,200 kg | 65% – 75% | Standard Reach Truck, Walkie Stacker | Cold Storage Ante-rooms, High-Value Lot Sorting |
| Compact Drive-In Racks | 1,000 kg – 1,500 kg | 75% – 85% | Narrow-Chassis Electric Forklift | Seasonal Agro-export, Bulk Beverage Staging |
| Rack-Supported Mezzanines | 300 kg – 1,000 kg/m² | 85% – 95% | Hand Trucks, Conveyor Carts, Put Walls | Apparel Fulfillment, Automotive Spare Parts |
3. Future Procurement Trends Shaping 2026–2030 Global Orders
Procurement directors and commercial importers evaluate several structural factors when acquiring small pallet racking from premier export manufacturers:
A. Decoupled Supply Networks & Sub-Urban Micro-Hubs: Accelerated quick-commerce mandates rapid pallet turnaround within 15-minute dispatch radiuses. Industrial properties in high-density corridors frequently present ceiling height limits of under 5 meters with low floor slab load tolerances (e.g., 20–30 kN/m²). Racking frames must therefore utilize widened base plates engineered with finite element analysis (FEA) to distribute point loads safely across municipal commercial grade slabs.
B. Autonomous Mobile Robot (AMR) & AGV Floor Integration: Traditional racking relies exclusively on forklift aisle clearances. Emerging procurement requests specify integrated clearance under bottom-tier beams, enabling low-profile AMRs to travel underneath lower rack tiers without sacrificing selective pallet storage levels.
C. Corrosion Resistance in Severe Microclimates: Small pallet systems are often situated in non-climate-controlled regional buffer warehouses near coastal shipping hubs or humid equatorial zones. Standard spray enamel deteriorates rapidly under condensing humidity. Modern specifications demand full industrial surface preparation: acid pickling, automated phosphating, and heavy electrostatic polyester powder coating cured at 200°C, providing salt-spray endurance exceeding 500 hours.
Industrial Advantages
Why Enterprise Buyers Partner with HEDA Shelves
Delivering audited precision, structural accountability, and custom export engineering across the Americas, Europe, Africa, and Southeast Asia.
⚙️
25-Year Full-Chain Production
Founded in 2001, Guangzhou Heda Shelves operates a specialized 30,000 m² smart production center. Controlling raw steel slitting, precision cold roll-forming, automated CNC punching, and robotic welding under ISO 9001:2015 supervision ensures absolute dimensional repeatability.
📐
Free 3D Layout & Seismic FEA
Our in-house structural engineering department generates full 3D CAD architectural models, spatial efficiency heatmaps, and seismic load deflection calculations at zero initial charge, ensuring compliance with local municipal building regulations prior to fabrication.
🛡️
CE Certified Structural Integrity
Backed by official CE Certificate No. 2435-CPR-8605159 and RoHS compliance, all cold-formed uprights and load-bearing beams undergo third-party laboratory yield, tensile, and shear stress testing to guarantee rated payloads with standard 1.5x to 1.8x structural safety margins.
🚢
Container-Optimized Global Export
With shipments completed to over 120 nations, every racking package is bundled with automated steel strapping, impact corner guards, moisture-barrier wrapping, and color-coded piece marks matching the container packing list to ensure streamlined customs clearance and rapid on-site erection.
Procurement FAQ
Frequently Asked Questions on Small Pallet Racking
Essential guidance addressing engineering standards, container transport dynamics, seismic engineering, and installation protocols.
What structural load capacity distinguishes small pallet racking from light duty shelving?
Small pallet racking is engineered explicitly for unitized cargo stored on wooden, plastic, or metal pallets with fork-pocket handling. Load capacities range from 500 kg to 2,500 kg per beam level. Light-duty industrial shelving typically supports 100 kg to 300 kg per tier and relies on hand-loaded cartons or bins without dedicated dynamic fork-impact safety lock pins.
How do your engineers verify racking compliance in seismically active regions?
Using floor slab parameters, foundation thickness, and ground motion coefficients (such as PGA values), our structural team conducts dynamic finite element modal analyses. For seismic sites, we supply enlarged ductile steel base plates, heavy-duty floor chemical wedge anchors, and double-diagonal column bracing systems to absorb vibrational shear forces.
What surface treatment is best suited for humid, coastal, or refrigerated environments?
Standard indoor warehousing benefits from our 10-stage automated electrostatic powder coating. For cold storage blast rooms (temperatures below -20°C) or open-sided coastal transit warehouses exposed to saline moisture, we provide continuous hot-dip galvanized (HDG) steel components according to EN ISO 1461, ensuring lasting galvanic corrosion defense.
What primary site data is required to generate an accurate 3D CAD proposal?
To produce an optimized layout within 24 hours, provide: building internal perimeter dimensions, clear height under roof joists, concrete slab load limit, column grid positions, pallet dimensions (W x D x H including overhang), maximum gross pallet weight, and the turning radius/lift mast specifications of your handling forklifts.
How does HEDA handle international container packing to minimize freight damage?
Uprights and beams are grouped into rigid structural bundles using steel strapping and heavy composite corner angle boards. Beams are nested with interlocking spacers to prevent paint abrasion. All fasteners, base plates, shims, and safety locking pins are crated in labeled seaworthy plywood boxes with complete piece-mark verification.
Can your small pallet racking integrate directly with mezzanines and picking walls?
Yes. Our modular upright punch spacing allows uprights to extend vertically into multi-tier pick towers or support structural mezzanine decking over existing pallet positions. This architecture allows simultaneous bulk pallet buffering on bottom tiers while facilitating manual carton order-picking or put-wall fulfillment overhead.
